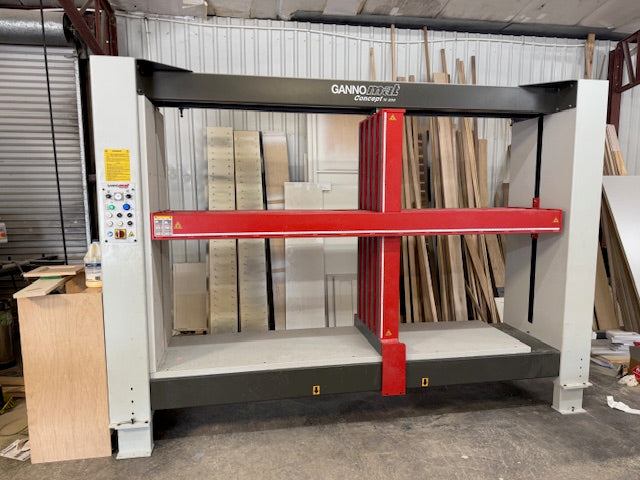

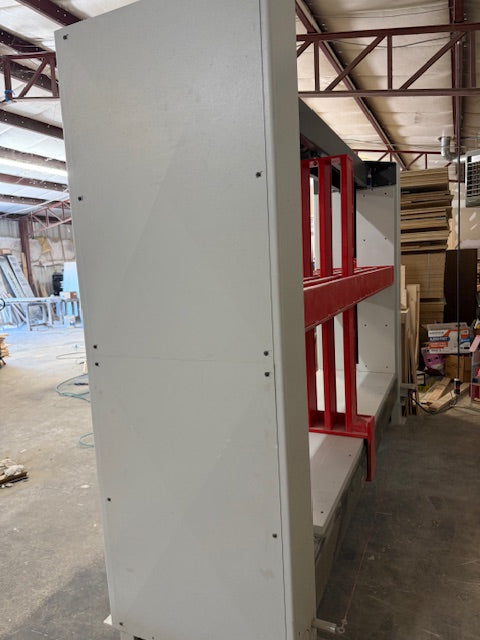

2023 Gannomat Concept 70 ECO Plus interlocking lamellar case clamp located in Tennessee. Seller describes this machine as being in excellent used condition. Call iBiD Machinery at (678) 925-3556 for current availability, inspection and loading details.
Machine overview
The Concept 70 ECO Plus is designed for controlled assembly and pressing of dowel-constructed case goods and drawers. Its adjustable pressure and multiple motion speeds allow the operator to clamp different cabinet sizes while compensating for workpiece tolerances.

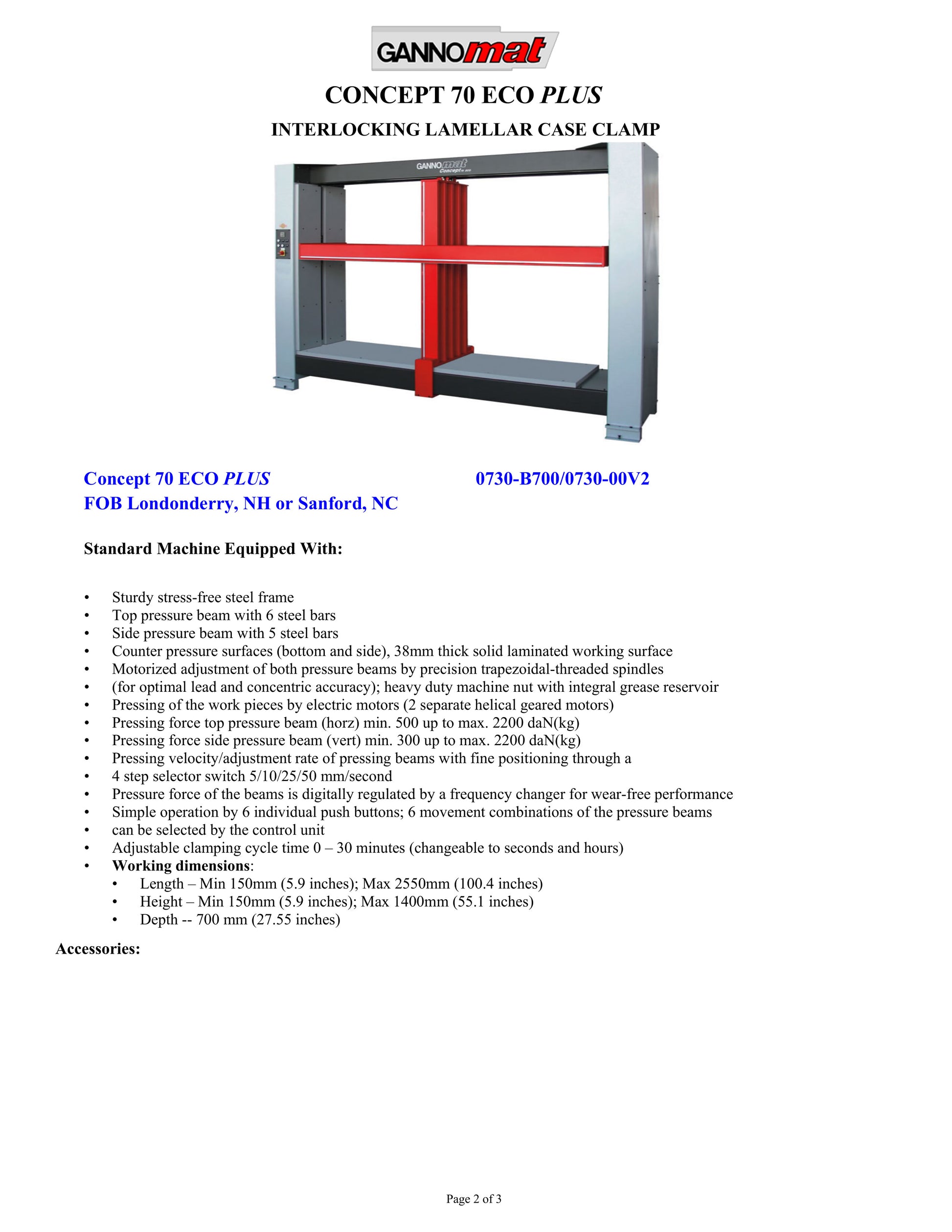

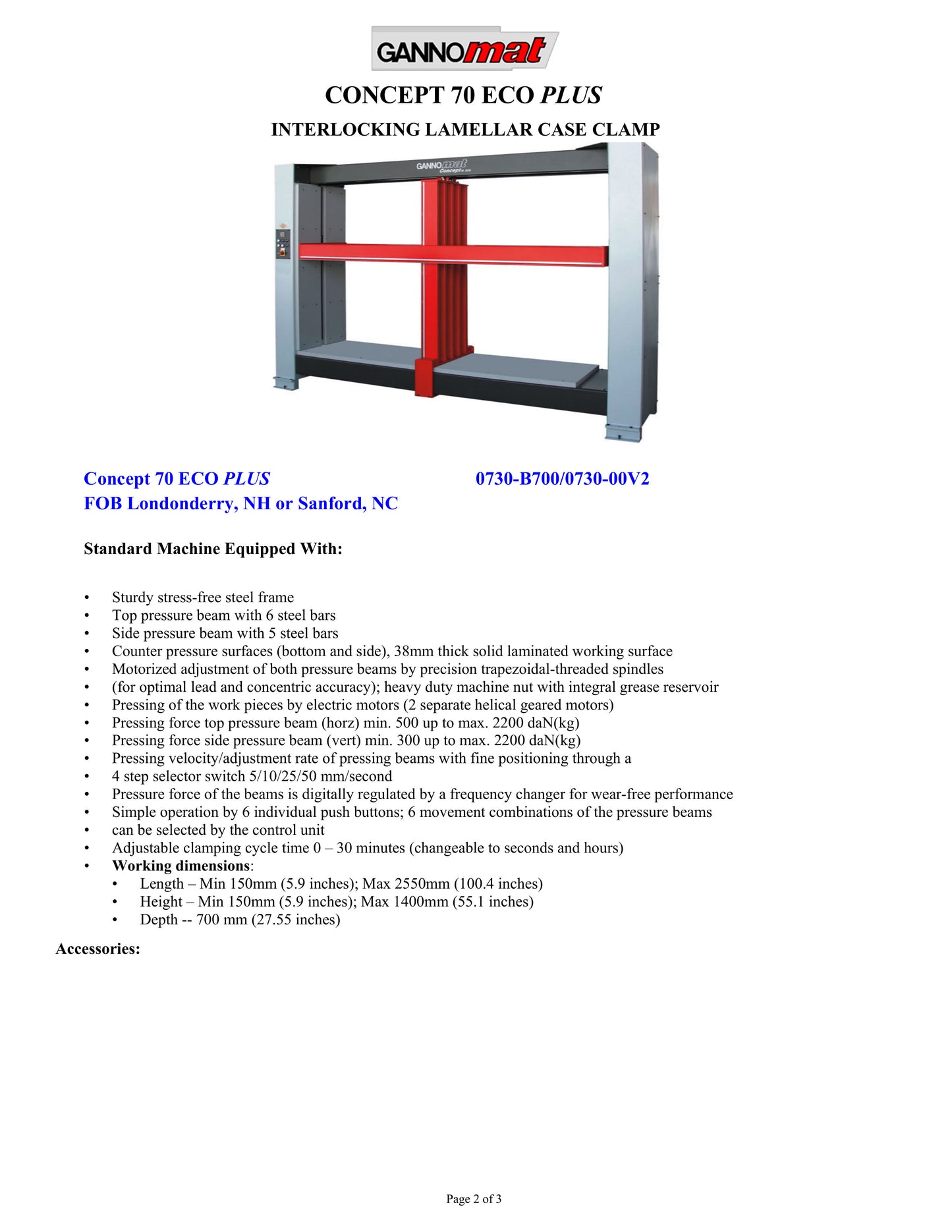

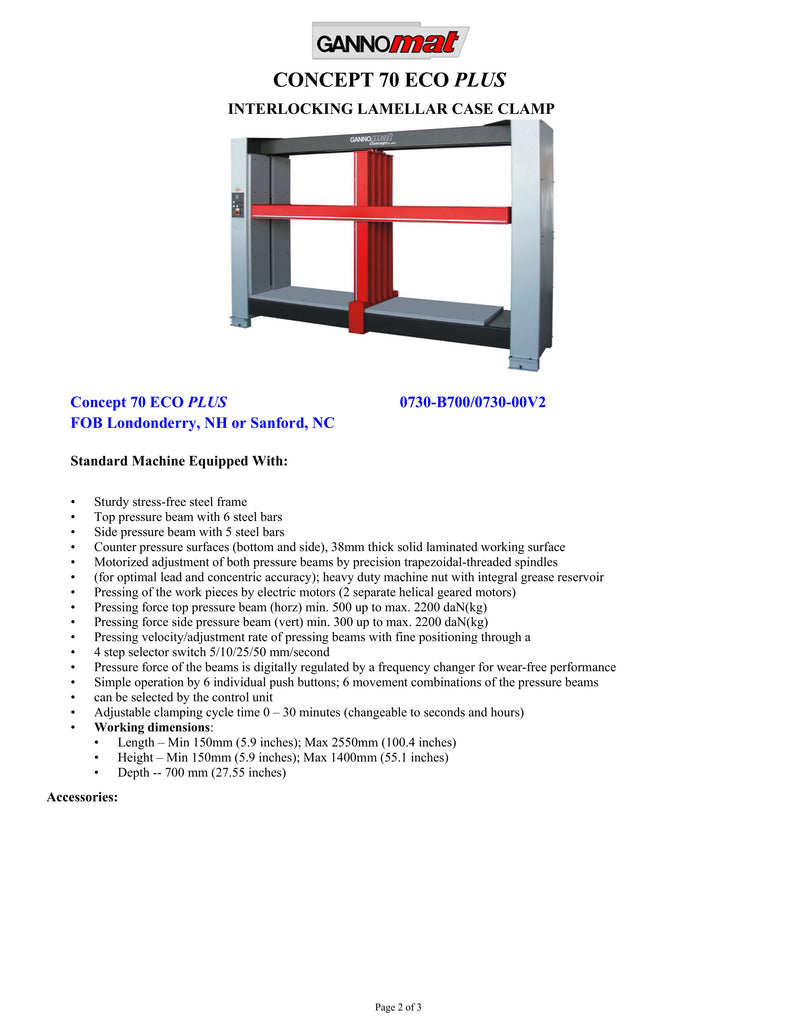

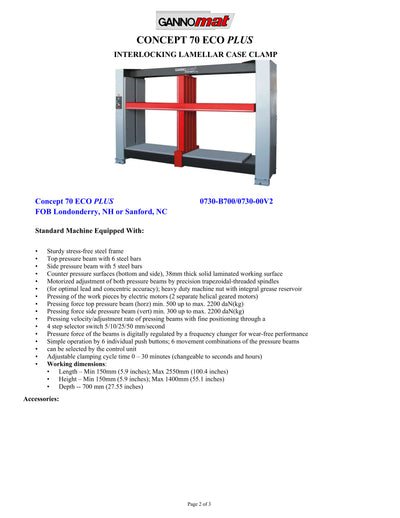

Manufacturer model-reference specifications
- Standard work length (X): approximately 150-2,500 mm
- Standard work height (Z): approximately 150-1,300 mm
- Work depth (Y): approximately 150-700 mm
- Adjustable pressing force with published maximum approximately 2,200 kg
- Published minimum pressing-force settings approximately 300/500 kg
- Four pressing / adjustment speeds: approximately 5 / 10 / 25 / 50 mm/sec
- Fine-positioning / creep-feed capability
- Adjustable clamping cycle with automatic opening
- Workpiece tolerance compensation (Ganner system)
- Longer X-axis versions were available as options
What to confirm on this machine
Confirm the exact working dimensions, voltage, control configuration, lamellar/interlocking equipment, pressing beams and any optional extensions or accessories installed on this 2023 machine.
*Model-reference specifications are provided to the best of iBiD Machinery's knowledge from available manufacturer information and other credible technical references. Actual machine configuration, options, dimensions and capabilities may vary by year, serial number and installed equipment. Buyer should independently confirm all specifications and inspect the machine before purchase.
Product Description:
Machine Location State: Tennessee
Machine Location City: Cookeville
Year: 2023
Make: Gannomat
Model: Concept 70 ECO Plus Interlocking Lamellar
Serial No: 1220.348

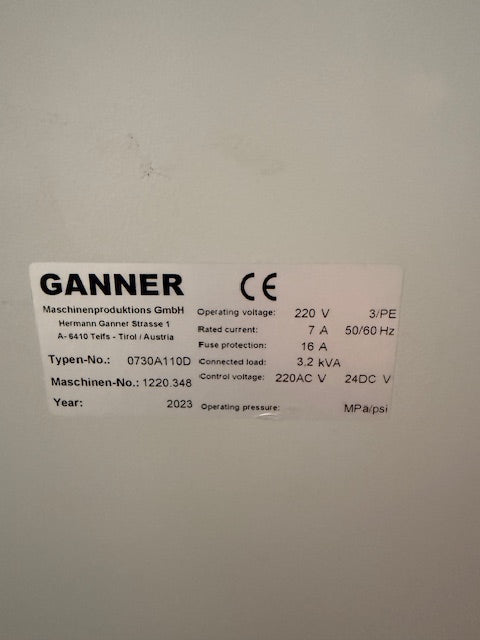

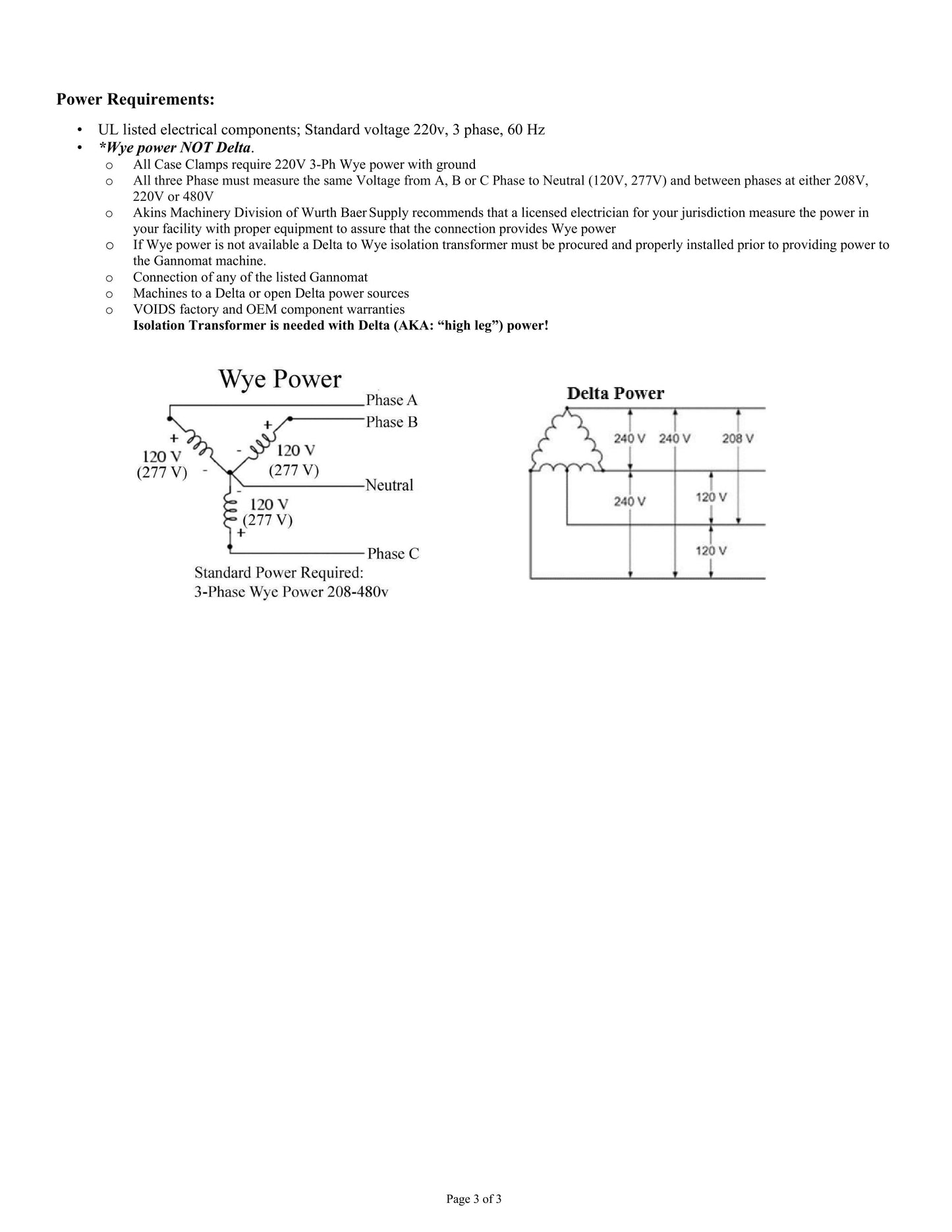

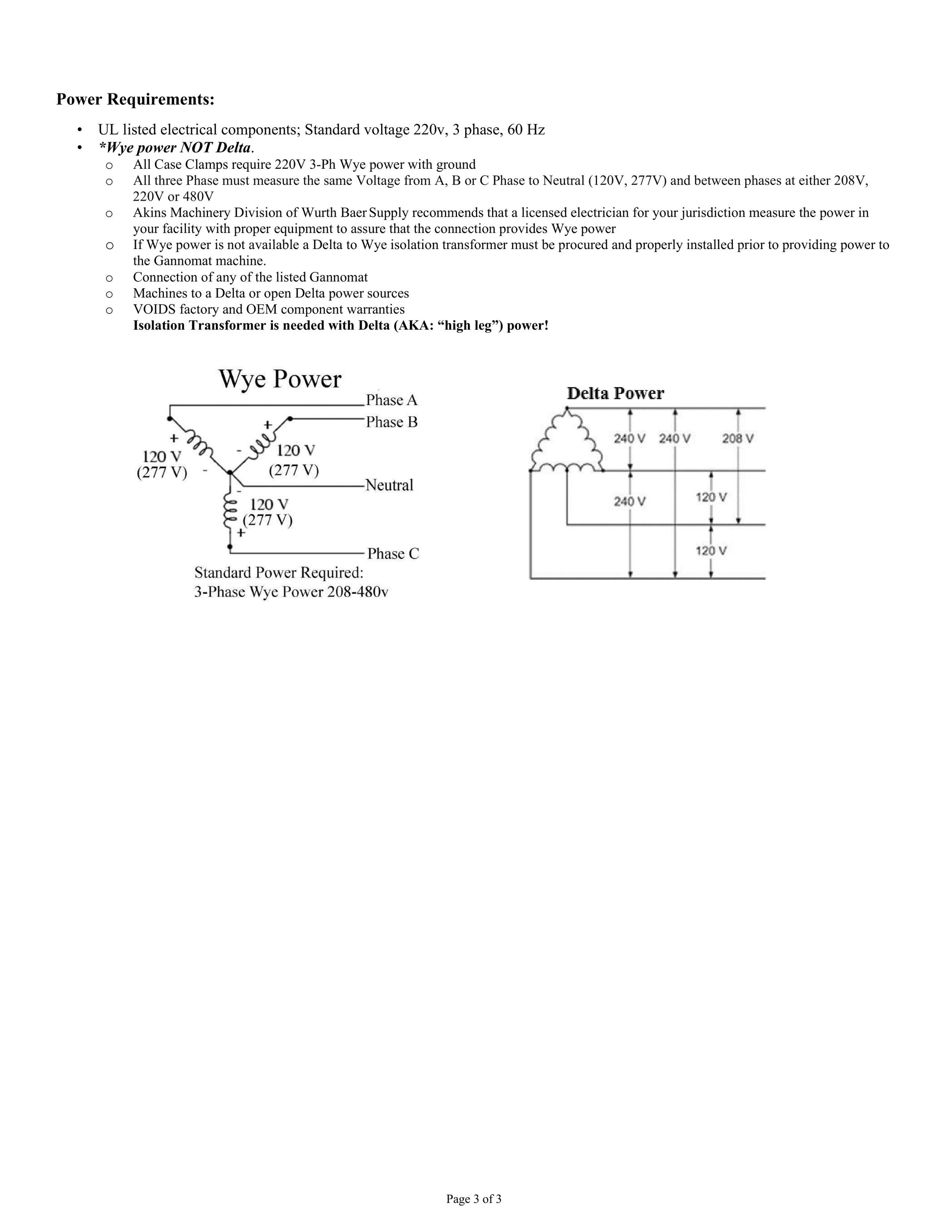

Phase/Voltage: 220V 3PH See plate in photos
Condition: Excellent Used Condition
Any Known Issues: No
In Production: Yes
Software transfers with machine: Clamp
Access to Forklift for Loading: Yes
Loading Fee: No
Shipping Dimensions:
Shipping Weight: 3200 lbs approx
Shipping Brackets Available:
