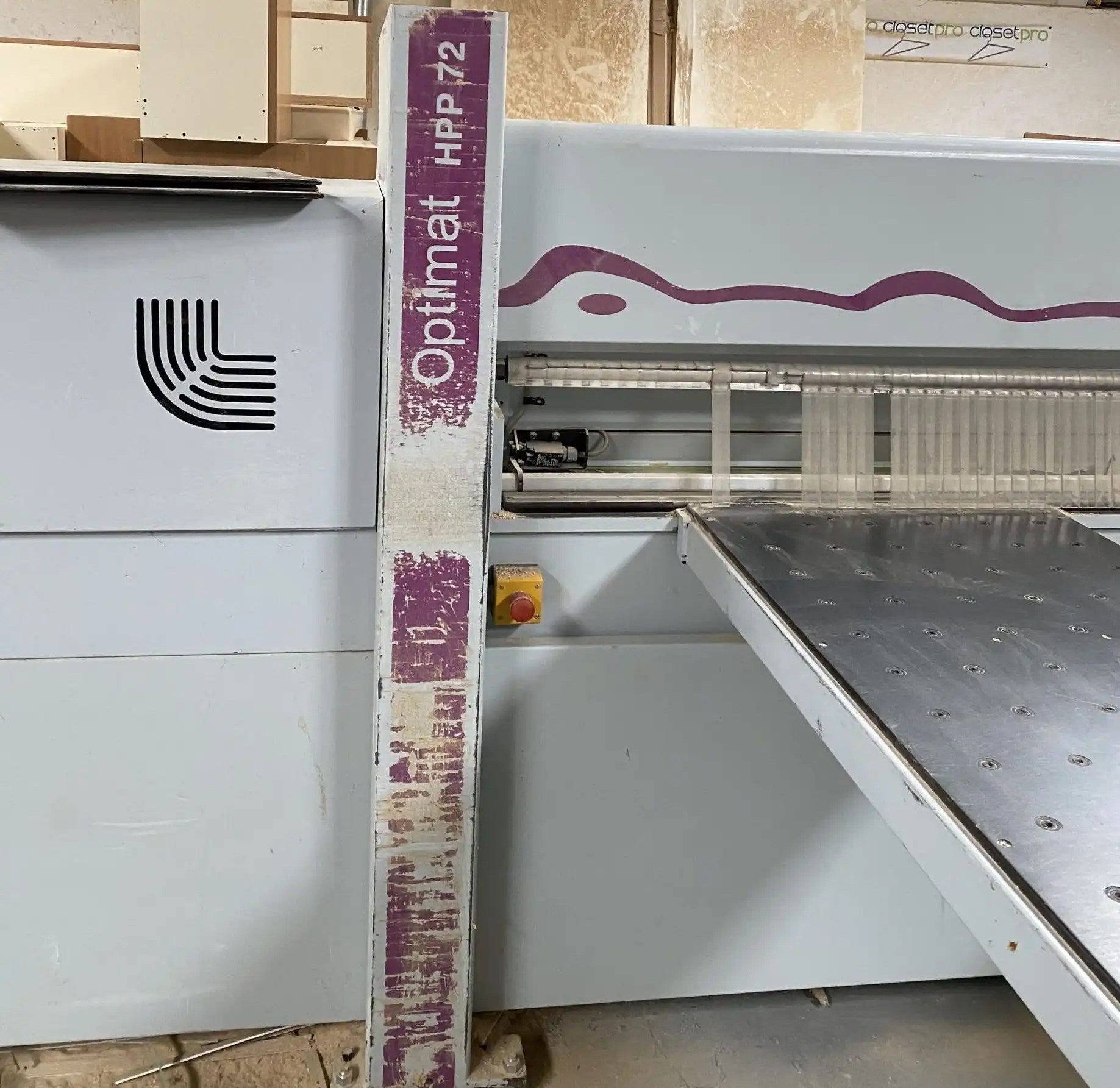

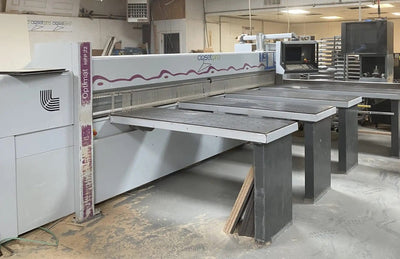

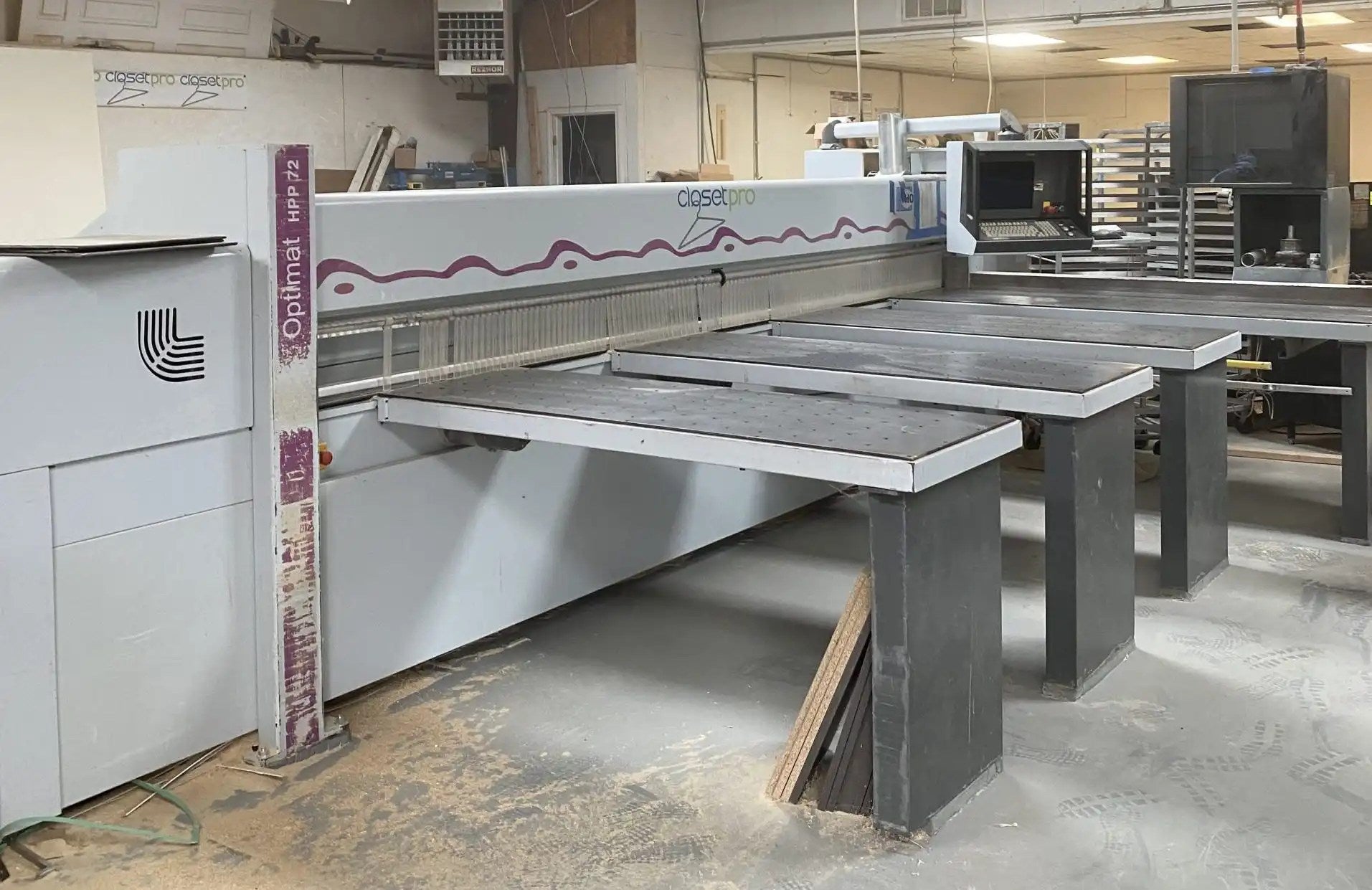

HOLZMA HPP-72 CNC Panel Saw

Manufacturer: HOMAG Brand: Holzma Model: HPP-72 4300
Out of stock
$7,500.00 USD

Freight is not included in the machine price. iBiD Machinery will quote freight separately through our machinery freight broker.

How can iBiD help with this machine?

Questions about condition, specifications, loading, or fit? Ask iBiD directly, find a similar machine, or research the model.

Find a similar machine Sell one like this
Research & buying resources
Research this make & model Read the buying guide Research sold history

Your contact details are sent privately to iBiD and are not shown on the product page.

Product Description: HOLZMA HPP-72 CNC Panel Saw



Specifications: -- 169" (4,300 Mm) Rip Cutting Cap., 3.1" (79 Mm) Max. Saw Blade Projection.

12 HP Main & 2.2 HP Scoring Motor.

Variable Saw Carriage Travel Speed From 0 - 426 FPM (0 - 130 MPM), Constant Return Of 426 FPM (130 MPM).



Electronically Controlled Overhead Program Fence, Rack & Pinion Driven On Both Sides; Forward Speed 264 FPM (80 MPM), Return Speed 264 FPM (80 MPM) Via AC Servo Motor

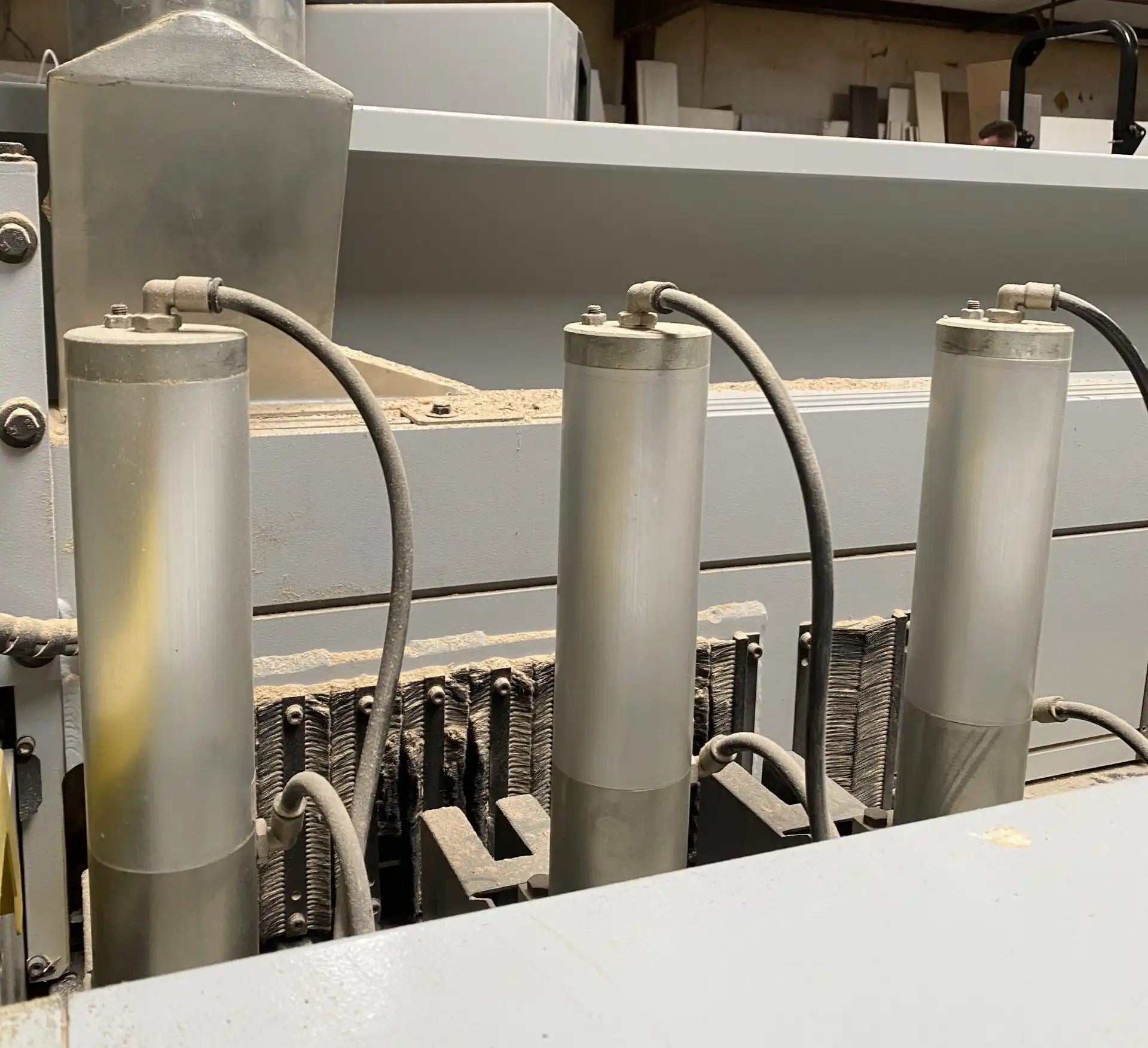

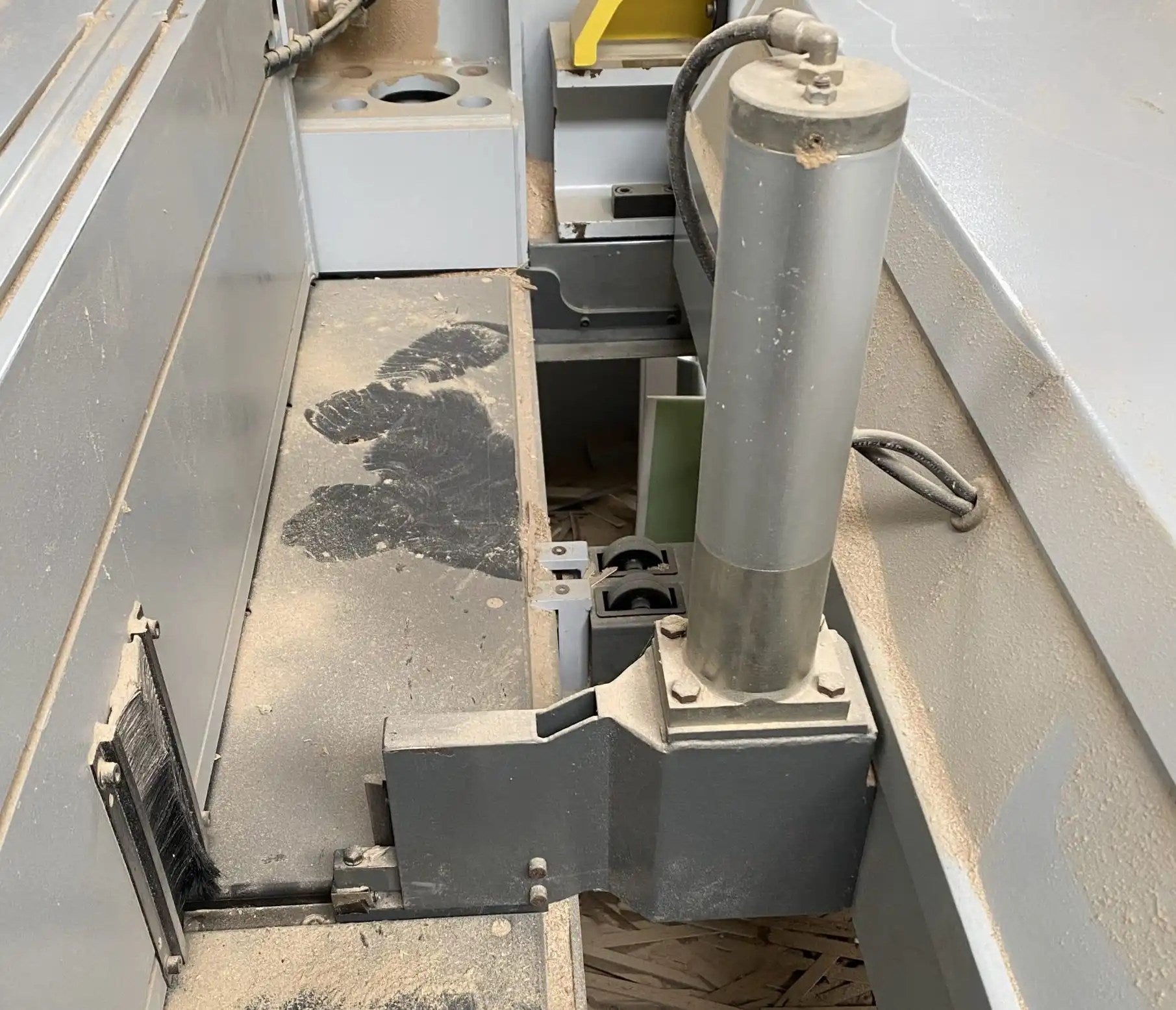

Equipped With (6) Gripper Clamps Which Open Up To 3.7" (95 Mm).

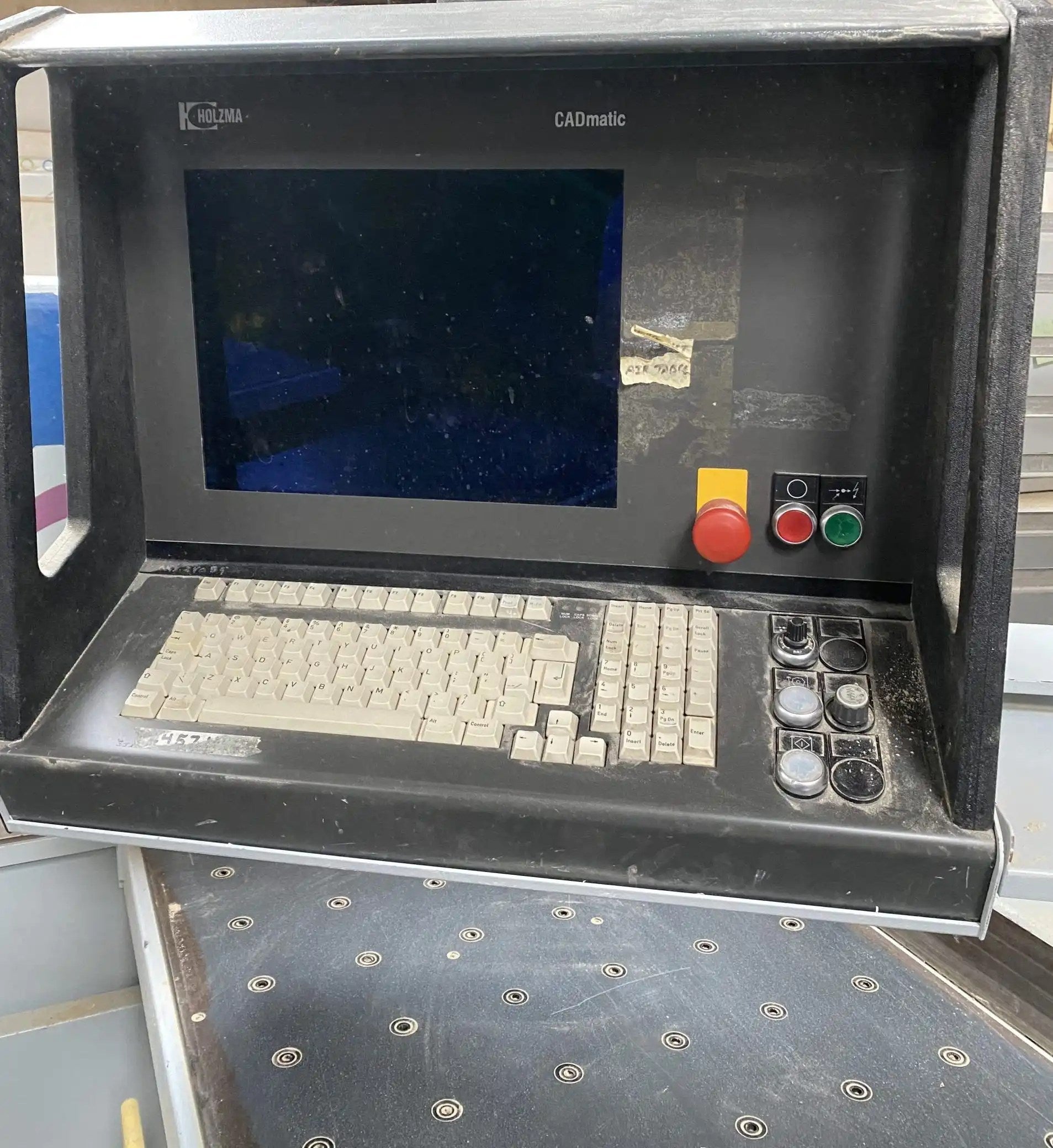

PC Front End With: HOLZMA "CADMATIC" Version 3.0 Operating System.

15" Color Monitor W/Moving Graphics & Numeric Display; Keyboard & Mouse; 1.44MB Disk Drive; Online Operation Via RS-232 Port Linked To Office PC Is Possible.

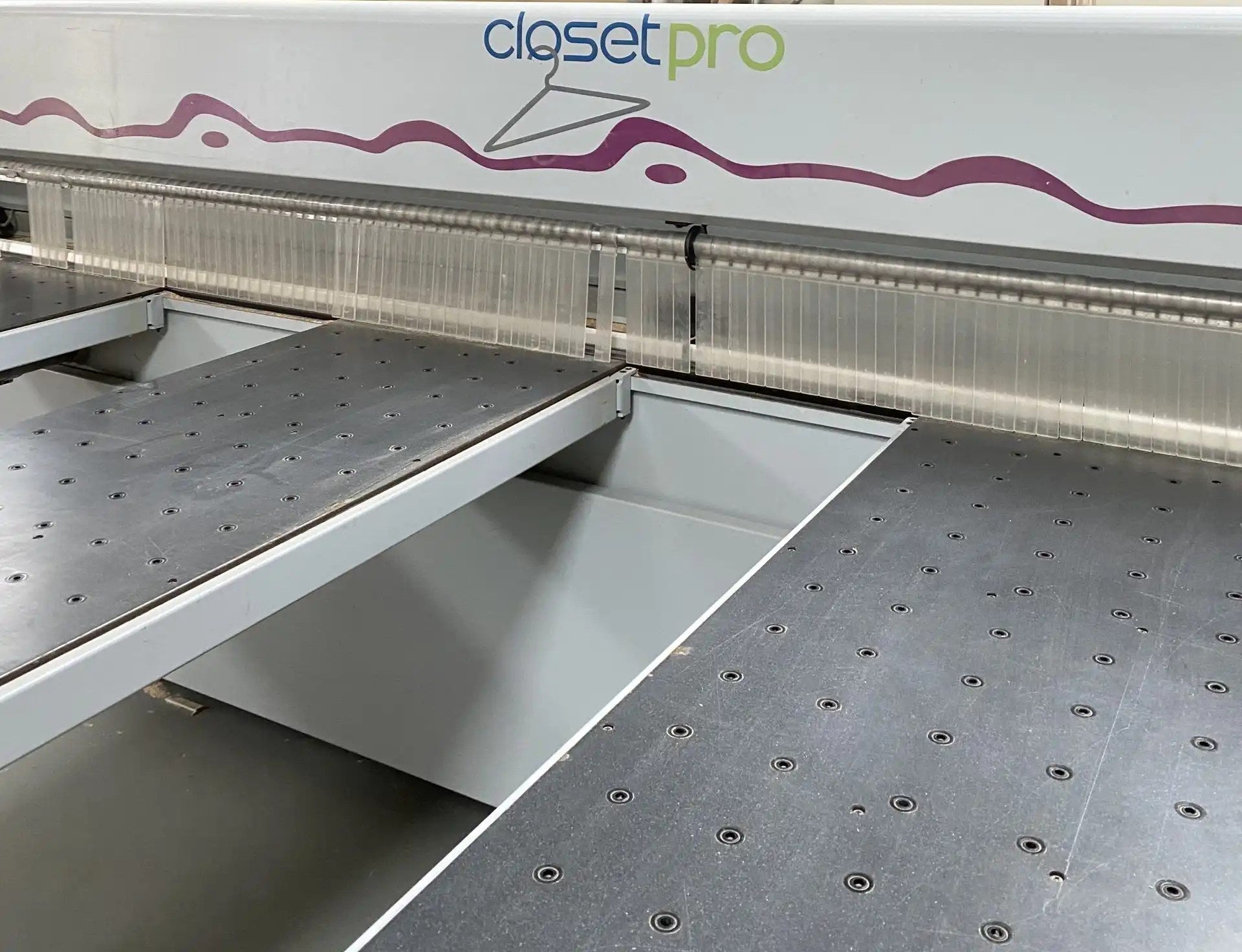

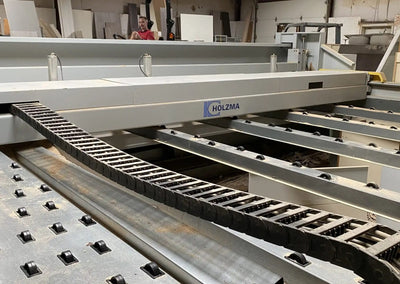

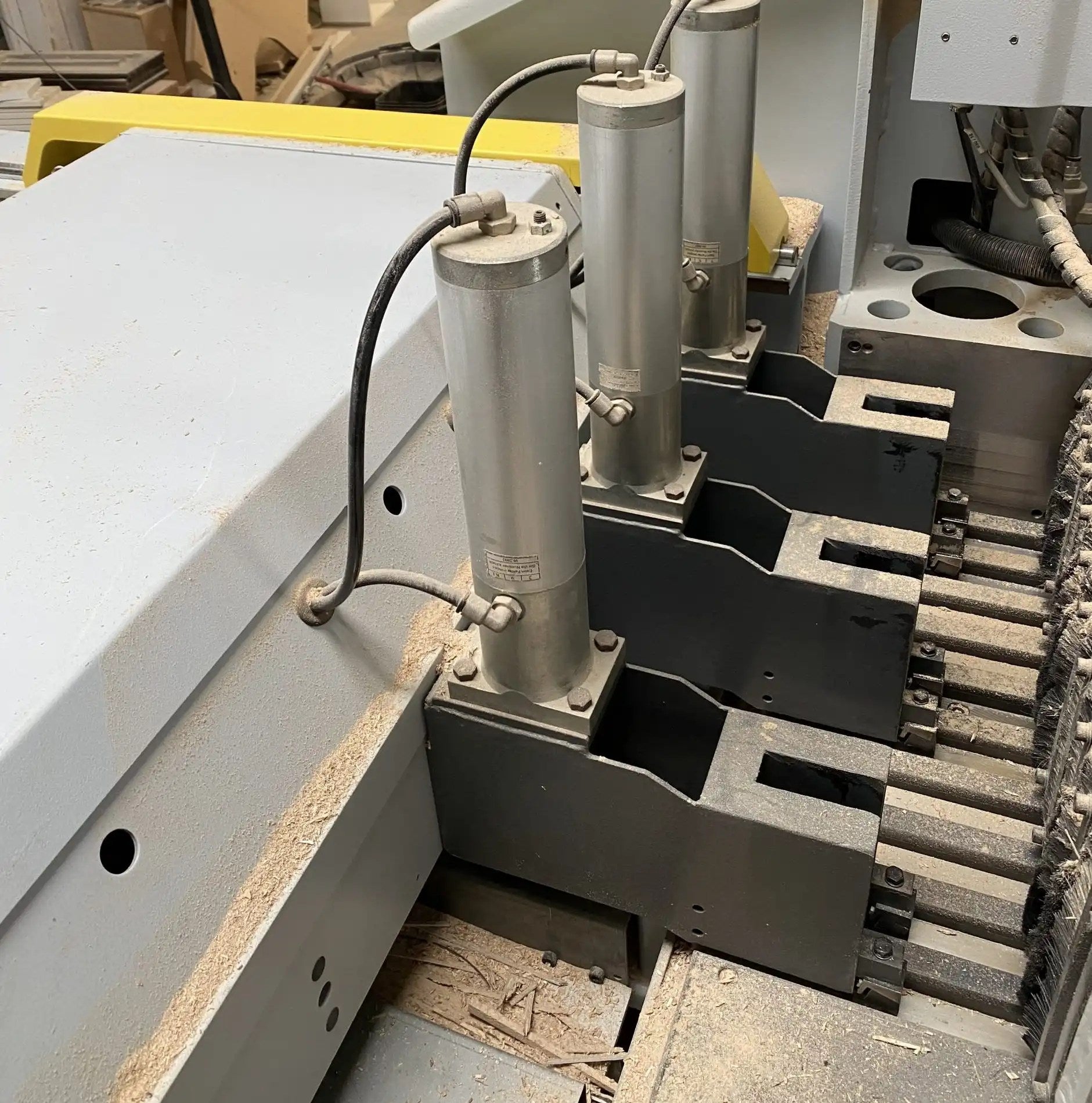

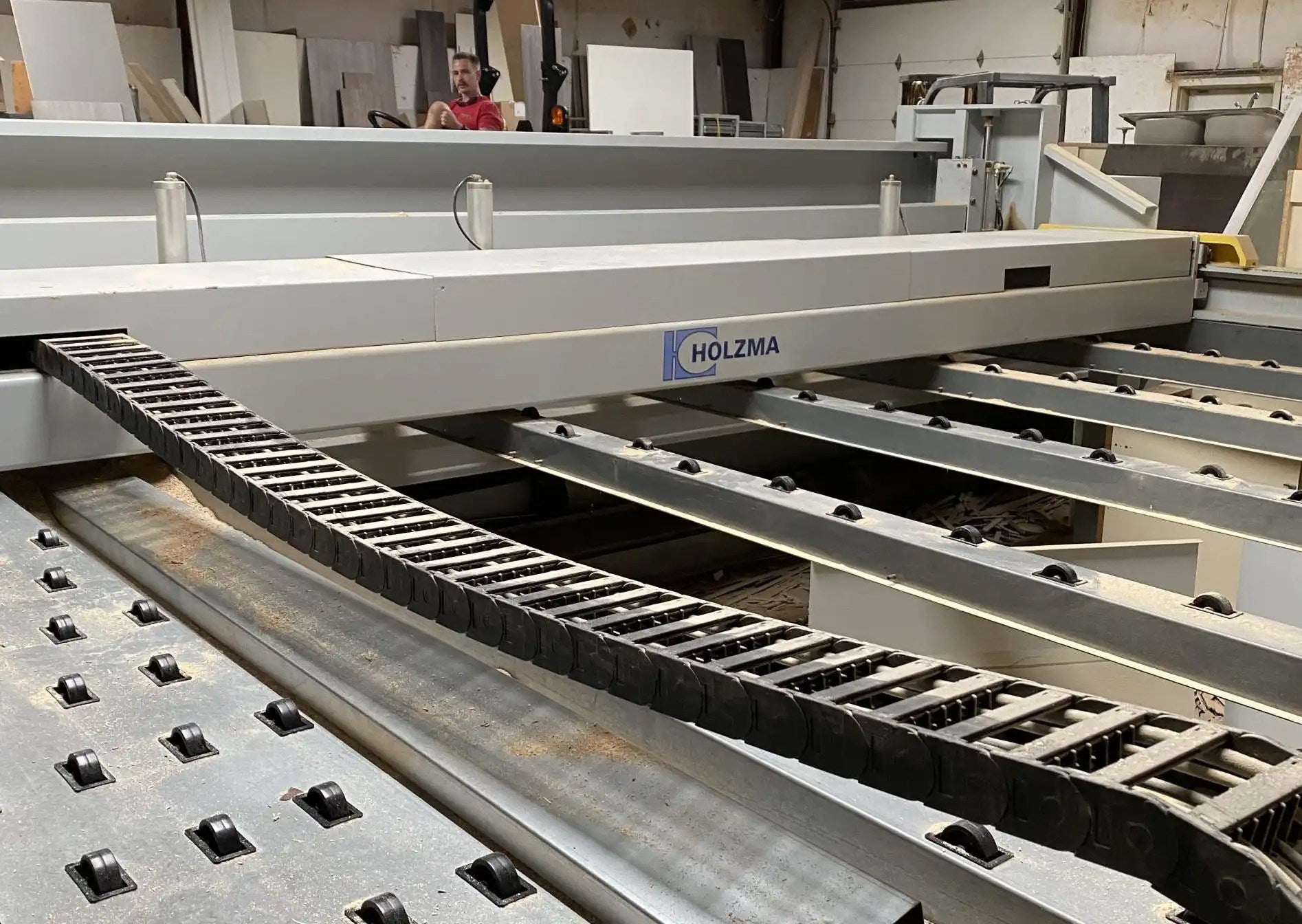

Rear Machine Table With Combi-Roller Profile Rails; Front With (4) Air Floatation Tables; Cross-Cut Fence; Automatic Side Pressure Device For Cross-Cutting 1.96" (50 Mm) Min & 95" 2,413 Mm) Max. Stroke.

Model # HPP 72/43

Machine Location State:

Machine Location City:

Year: 2002

Make: HOMAG

Model: HPP-72 4300

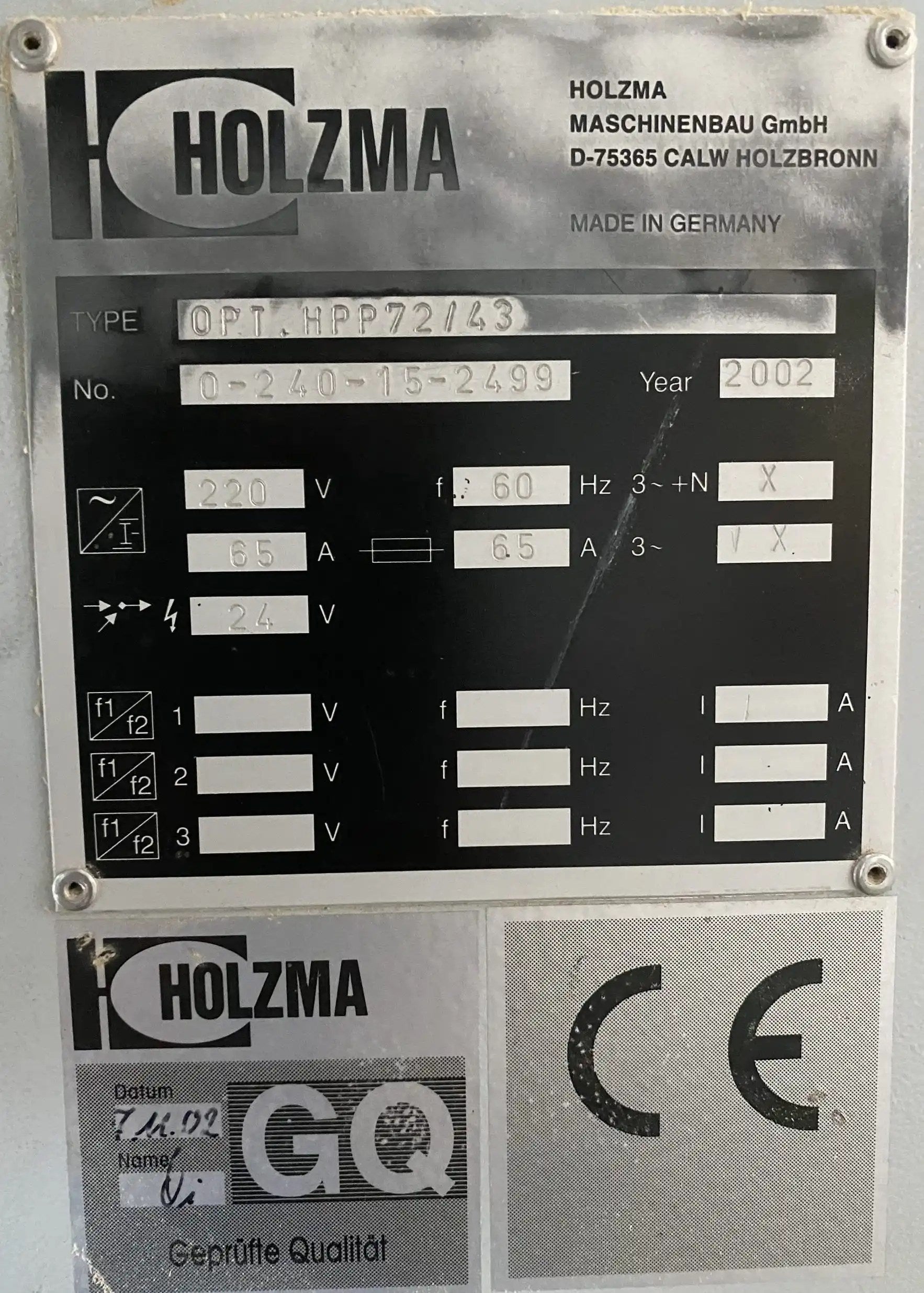

Serial No: 0-240-15-2499

Phase/Voltage: 3/220

Condition: Good

Any Known Issues:

In Production:

Software transfers with machine:

Access to Forklift for Loading:

Loading Fee:

Shipping Dimensions:

Shipping Weight:

Shipping Brackets Available:
