2005 Gannomat Express RTA 802 Boring and Insertion Machine - Wisconsin

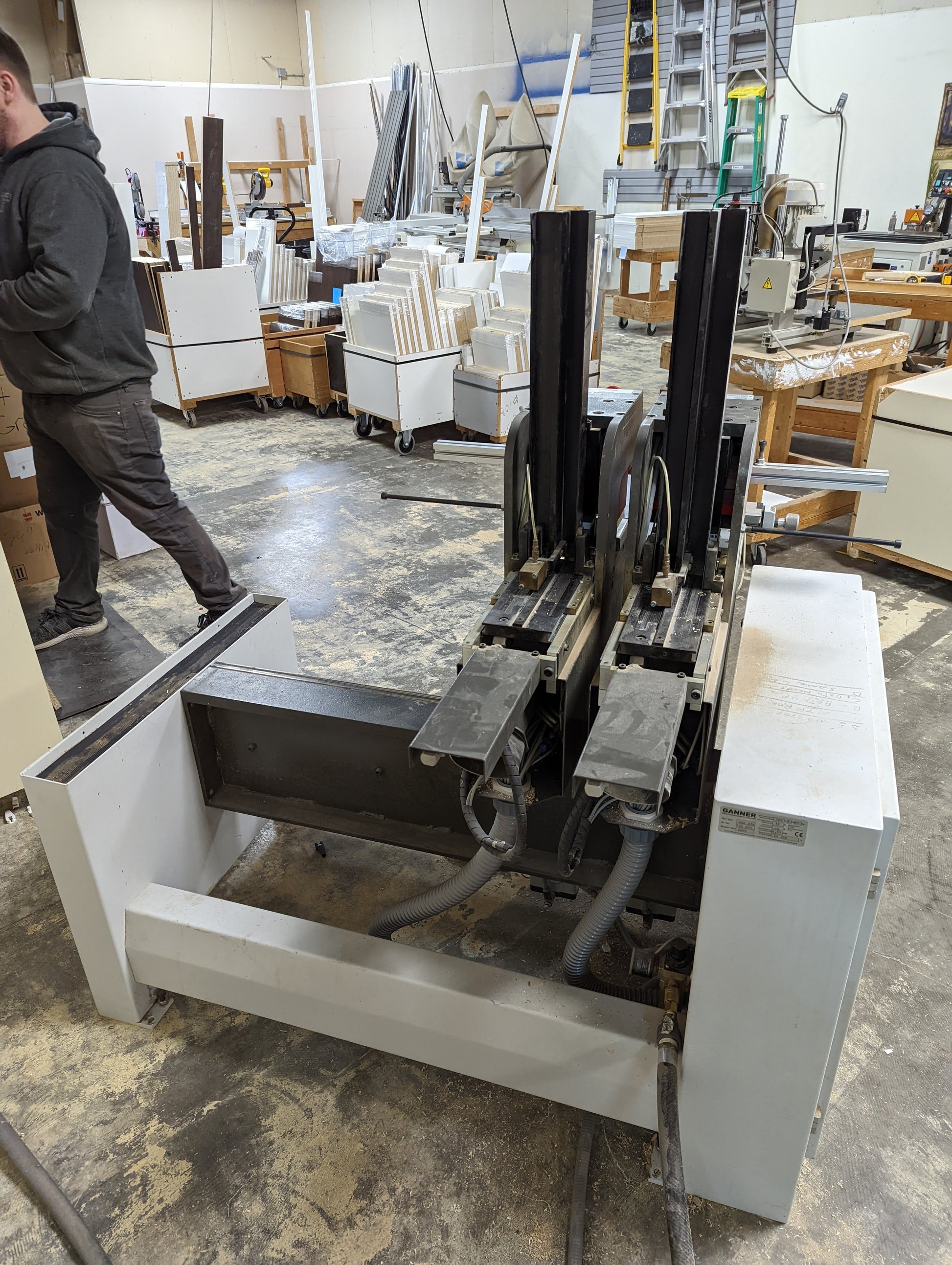

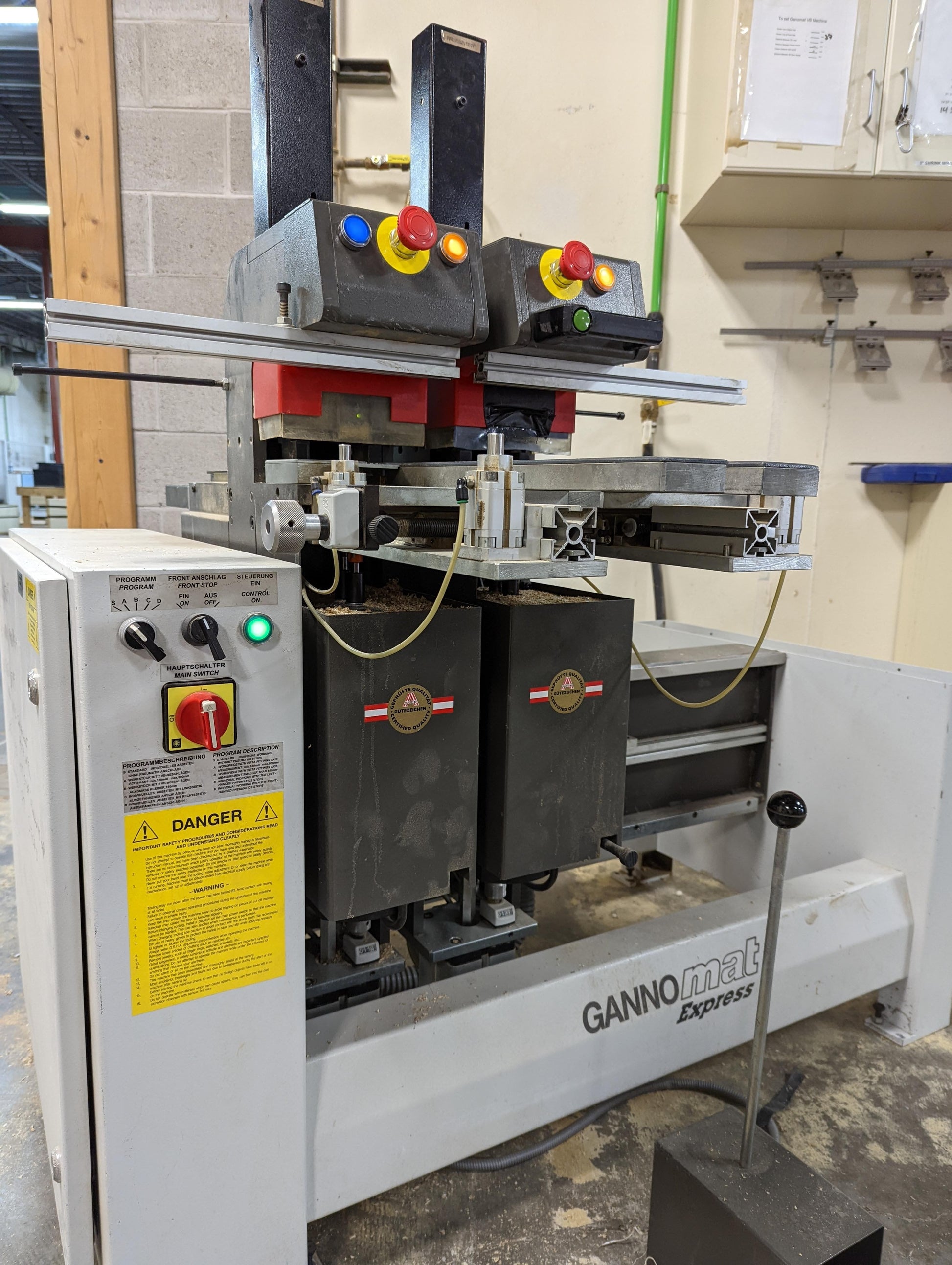

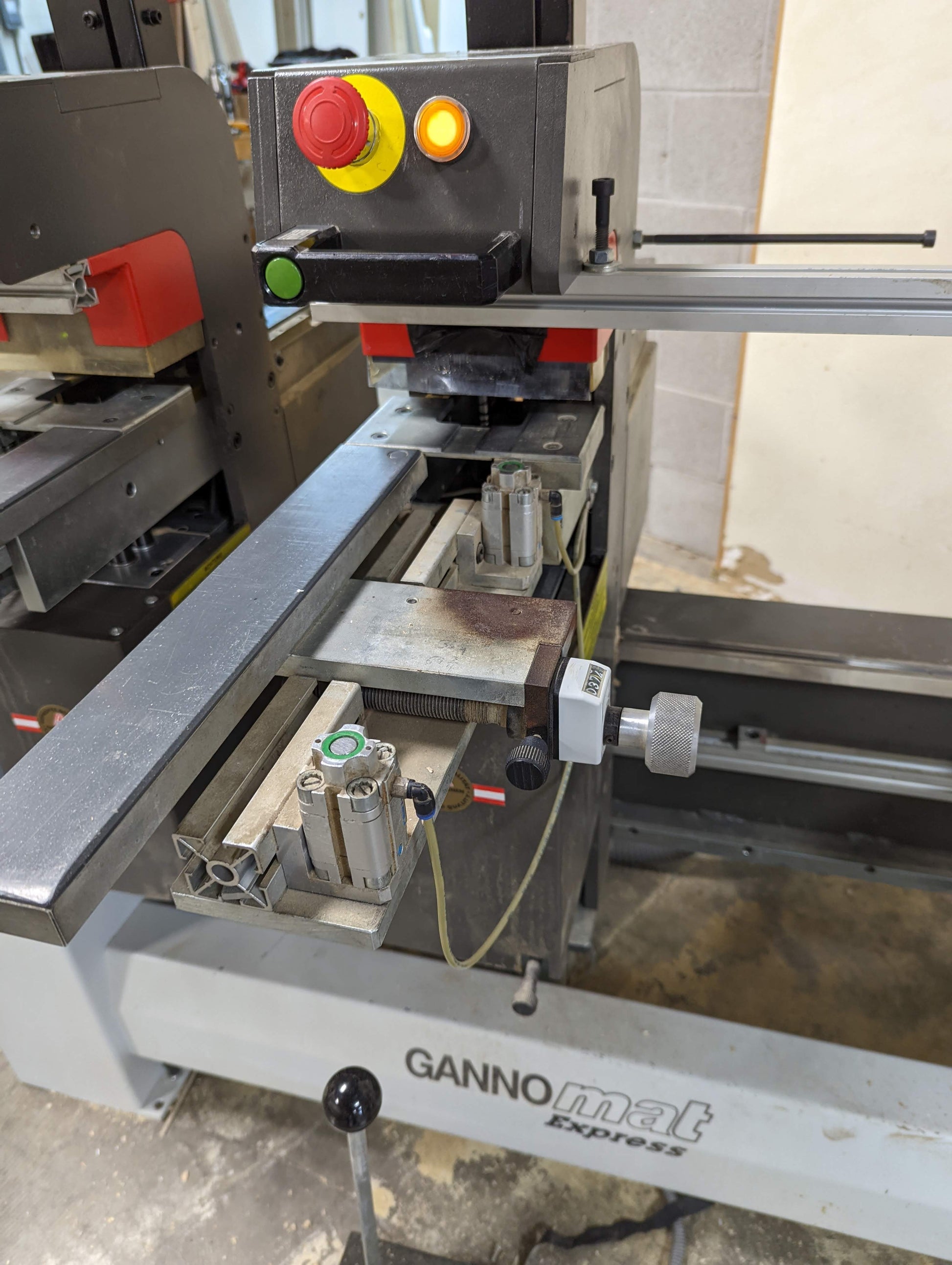

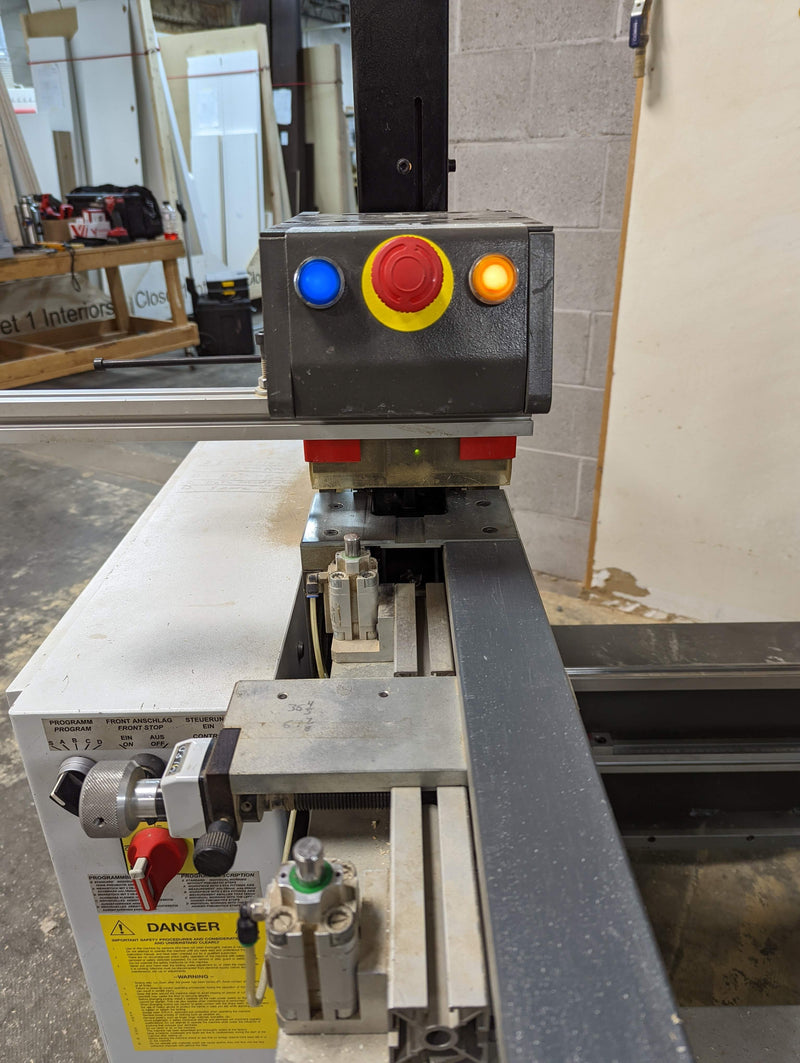

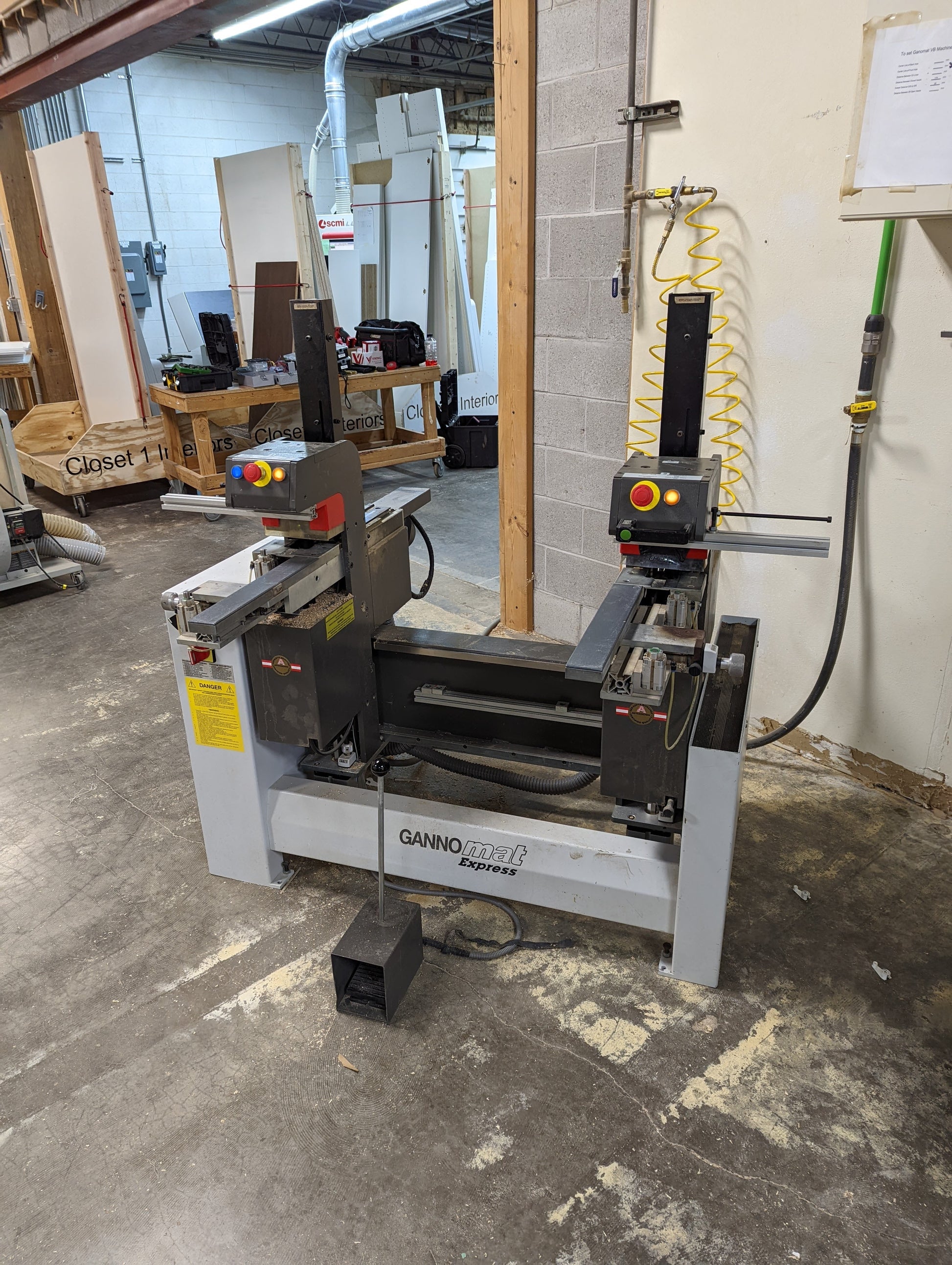

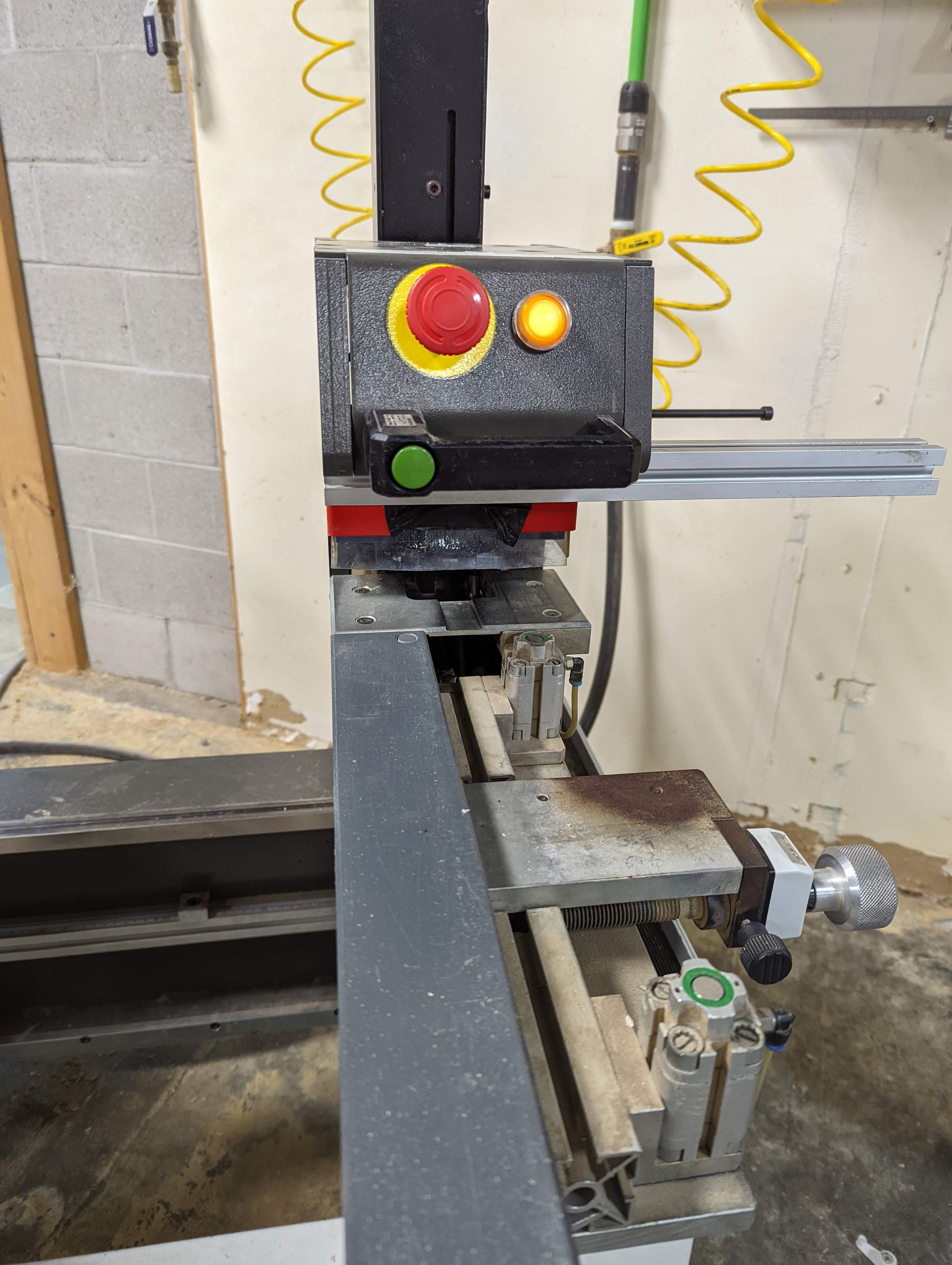

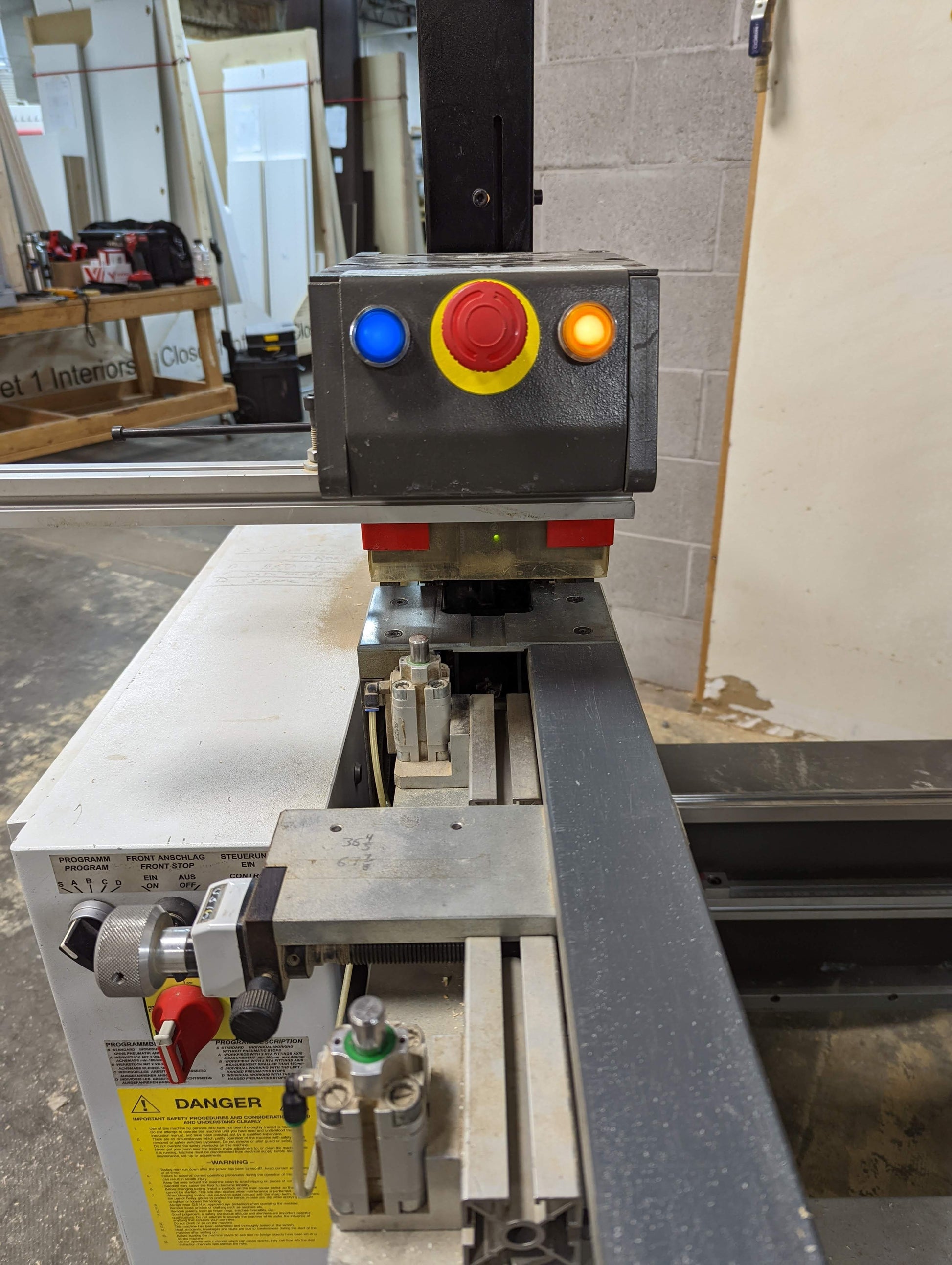

2005 Gannomat Express RTA 802 Boring and Insertion

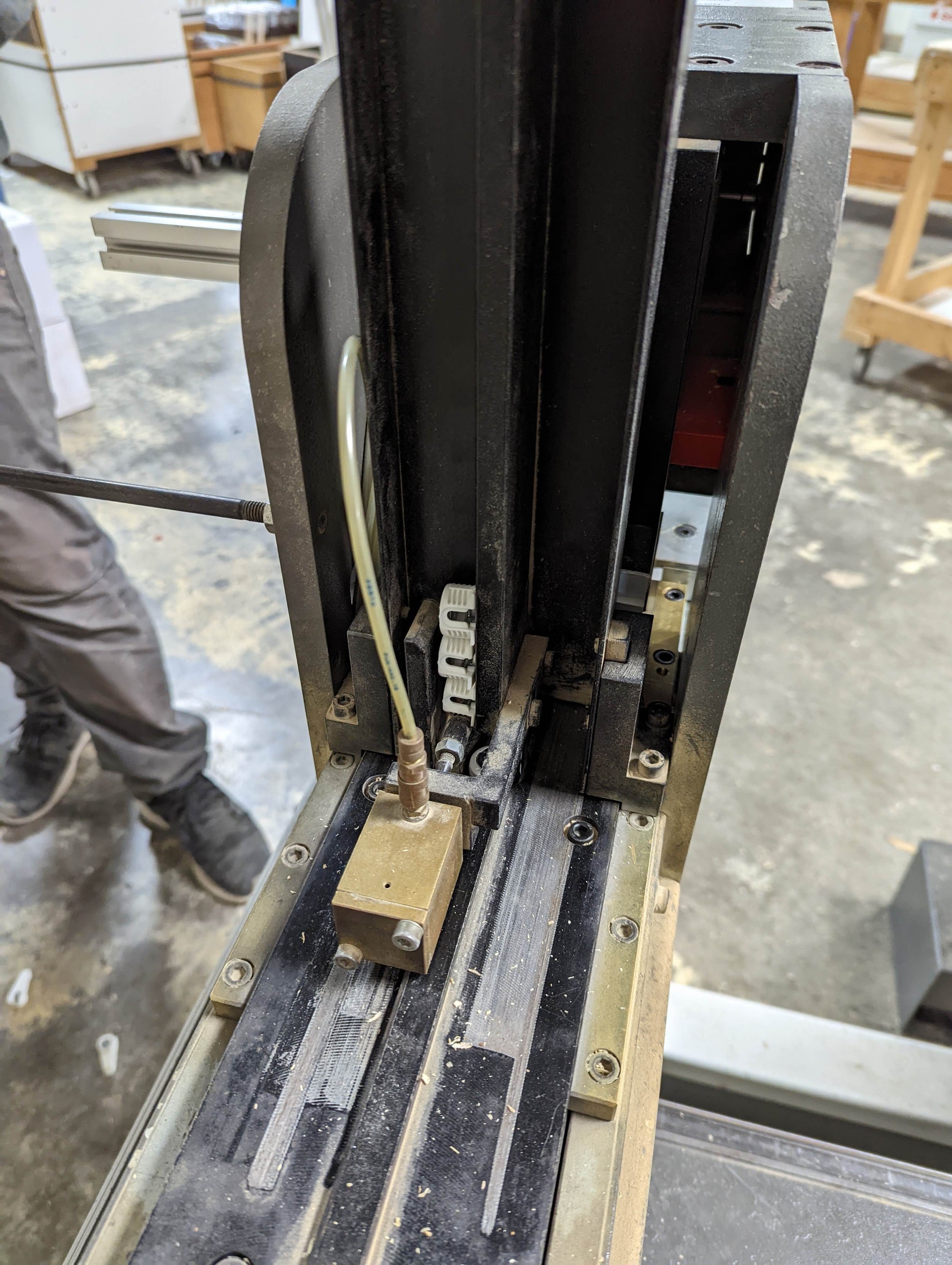

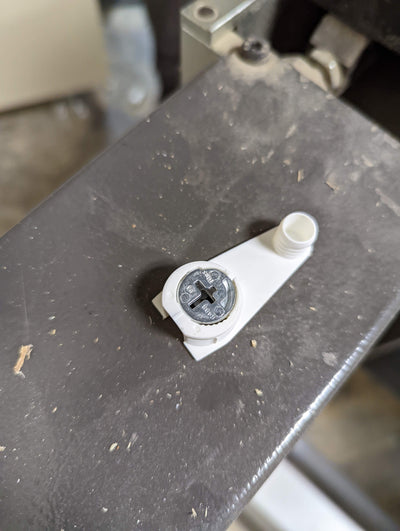

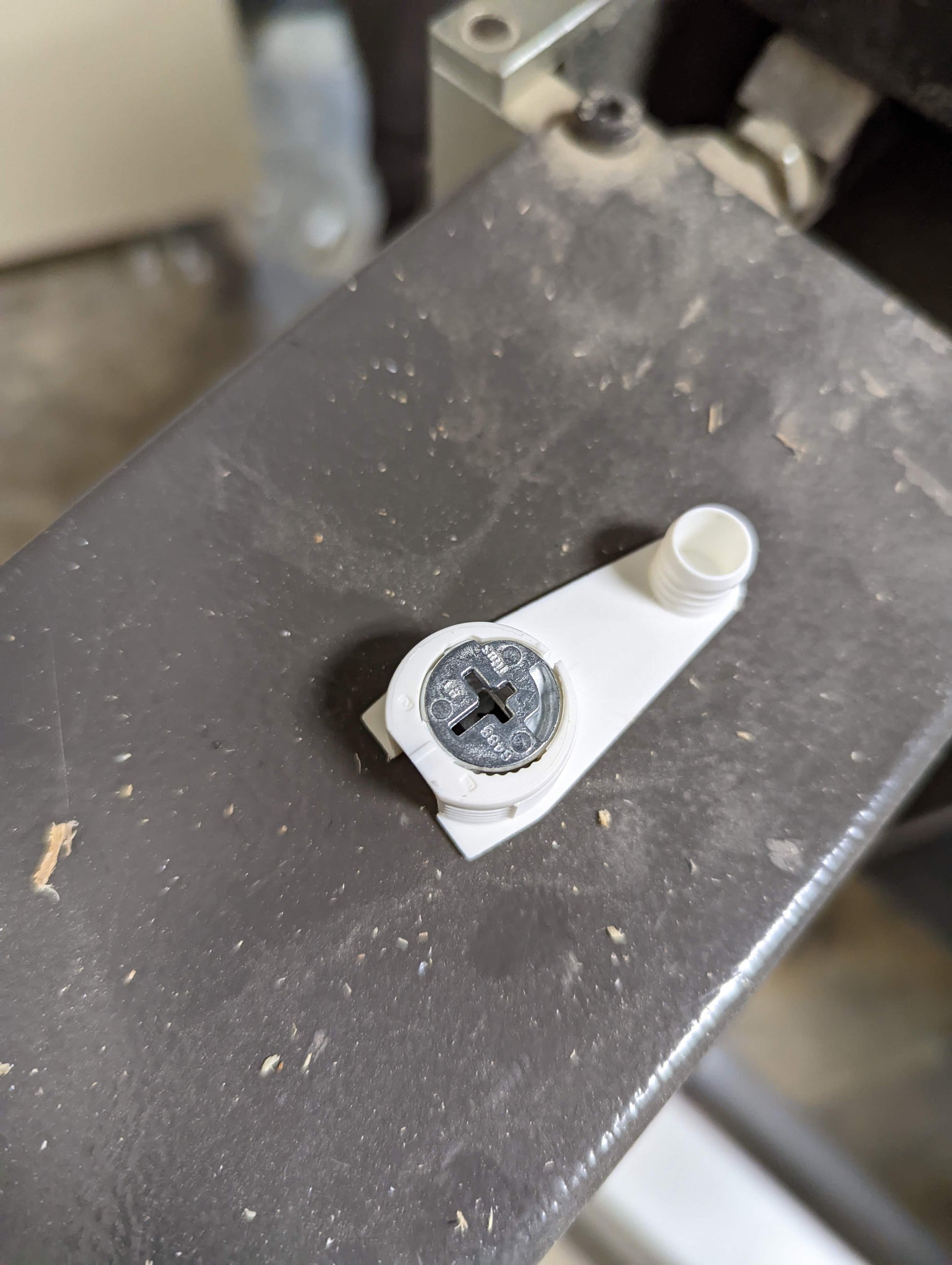

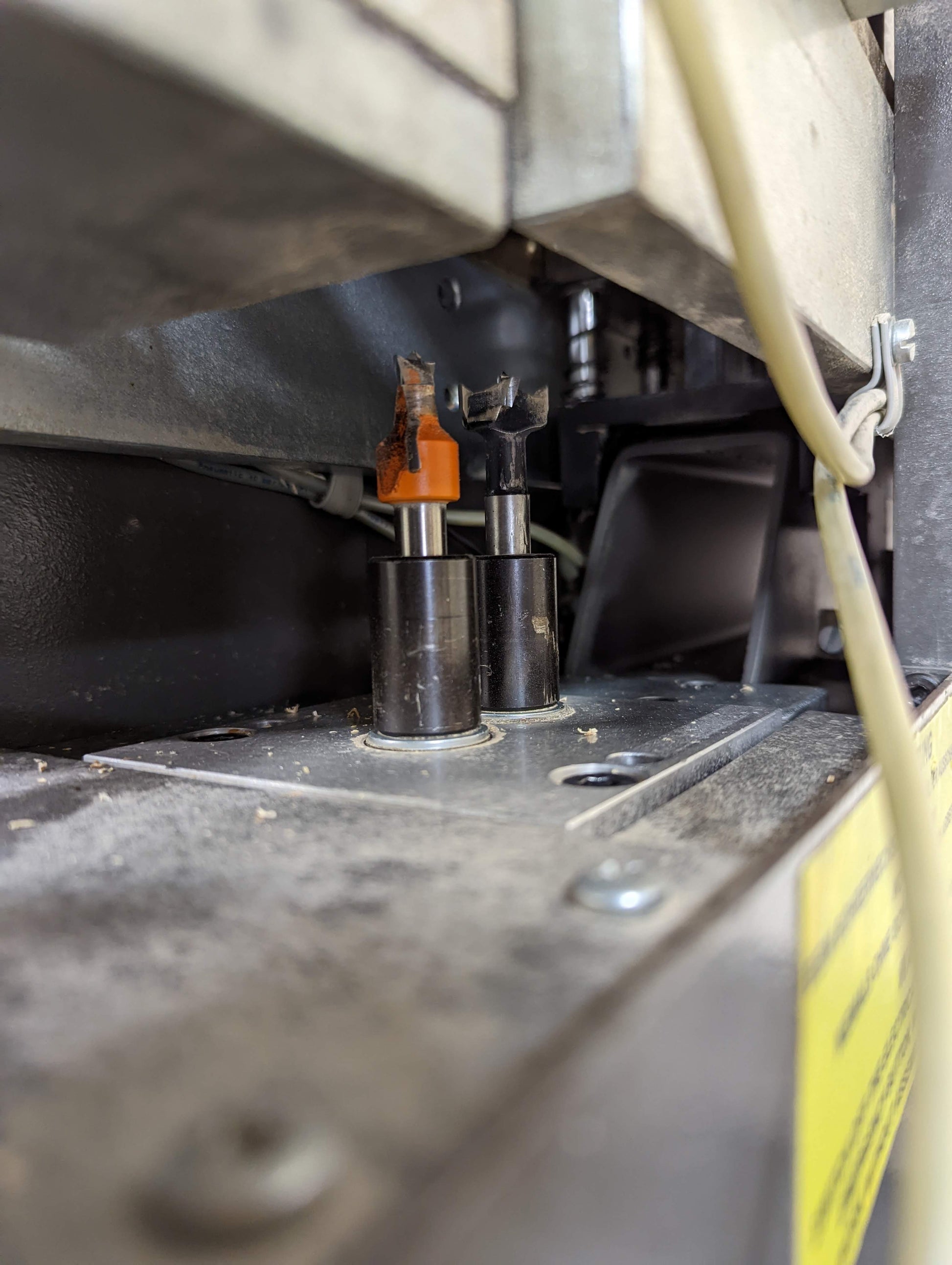

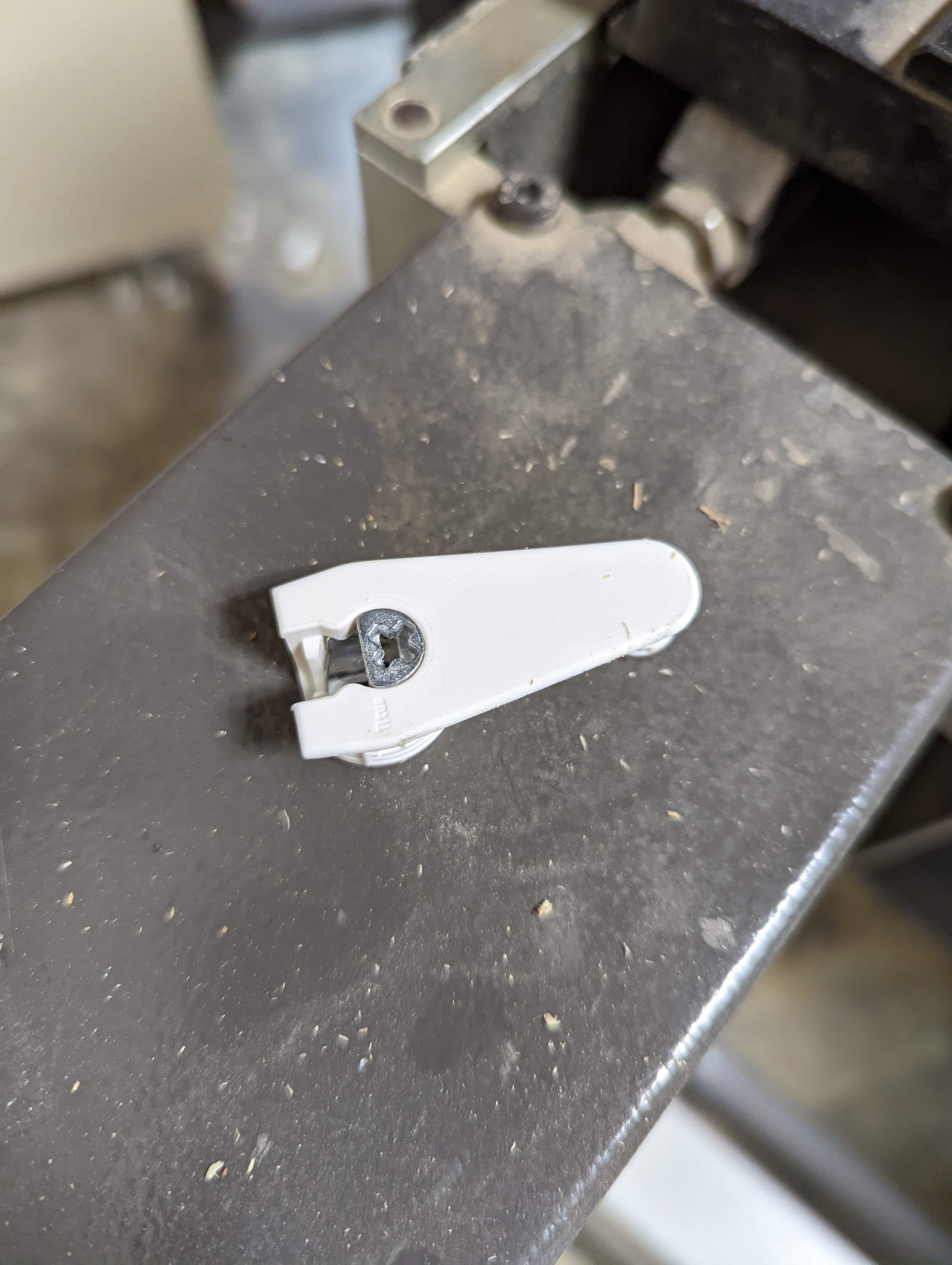

2005 boring and hardware insertion machine. Machine drills 4 holes at a time (for hardware cams requiring 2 holes each) and automatically inserts cams into workpiece.

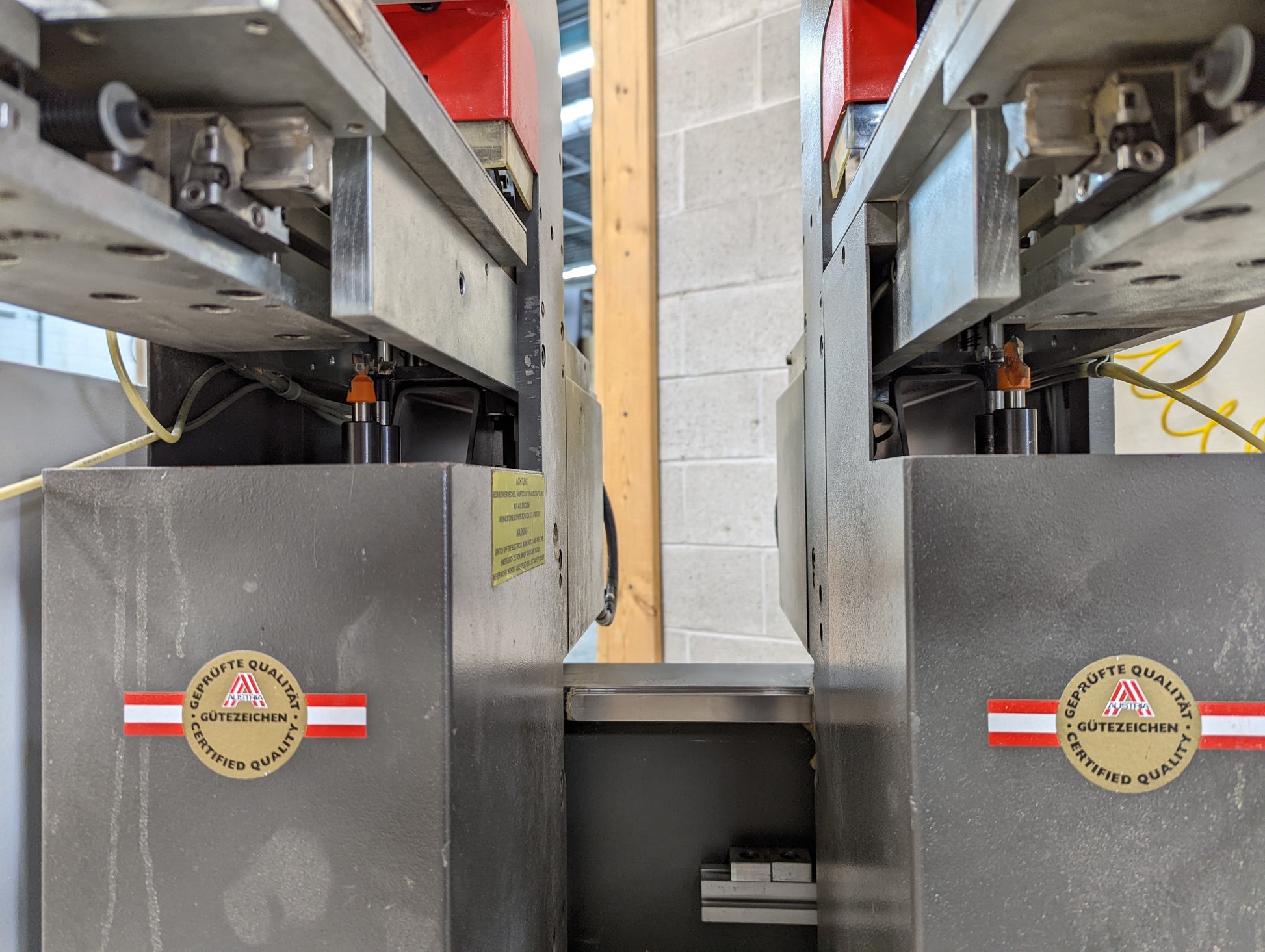

Drills and inserts two RTA fittings with a total cycle time of 5 seconds. - Aligns cam fittings flush and perpendicular to the edge of the workpiece. - Drilling from below providing accuracy, speed, protection of product, and safety. - The re-drill safety will not allow the machine to cycle if an already inserted fitting is detected. - Only viable way to insert flush fittings consistently. - Magazine holds approximately 35 fittings each - Operating cycle of 4.5 seconds - Dimensions: 55" w x 48" d x 55" h Specifications: - Magazine - holds approximately 35 fittings each - Working width - 180mm to 800mm - Operating cycle - 4.5 seconds - Dust extraction tube 100mm. Dust collection required.

Used Gannomat Boring and Insertion Machine

Seller's Notes:

Was used in daily production until we switched to a nested router production process

*MACHINE SOLD AS IS WHERE IS WITH NO IMPLIED WARRANTY* Information displayed has been gathered from machine owner, internet searches and other sources. Information is believed to be correct, but not guaranteed. All buyers should verify this information independently and/or have the machine inspected for accuracy prior to purchase*
