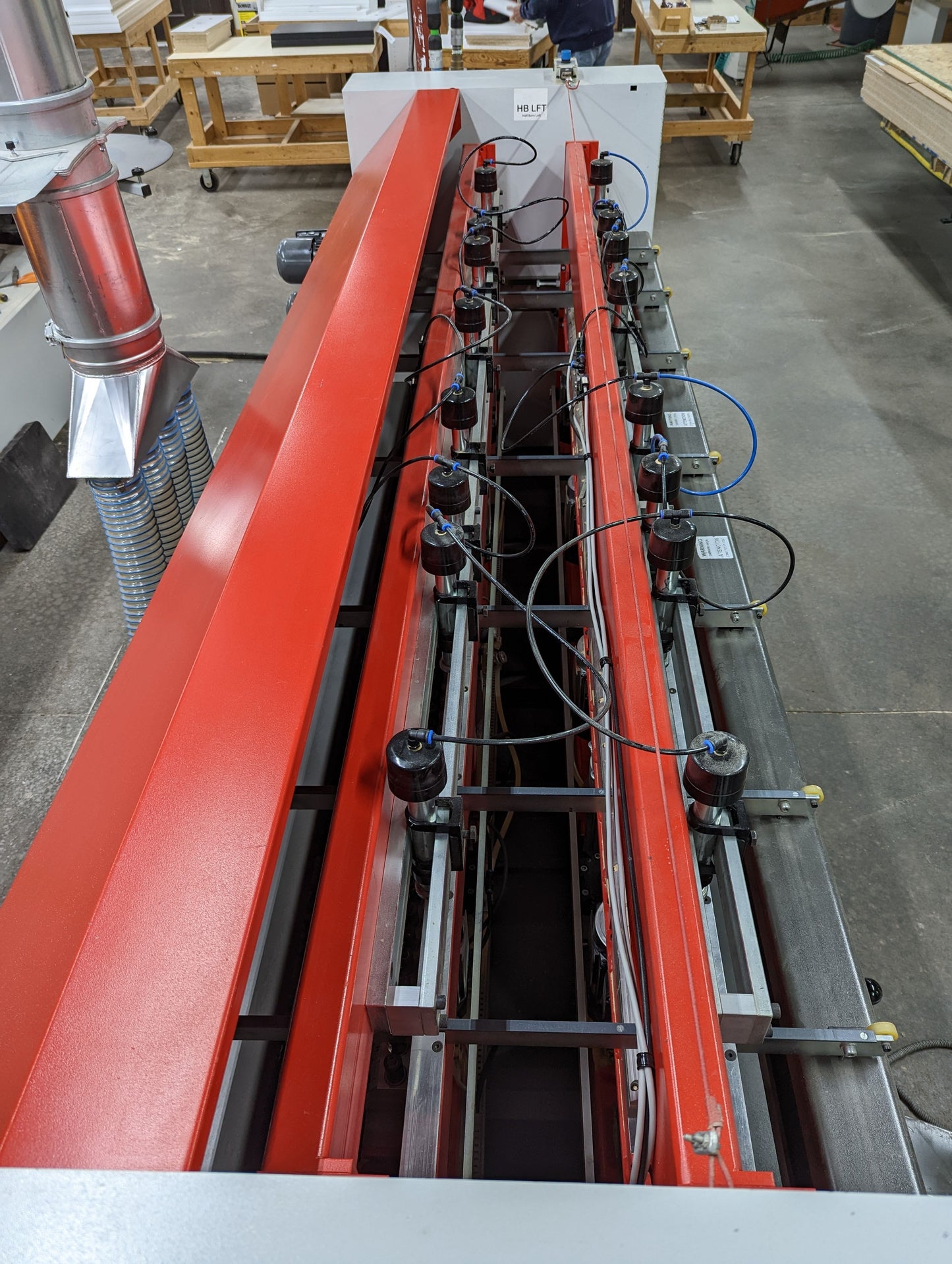

2008 Gannomat Vantage 152 NC Line Drilling Machine - Wisconsin

In stock
Regular price $75,000.00 USD

Interested in this Machine?

Call (888) 375-0384 or Click Here to Email Us at info@ibidmachinery.com

Contact us

2008 Gannomat Vantage 152 NC - Model 0610

Used Gannomat Line Drilling Machine

PLC-Controlled Line Drilling Machine
2008 line boring machine. Fits material up to 96” long. Two independent banks of drilling heads. Can
drill up to 520mm back from the front of the panel. Drill one bank, or both at the same time.
Programmable drilling depth.
Comes with:
• 152 drill bits. 19 bits per drilling head. V-Point bits make clean holes in half or thru bore
• 8 drill heads on machine.
o 1 purchased new in 2019
o 4 rebuilt since 2021
• One extra rebuilt drill head motor.

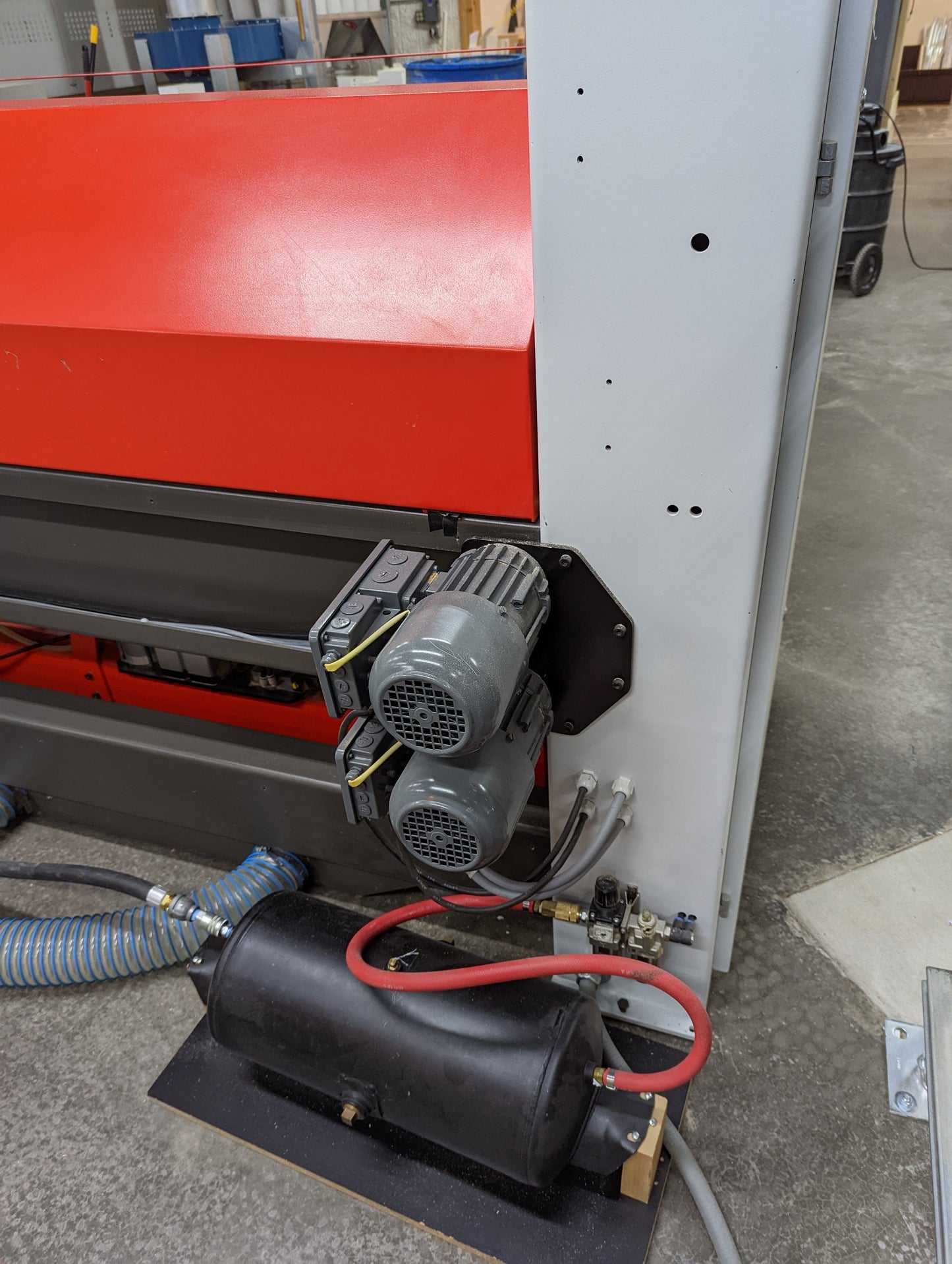

• Air tank for machine.

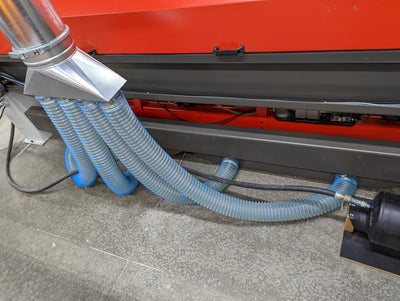

• Custom 4 port dust collector attachment.
• PDF copy of Gannomat Produced software / operating instructions available.
• PDF copy of Gannomat Produced wiring diagrams and parts list available.

The Vantage 610 is a programmable dual 76 spindle (152 total) drill for fast production of system line holes. Once initiated the Vantage will automatically drill up to 4 lines of holes. Fast cycle time of approx. 6 seconds for 2 lines and approx. 14 seconds for 3 or 4 lines of holes. After the boring units move to the program position, the work piece is loaded and positioned against the rear fence and registered on either the left or right and end stop. - Row of holes as well as line drilling in the SYSTEM 32mm - 152 (2 x 76) holes in one drilling cycle - Drilling depth correction for different drilling depths - Massive precision drilling unit from GANNOMAT - Line drilling machine for high capacity

*MACHINE SOLD AS IS WHERE IS WITH NO IMPLIED WARRANTY* Information displayed has been gathered from machine owner, internet searches and other sources. Information is believed to be correct, but not guaranteed. All buyers should verify this information independently and/or have the machine inspected for accuracy prior to purchase*

Product Description: 2008 Gannomat Vantage 152 NC - Model 0610 Line Drilling Machine.

Machine Location State: Wisconsin

Machine Location City: Appleton

Year: 2008

Make: Gannomat

Model: Vantage 610

Serial No: 053 884

Phase/Voltage: 3PH/220V

Condition: Very Good Used Condition

Any Known Issues: None

In Production: Yes

Software Transfer:

Access to Forklift for Loading: Yes

Loading Fee: No

Shipping Dimensions:

Shipping Weight:

Shipping Brackets Available:
