Product Description: NUMERICAL CONTROL MACHINING CENTER COBALM “IDEA TOP 20.10"
CNC Machining Centre Specifically Designed For Drilling, Milling, Polishing, For Marble And Granite, Manufactured By Cobalm
The Machine Has A Moving Bridge Structure With Base And Bridge Built In Thick Electro Welded Steel, Protected Through Special Paint Suited For Wet Environment. This Structure Guarantees High Rigidity And Precision, Providing Great Results In Stone Polishing Operations. The Worktable Is Made Of Thick 2 Cm Aluminum Plates, On Top Of A Rigid Reinforced Steel Frame. Maximum Material Dimensions Inside The Machine Is 3000x1000x280mm, But The Machine Is Open On Both Sides, So The Actual Material Can Be Wider Than 3000 Mm.
Axes Technology
The X-Y Axes Movement Is With Brushless Motors, Precision Planetary Gearbox And High Precision Helical Rack And Pinions Protected By Bellows. Each Axes Slide On 2 Linear Guides With 4 Bearings, For Precision And Rigidity.
Axes Speed 20 Mtr/Min.
The Z Axis Movement Is With Brushless Motor, Precision Planetary Gearbox And By Ball Recirculation Screw. The Sliding Is On Linear Ball Circulation Guides Are Also Covered By Bellows. Axis Speed Is 3mtr/Min.
Lubrication
Manual Centralized Lubricating Grease System For Machine Linear Guides.
Electrospindle
6kW HSD ES794 Electrospindle, ISO40, Liquid Cooled With Heat Exchanger.
Tool Magazine
Tool-Holder Magazine With 14 Positions (Cones Excluded) Maximum Tool Dimensions: 125 Mm
Maximum Tool Length: 160 Mm (From The Bit Of Electrospindle)
Vacuum System
Vacuum Kit Equipped With Vacuum Pump 0,75k Of 25 Lt., Distributor With 10 +10 Valves With Fastened For 8 Mm

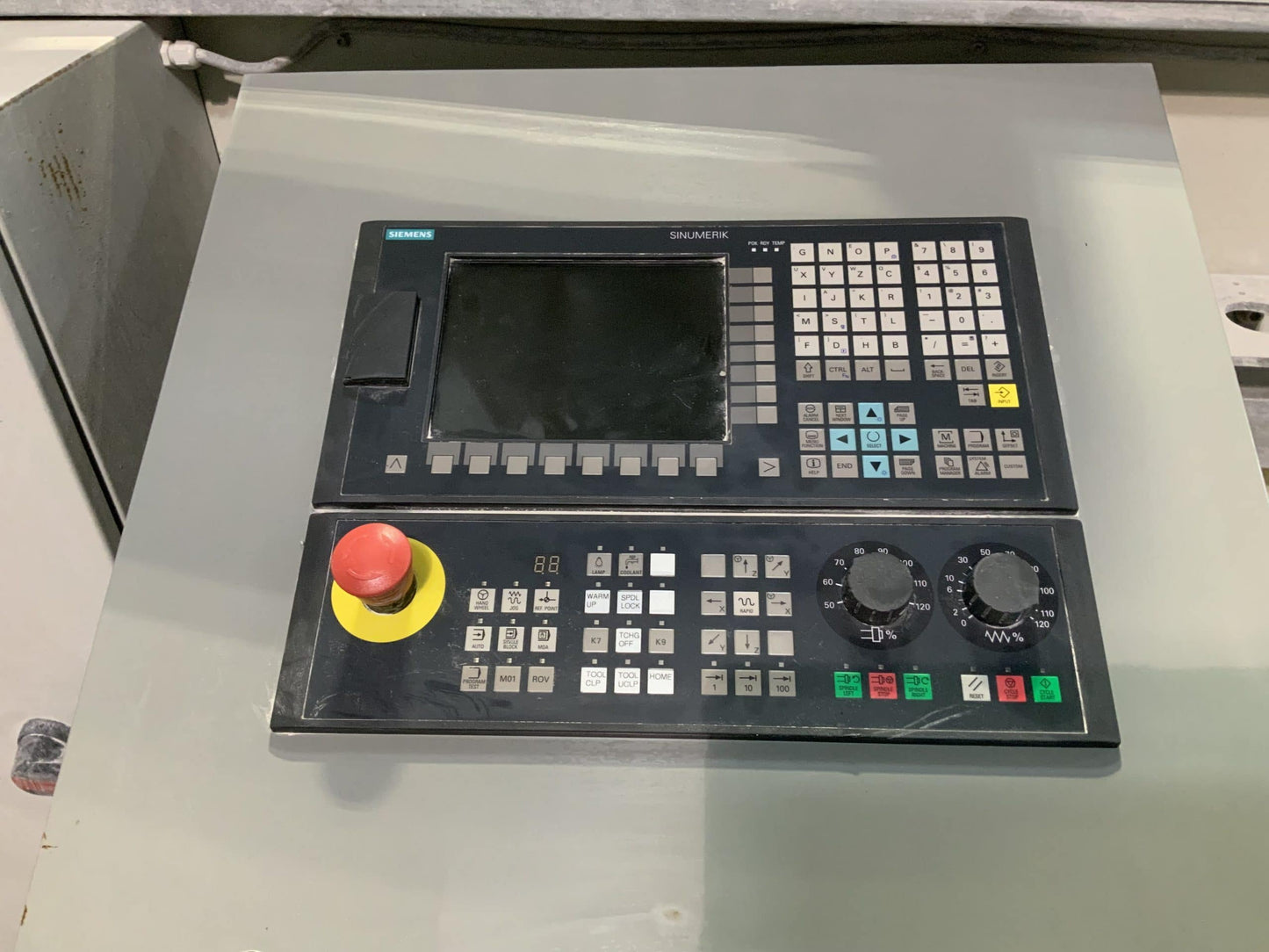

Numerical Control
Numerical Control PC Front End With TFT Monitor And Microsoft Windows ©, Used For The Programming And Handling Of The Machine. (American Keyboard). Frontal USB And Ethernet Ports.
Water Tanks
Quote # 2053-12 December 11, 2012
Prepared For:
Piece Of The Rock, Inc.
The Machine Is Equipped With A Plastic Water Tank Model “INTERMAC” And Pump For Recycling Water, Used For Outside Tool Lubrication.
Safety
Front Safety Photocells And Side Protection Panels To Reduce Opening Dimensions Mechanical Back Closing
Electrical Cabinet
Electrical Panel Conforming UL / CSA. Safety Key On Electrical Panel For Machine Tooling
Technical Info
Electrical: 400V, 60 Hz, 3 Phases, 22KVA
Work Area (X-Y-Z): 2050 X 900 X 280 Mm.
Maximum Slab Dimensions: 2700 X 900 X 280 Mm. Overall Dimensions (L X P X H): 3700 X 2200 X 2000 Mm Total Weight: Kg 2500
Machine Location State:
Machine Location City:
Year: 2010

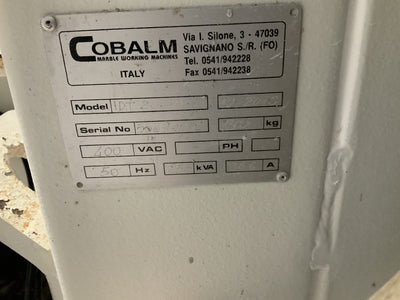

Make: Cobalm
Model: Idea Top 20.10
Serial No: 55691031
Phase/Voltage: 3 Phase 400 V, 22KVA (See Info Below)
Condition: Good
Any Known Issues: No
In Production:
Software transfers with machine:
Access to Forklift for Loading:
Loading Fee:
Shipping Dimensions:
Shipping Weight:
Shipping Brackets Available:
