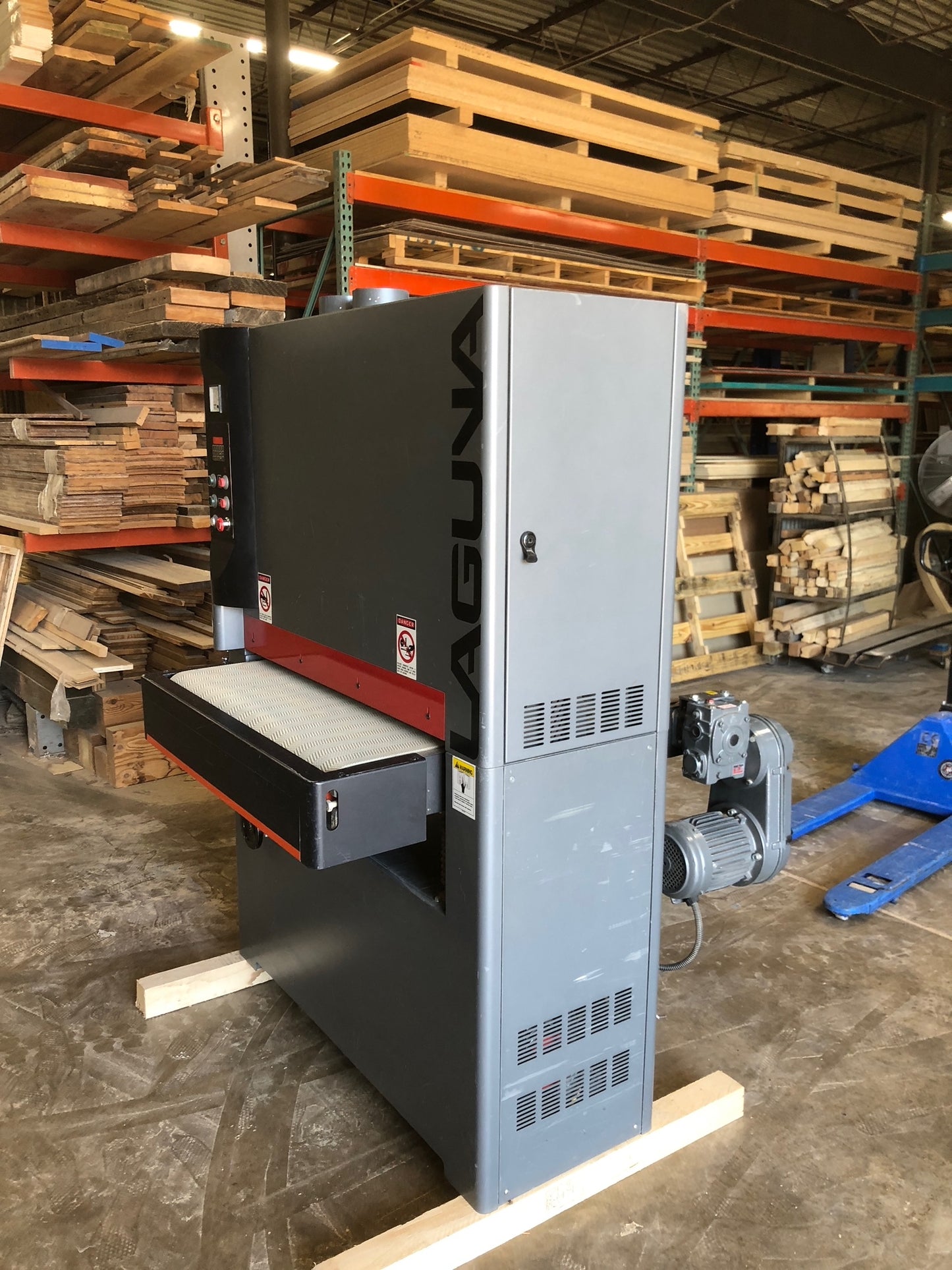

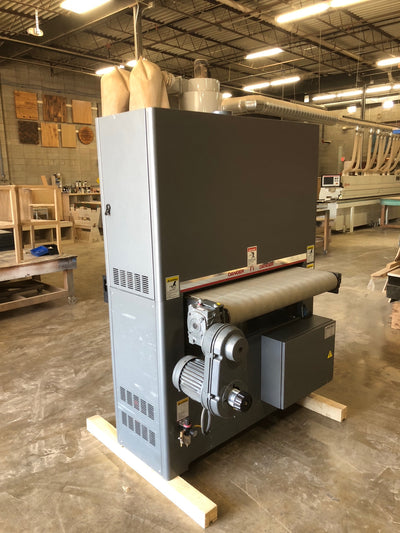

2012 Laguna 37" Single Head Wide Belt Sander - Wisconsin

Manufacturer: Laguna Brand: Laguna Model: MSANWB37x75-1K-20-0197
Out of stock
$9,000.00 USD

Freight is not included in the machine price. iBiD Machinery will quote freight separately through our machinery freight broker.

How can iBiD help with this machine?

Questions about condition, specifications, loading, or fit? Ask iBiD directly, find a similar machine, or research the model.

Prefer to talk?

Call us about this machine’s condition, specifications, or freight.

Call iBiD · (678) 925-3556
Find a similar machine Sell one like this
Research & buying resources
Research this make & model Read the buying guide Research sold history

Your contact details are sent privately to iBiD and are not shown on the product page.

New Listing!!

Good working order Used Wide belt sander. Single Head.

Ready to Ship!

2012 Laguna 37" Wide Belt Sander, Combination Head, Model # MSANWB37x75-1K-20-0197 220 V 3 Phase

Specifications

  • Single Drum
  • Main Motor: 20HP, 220V, 3 Phase
  • Variable Feed Motor: 1HP
  • Table Lifting Motor: 0.25HP
  • Capacity: 37″
  • Belt Length: 75″
  • Max Sanding Width: 36 1/2″ (927mm)
  • Sanding Belt Size: 37″ x 75″ (940mm x 1905mm)
  • Adjustable Sanding Platen: 3″ (76mm)
  • Diameter of Sanding Drum: 4″ (101mm)
  • Length of Sanding Drum: 37″ (965mm)
  • Sanding Drum RPM: 1725
  • Variable Conveyor Speed: 12 – 60 fpm
  • Dust Port Size: 4″ (101mm)
  • Number of Dust Ports: 3
  • Footprint: 19″ x 51″ (483mm x 1300mm)
  • Width x Depth: 56 1/2″ x 51″ (483mm x 1300mm)
  • Height With Dust Collection Ports: 77 1/2″ (1968mm)
  • Height Without Dust Collection Ports: 71 1/2″ (1816mm)
  • Conveyor Height at Lowest Setting: 32″ (813mm)
  • Cabinet: Steel
  • Operating Air Pressure: 6 Bar
  • Sanding Belt Oscillation: Adjustable
  • Sanding Belt Motor Brake: Yes. Air Operated Disc Brake
  • Net Weight: 1980 lbs

Specifications



Manufacturer Laguna
Model MSANWB37x75-1K-20-0197
Year 2012
Condition Used
Stock Number M-1-240



*Information displayed has been gathered from machine owner, internet searches and other sources. Information is believed to be correct, but not guaranteed. All buyers should verify this information independently and/or have the machine inspected for accuracy prior to purchase*

Product Description: 2012 Laguna 37" Single Head Wide Belt Sander - Wisconsin

Machine Location State: Wisconsin

Machine Location City: Milwuakee

Year: 2012

Make: Laguna

Model: MSANWB37x75-1K-20-0197

Serial No: 121001301

Phase/Voltage: 3 Phase

Condition: Good Working Condition

Any Known Issues: No

In Production: No - on pallet ready to ship

Software transfers with machine:

Access to Forklift for Loading: Yes

Loading Fee: No

Shipping Dimensions:

Shipping Weight: 2000 lbs

Shipping Brackets Available: N/a
