2014 Biesse Akron 1330 Edgebander w/ Pre-Mill - Washington

Manufacturer: Biesse Brand: Biesse Model: Akron 1330
Out of stock
$29,000.00 USD

Freight is not included in the machine price. iBiD Machinery will quote freight separately through our machinery freight broker.

How can iBiD help with this machine?

Questions about condition, specifications, loading, or fit? Ask iBiD directly, find a similar machine, or research the model.

Prefer to talk?

Call us about this machine’s condition, specifications, or freight.

Call iBiD · (678) 925-3556
Find a similar machine Sell one like this
Research & buying resources
Research this make & model Read the buying guide Research sold history

Your contact details are sent privately to iBiD and are not shown on the product page.

Biesse "Akron 1330" Edgebander (2014)

Very Good Used Condition Edgebander


Computer controlled interface for workstations with servos and pneumatic positioning devices. Programmable selections for 1-touch changeover between edgebanding types and thicknesses.
Top Pressure Beam with automatic adjustment from the machine control.
Edgebanding thickness, 0.4 - 5 mm  capacity. Min. panel width 85 mm (3.3"); min. panel length 140 mm (5.5"); panel thickness 10 - 50 mm (0.39" - 1.96").
3 HP (2.2 kW) Variable Feed Speed from 10 - 20 MPM (32 - 65 FPM).
Premilling Unit, Strip & Coil Edge magazine, automatic shear type guillotine.
Hot-Melt Glue System: Teflon coated glue pot, digital thermostats with automatic kick-down when machine is in idle mode.
ressure Section with (1) large dia. "non-stick" coated drive roller & (2) idle rollers.
End trimming unit, 0.33 HP (0.24 kW) - 12,000 RPM motors.
Motors travel on (2) straight slides and pneumatic tilt 0° - 15° on horizontal. plane
Top & Bottom Multi- Function Flush/Bevel/Radius Trimming Unit.
2-motor Corner Rounding 0.3 HP (0.24 kW) - 12,000 RPM motors for trimming leading & trailing upper & lower edge/corners.
Profile Scraping Unit: Top & bottom 2 mm or 3 mm thick PVC banding, digitals for horiz. adjustments.
Flat Scraping Unit: Top & bottom glue scraping unit.
Buffing Unit: Top & bottom Buffing Unit, 0.5 HP (0.37 kW)  - 2,800 RPM motors), units tilt 0° - 30°

*Information displayed has been gathered from machine owner, internet searches and other sources. Information is believed to be correct, but not guaranteed. All buyers should verify this information independently and/or have the machine inspected for accuracy prior to purchase*



Product Description: 2014 Biesse Akron 1330 Edgebander w/ Pre-Mill - Washington

Machine Location State: Washington

Machine Location City: Kent

Year: 2014

Make: Biesse

Model: Akron 1330

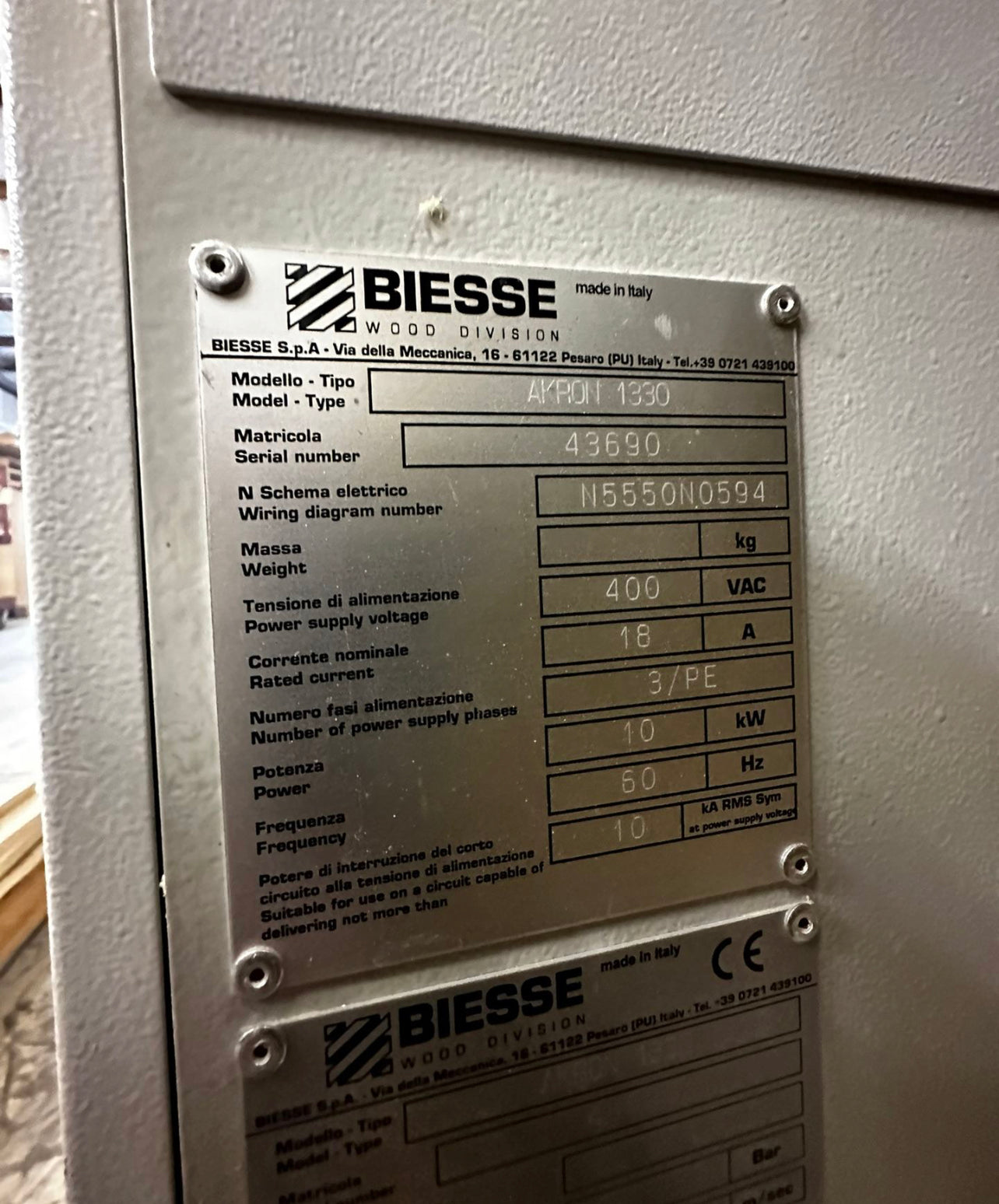

Serial No: 43690

Phase/Voltage: 3PH

Condition: Very Good Used Condition

Any Known Issues: No

In Production:

Software transfers with machine: Edgebander

Access to Forklift for Loading:

Loading Fee:

Shipping Dimensions: 24'L x 4' W x 7' H approx

Shipping Weight: 8500 lbs approx

Shipping Brackets Available:
