2015 Bala DPM E 20x41 Vertical Panel Saw - Texas
Couldn't load pickup availability
How can iBiD help with this machine?
Questions about condition, specifications, loading, or fit? Ask iBiD directly, find a similar machine, or research the model.
Call us about this machine’s condition, specifications, or freight.

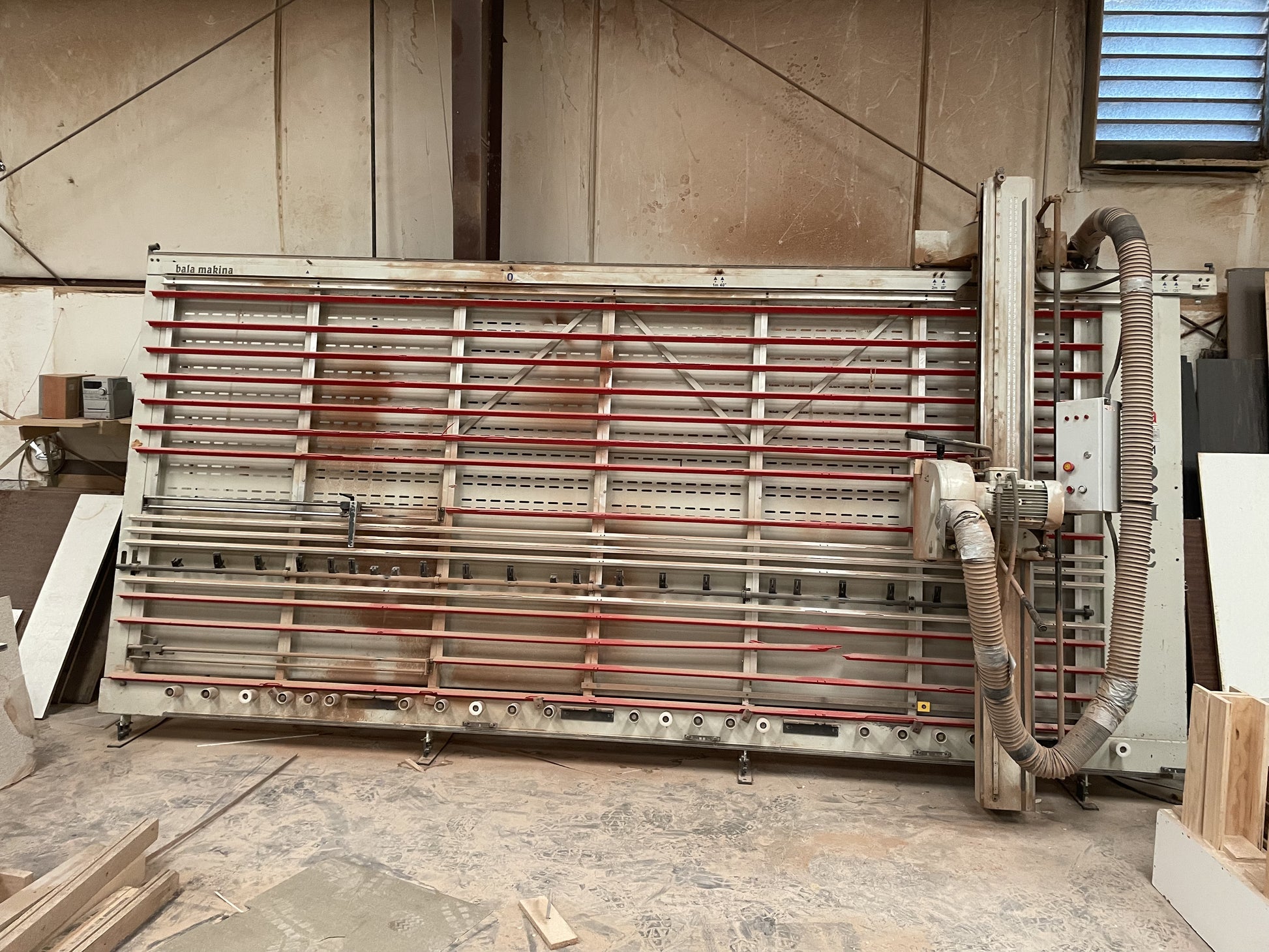

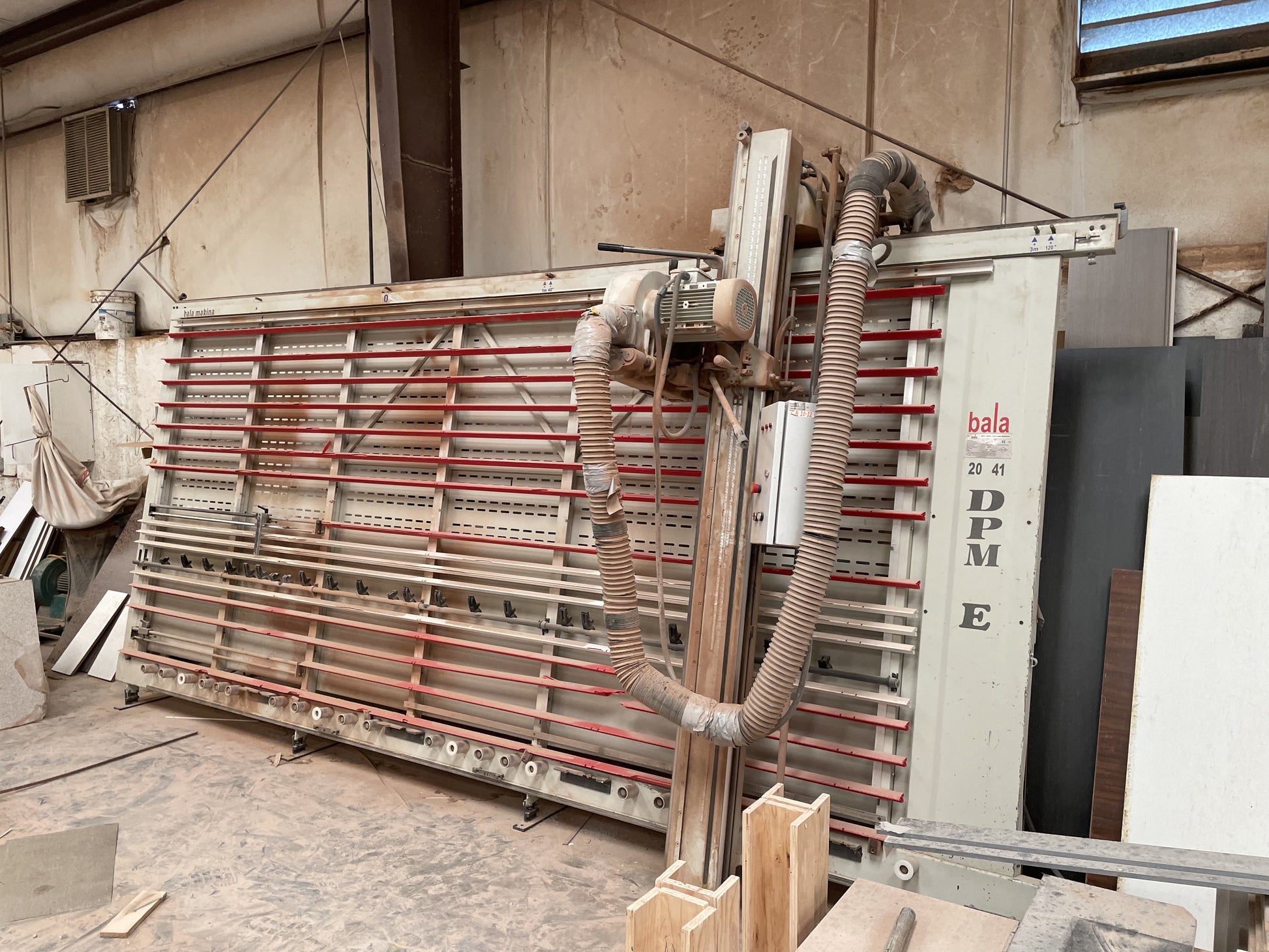

Bala Vertical Panel Saw - Model DPM E 20x41
Good Working Condition
*Needs Replacement Parts-Guides*
3 Phase/380 V
Main Motor Rating: 3 kW
Engine Speed: 3000 rpm
Main Blade Rotation: 5800 rpm
Scoring Blade Rotation: 7800 rpm
Cutting Thickness: 0-50 mm
Cutting Height: 2100 mm
Cutting Length: 4100 mm
Blade Specifications:
Cut Blade - 250 x 80 x30 x 3.20 mm - Z80 Trapaz
Scoring Blade - 125 x 24 x 20 x 3.00 mm - Z24 Conical
Shipping Dimensions: 16.5 ft x 8.2 ft x 4.5 ft
Machine Weight: 1510 lbs approx
Dust Extraction System: Integrated
Bottom Support: Metal Wheels
Moving Front Panel: Automatic
Located in Texas
*See "Additional Information" for More Details on this Machine*
Pre-Owned Vertical Panel Saw
*Information displayed has been gathered from machine owner, internet searches and other sources. Information is believed to be correct, but not guaranteed. All buyers should verify this information independently and/or have the machine inspected for accuracy prior to purchase. Machines are sold AS IS WHERE IS with No Implied Warranty*
Product Description:
Machine Location State: Texas
Machine Location City: El Paso

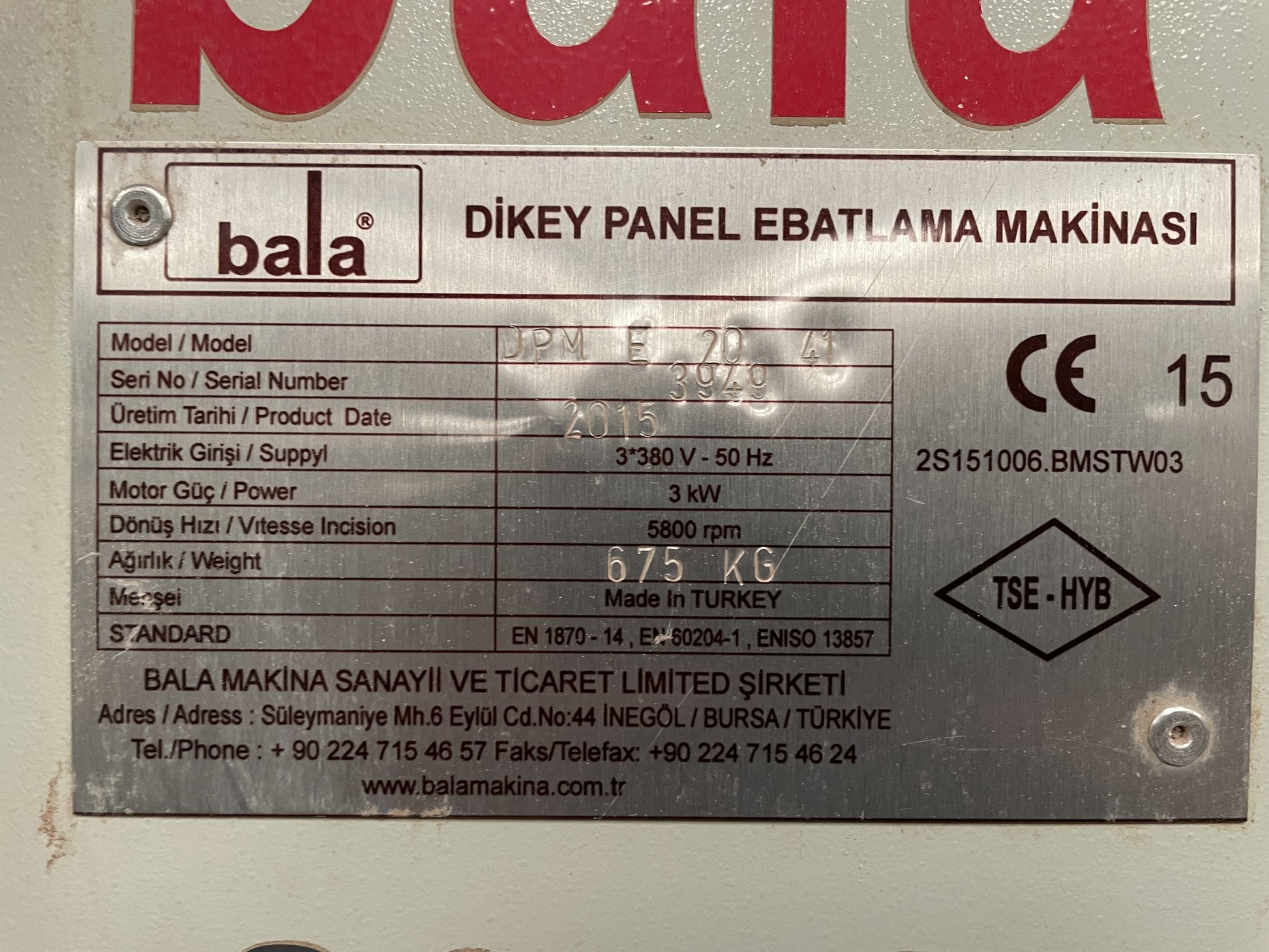

Year: 2015
Make: Bala
Model: DPM E 20x41
Serial No: 3949
Phase/Voltage: 3 Phase/380 V
Condition: Good
Any Known Issues: Yes - Needs Replacement Parts - Guides
In Production: Yes
Software transfers with machine:
Access to Forklift for Loading:
Loading Fee:
Shipping Dimensions: 16.5 ft x 8.2 ft x 4.5 ft
Shipping Weight: 1510 lbs approx
Shipping Brackets Available:
