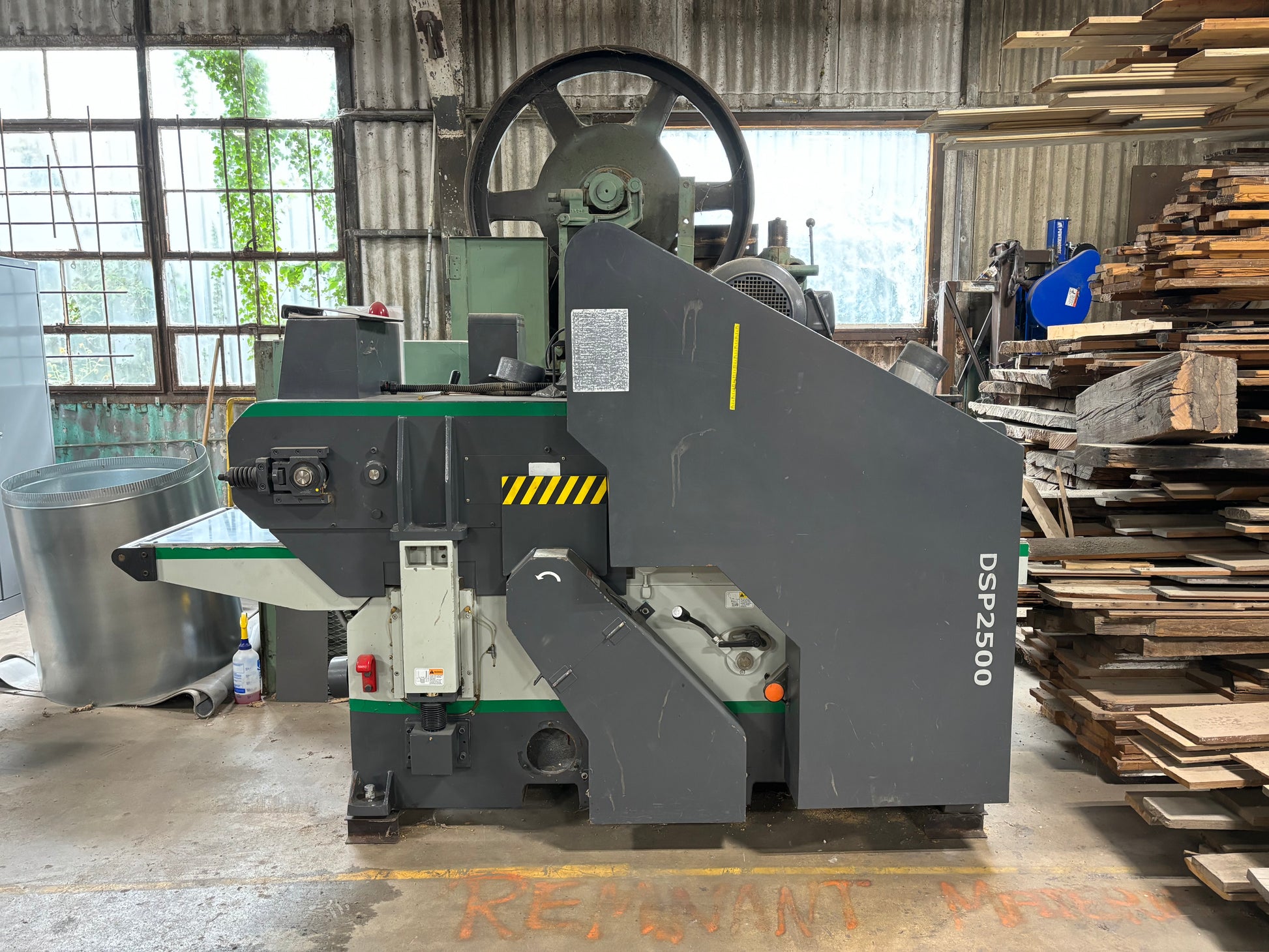

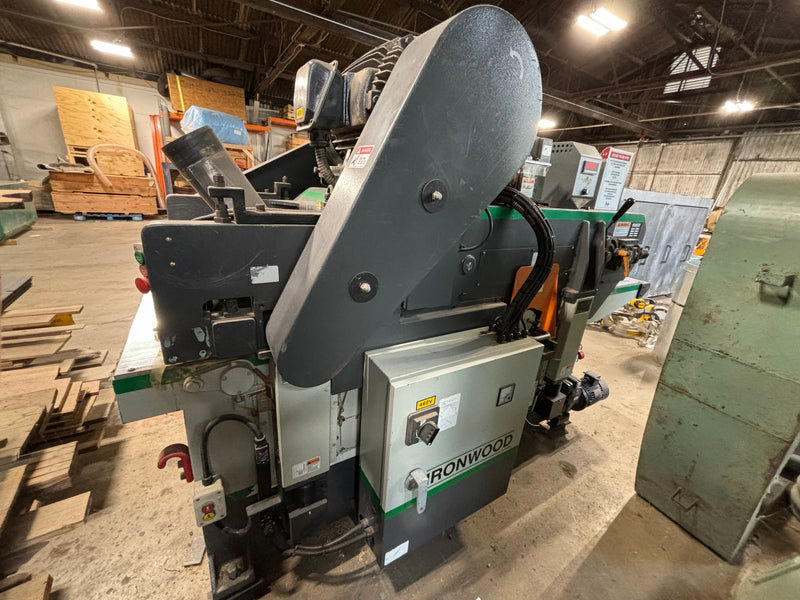

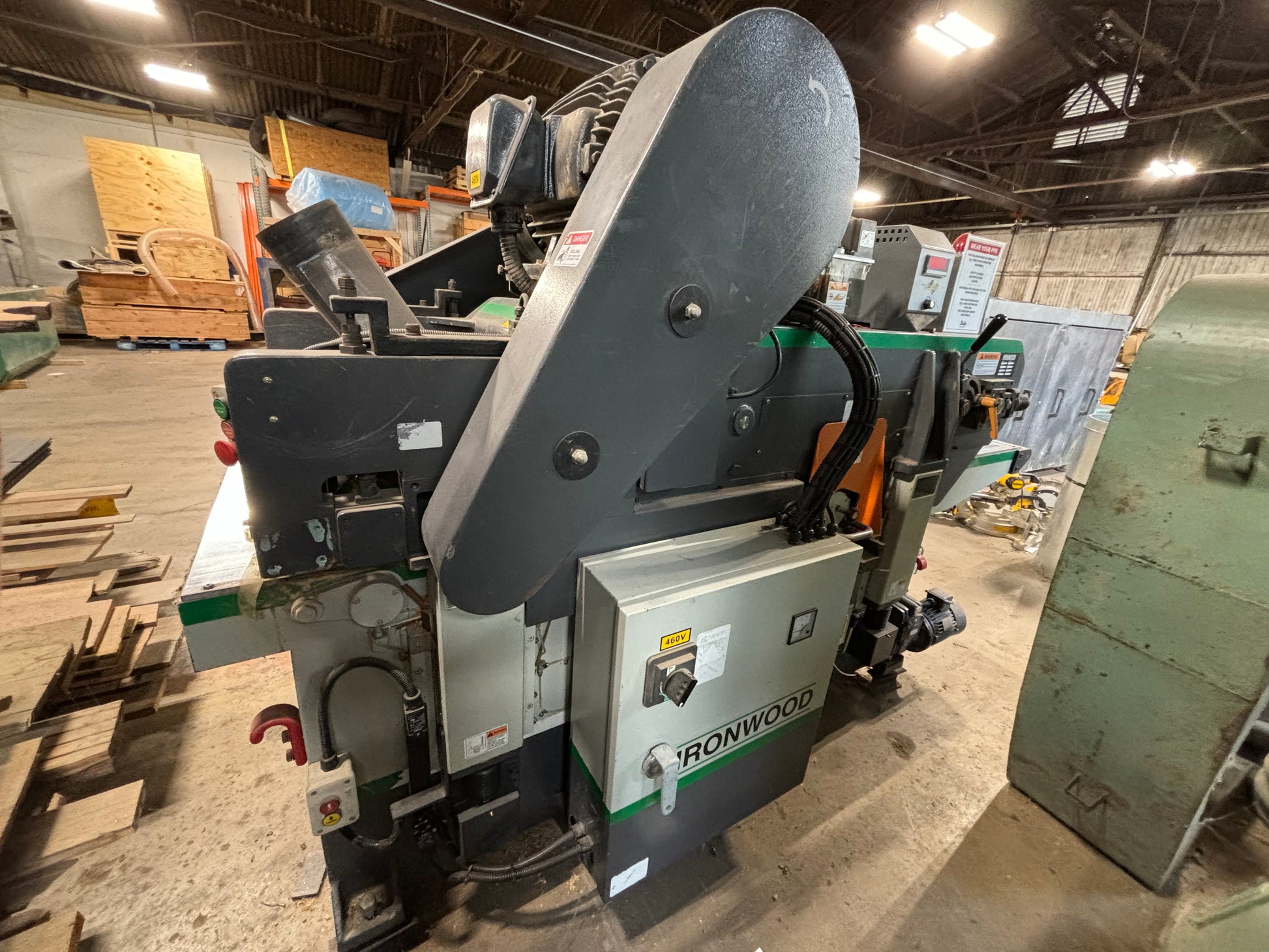

2015 Ironwood DSP2500 Dual Surface Planer - Texas

Manufacturer: Ironwood Brand: Ironwood Model: DSP2500
Out of stock
$41,000.00 USD

Freight is not included in the machine price. iBiD Machinery will quote freight separately through our machinery freight broker.

How can iBiD help with this machine?

Questions about condition, specifications, loading, or fit? Ask iBiD directly, find a similar machine, or research the model.

Prefer to talk?

Call us about this machine’s condition, specifications, or freight.

Call iBiD · (678) 925-3556
Find a similar machine Sell one like this
Research & buying resources
Research this make & model Read the buying guide Research sold history

Your contact details are sent privately to iBiD and are not shown on the product page.

Used Ironwood DSP2500 Dual Surface Planer

·  Max Working Width 25" * Max Working Thickness 8"  *Min Working Thickness 6 /16" * Min Length of Cut 12½"

·  Upper Cutterhead Motor 25 hp* Lower Cutterhead Motor 20 hp* Feeding Cutterhead Motor 5 hp

·  Table Rise/Fall Motor 1/2 hp*

·  Variable Feed Speed 26-78 fpm (8-24 m/min)

·  Cutterhead Speed 5,000 rpm *Cutterhead Diameter 5" *Cutter Knives per Head 96 Max Stock Removal ½" total / ¼"  per head Table adjustment

·  Digital Electrical 230v / 460v (3 phase) Amperage 177 amps @ 230V / 88 amps @ 460V Dust Port Diameter 2 ports, 6" each

·  Dust Extraction Requirements 1,600 cfm @ 4,500 feet/min

·  Machine Dimensions (W x L x H) 105" x 45" x 68" Gross Weight 7000 lbs

·  Year Make: 2015

*Information displayed has been gathered from machine owner, internet searches and other sources. Information is believed to be correct, but not guaranteed. All buyers should verify this information independently and/or have the machine inspected for accuracy prior to purchase*



Product Description: 2015 Ironwood DSP2500 Dual Surface Planer - Texas

Machine Location State: Texas

Machine Location City: Austin

Year: 2015

Make: Ironwood

Model: DSP2500

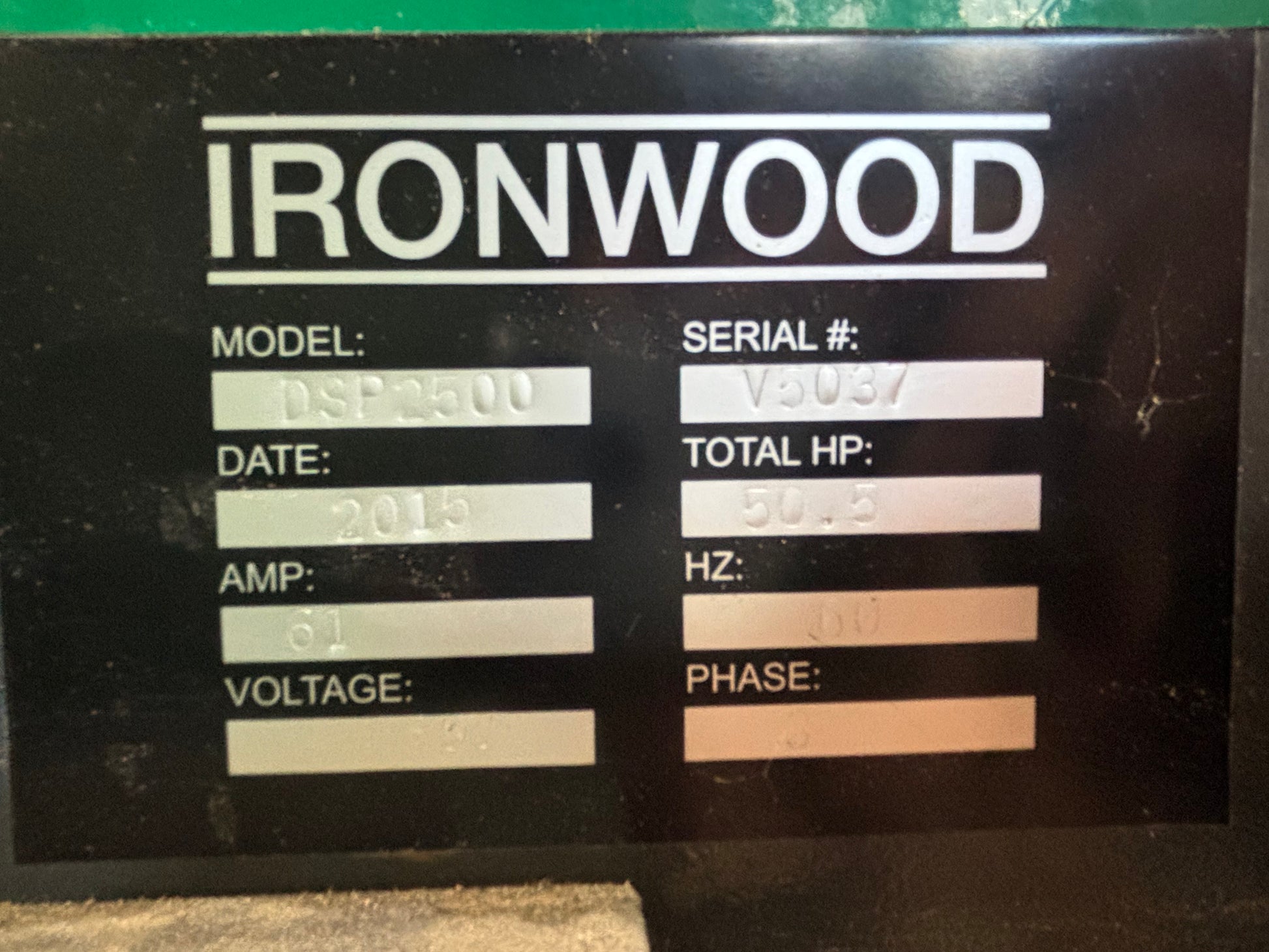

Serial No: V5037

Phase/Voltage: 3PH

Condition: Good working condition

Any Known Issues: No

In Production: no- ready to ship

Software transfers with machine: Planer

Access to Forklift for Loading:

Loading Fee:

Shipping Dimensions: Approx (W x L x H) 105" x 45" x 68"

Shipping Weight: Approx Gross Weight 7000 lbs

Shipping Brackets Available:
