2015 SCM Sigma Impact 90 Panel Saw / Beam Saw - Nevada
Ask iBiD about price, availability, condition, specifications, inspection or shipping.
Request information about this machine Or contact iBiD directlyCouldn't load pickup availability
How can iBiD help with this machine?
Questions about condition, specifications, loading, or fit? Ask iBiD directly, find a similar machine, or research the model.
Call us about this machine’s condition, specifications, or freight.

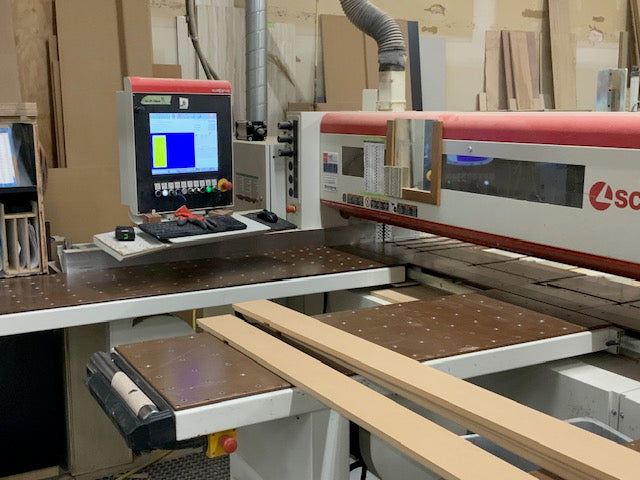

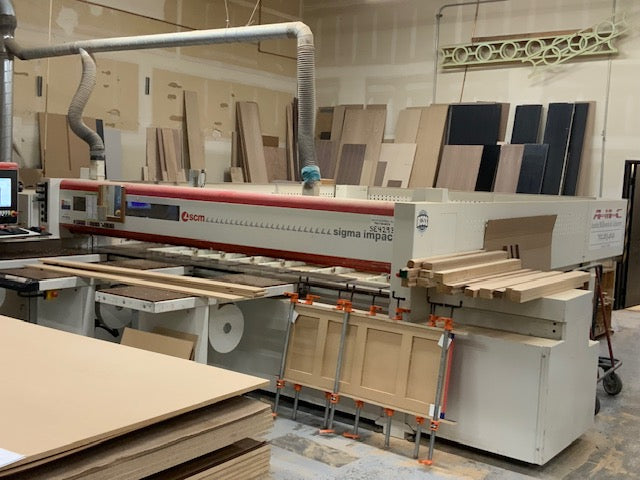

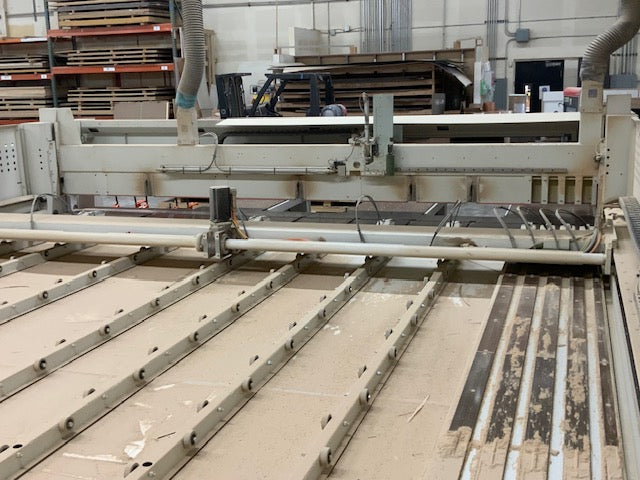

2015 SCM Sigma Impact 90 CNC panel saw / beam saw in Nevada. Serial number: AE/034407. The owner reports good working condition and no known issues. The saw is currently in production, and the owner reports availability for fall 2026.

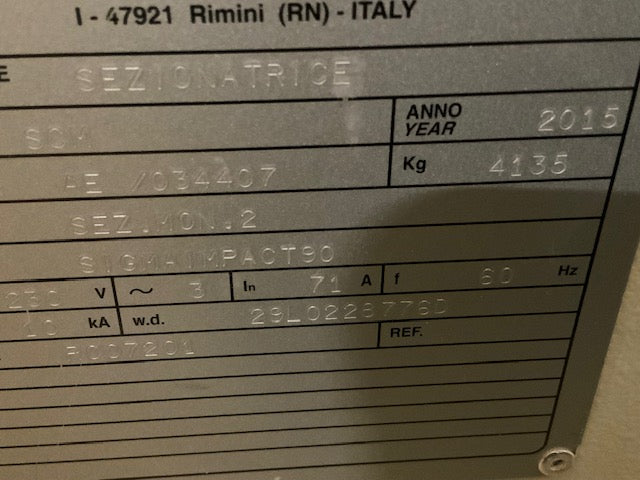

The supplied electrical details list 230V, 3-phase. Before planning the hookup, check the machine plate in the photos. Also, plan for rigging to remove the saw. For scheduling, inspection and current availability, call iBiD Machinery at (678) 925-3556.
SCM Sigma Impact 90 panel saw overview
This automatic horizontal beam saw sizes sheet goods. For example, its applications include particleboard, MDF, plywood and other panels.
SCM model-reference specifications
- Available cutting lengths: about 3,200 / 3,800 / 4,500 mm.
- Blade projection: about 90 mm; main blade diameter: about 380 mm.
- Scoring blade diameter: about 160 mm.
- Main / scoring blade speed reference: about 3,900 / 6,300 rpm.
- Standard saw-carriage speed: about 6–30 m/min; SCM also offered higher-speed options.
- Standard pusher speed: up to about 27 m/min; SCM also offered higher-speed options.
- Period SCM literature lists several main-motor setups for the Impact 90.
- Standard clamp reference: 5 clamps.
Inspecting this SCM Sigma Impact 90 panel saw
First, use serial number AE/034407 to confirm the 32/38/45 cutting-length version and actual cutting depth. Next, check the main-motor horsepower and scorer motor. Also, count the clamps and inspect the air-float tables.
Before buying, ask to see a cut using your type of panel. Then check the cut edges and panel sizes. Finally, confirm the control and software version, along with the dust extraction needs.
*To the best of our knowledge, these model-reference specs reflect maker information and other credible technical sources. However, the actual setup, options, size and capacity may vary by year, serial number and installed equipment. Therefore, confirm all specs and inspect the machine before purchase.
Product Description:
Machine Location State: Nevada
Machine Location City:
Year: 2015
Make: SCM
Model: Sigma Impact 90
Serial No: AE/ 034407
Phase/Voltage: 3 PH 230 V See plate in photos
Condition: Good Working condition
Any Known Issues: No
In Production: Yes - Available Fall 2026
Software transfers with machine: Saw
Access to Forklift for Loading: Will require rigger
Loading Fee: Will require rigger
Shipping Dimensions: Will require rigger
Shipping Weight: Will require rigger
Shipping Brackets Available:
