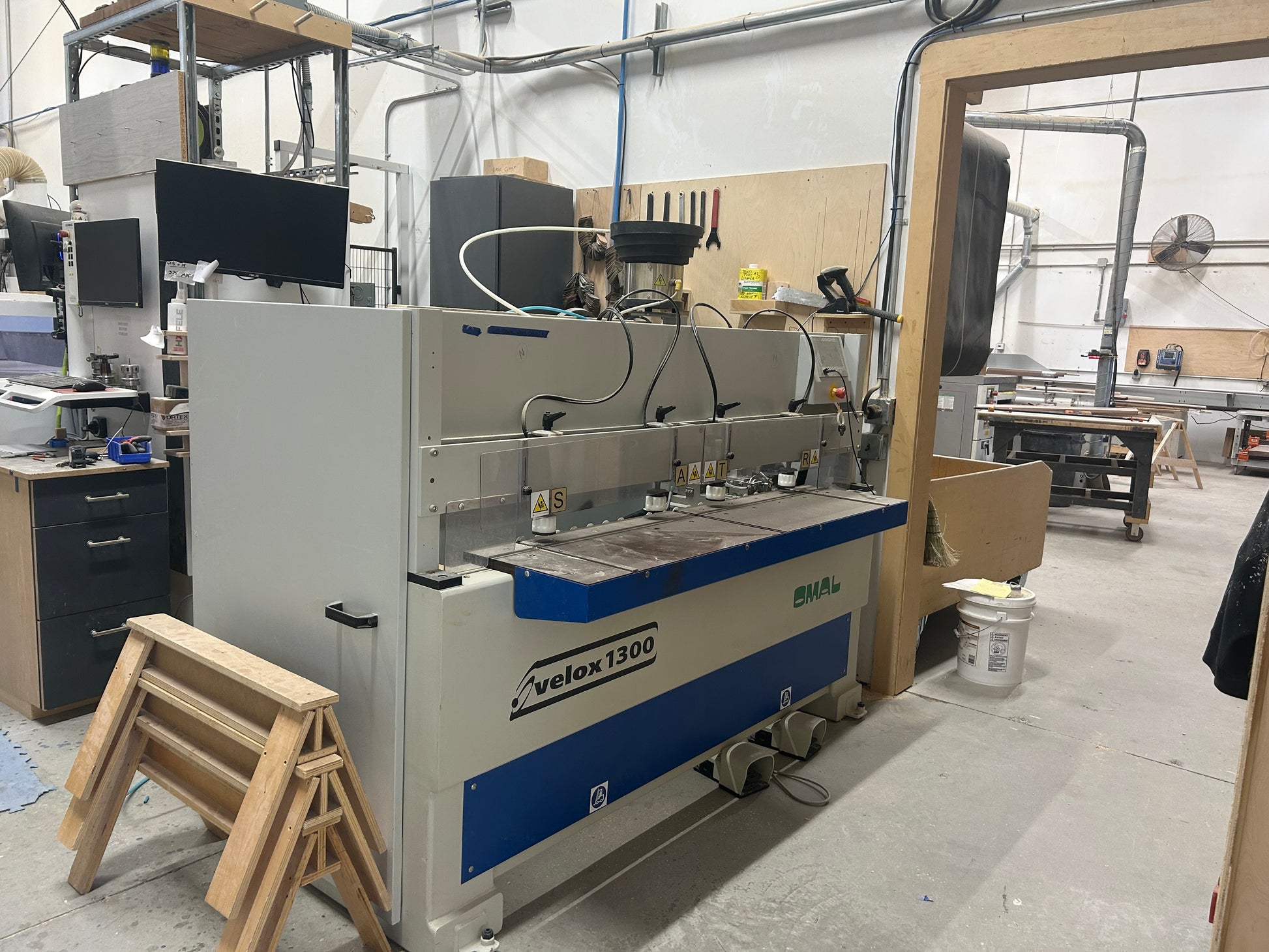

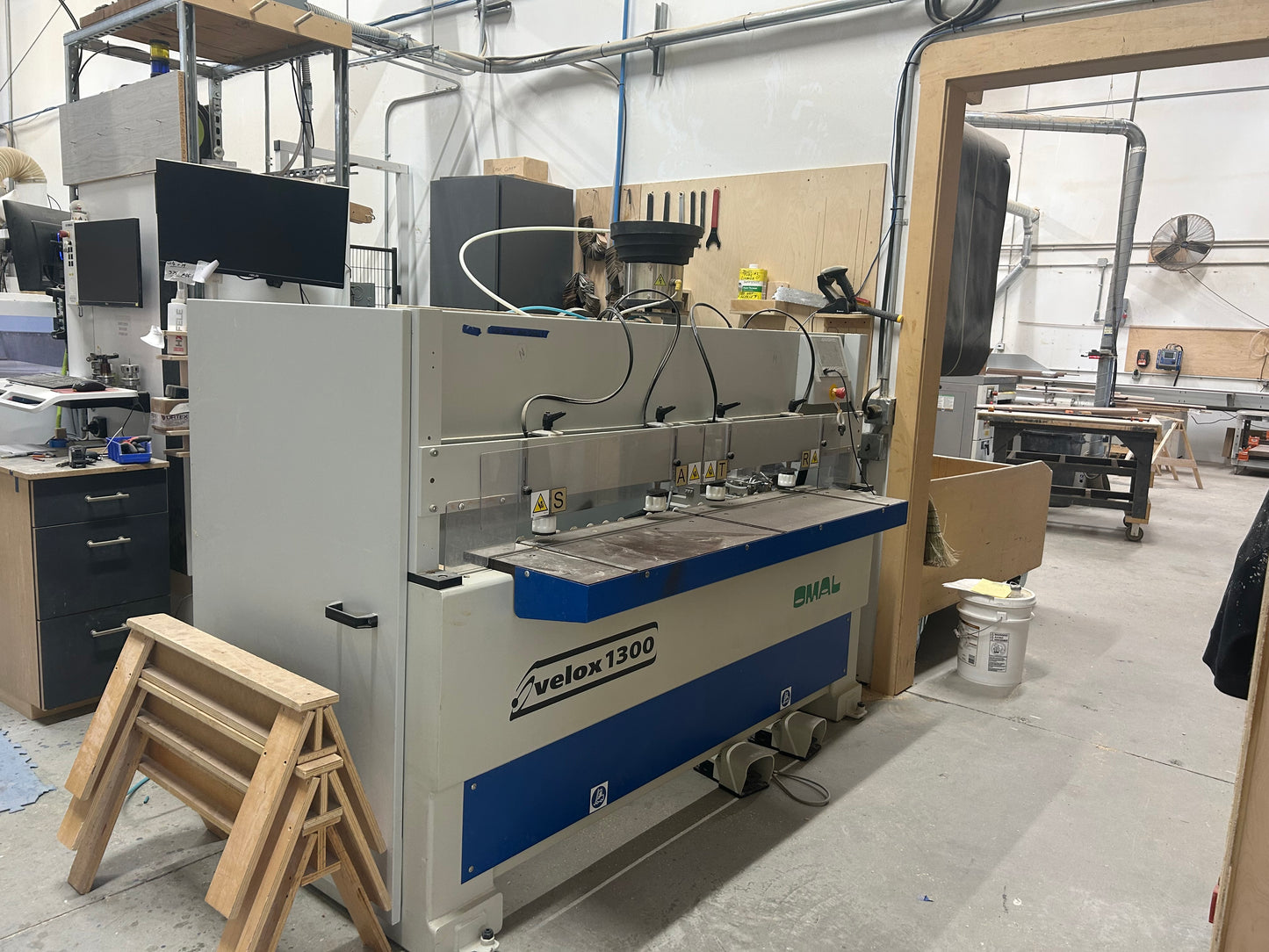

2017 Omal Velox 1300 Horizontal Bore Dowel Machine - Connecticut
Couldn't load pickup availability
How can iBiD help with this machine?
Questions about condition, specifications, loading, or fit? Ask iBiD directly, find a similar machine, or research the model.
Call us about this machine’s condition, specifications, or freight.
2017 OMAL Velox 1300 horizontal CNC bore, glue and dowel machine located in Connecticut and described as ready to ship. Call iBiD Machinery at (678) 925-3556 for current condition, inspection and removal details.
Machine overview
The OMAL Velox 1300 is designed for CNC horizontal drilling, glue injection and dowel insertion in cabinet, furniture and component production. Its 1,300 mm work field can be used in multiple working zones for flexible or batch production.
Manufacturer model-reference specifications
- Panel length: approximately 20-1,300 mm
- Panel width: approximately 50 mm and greater
- Panel thickness: approximately 10-40 mm on current OMAL literature
- 1,300 mm CNC X-axis work field
- Four work fields / tandem-loading capability
- Single horizontal drill and dowel station
- Sure Shot dowel revolver system
- Typical cycle reference: approximately one second for bore/glue/dowel insertion on 32 mm spacing
- 7-inch touchscreen control on current platform
- Installed power reference: approximately 5 kW on current OMAL literature
- Compressed air: minimum approximately 7 bar
- Dust-extraction hood: approximately 60 mm
- Published machine weight: approximately 900 kg
What to confirm on this 2017 machine
Older Velox 1300 configurations can differ from current literature. Confirm panel-thickness capacity, voltage, drilling motor, dowel diameter/length, laser measuring or barcode options, glue/water tanks and all controls directly from this machine.
*Model-reference specifications are provided to the best of iBiD Machinery's knowledge from available manufacturer information and other credible technical references. Actual machine configuration, options, dimensions and capabilities may vary by year, serial number and installed equipment. Buyer should independently confirm all specifications and inspect the machine before purchase.
Product Description:
Machine Location State: Connecticut
Machine Location City: Mystic
Year: 2017
Make: OMAL
Model: Velox 1300
Serial No: 11849
Phase/Voltage: 3PH
Condition: Good Used Working Condition
Any Known Issues: No
In Production: Yes
Software transfers with machine: Boring
Access to Forklift for Loading: Yes
Loading Fee: No
Shipping Dimensions: 9 (length) x 5 (width) x 7 (height) approx
Shipping Weight: 2000 lbs
Shipping Brackets Available: N/A
