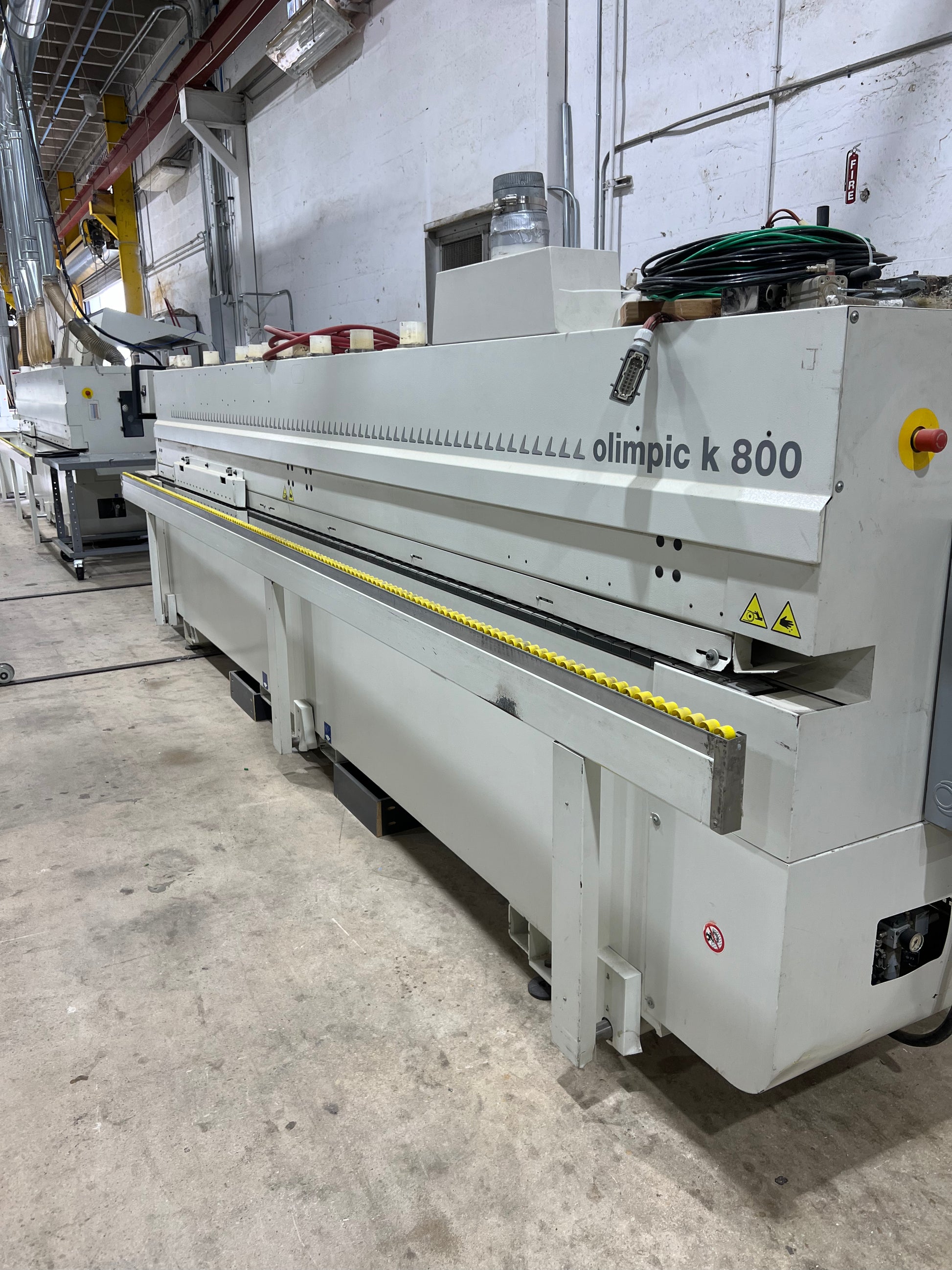

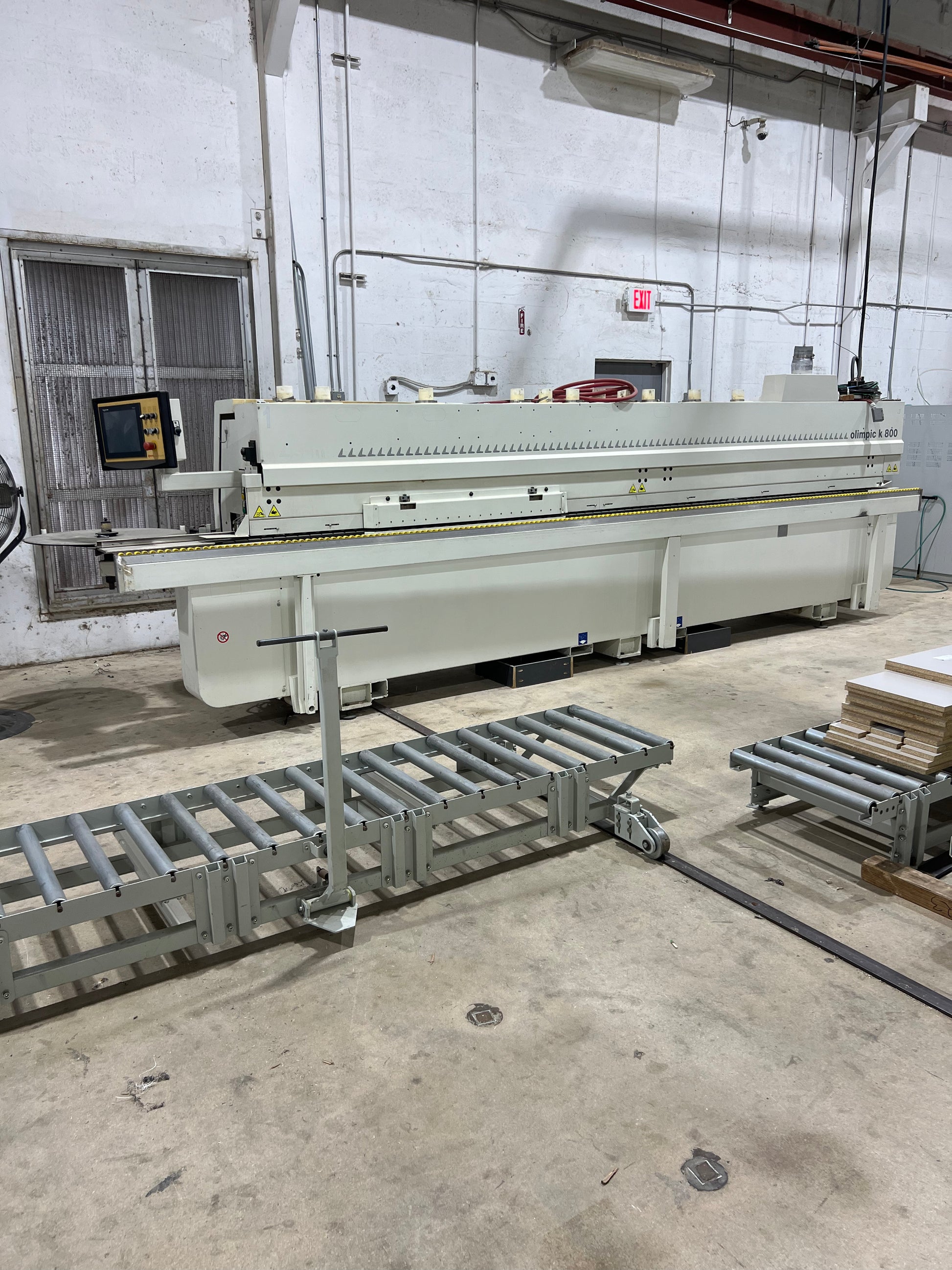

2017 SCM Olimpic K 800 T FR2 Edgebander - Florida

Manufacturer: SCM Brand: SCM Model: Olimpic K 800 T FR2
Out of stock
$29,000.00 USD

Freight is not included in the machine price. iBiD Machinery will quote freight separately through our machinery freight broker.

How can iBiD help with this machine?

Questions about condition, specifications, loading, or fit? Ask iBiD directly, find a similar machine, or research the model.

Prefer to talk?

Call us about this machine’s condition, specifications, or freight.

Call iBiD · (678) 925-3556
Find a similar machine Sell one like this
Research & buying resources
Research this make & model Read the buying guide Research sold history

Your contact details are sent privately to iBiD and are not shown on the product page.

Excellent Used SCM Olimpic K800 Edgebander. Make us an offer! 678-925-3556



Infeed Fence with Mechanical Digital Indicator and Pneumatic Panel Spacing to prevent feeding the panels to close to each other.

Anti-Adhesive Unit prior to Pre milling unit to prevent the buildup of glue

Quick Melt Glue System with Glue Pot

Servo Drive Pressure Section 1 Driven Roller and 3 Idle Rollers

Strip Feed Magazine

Electronic Positioning of Top Pressure Beam

(2) 3 HP ea. Pre-Milling Stations

2" End Trim Station with (2) Independent .50 HP Motors

(2) 1 HP 12,000 rpm Top and Bottom Flush Trim Motors with 2 Position Pneumatics

(2) 1 HP 12,000 rpm Top and Bottom Trimming Motors with Servo Control

Corner Rounding Unit with (2) .80 HP Independent Motors

Profile Scrape Station for 3 mm PVC with Pneumatic In/Out Positioning

Glue Scraping Station

(2) .25 HP Motor Tiltable Buffing Units

Hot Air Blower

Digital Inverter for Electronic Motor Braking

Product Description: Edgeband Thickness: .4 mm to 12 mm

Panel Thickness: 3/8" min to 2-3/8" max

Min. Panel Length: 5-1/2"

Min. Panel Width: 2"

Min. Distance Between Panels: 24"

Guillotine Capacity: 3 mm

Feed Speed: 40 and 60 FPM

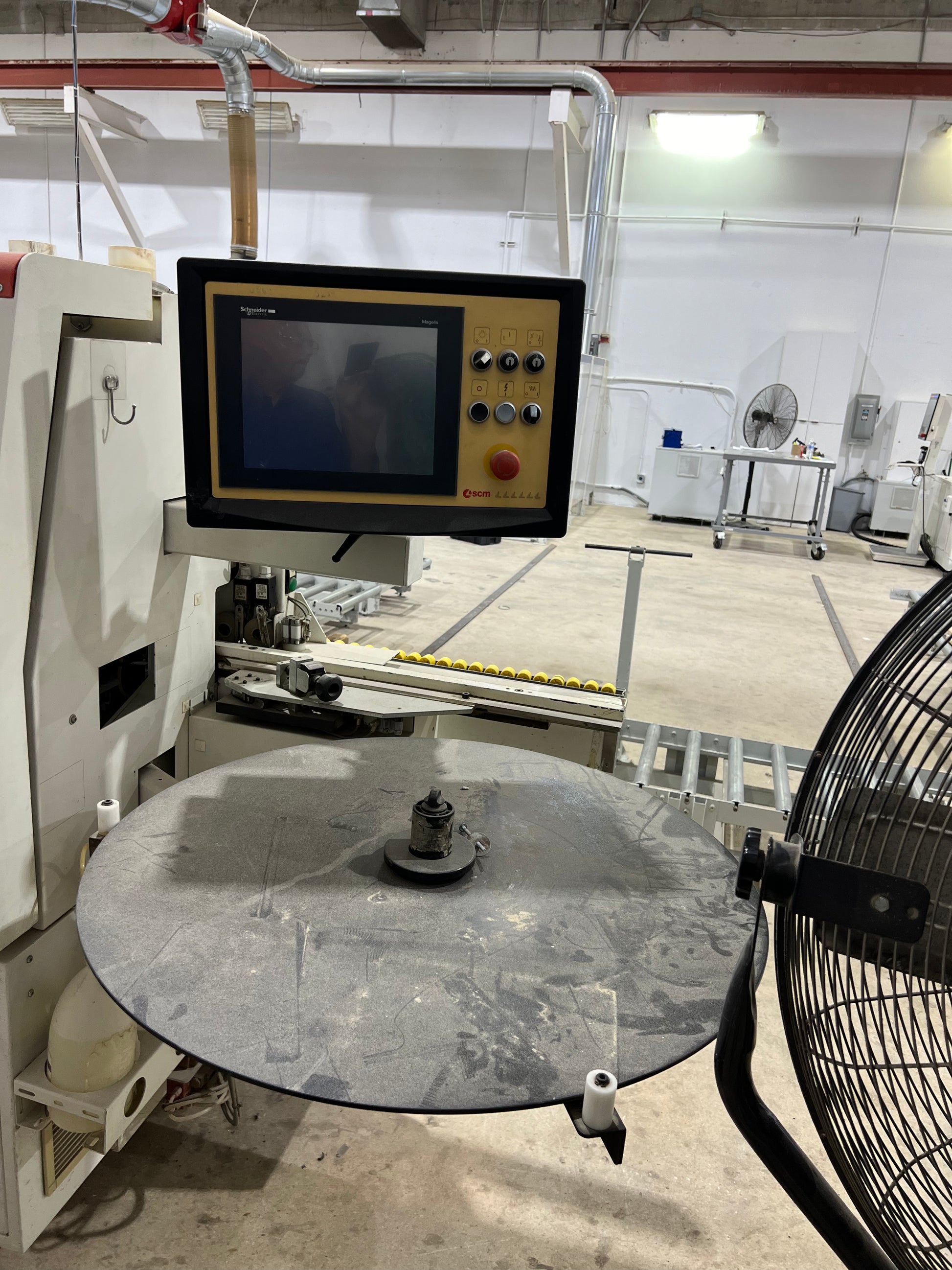

"Startouch" Electronic Controller

Infeed Fence with Mechanical Digital Indicator and Pneumatic Panel Spacing to prevent feeding the panels to close to each other.

Anti-Adhesive Unit prior to Pre milling unit to prevent the buildup of glue

Quick Melt Glue System with Glue Pot

Servo Drive Pressure Section 1 Driven Roller and 3 Idle Rollers

Strip Feed Magazine

Electronic Positioning of Top Pressure Beam

(2) 3 HP ea. Pre-Milling Stations

2" End Trim Station with (2) Independent .50 HP Motors

(2) 1 HP 12,000 rpm Top and Bottom Flush Trim Motors with 2 Position Pneumatics

(2) 1 HP 12,000 rpm Top and Bottom Trimming Motors with Servo Control

Corner Rounding Unit with (2) .80 HP Independent Motors

Profile Scrape Station for 3 mm PVC with Pneumatic In/Out Positioning

Glue Scraping Station

(2) .25 HP Motor Tiltable Buffing Units

Hot Air Blower

Digital Inverter for Electronic Motor Braking

Air Requirements: 90 PSI

Machine Location State: Florida

Machine Location City: Hialeah

Year: 2017

Make: SCM

Model: Olimpic K 800 T FR2

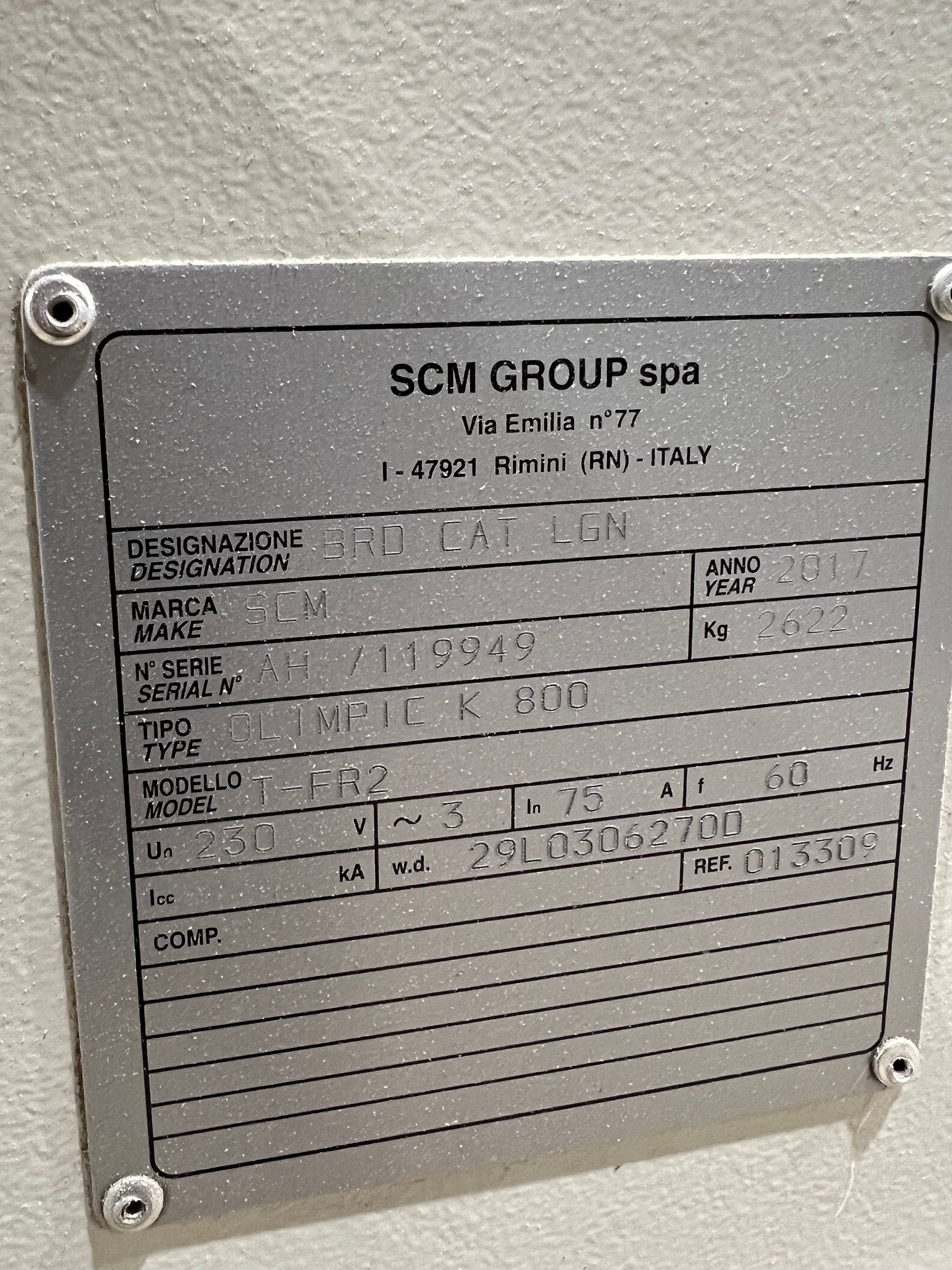

Serial No: AH/ 119149

Phase/Voltage: 230 Voltage 60 Cycle 3 Phase

Condition: Good

Any Known Issues: Needs two dust extraction hoses replaced

In Production: Yes

Software transfers with machine: Edgebander

Access to Forklift for Loading: Included

Loading Fee: Included

Shipping Dimensions: 24 (length) x 4 (width) x 6 (height)

Shipping Weight: 5800 LBS

Shipping Brackets Available: NO
