SCM Automatic Edgebander - Model Stefani KDR

2018 Edgebander in Excellent Working Condition

Located In Illinois

Automatic single sided edgebander designed to be used for edgebanding straight vertical profiles with coiled material (veneer and PVC) and with strips (high-pressure laminate and solid wood) with a maximum thickness of 12mm.

Machine Base
The machine base is a rigid, ribbed steel structure and is designed to provide maximum support for the working units.  The ribs provide stability and, at the same time, provide openings in the base to facilitate removal of the chips/dust.
Capacities And Speed
Edgebanding thickness: .4mm - 12mm (.016-1/2”)
Guillotine capacity: 3mm
Feed speed: 33-66 ft/min.
Panel height: 3/8” min – 2 3/8” max
Minimum panel length: 5 1/2”
Minimum panel width: 2”
Minimum distance between panels: 24”

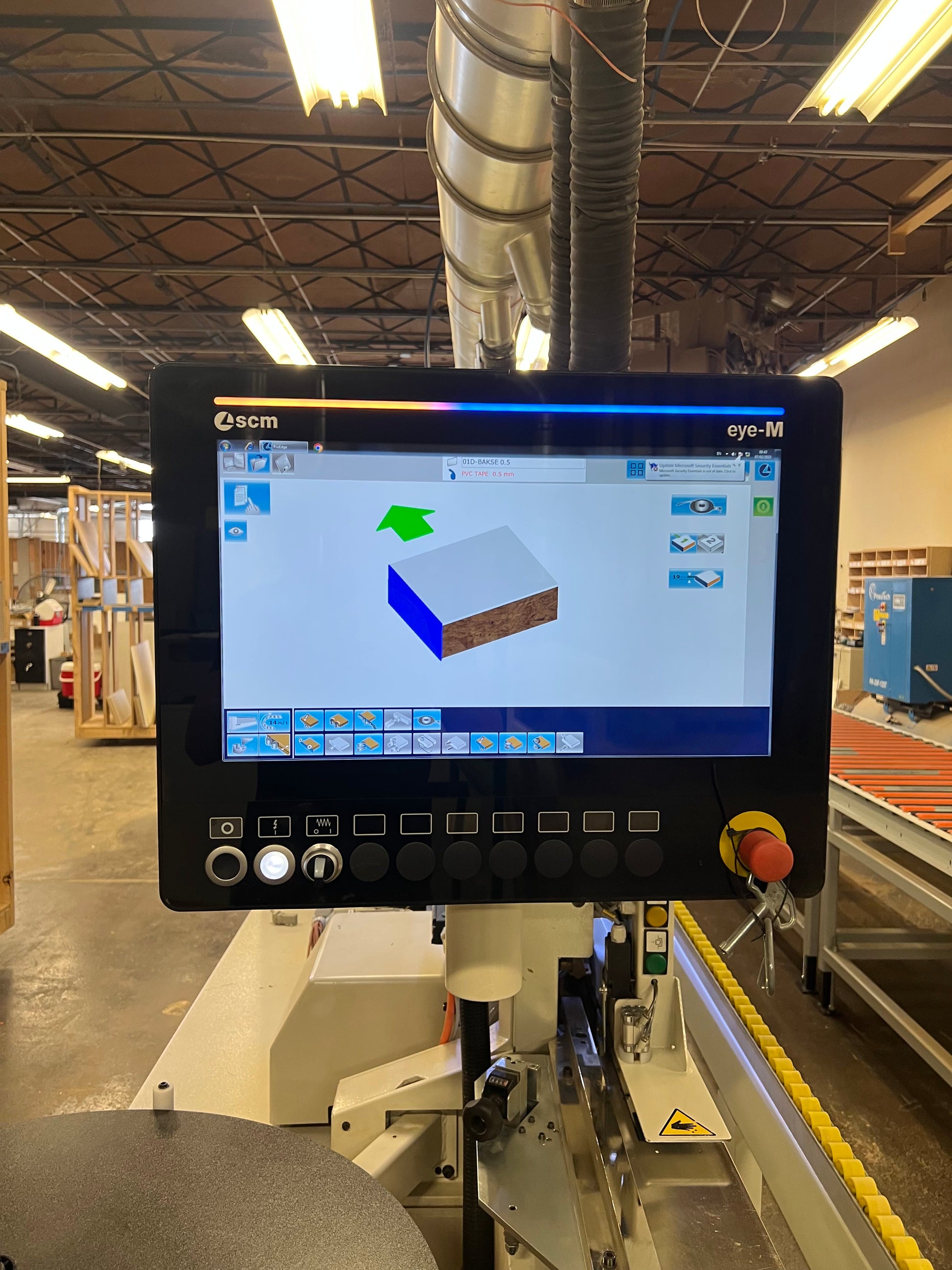

Startouch Controller

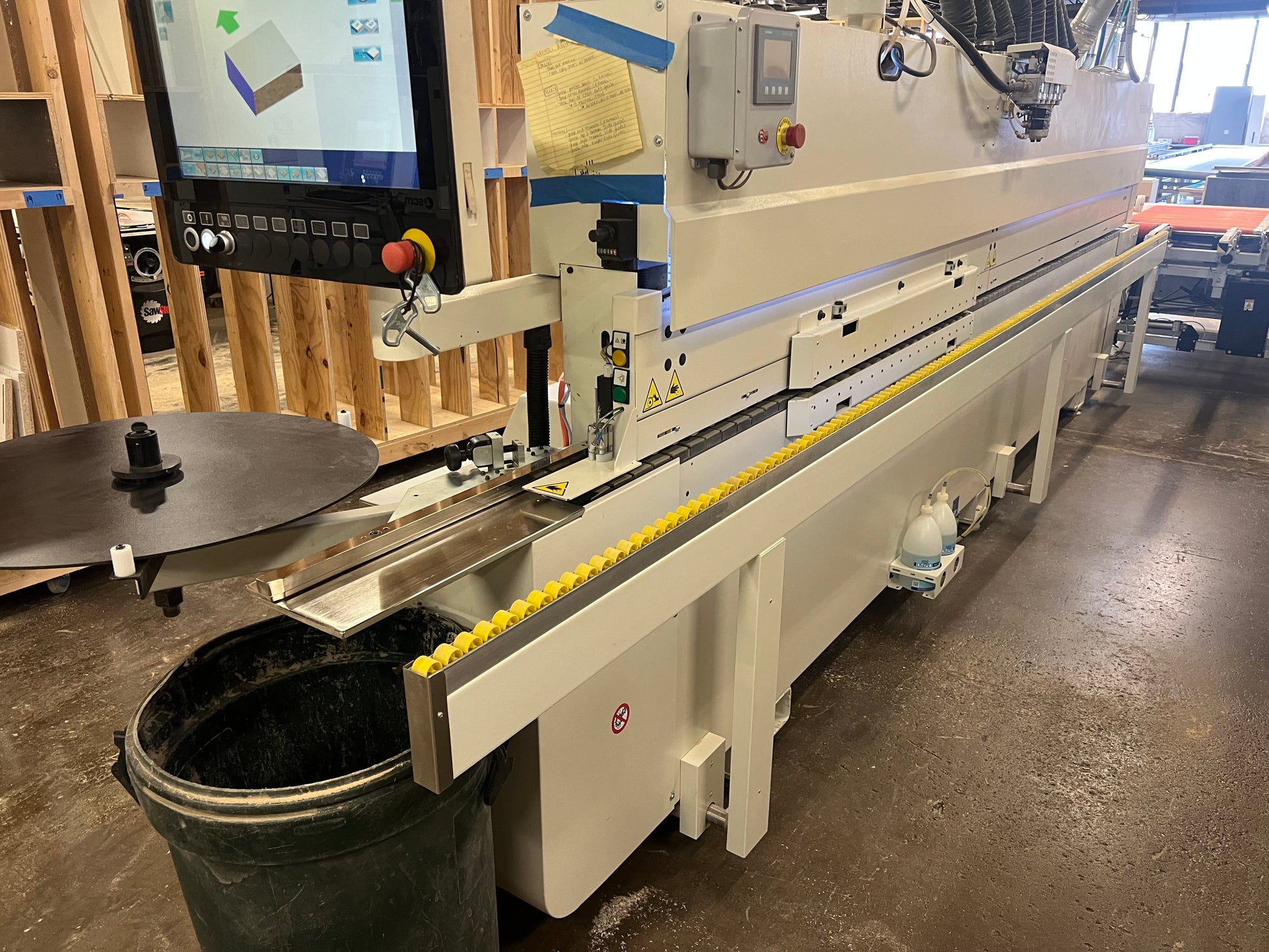

The Stefani KD comes equipped with the new "Startouch" controller.  This controller features a 12" touch screen display. Capable of storing 100 programs, 6 at the touch of a single key. Color graphic display of all the working units.

3 Phase

230 V

 *See "Additional Information" for More Details on this Machine*

Pre-Owned SCM Edgebander

*Information displayed has been gathered from machine owner, internet searches and other sources. Information is believed to be correct, but not guaranteed. All buyers should verify this information independently and/or have the machine inspected for accuracy prior to purchase.  Machines are sold AS IS WHERE IS with No Implied Warranty*

Product Description: 2018 SCM Stefani KDR Automatic Edgebander

Machine Location State: Illinois

Machine Location City:

Year: 2018

Make: SCM

Model: Stefani KDR

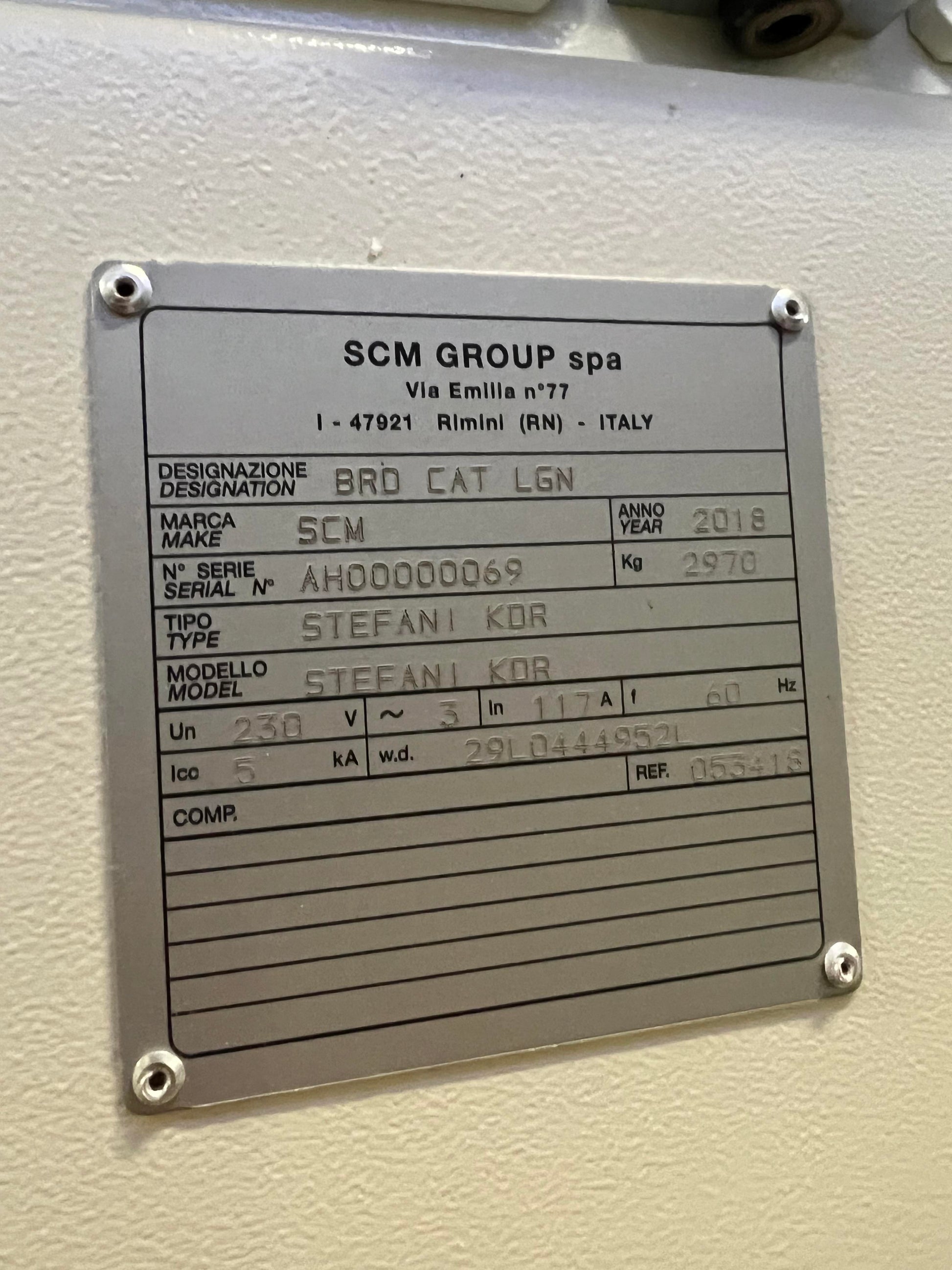

Serial No: AH00000069

Phase/Voltage: 3 Phase/230 V

Condition: Excellent

Any Known Issues: No

In Production: Yes

Software Transfer:

Access to Forklift for Loading:

Loading Fee:

Shipping Dimensions:

Shipping Weight: 6,550 lbs approx.

Shipping Brackets Available:
