2019 Oliver 2018 Lathe 2HP 1PH

Manufacturer: Oliver Brand: Oliver Model: 2018
Out of stock
$3,500.00 USD

Freight is not included in the machine price. iBiD Machinery will quote freight separately through our machinery freight broker.

How can iBiD help with this machine?

Questions about condition, specifications, loading, or fit? Ask iBiD directly, find a similar machine, or research the model.

Prefer to talk?

Call us about this machine’s condition, specifications, or freight.

Call iBiD · (678) 925-3556
Find a similar machine Sell one like this
Research & buying resources
Research this make & model Research sold history

Your contact details are sent privately to iBiD and are not shown on the product page.

2 Available ($3500 each)

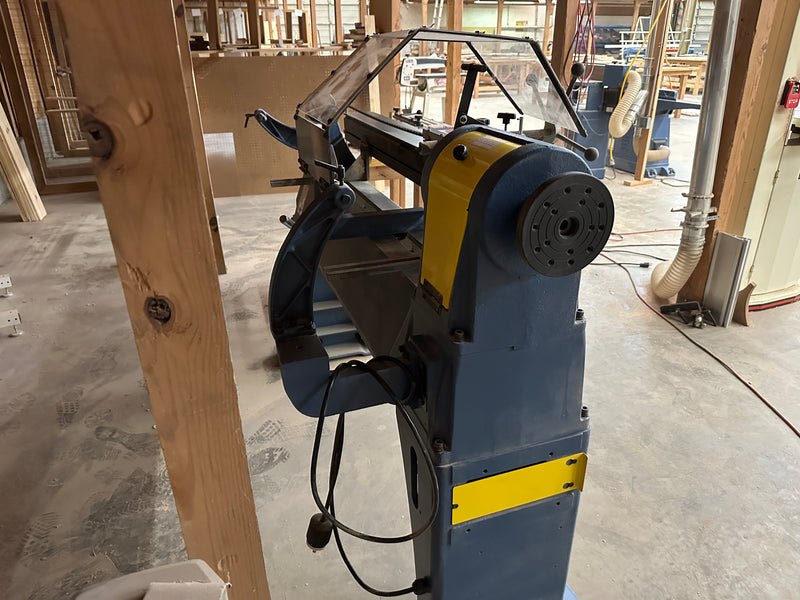

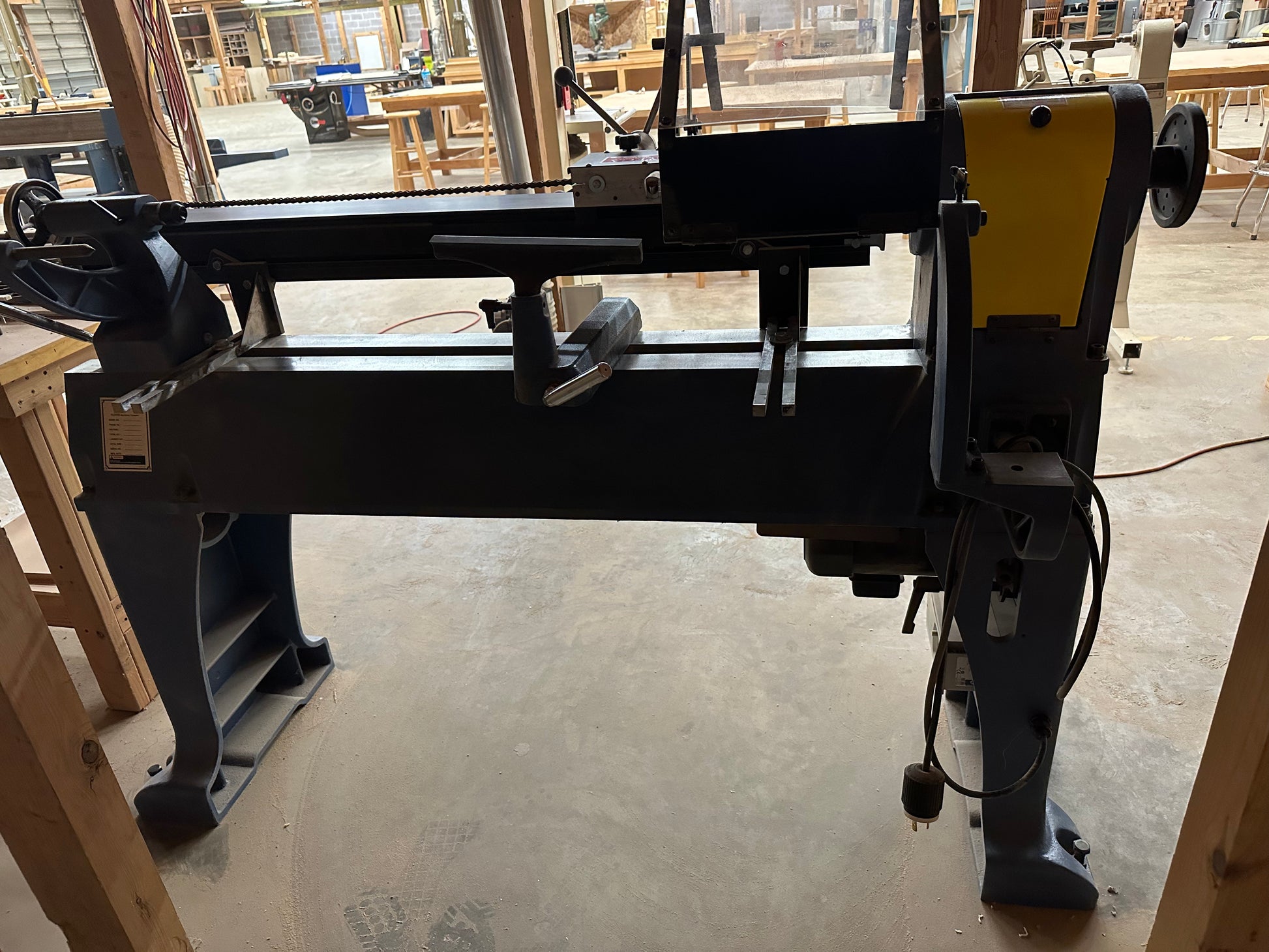

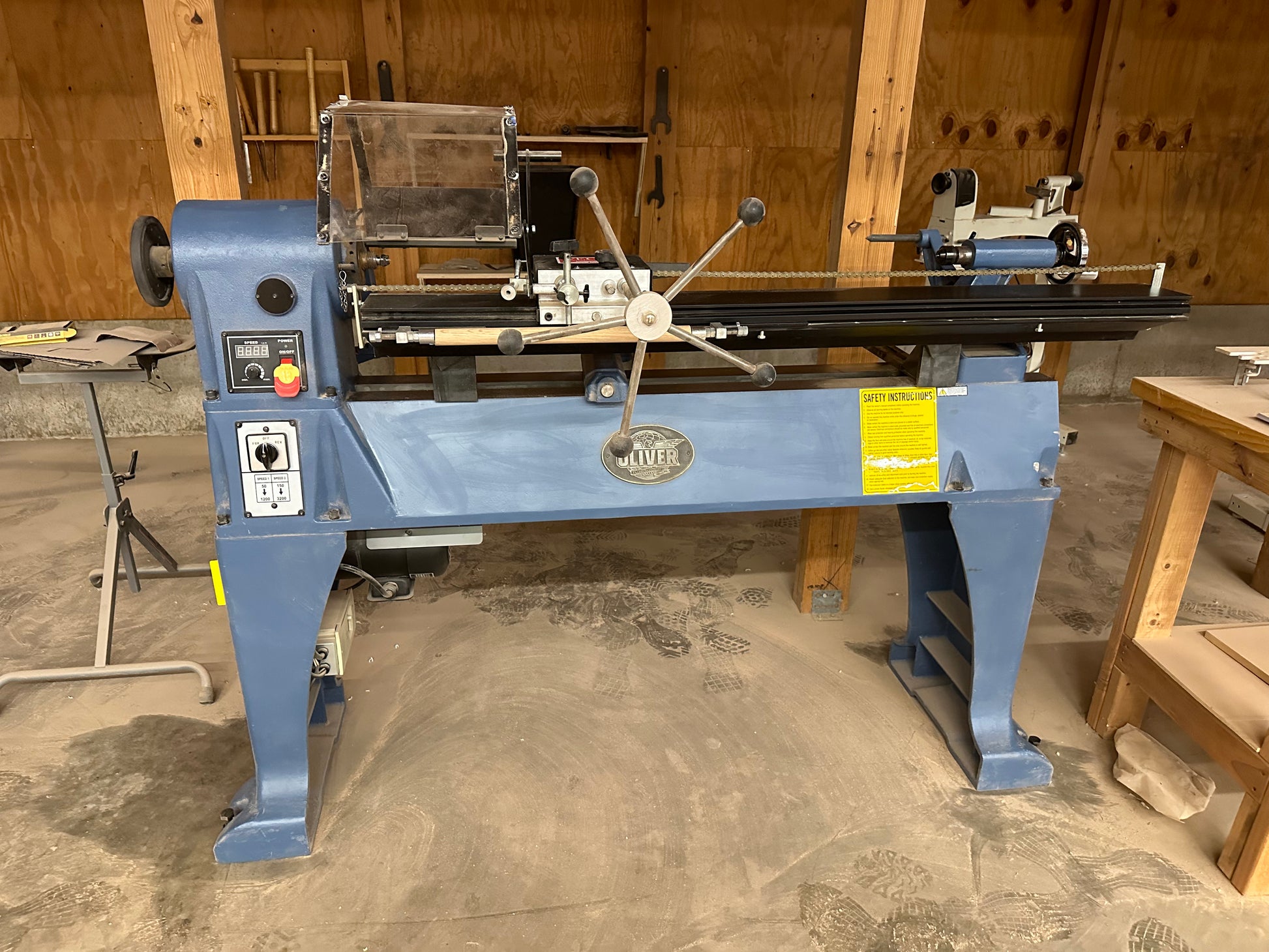

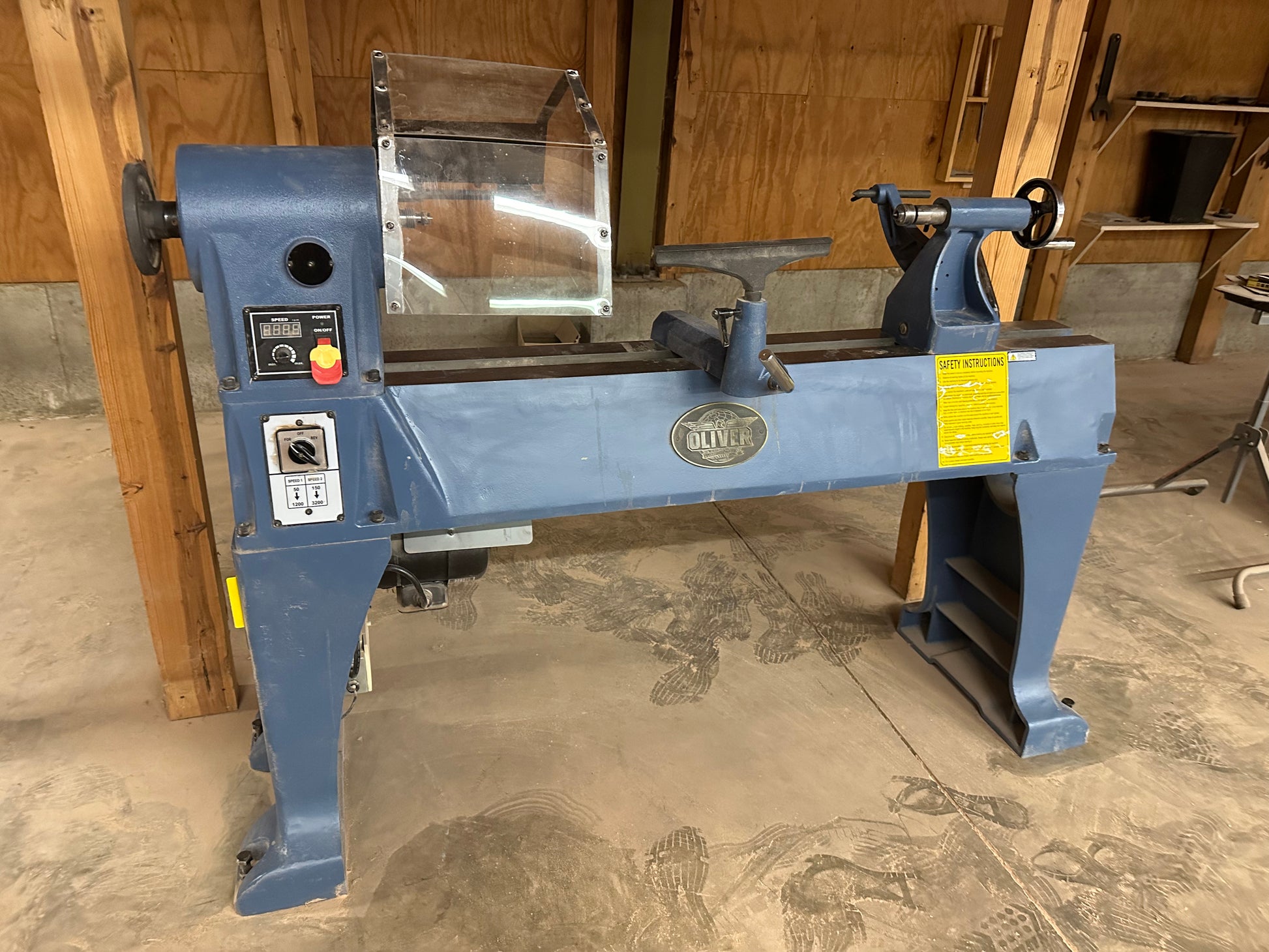

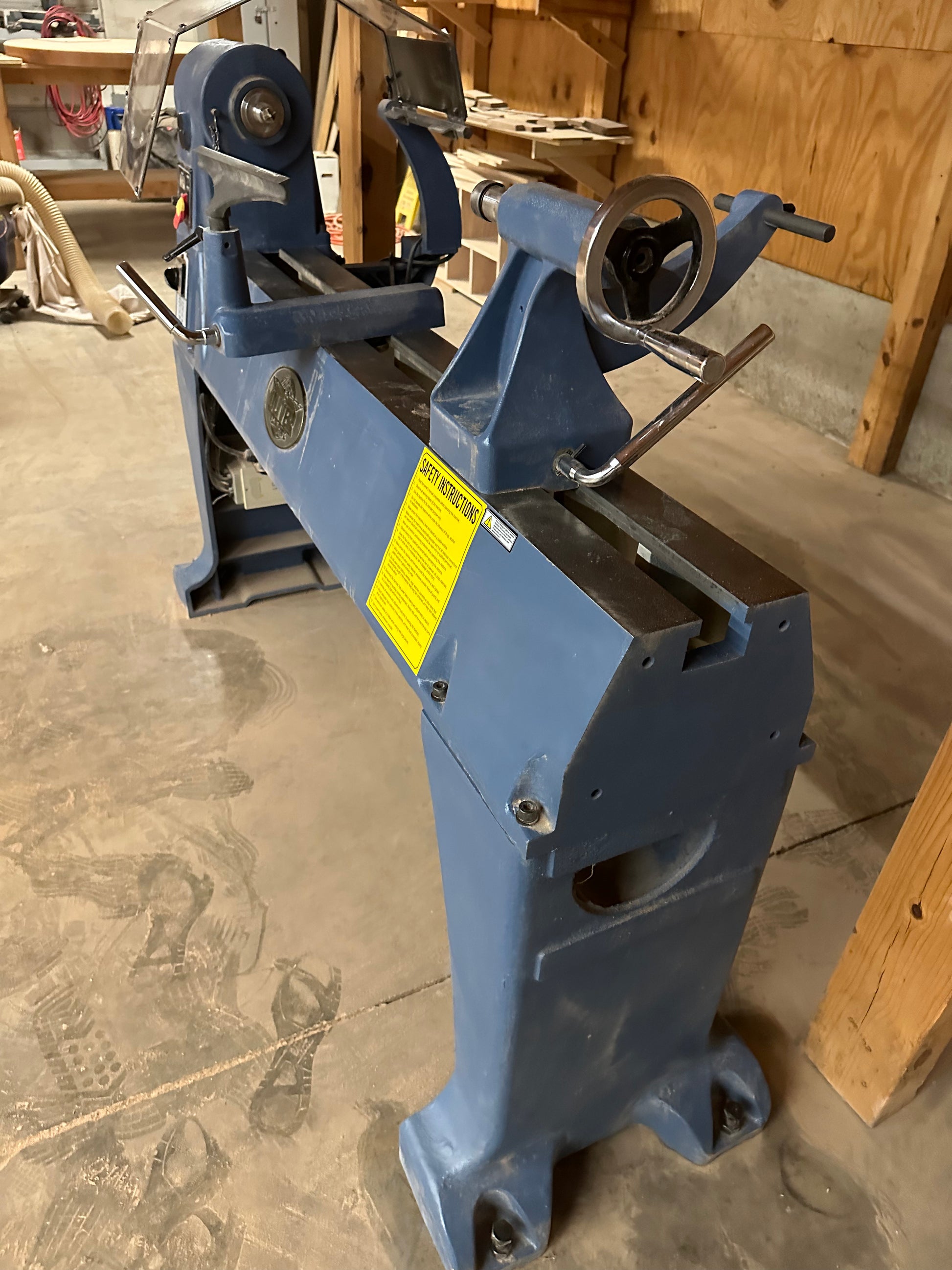

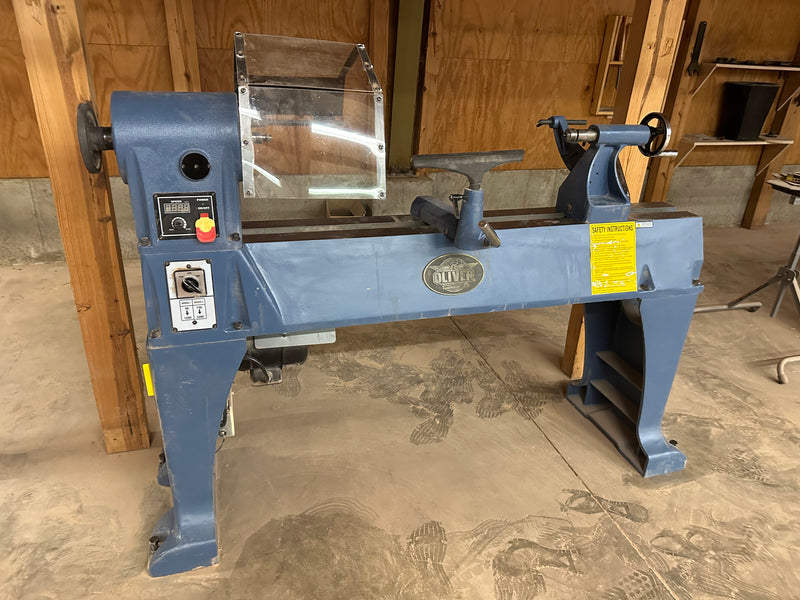

Used 2019 Oliver 2018 Lathe 2HP 1PH

Great Working Condition

Preowned 2019 Oliver 2018 Lathe 2HP 1PH

Located in Kansas

Features

  • All cast iron construction reduces vibration.
  • Sliding headstock allows outboard turning.
  • Safety guard included.

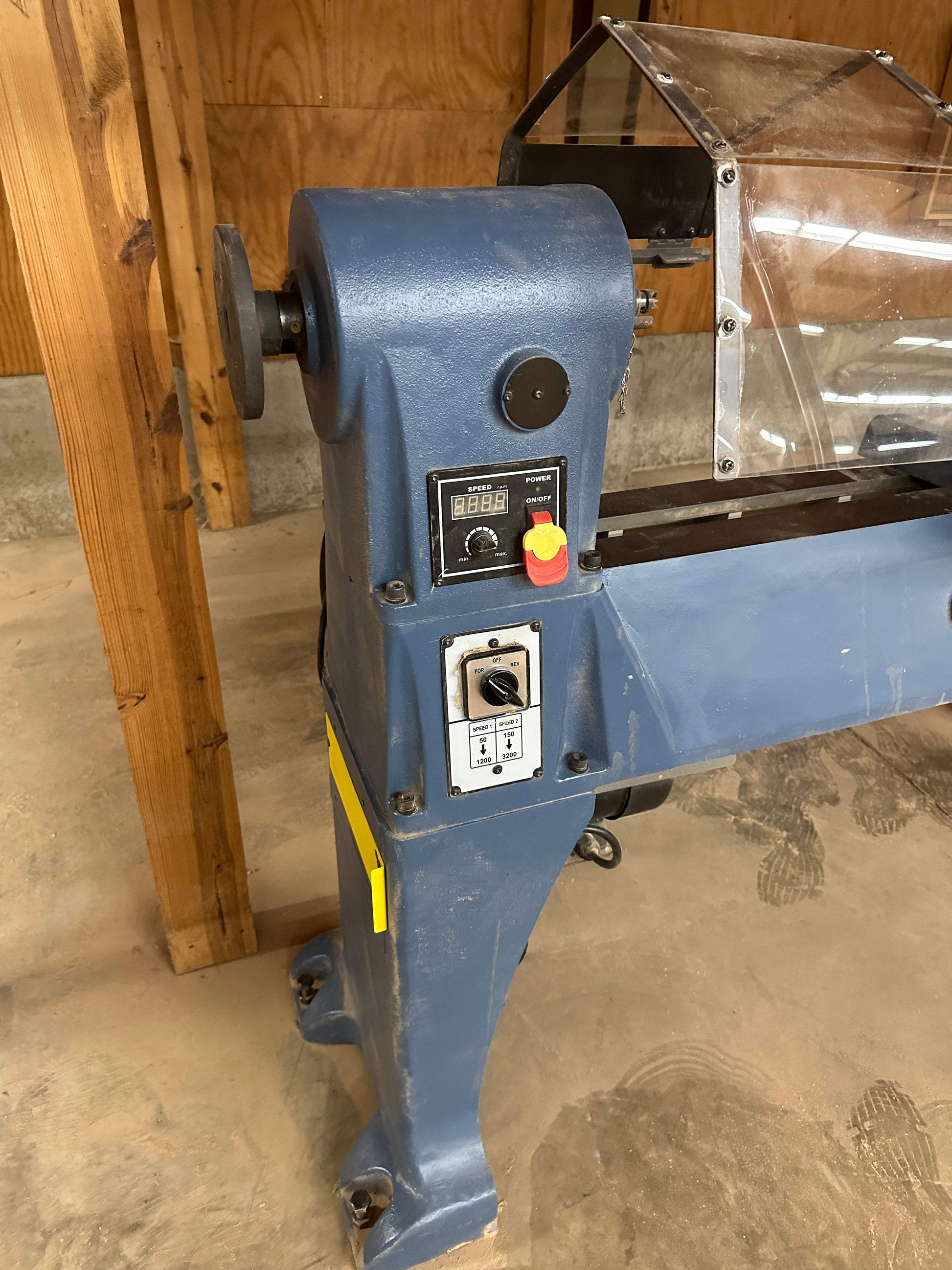

  • Digital readout of spindle speed for accurate adjustment.

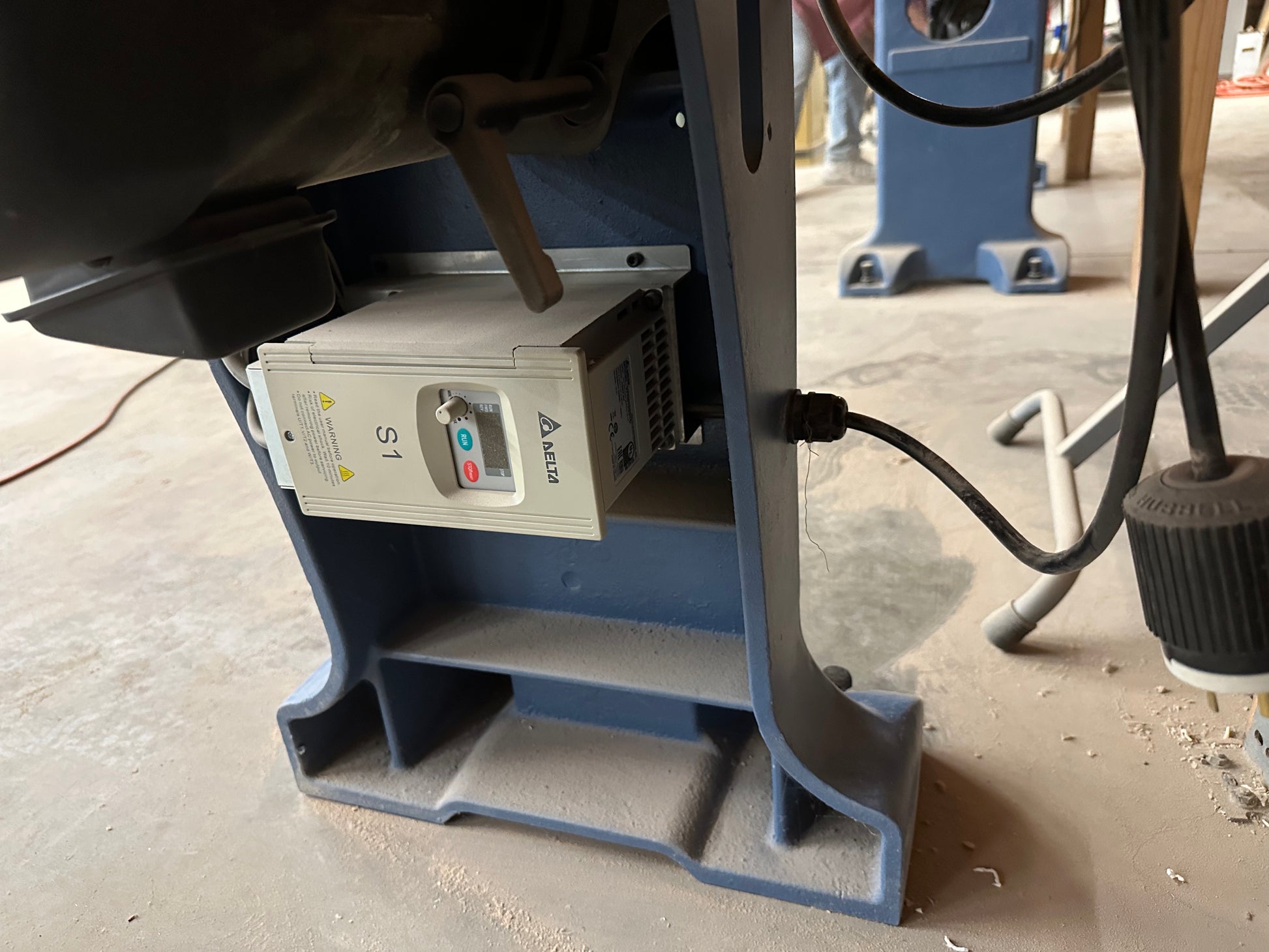

  • Frequency inverter drive includes a wide range of spindle speeds.
  • Reversible motor allows a variety of operations.

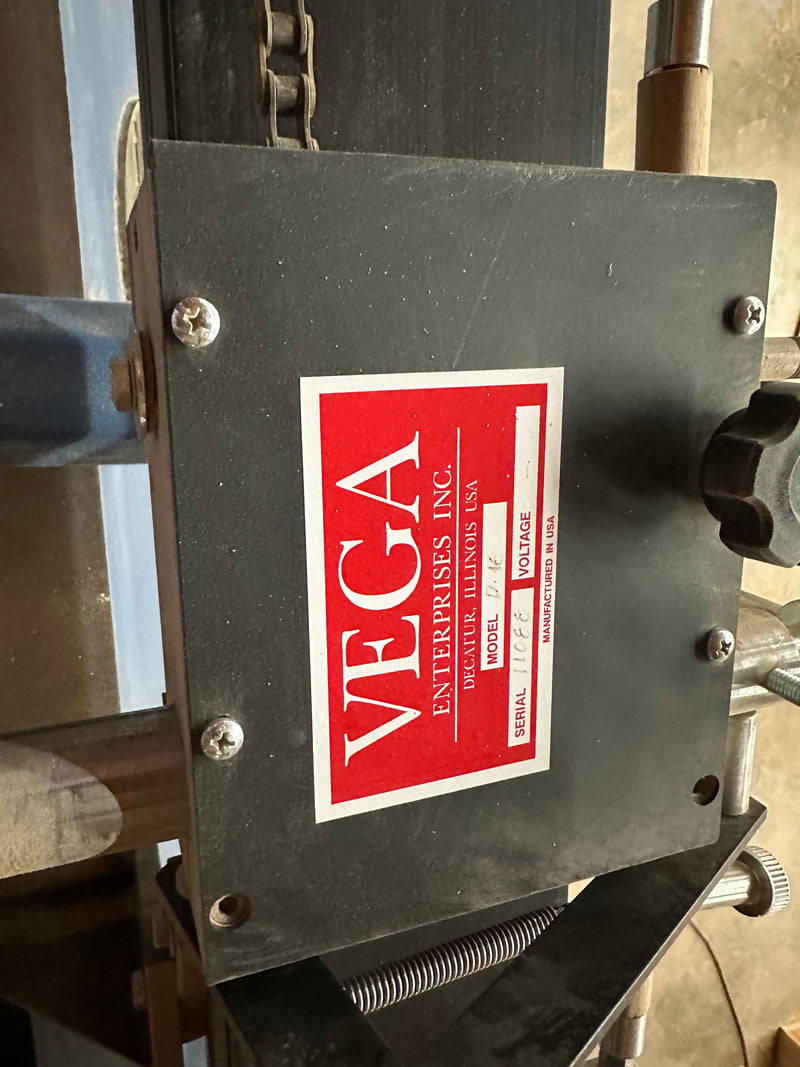

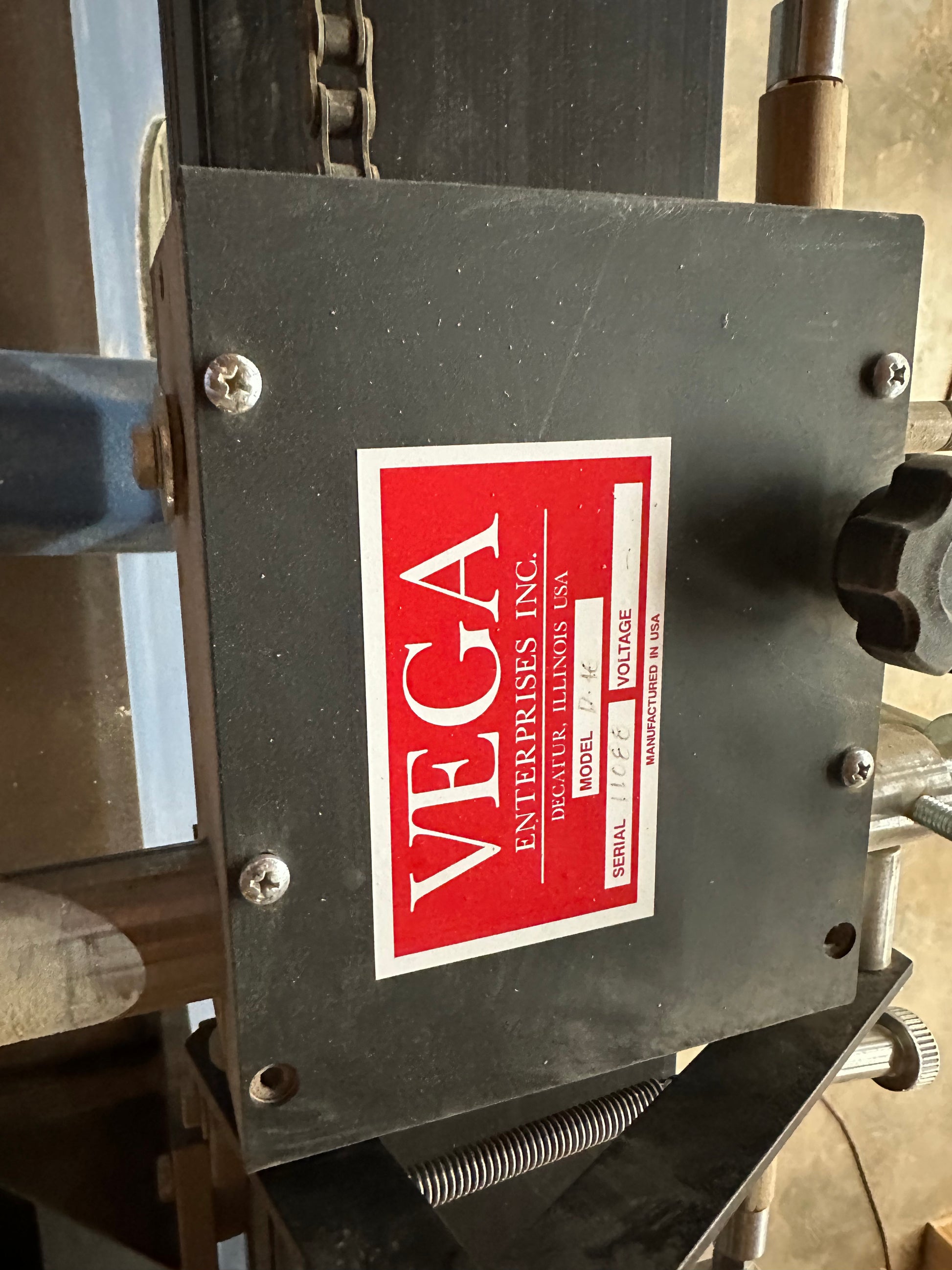

  • Comparator included to allow easy replicate spindle projects.
  • Optional bed extension mounts in two positions.
  • Built-in spindle index features 36-positions.

Specifications

  • Model Number: 2018
  • Stock Number: 2018.002
  • Stock No: 2018.002
  • Swing Over Bed: 18"
  • Distance Between Centers: 42" (57" w/extension)
  • Variable Speed: 50-3,200 RPM
  • Speed Range 1: 50-1,200 RPM
  • Speed Range 2: 150-3,200 RPM
  • Spindle: 1-1/4”-8 TPI RH Headstock
  • Indexer: Up to 36 Flutes
  • Spindle & Tailstock Tapers: MT2
  • Spindle Bore: 9/16"
  • Face Plate OD: 6"
  • Centerline of Spindle to Floor: 42-1/2"
  • Footprint: 69" x 19"

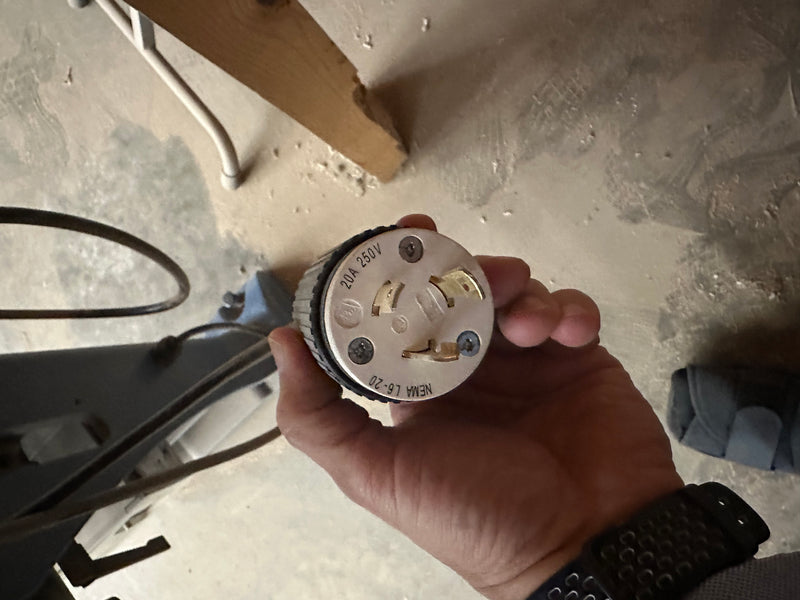

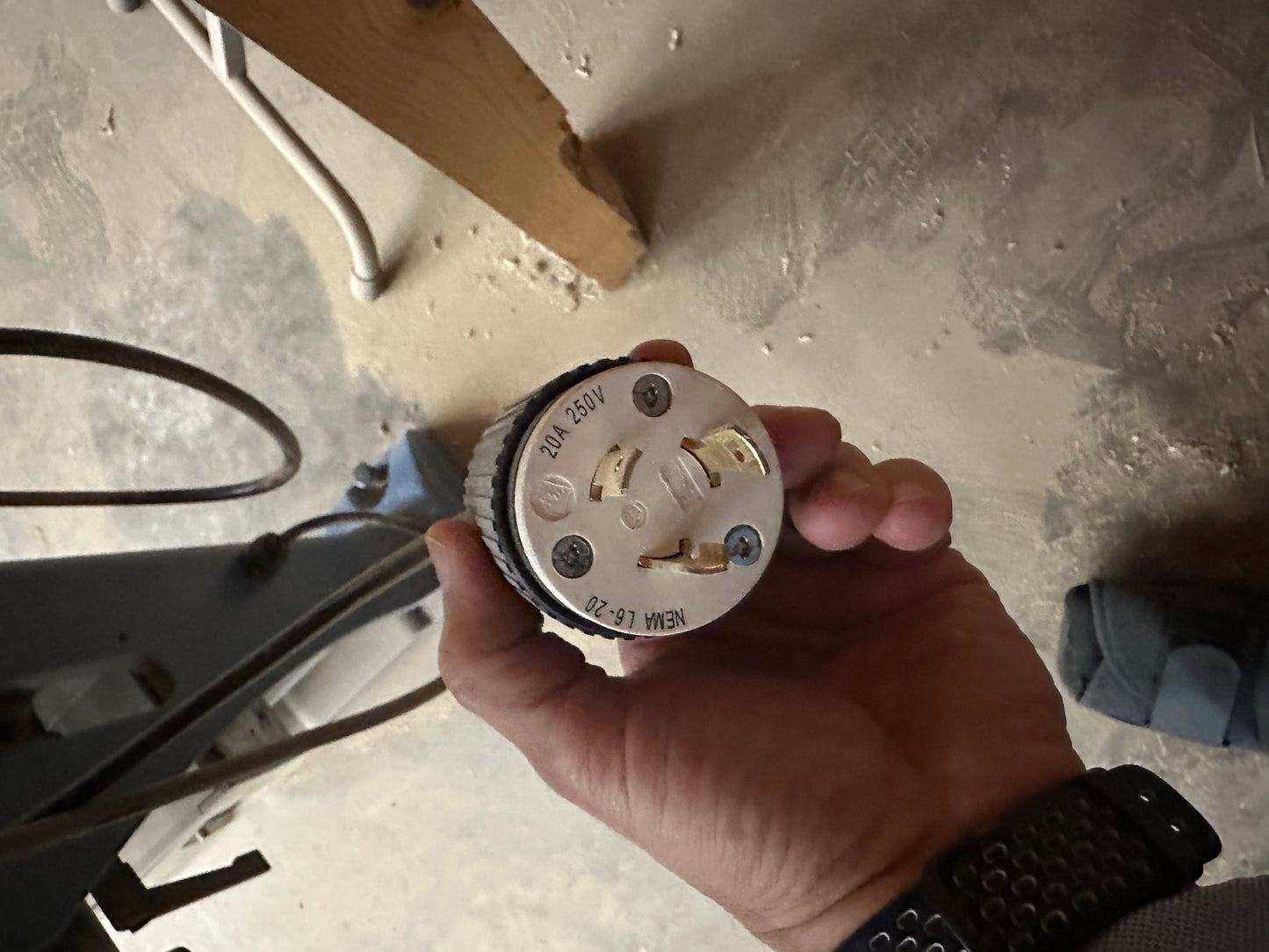

  • Main Motor: 2HP, 1Ph, 220V (6 Amps)
  • Overall Dimension: 74" x 22" x 55"
  • Net Weight: 708 lbs.





*Information displayed has been gathered from machine owner, internet searches and other sources. Information is believed to be correct, but not guaranteed. All buyers should verify this information independently and/or have the machine inspected for accuracy prior to purchase*

Product Description: Used 2019 Oliver 2018 Lathe 2HP 1PH

Machine Location State: Kansas

Machine Location City: Olathe

Year: 2019

Make: Oliver

Model: 2018

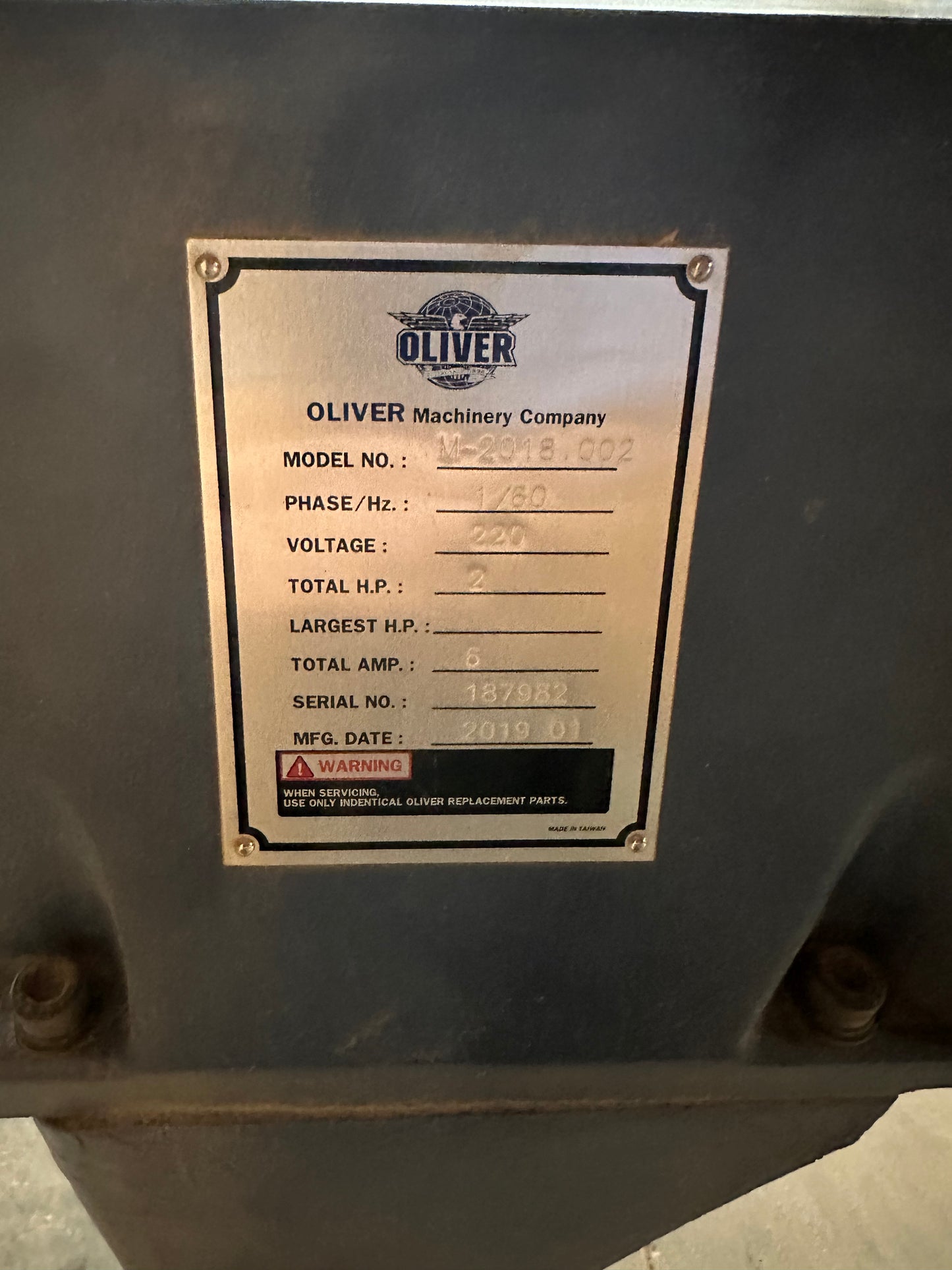

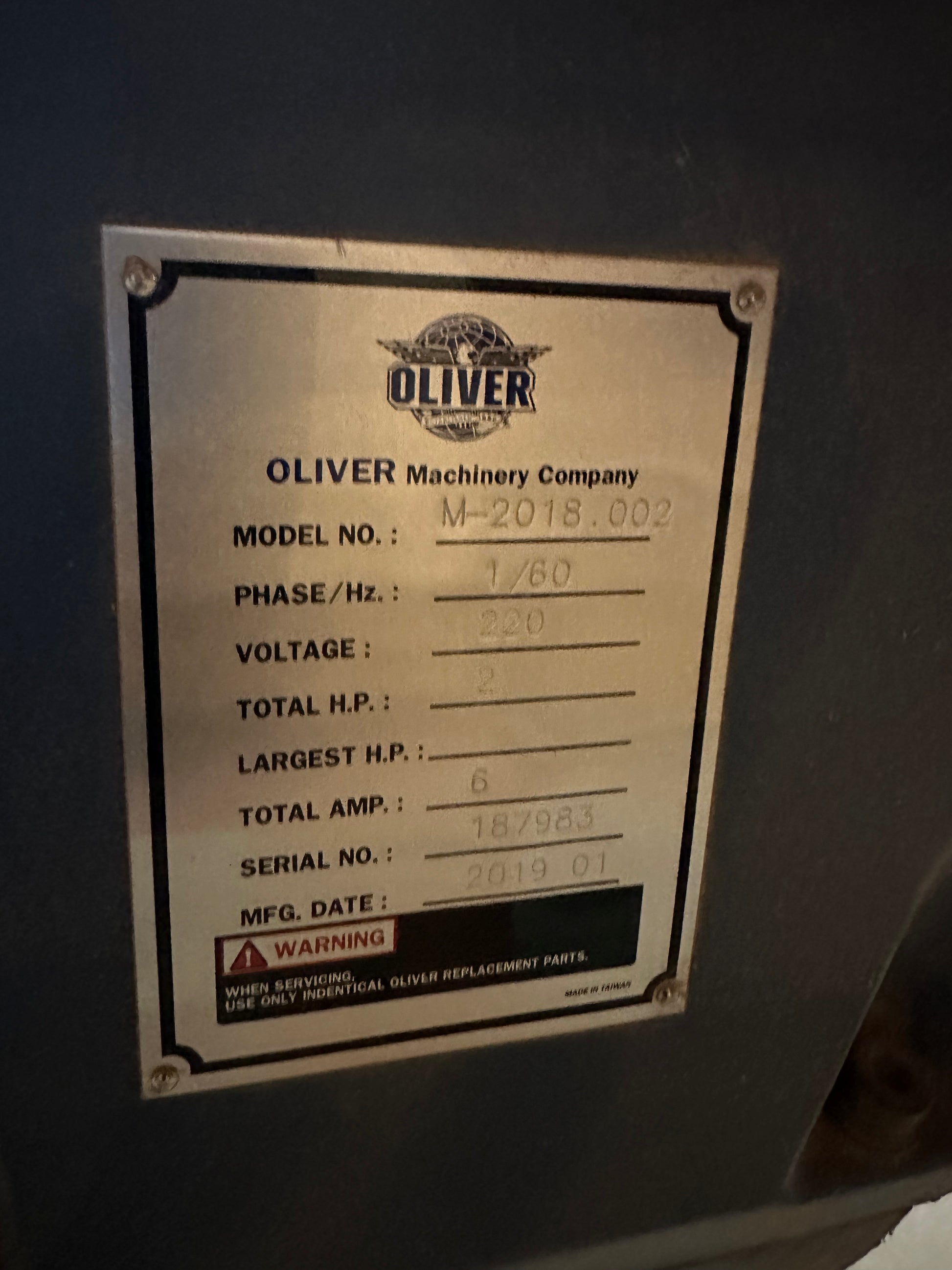

Serial No: 187982-3

Phase/Voltage: 1ph/220 V

Condition: Great

Any Known Issues: No

In Production: Yes

Software transfers with machine: N/A

Access to Forklift for Loading: Yes

Loading Fee: None

Shipping Dimensions: 74" x 22" x 55"

Shipping Weight: 710 lbs

Shipping Brackets Available: N/a
