Excellent Used Condition Wide Belt Sander

Single head sander

37"

***3 Phase***

Used SCM Sander

2019 SCM DMC SD10

PreOwned SCM Sander

No known issues

Technical Specifications

 Working Width           950mm

Number of Heads Available    1

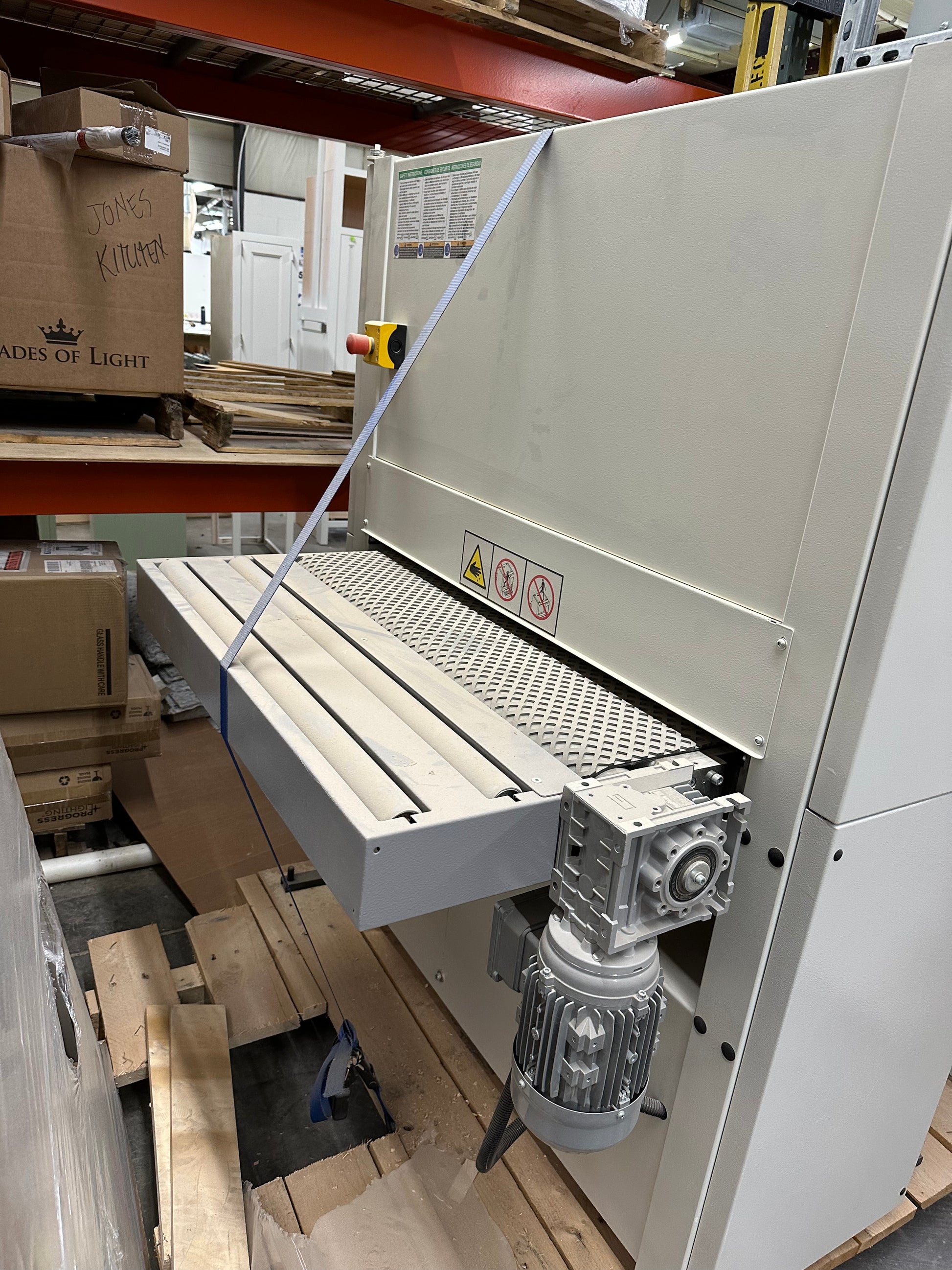

Feed Motor     .7 HP

Feed Speed     15 or 30 fpm

Maximum Work Piece Thickness        160mm

Minimum Work Piece Length 12.5"

Abrasive Belt Size       37" X 60"

Compressed Air Requirements           6 Bar (88 PSI)

Dust Outlets    1 outlet @ 140mm

Exhaust Requirements            900 CFM

Power Requirements  54 amps @ 230V Three Phase

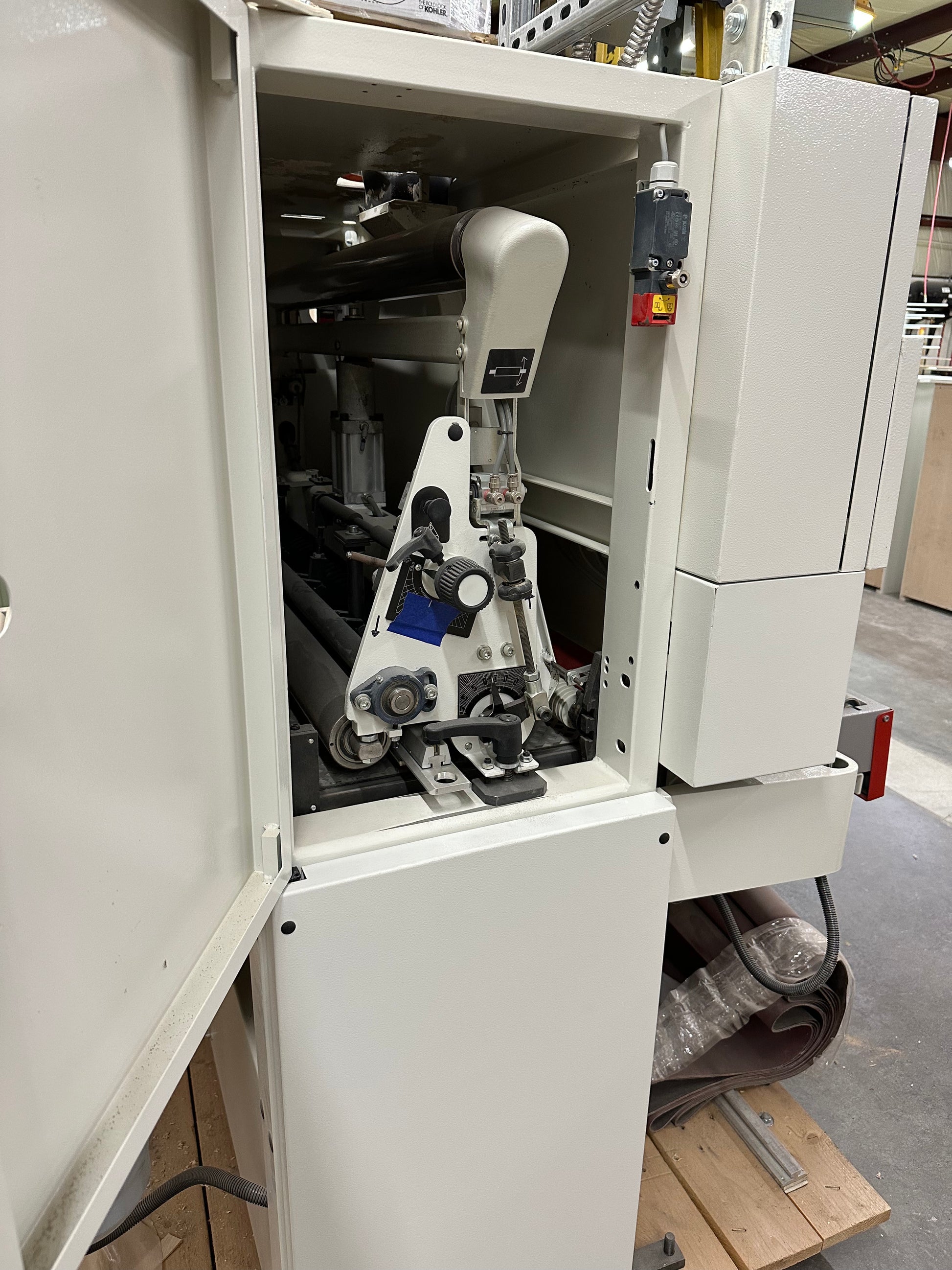

Working Unit Specifications

Working Unit Type      Combination Head

Motor HP        18 HP

Motor Type     Single Speed

Abrasive Belt Speed    18 mps

Drum Size        120mm

Drum Type      85 Sh Rubber

Platen Size      50mm

Platens Included         Two

*MACHINE SOLD AS IS WHERE IS WITH NO IMPLIED WARRANTY* Information displayed has been gathered from machine owner, internet searches and other sources. Information is believed to be correct, but not guaranteed. All buyers should verify this information independently and/or have the machine inspected for accuracy prior to purchase*

Product Description: 2019 SCM Wide Belt Sander

Machine Location State: Ohio

Machine Location City: Springboro

Year: 2019

Make: SCM

Model: DMC SD10

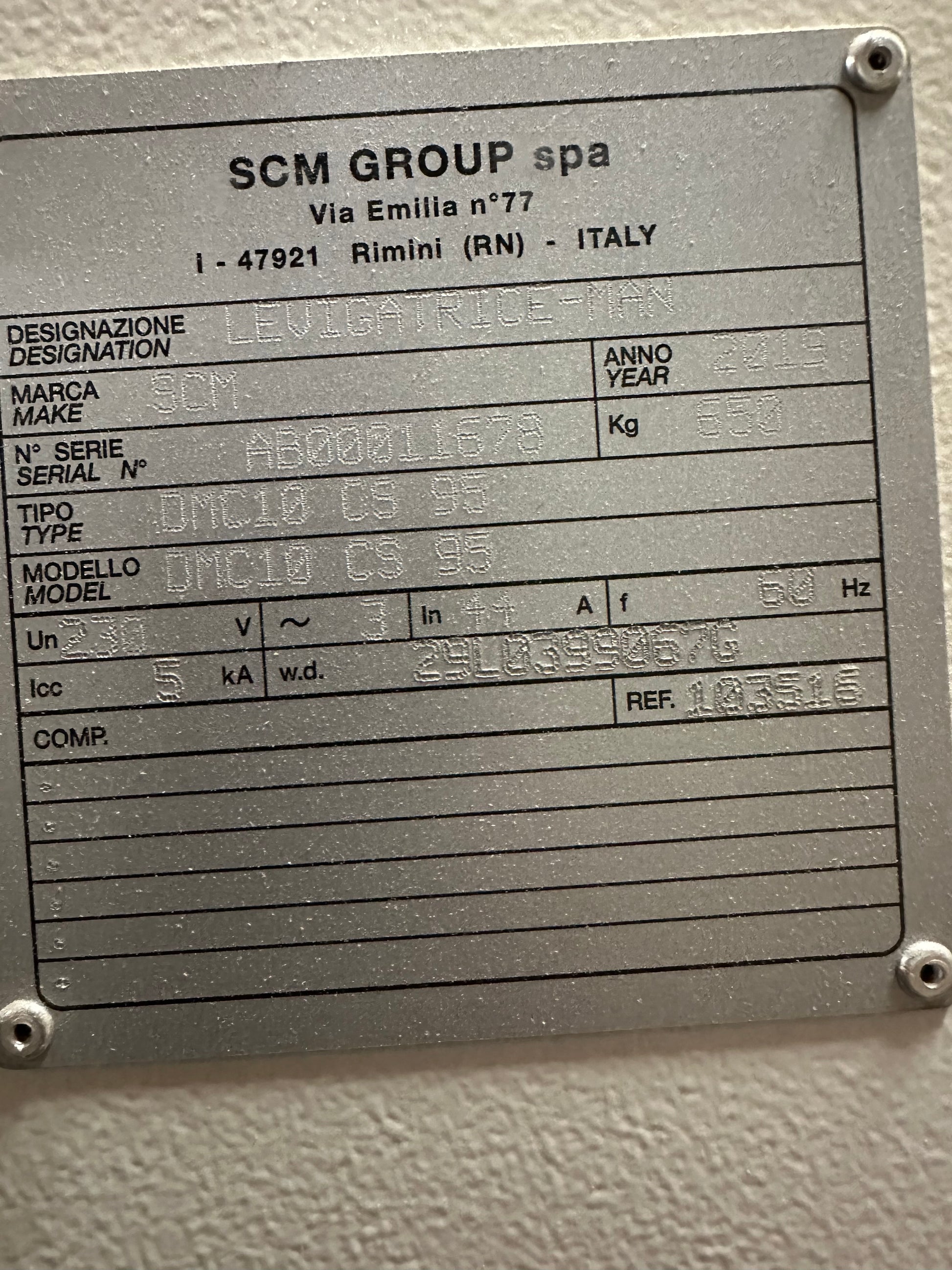

Serial No: AB00011678

Phase/Voltage: 3PH/230V

Condition: Excellent

Any Known Issues: None Known

In Production: No - Recently removed

Software Transfer:

Access to Forklift for Loading: Yes

Loading Fee: None

Shipping Dimensions: 5'W x 5.5'D x7.5'H

Shipping Weight: 650KG/1433 lbs approx

Shipping Brackets Available:
