2020 CTD MODEL N90 VERTICAL FRAME & NOTCH CUT-OFF SAW- Colorado
Couldn't load pickup availability
How can iBiD help with this machine?
Questions about condition, specifications, loading, or fit? Ask iBiD directly, find a similar machine, or research the model.
Call us about this machine’s condition, specifications, or freight.
Just listed! Gorgeous and Well Maintained CTD Vertical Frame and Notch Cut-Off Saw.
Located in Colorado.
Call us! 678-925-3556
Vertical frame and notching saw
The Model N90 has been designed for a variety of heavy duty
cutting applications, such as 45° double mitre cutting, notching of
aluminum and plastic extrusions, or toe-notching of wood panels.
This heavy duty machine can have blades set for notching or
mitering. Blades move vertically on linear bearings on 1-1/4"
(32mm) diameter hardened and ground rods. Keyed fences allow
for each set-up and accurate dimensional changes.
Specifications: • Vertical Frame and Notching Saw
• Blade Capacity: 14"
• 3 H.P. 3 phase
• Magnetic Starter
• 2800 RPM
• Cutting Capacity
Blade Capacity: • 14" OD (355mm) saw blade included
Arbor • 1" (25mm) with 3-1/2" (89mm) saw collars; mounted on preloaded and sealed bearings;
2-belt drive; 2800 RPM of spindle.
Motors & Voltages • Two, 3 H.P. 3 Phase 230/460 Volt Totally Enclosed Fan Cooled Motors, 60 Hz, 1725
RPM with Dual Magnetic Starter.
Table Base • Precision machined and ground iron castings with milled keyways to guide fences; allows
for easy and accurate dimensional changes.
Actuation • Air operated by foot valve with cover.
Air Pressure & Consumption • 6 CFM at 100 PSI (.17 cubic meters/minute at 7.03 kg/cm2) based on 6 strokes per
minute; includes air filter/ regulator/lubricator with auto drain.
Size & Weight • Standard Toe-Notch Machine 42" (107cm) Wide x 42" (107cm) front to back x 62"
(157cm) High; Weight 900 lbs. (410kg)
Production Rate • Up to 10 strokes per minute.
Floor Stand • Heavy gage steel; stand is completely enclosed with 6" (152mm) dust collector outlet and
scrap chute; 1200 CFM required.
*Information displayed has been gathered from machine owner, internet searches and other sources. Information is believed to be correct, but not guaranteed. All buyers should verify this information independently and/or have the machine inspected for accuracy prior to purchase*
Product Description:
Machine Location State: Colorado
Machine Location City: Loveland
Year: 2020
Make: CTD
Model: N90

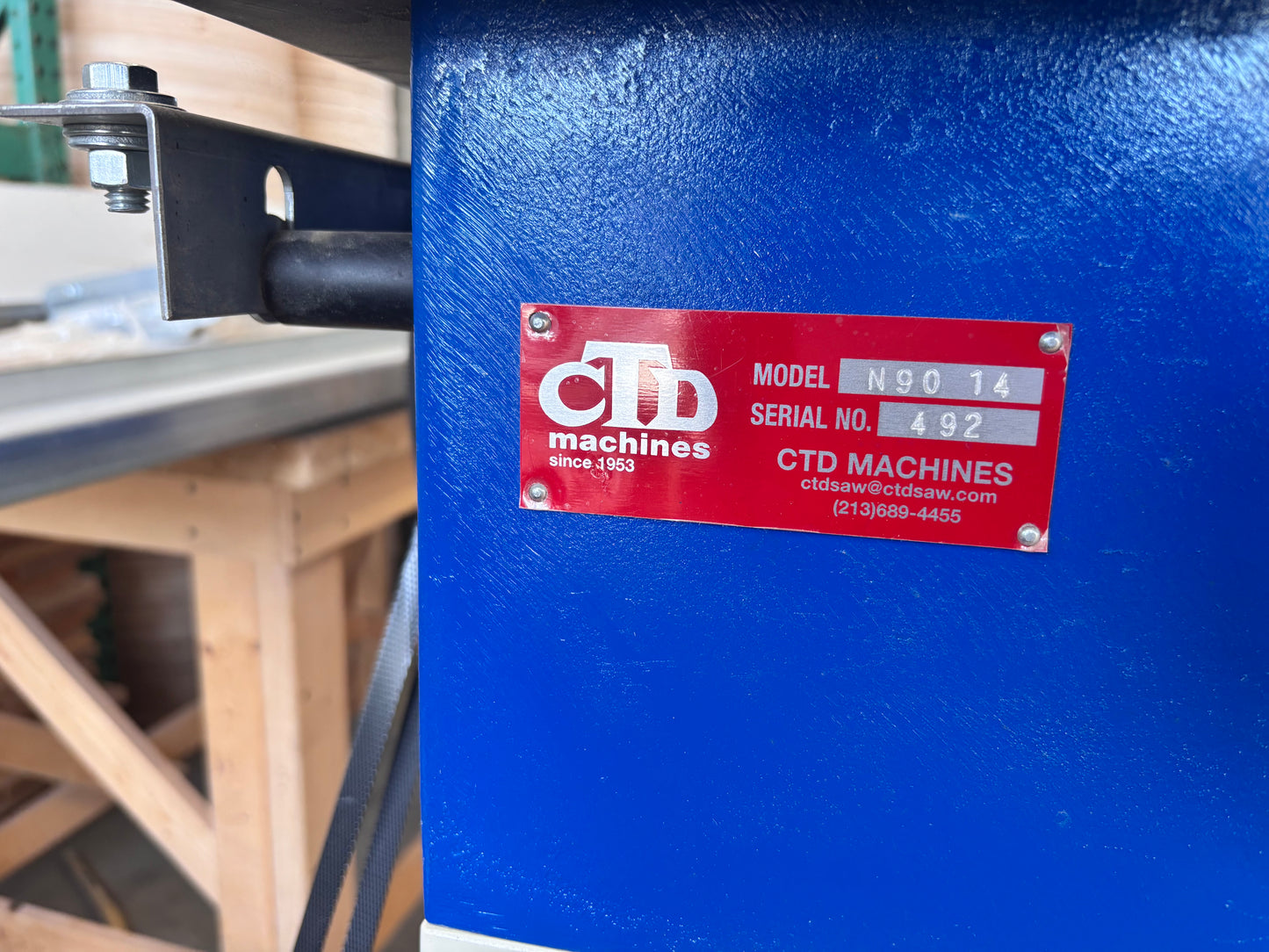

Serial No: 492
Phase/Voltage:
Condition: Excellent Used Condition
Any Known Issues: No
In Production: Yes
Software transfers with machine: Saw
Access to Forklift for Loading: Yes
Loading Fee: No
Shipping Dimensions:
Shipping Weight:
Shipping Brackets Available:
