2022 Koch Sprint Select Line Dowel Insertion - Montana

2022 KOCH SPRINT select.line drilling and dowel insertion machine located in Montana and offered as a bank-repo opportunity. Call iBiD Machinery at (678) 925-3556 for current condition, inspection, loading and availability details.

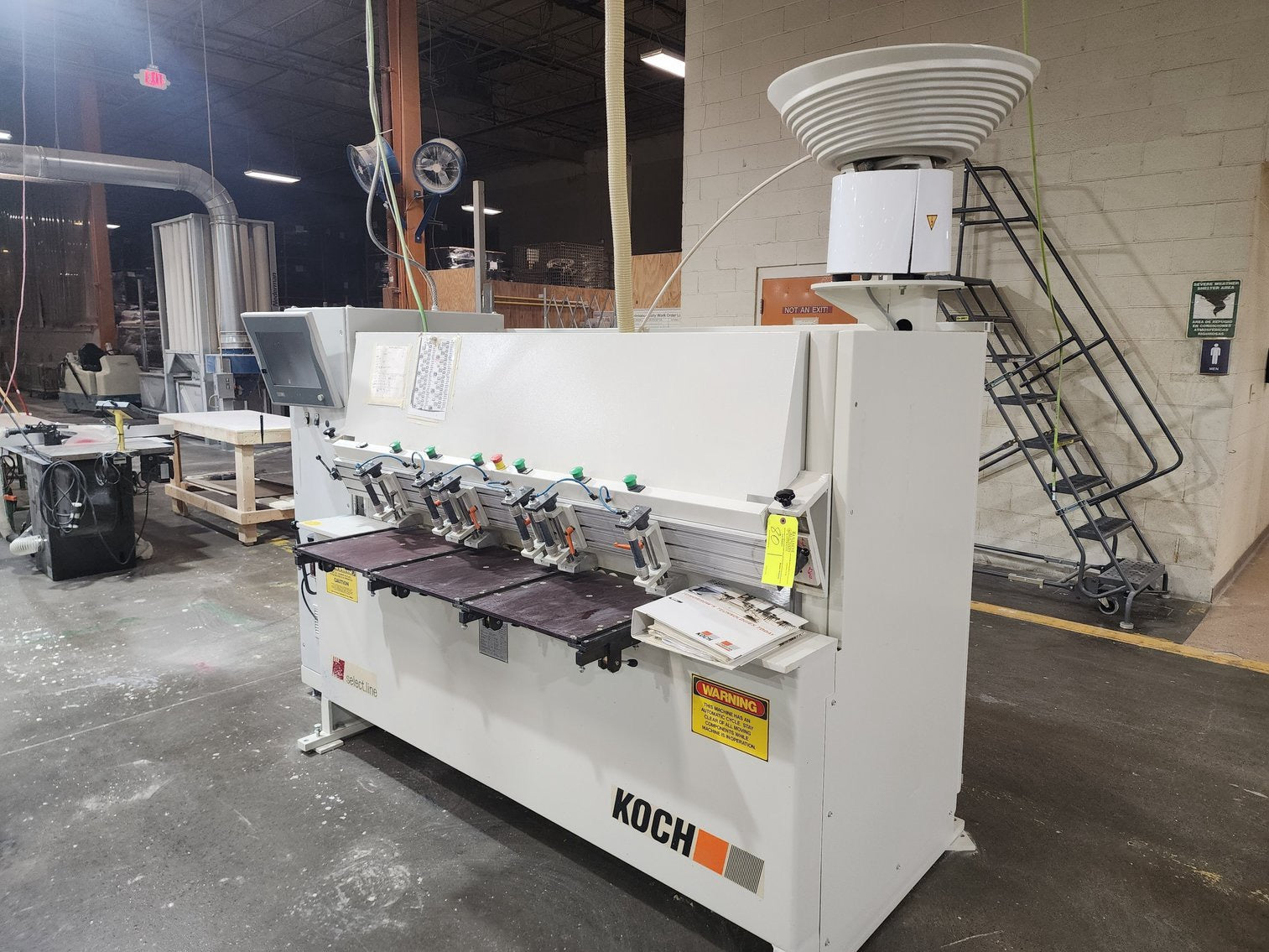

Koch Sprint select.line dowel machine overview

KOCH designed the SPRINT select.line as a flexible drilling, gluing and dowel-insertion platform for furniture and component production. For example, the platform supports a choice of drilling patterns. It also offers optional equipment for extra drilling, routing and connector insertion.

Manufacturer model-reference equipment

• Four working fields
• Horizontal drilling station with drilling spindle
• Glue and dowel insertion station
• Two NC axes (X and Z) in the published base configuration
• KOCH WOP parametric programming
• Three pneumatically lowerable stops: center and side stops
• Published maximum stock length: about 1,600 mm (63 in.)

Available platform options may include

• Additional individually controlled horizontal and vertical drilling spindles
• NC positioning in X, Y and Z
• Electronic glue control
• Horizontal or vertical routing
• Dowel insertion for varying lengths and diameters
• Connector-insertion equipment and 0°/45° processing options
• Stock-width configurations published from about 700 mm through 3,000 mm

Important: The options above describe available SPRINT select.line setups. However, they do not confirm that every option is installed on this machine.

*To the best of our knowledge, these model-reference specifications reflect available manufacturer information. However, the actual setup, options, size and capabilities may vary with the year, serial number and installed equipment. Therefore, buyers should confirm all specs and inspect the machine before purchase.

Inspection checks

First, match the serial plate to the equipment list. Next, ask for a drilled and dowelled sample in your stock. Then check hole depth, spacing and joint fit. Also, test the glue feed and ask which dowels suit the installed tooling. Finally, confirm power, air and dust extraction needs before arranging transport.

Workpiece and setup planning*

KOCH's SPRINT select.line brochure lists a workpiece length range of 400–1,600 mm, minimum width of 20 mm and thickness range of 20–40 mm. Therefore, confirm these limits for the installed setup and tooling before planning production with this 2022 machine.

The brochure also lists three pneumatic clamps and three retractable center/side stops as basic equipment. However, extra drilling, routing, electronic glue control and connector-insertion equipment are optional. Therefore, confirm which of these come with the machine.

*Source: KOCH SPRINT select.line brochure. Also, ask iBiD to confirm the actual equipment schedule, included tooling and demonstration availability.

Product Description: 2022 Koch Spring Select Line Dowel Insertion - Georgia

Machine Location State: Montana

Machine Location City: Gildford

Year: 2022

Make: Koch

Model: Sprint Select.line

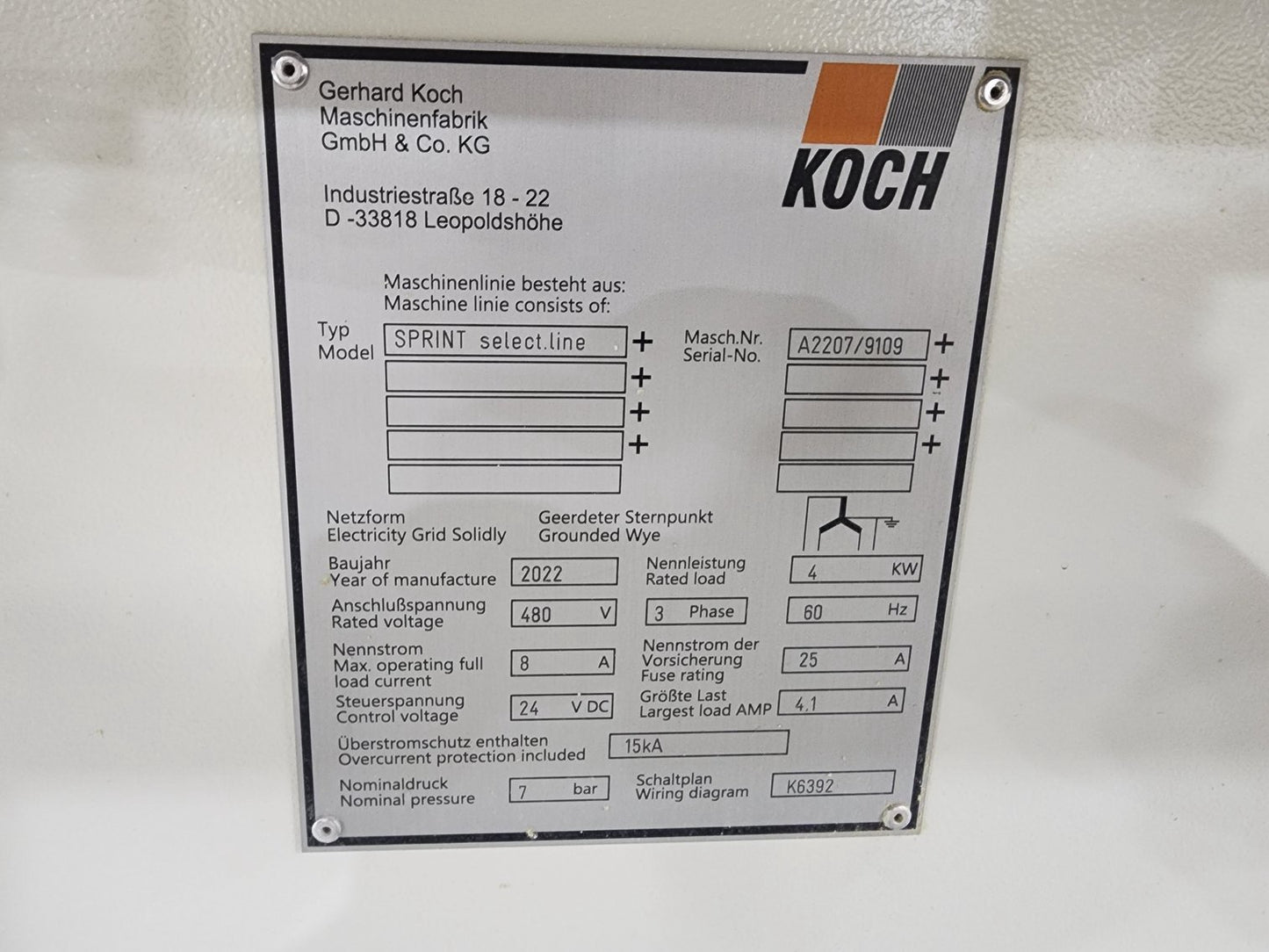

Serial No: A2207/9109

Phase/Voltage: 3 PH

Condition: Excellent used condition

Any Known Issues: No

In Production: Just taken out of production

Software transfers with machine:

Access to Forklift for Loading: Yes

Loading Fee: No

Shipping Dimensions: Will provide

Shipping Weight: Will provide

Shipping Brackets Available: N/A
