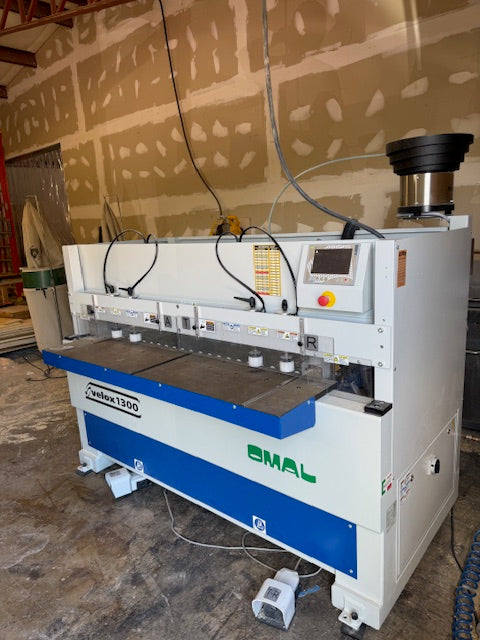

2023 OMAL Velox 1300 CNC bore, glue and dowel inserter located in Tennessee and described as being in excellent used condition. Call iBiD Machinery at (678) 925-3556 for inspection and availability details.
Machine overview
The Velox 1300 is a CNC horizontal drilling, gluing and dowel-insertion machine aimed at flexible just-in-time and batch component production. The 1,300 mm work field can be divided into multiple zones for efficient loading and processing.
Manufacturer model-reference specifications
- Panel length: approximately 20-1,300 mm
- Panel width: approximately 50 mm and greater
- Panel thickness: approximately 10-40 mm
- Four work fields with tandem/pendulum-loading capability

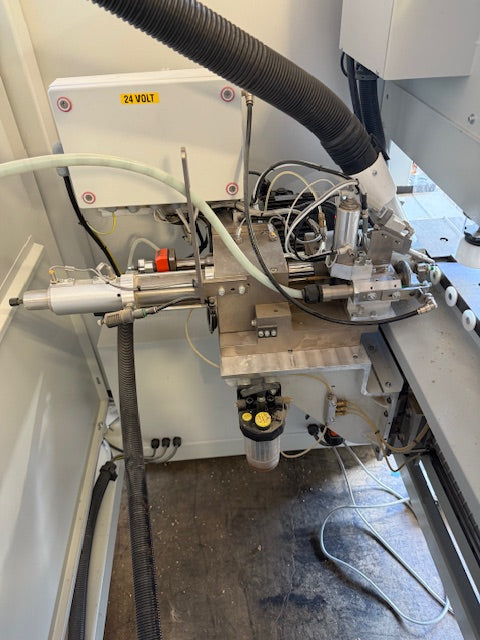

- Single horizontal drill and dowel station
- Sure Shot dowel revolver system

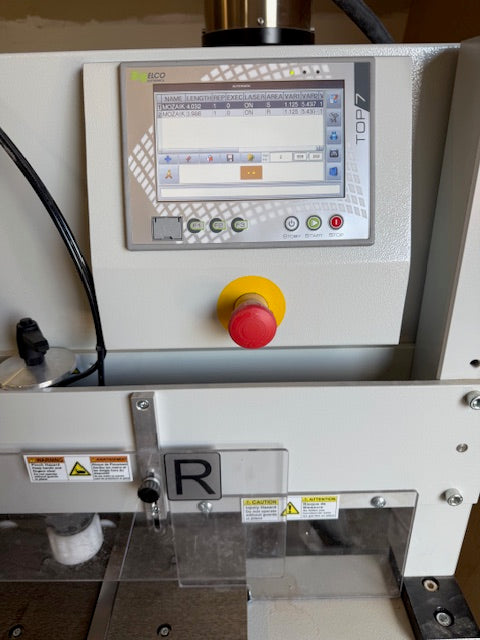

- 7-inch touchscreen control
- Average reference cycle: approximately one second for bore/glue/dowel insertion at 32 mm spacing
- Installed power: approximately 5 kW on current OMAL literature
- Compressed-air requirement: minimum approximately 7 bar
- Dust-extraction hood: approximately 60 mm
- Published weight: approximately 900 kg
Available platform options
OMAL literature identifies laser part measurement and barcode management as available options. Confirm whether either option is installed on this individual 2023 machine.
*Model-reference specifications are provided to the best of iBiD Machinery's knowledge from available manufacturer information and other credible technical references. Actual machine configuration, options, dimensions and capabilities may vary by year, serial number and installed equipment. Buyer should independently confirm all specifications and inspect the machine before purchase.
Product Description:
Machine Location State: Tennessee
Machine Location City: Cookeville
Year: 2023
Make: OMAL
Model: Velox 1300

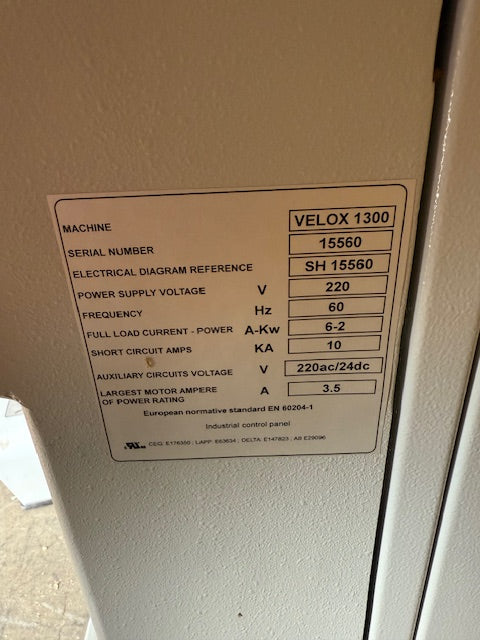

Serial No: 15560
Phase/Voltage: 3PH
Condition: Excellent Used Condition
Any Known Issues: No
In Production: Yes
Software transfers with machine: Drill and Dowel
Access to Forklift for Loading: Yes
Loading Fee: No
Shipping Dimensions: 9 (length) x 5 (width) x 7 (height) approx
Shipping Weight: 2000 lbs approx
Shipping Brackets Available:
