Accu-Systems HPJ CNC Drill, Glue, & Dowel Insertion Machine
Freight is not included in the machine price. iBiD Machinery will quote freight separately through our machinery freight broker.
Couldn't load pickup availability
How can iBiD help with this machine?
Questions about condition, specifications, loading, or fit? Ask iBiD directly, find a similar machine, or research the model.
Call us about this machine’s condition, specifications, or freight.

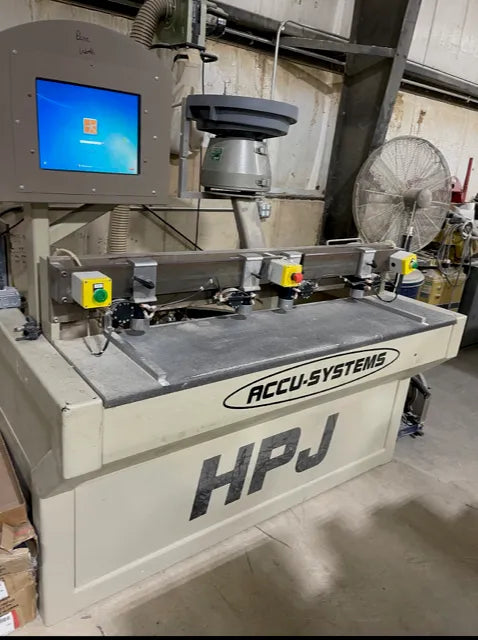

CNC Bore, Glue, and Dowel Insertion machine with two working zones. Zones are 24” each or, one zone with 48” maximum capacity. CNC controlled in X axis with digital readout Y and Z axis adjustment. (4) pneumatic hold down clamps – (2) per zone.
Equipped with 18” diameter vibratory feed bowl, Sealed electronically metered glue system (works with water and pre-glued dowels). 2-1/2 gallon storage tank for glue/water. Anti-slip table surface and dust collection port.
Easy programming and function control through touch screen interface. You can select Drill, Glue, or Insert dowels with a simple touch of the screen
8MM dowel size
Product Description:
Machine Location State:
Machine Location City:
Year:
Make: Accu-Systems
Model: HPJ
Serial No:
Phase/Voltage: 208/230V / 3 Phase
Condition: Good
Any Known Issues:
In Production:
Software transfers with machine:
Access to Forklift for Loading:
Loading Fee:
Shipping Dimensions:
Shipping Weight:
Shipping Brackets Available:
