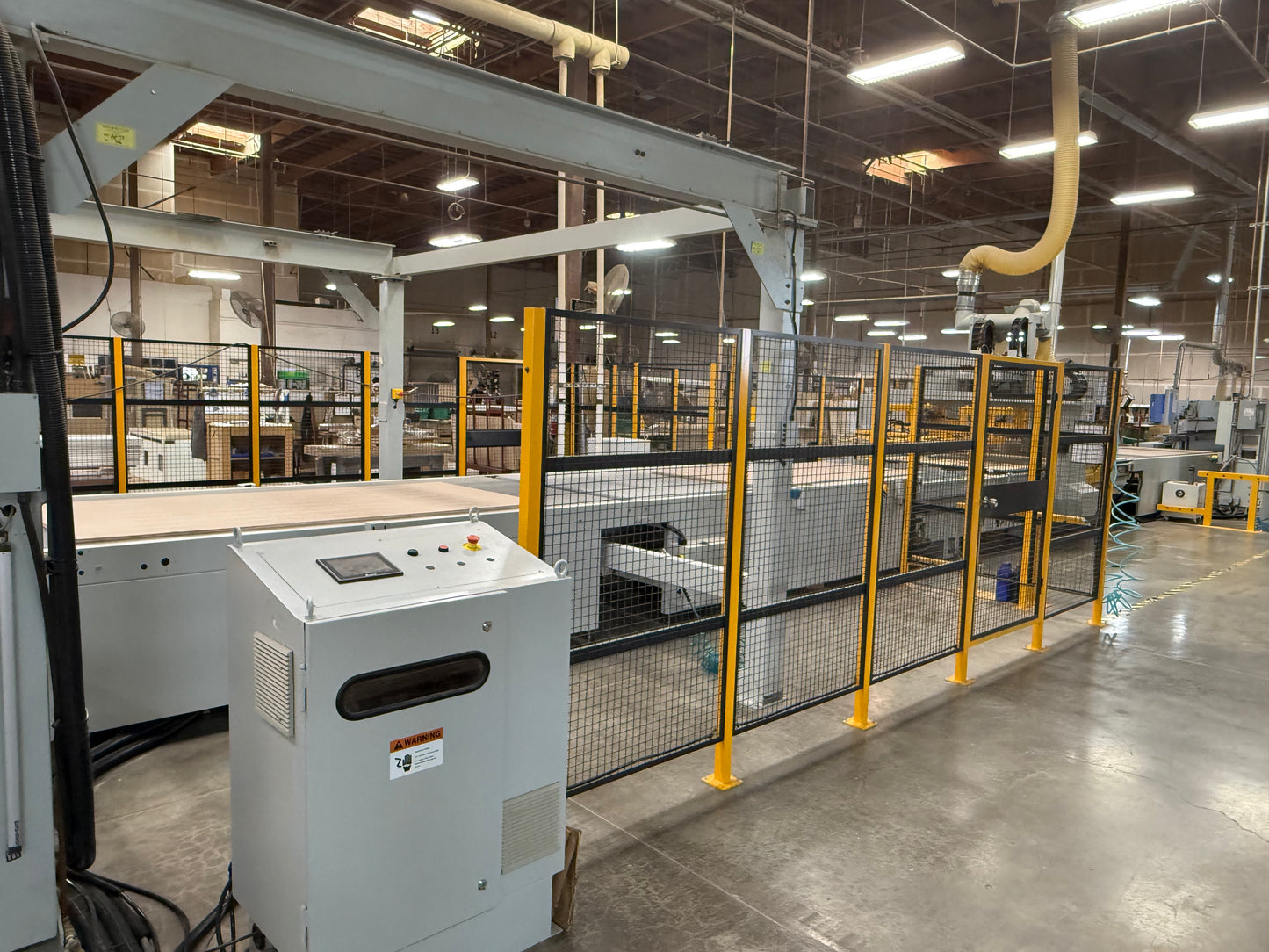

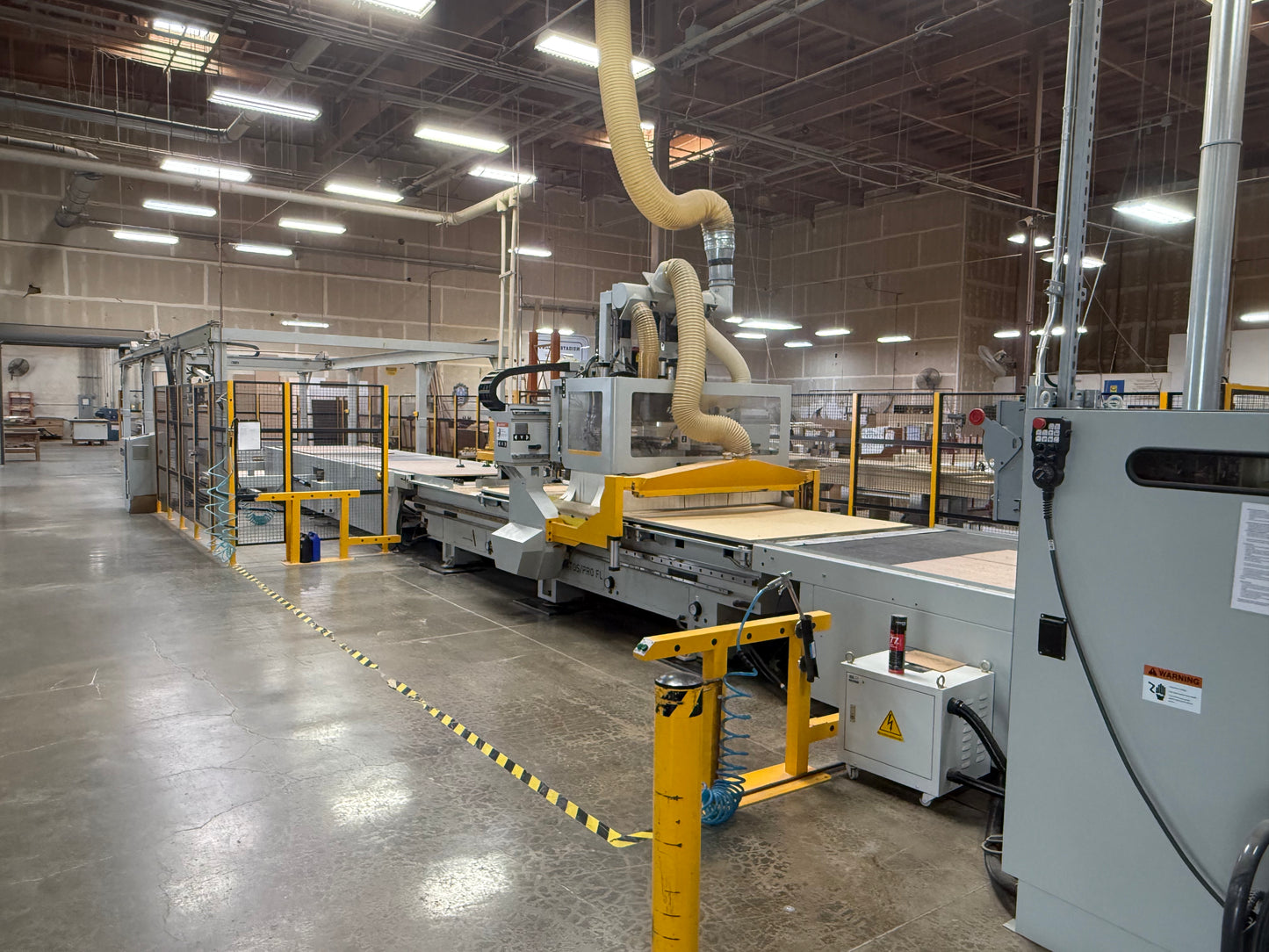

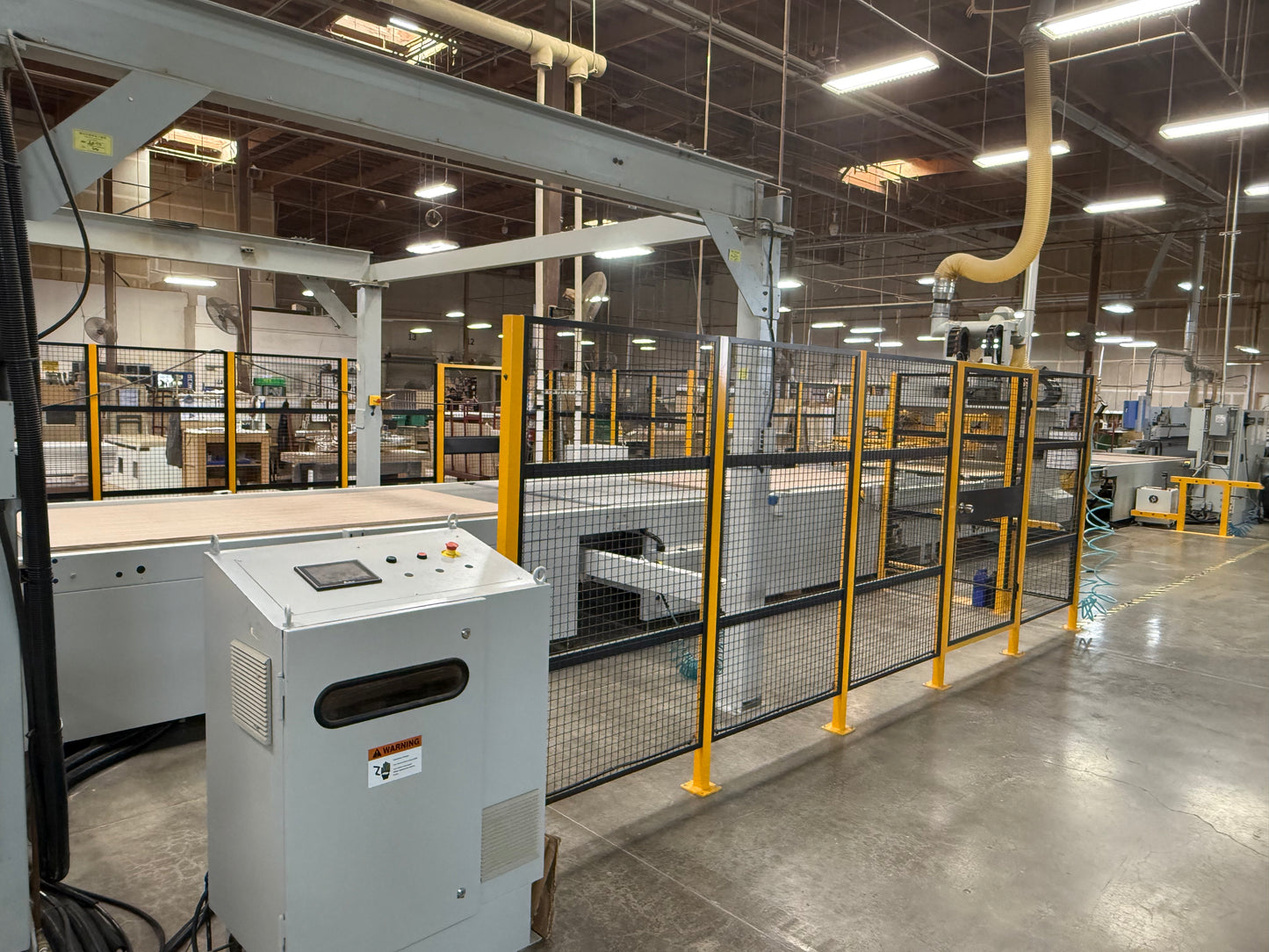

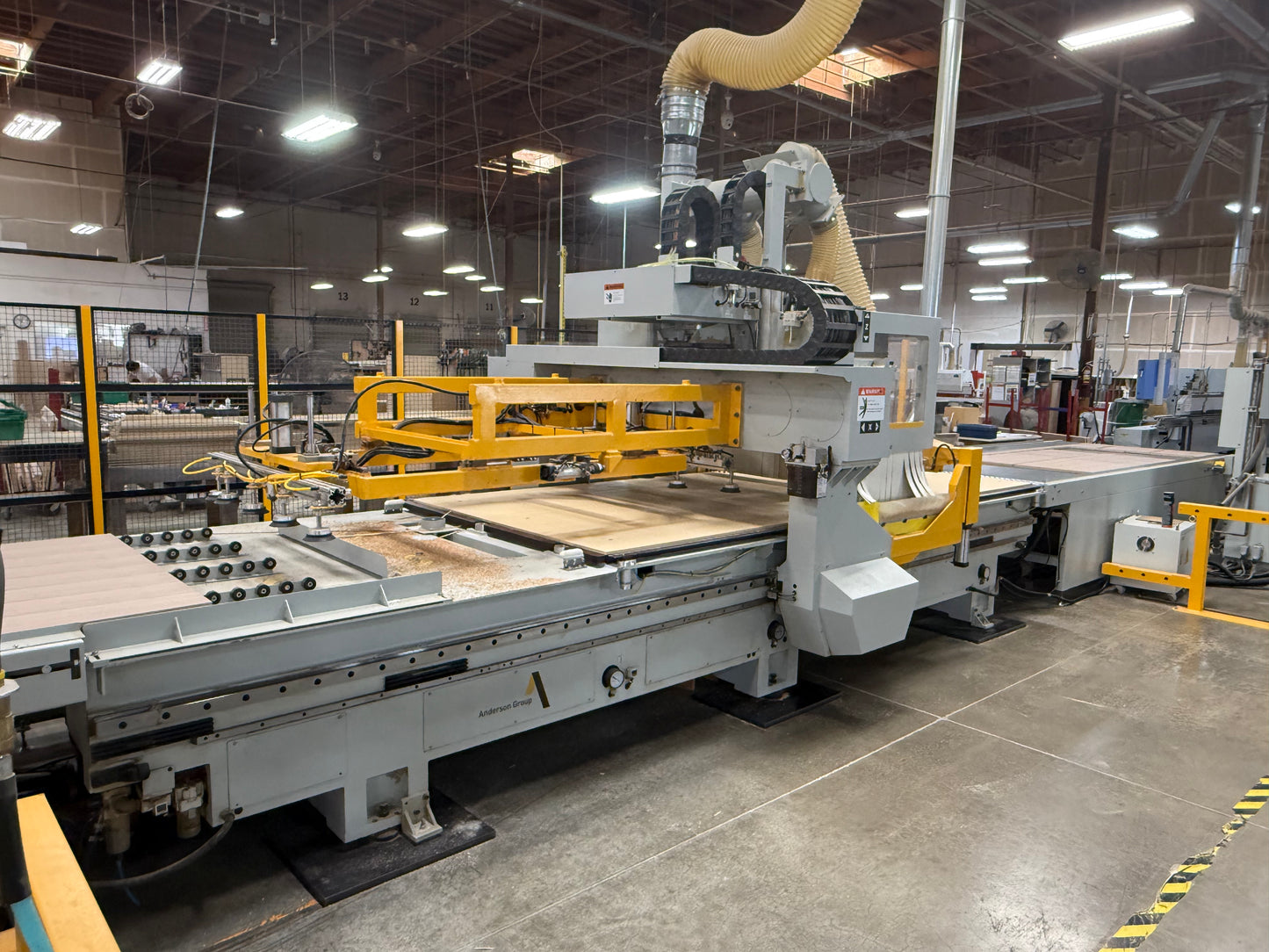

2020 Anderson STRATOS/PRO FULL AUTO MLS X 6 CNC router in California. The listing describes its condition as exceptionally clean. This automated 5 x 12 production cell loads and unloads panels. It also has a six-station multi-bunk material system. For the full spec package and inspection, call iBiD Machinery at (678) 925-3556.
Anderson Stratos Pro CNC router equipment
- 5 x 12 ft. table / machining-envelope class, with automatic 5 x 12 material handling.

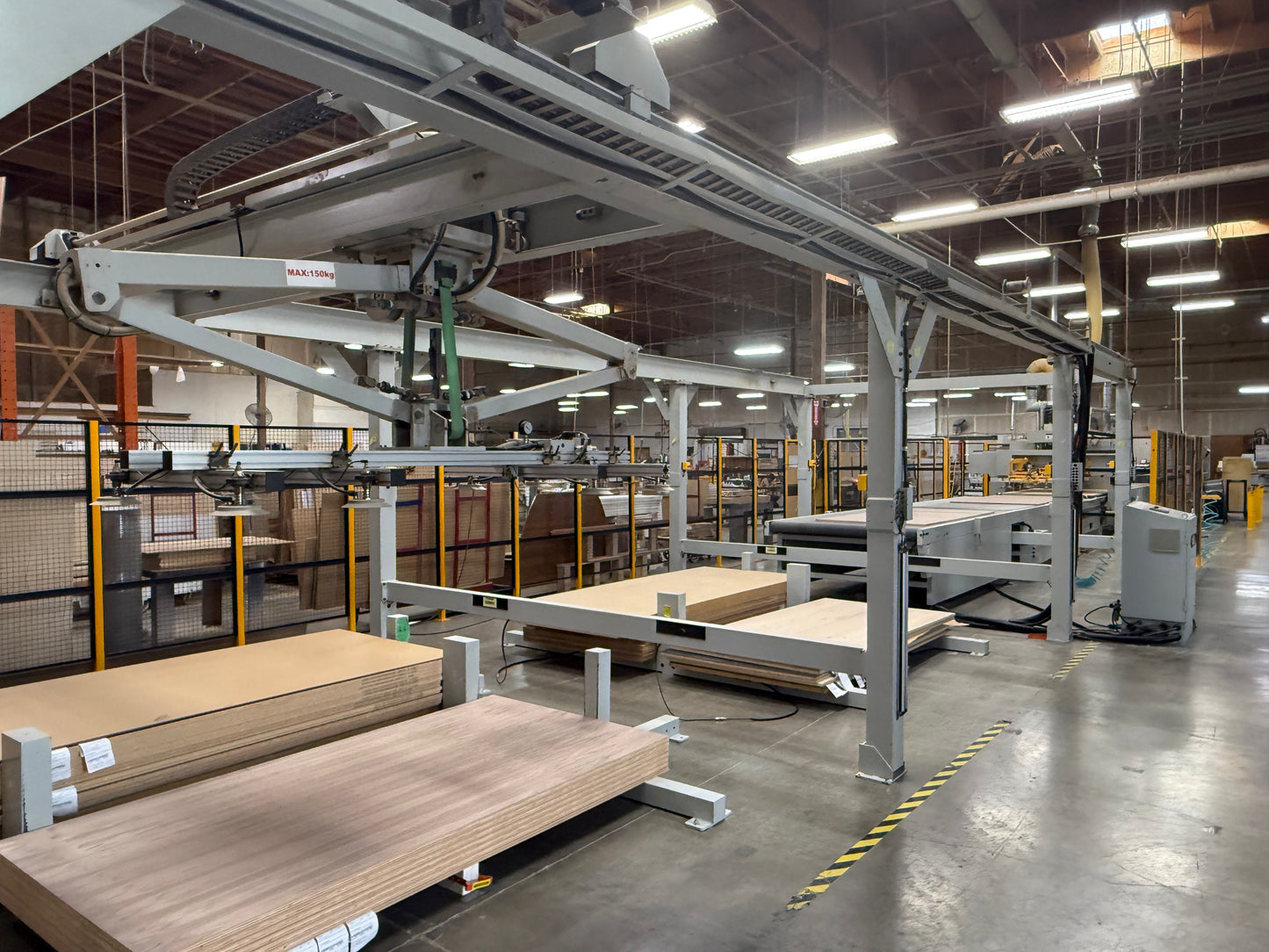

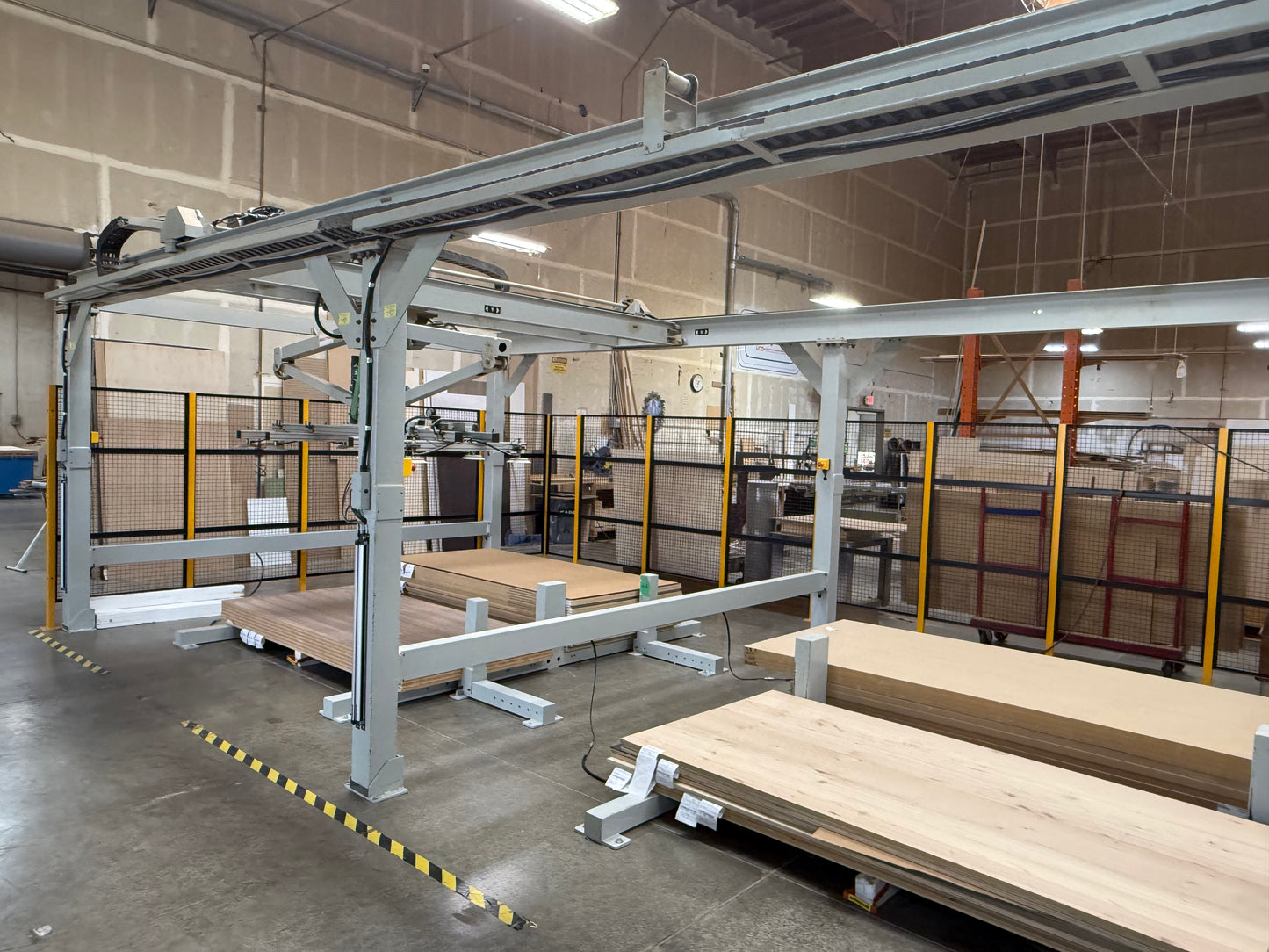

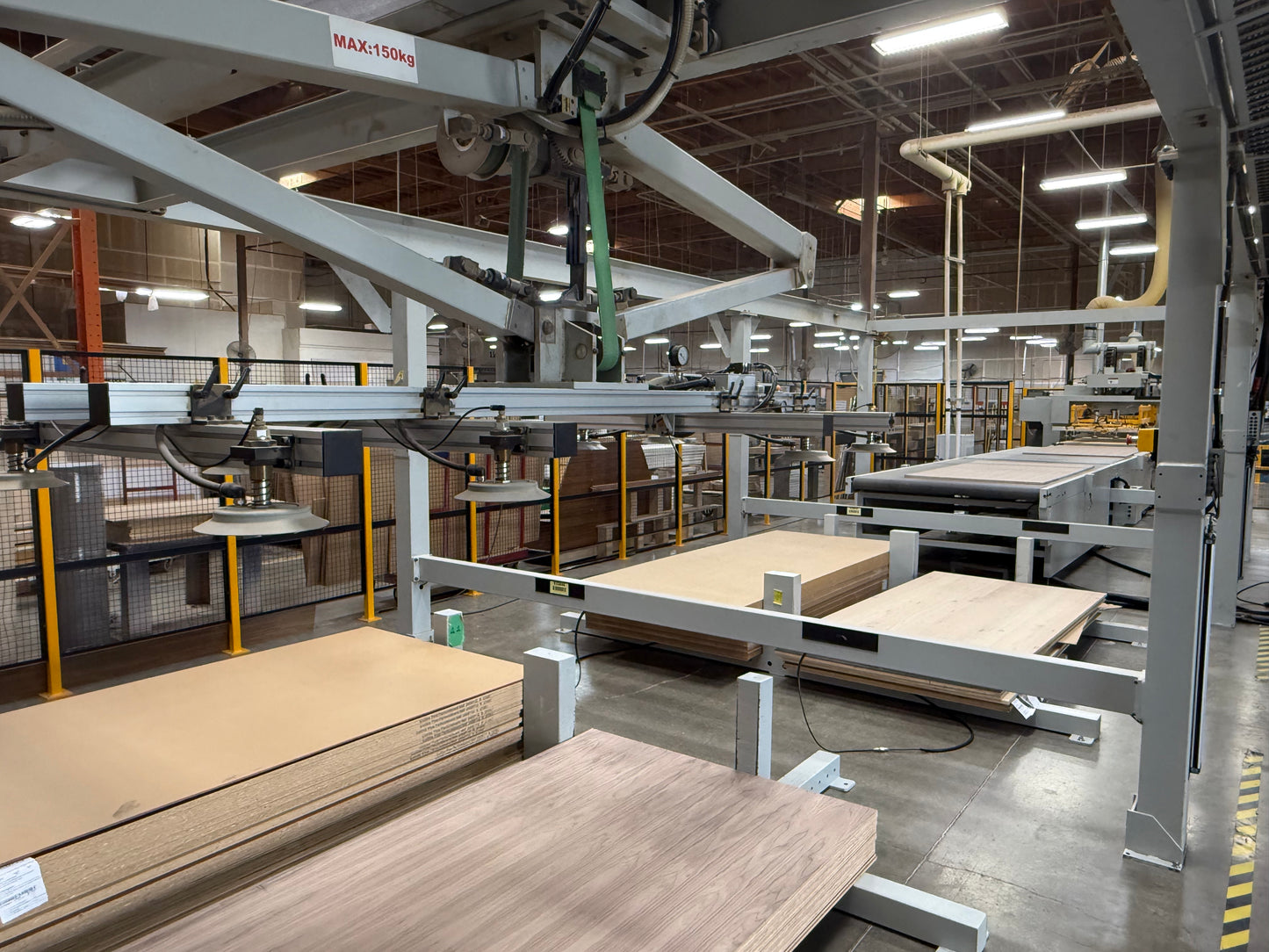

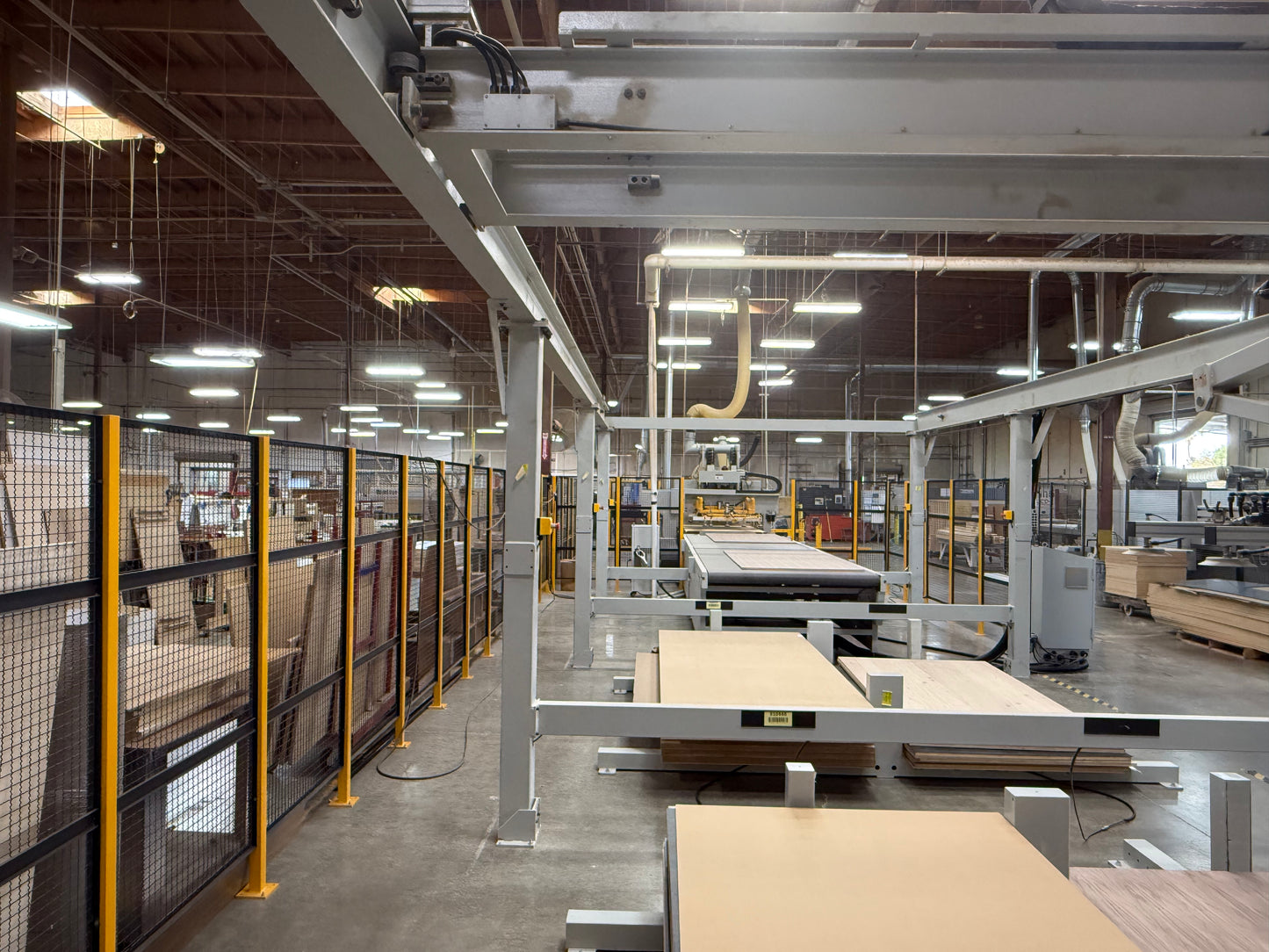

- Six-station Anderson multi-bunk loading system.

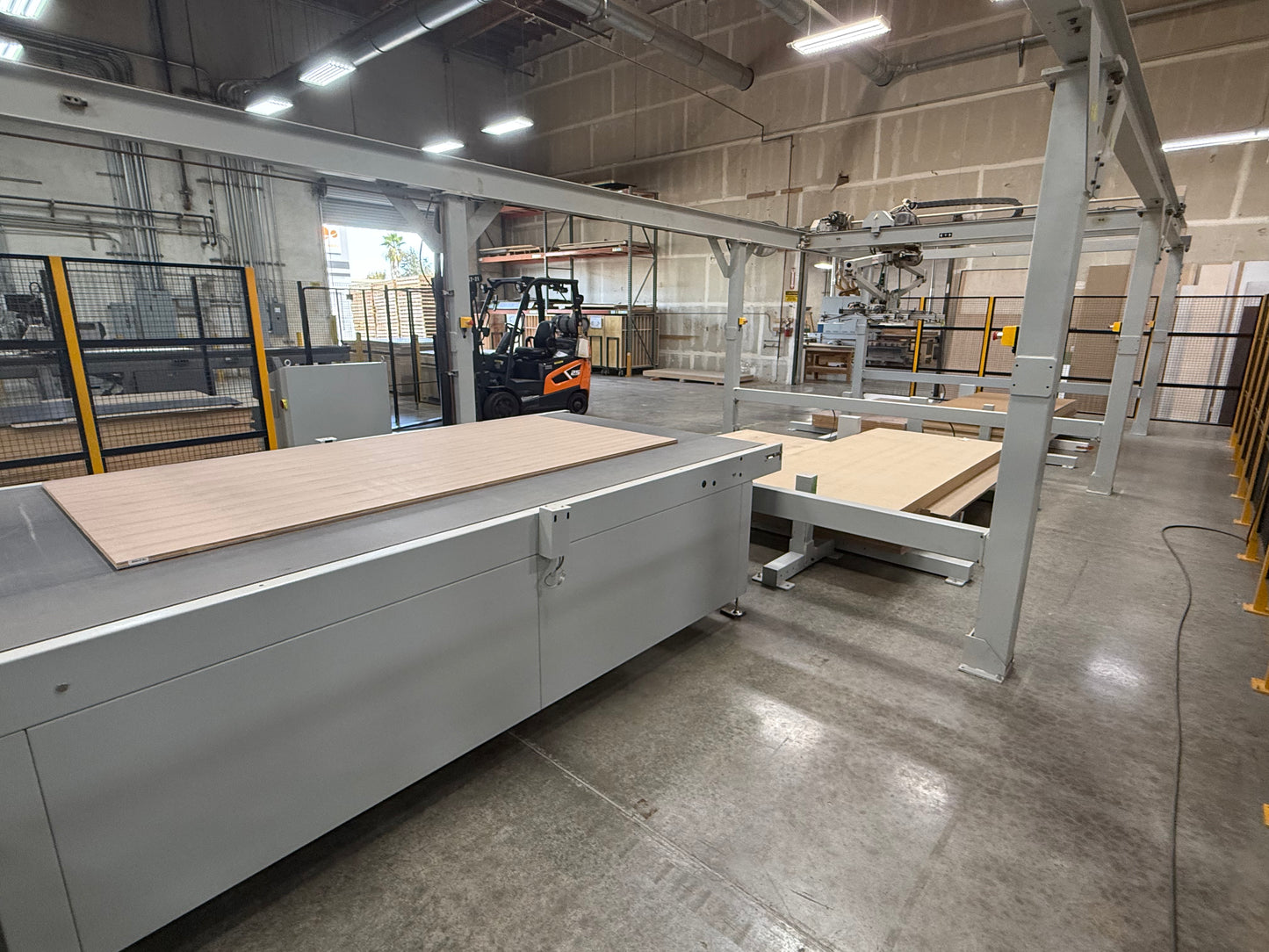

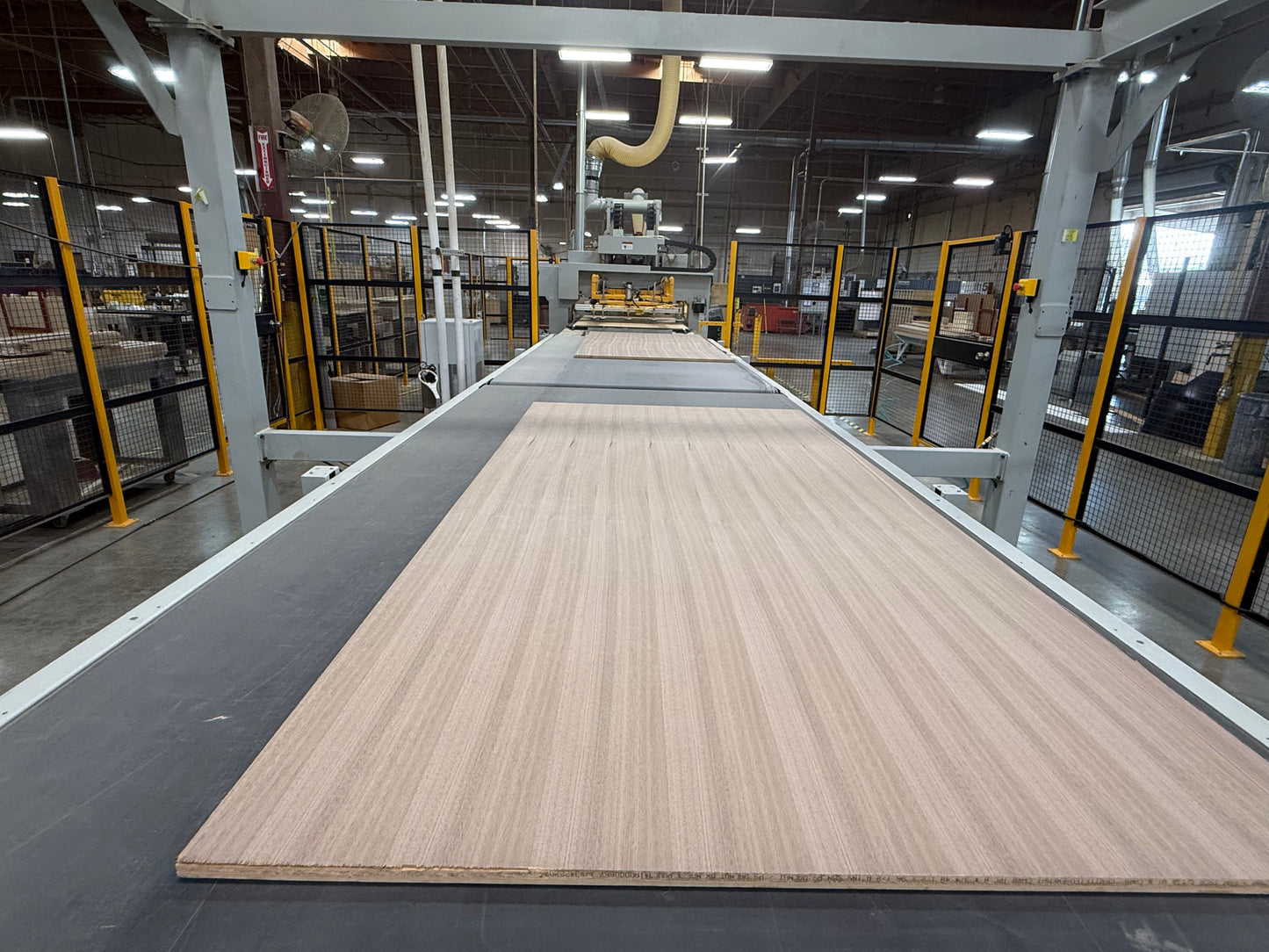

- One-stop loader/unloader with pusher/sweeper, plus an integrated offload conveyor.

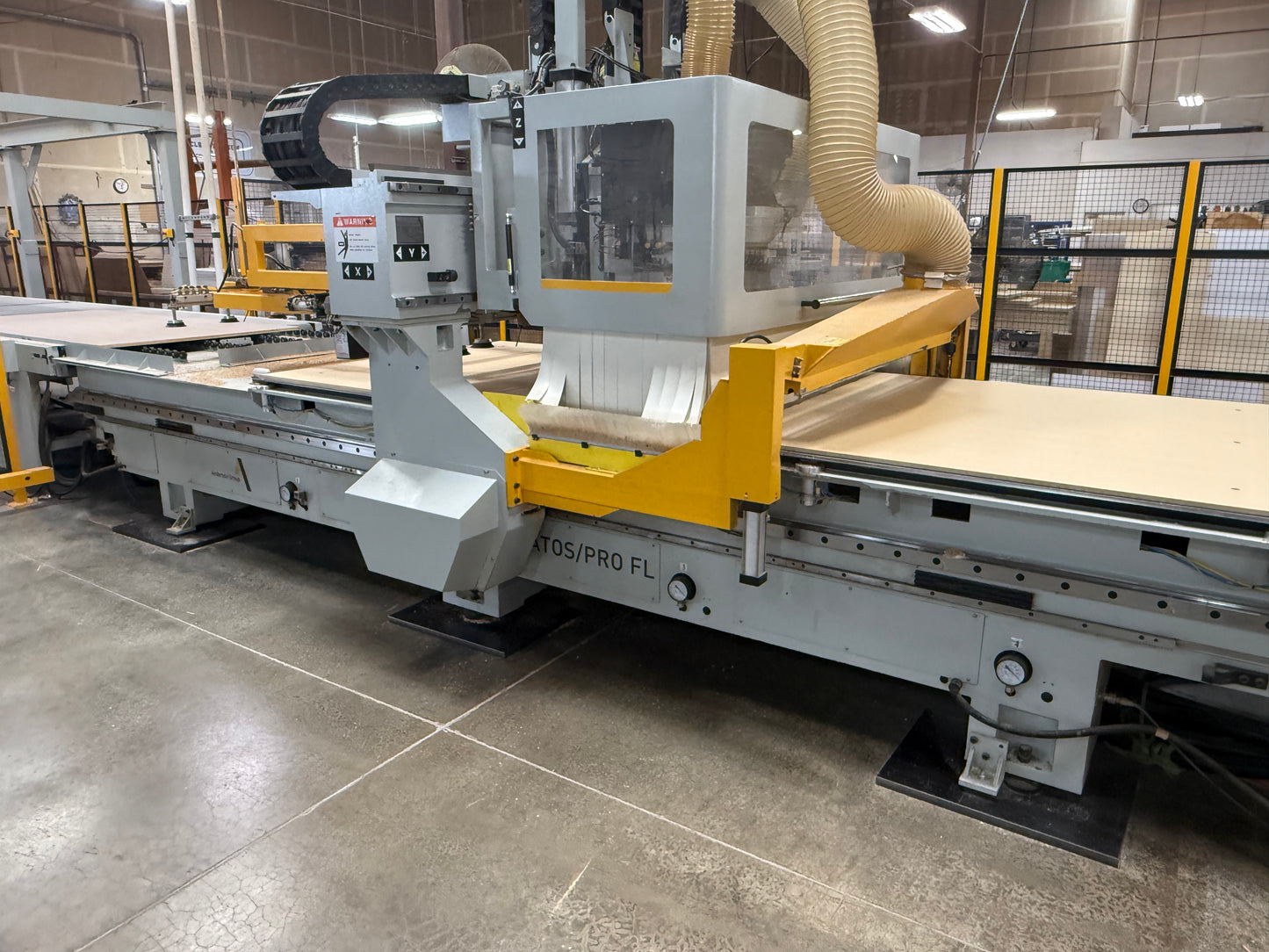

- 24 hp HSK63F router head and 10-position ride-along automatic tool changer.
- 40-spindle drill block / multiple-spindle boring head, as represented.
- Pop-up guide rails.
STRATOS Pro family-reference data

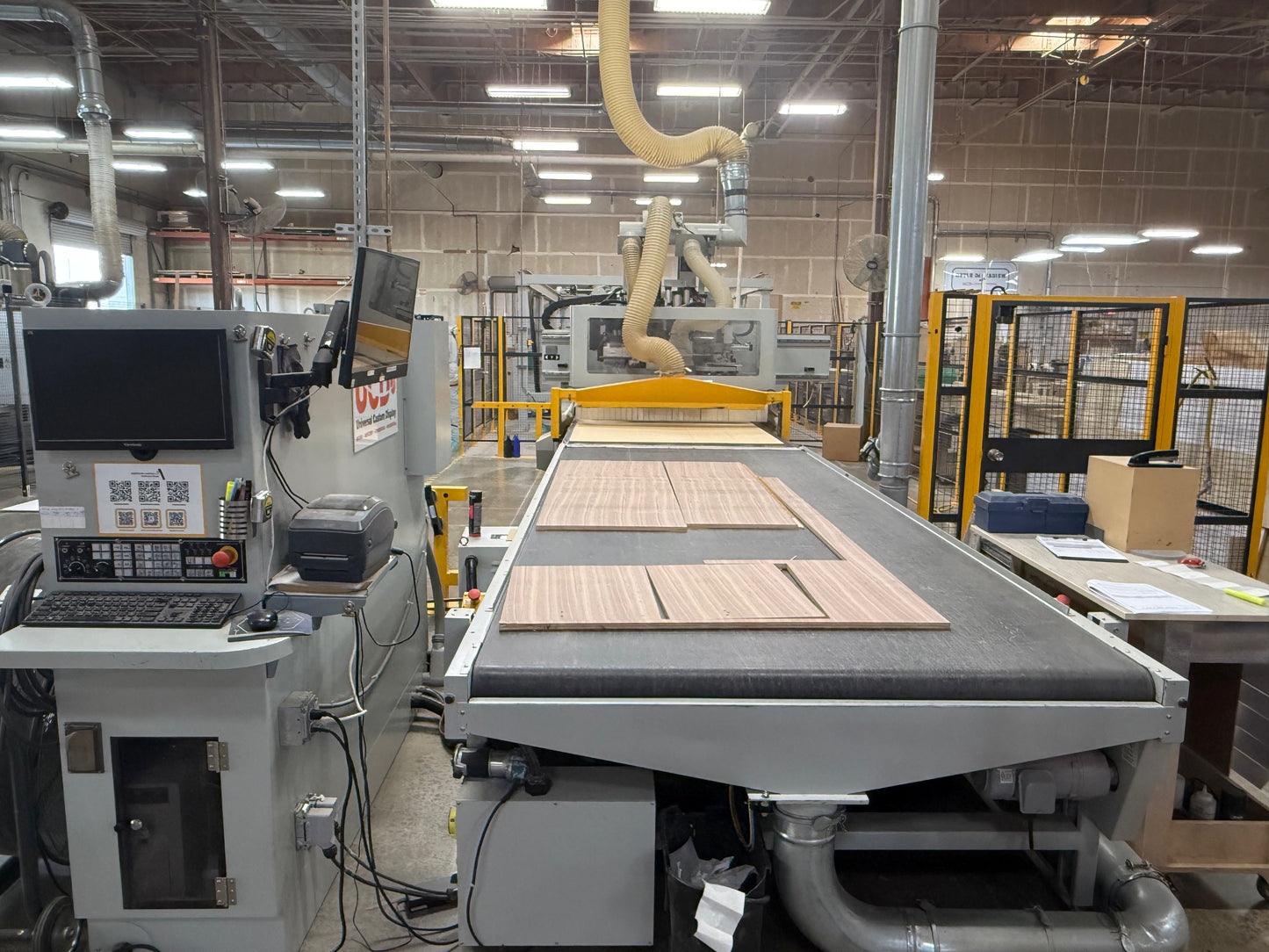

- FANUC CNC control platform; spindle speed up to about 24,000 rpm.
- Pro-series X/Y rapid speed reference: up to about 100 m/min.
- Maximum vector rapid reference: up to about 141 m/min in current Pro data.
- HSK-63 spindle interface.
- Four-zone vacuum table on standard Pro reference setups.
Planning space and setup
The 5 x 12 ft. table class is not the total floor space needed. Therefore, plan room for the six-bunk loader, router and offload conveyor. Also, leave access for sheet deliveries and service.
Next, request the layout, wiring diagram and manuals for this serial number. Then confirm pump capacity, air demand and dust ports. Before arranging setup, check which control backups, software licenses and postprocessor files come with the sale.
For reference, see Anderson America's manuals and technical support. However, confirm which documents are available and what this cell needs for installation.
Inspecting this Anderson Stratos Pro CNC router
First, use the full spec package to confirm the table size and drill-block pattern. Then check the vacuum pumps, control version and loader/bunk capacities. Also, confirm the software, power needs, tooling and options included in the sale.
Before buying, ask to see the full loading and cutting cycle. Next, check a sample part against your drawing. Finally, discuss setup and training with a qualified service provider.
*To the best of our knowledge, these specs reflect seller details, maker information and other credible technical sources. However, the actual setup, options, size and capacity may vary by year, serial number and installed equipment. Therefore, confirm all specs and inspect the machine before purchase.
Product Description:
Machine Location State: California
Machine Location City: Elk Grove
Year: 2020
Make: Anderson
Model: STRATOS/PRO FULL AUTO MLS X 6 CNC
Serial No: FAANCST09173

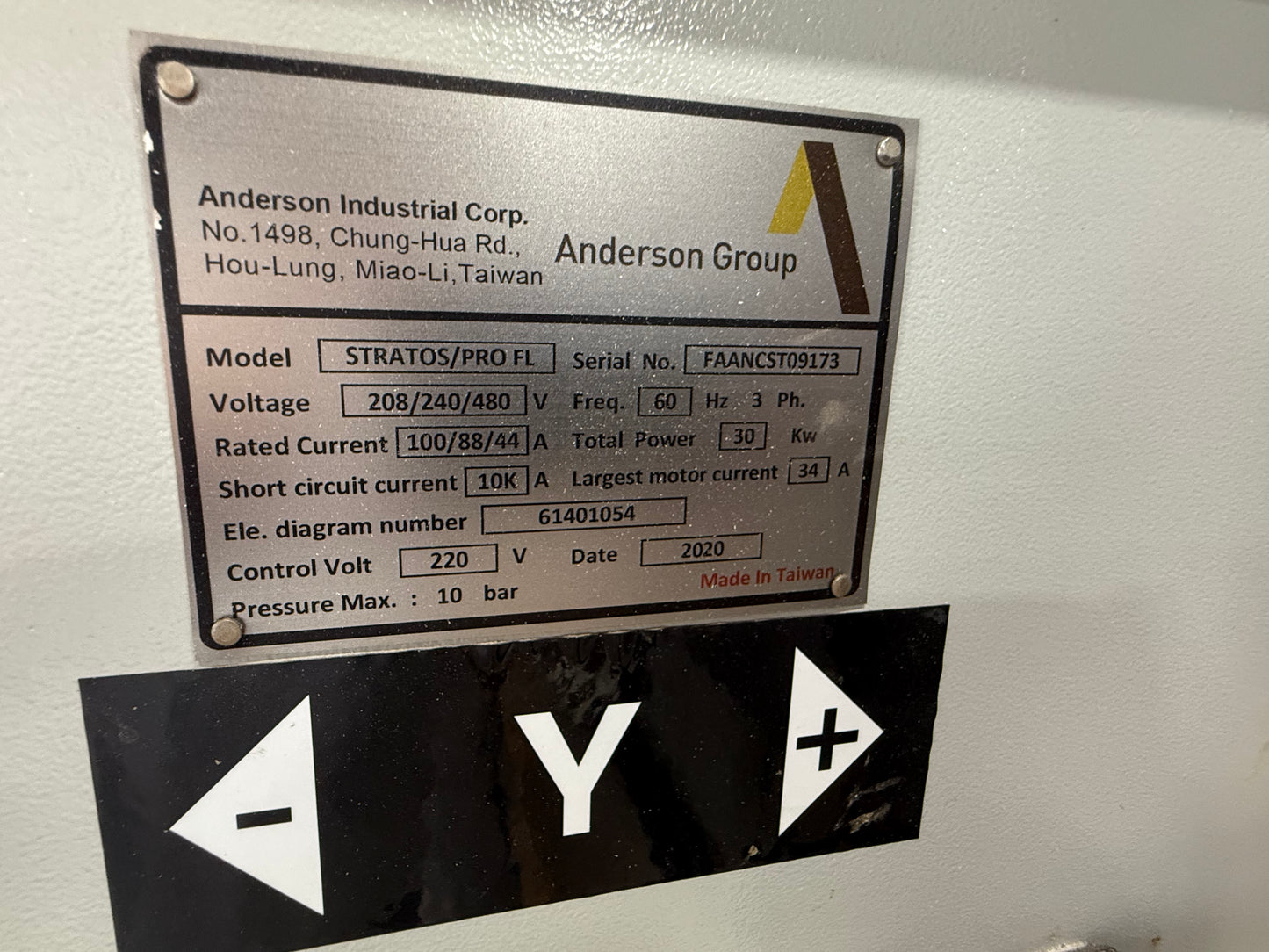

Phase/Voltage: SEE PLATE IN PHOTOS FOR DETAILS
Condition: EXCELLENT USED CONDITION
Any Known Issues: NO
In Production: YES
Software transfers with machine: CNC
Access to Forklift for Loading: WILL REQUIRE RIGGER
Loading Fee: WILL REQUIRE RIGGER
Shipping Dimensions: WILL REQUIRE RIGGER
Shipping Weight: WILL REQUIRE RIGGER
Shipping Brackets Available:
