Biesse Akron 1130 J Automatic Edgebander - Utah

Manufacturer: Biesse Brand: Biesse Model: Akron 1130 J
Out of stock
$49,000.00 USD
Sale $65,000.00 USD $49,000.00 USD

Freight is not included in the machine price. iBiD Machinery will quote freight separately through our machinery freight broker.

How can iBiD help with this machine?

Questions about condition, specifications, loading, or fit? Ask iBiD directly, find a similar machine, or research the model.

Prefer to talk?

Call us about this machine’s condition, specifications, or freight.

Call iBiD · (678) 925-3556
Find a similar machine Sell one like this
Research & buying resources
Research this make & model Read the buying guide Research sold history

Your contact details are sent privately to iBiD and are not shown on the product page.

Availability: This listing is no longer available. The details below are retained as a historical equipment reference. Contact iBiD Machinery at (678) 925-3556 for comparable current machinery.

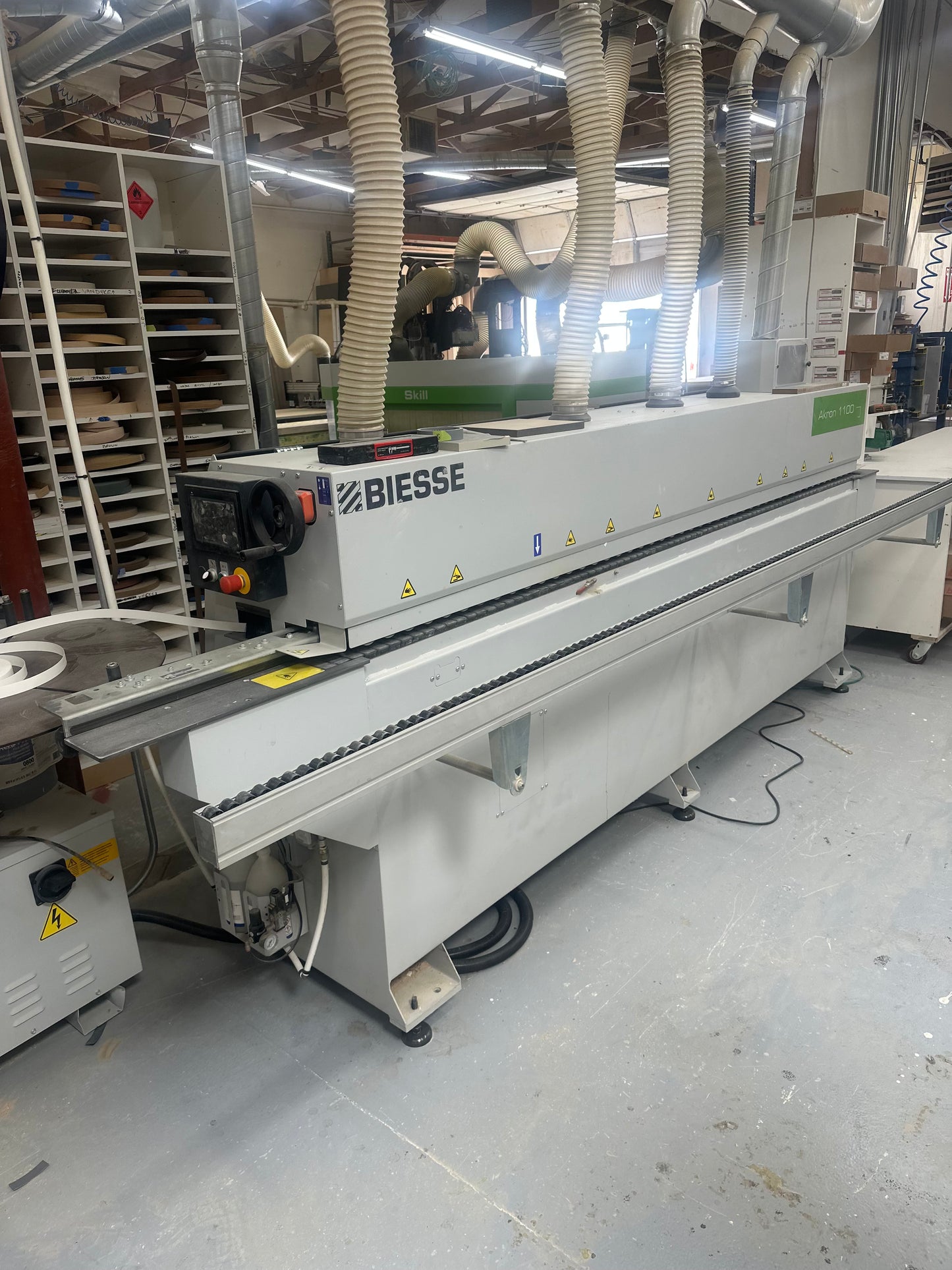

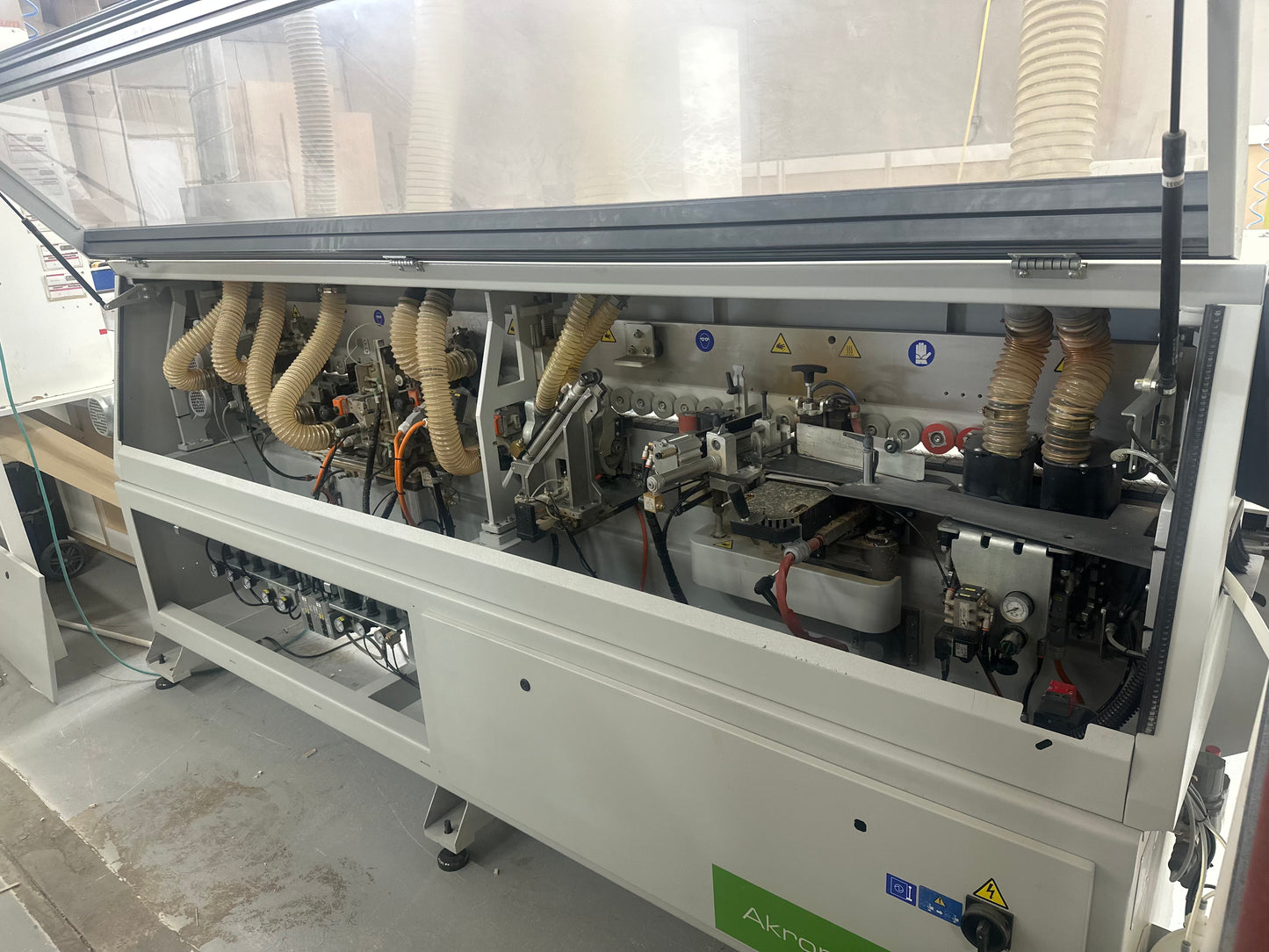

2022 Biesse Akron 1130 J Automatic Edgebander- FULLY LOADED

End Trimming Unit

Pre-Milling Unit

Tilting Fine Trimming Unit

Corner Rounding Unit

Profile Scraping Unit

Flat Scraping Unit

Buffing Unit

*Information displayed has been gathered from machine owner, internet searches and other sources. Information is believed to be correct, but not guaranteed. All buyers should verify this information independently and/or have the machine inspected for accuracy prior to purchase*



Product Description: Working Capacity: Edgebanding thickness, 0.4 - 3 mm capacity. Min. panel width 85 mm (3.3"); min. panel length 140 mm (5.5"); panel thickness 10 - 50 mm (0.39" - 1.96"). Feed Speed 9 MPM (30 FPM)

Front-End Equipped With:

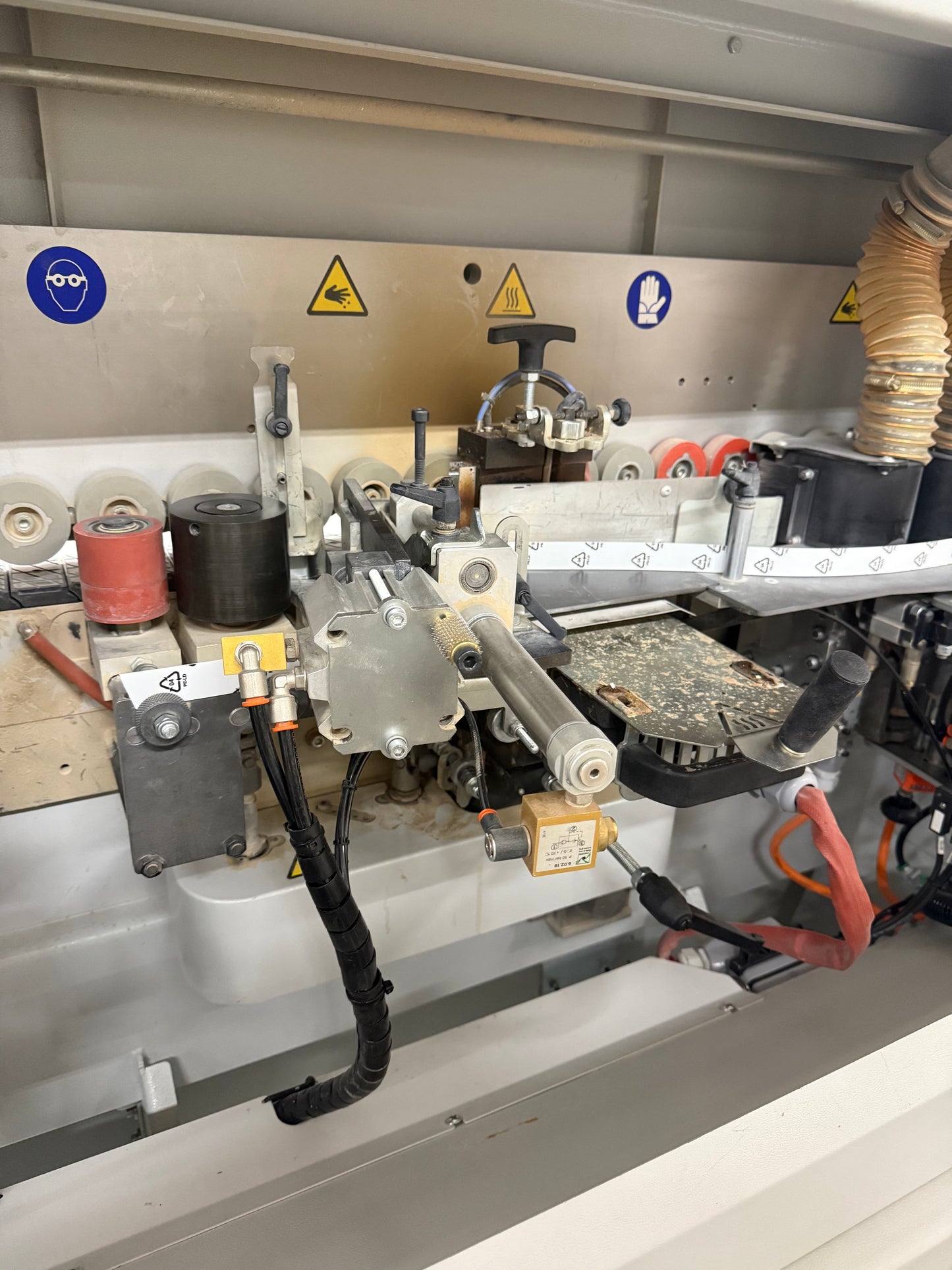

Pre-milling Unit RT01: with "Auto set" automatic intervention, Strip & Coil Edge magazine, automatic shear type guillotine.
Hot-Melt Glue System: Teflon coated glue pot, digital thermostats with automatic kick-down when machine is in idle mode.

Pressure Section with (1) large dia. "non-stick" coated drive roller & (1) Teflon plated idle rollers

Workstations:
Pre-Milling Unit RT01: with asymmetrical diamond tools max height = 55 mm
End Trimming Unit IT01: single motor end trimming unit with linear bearing support

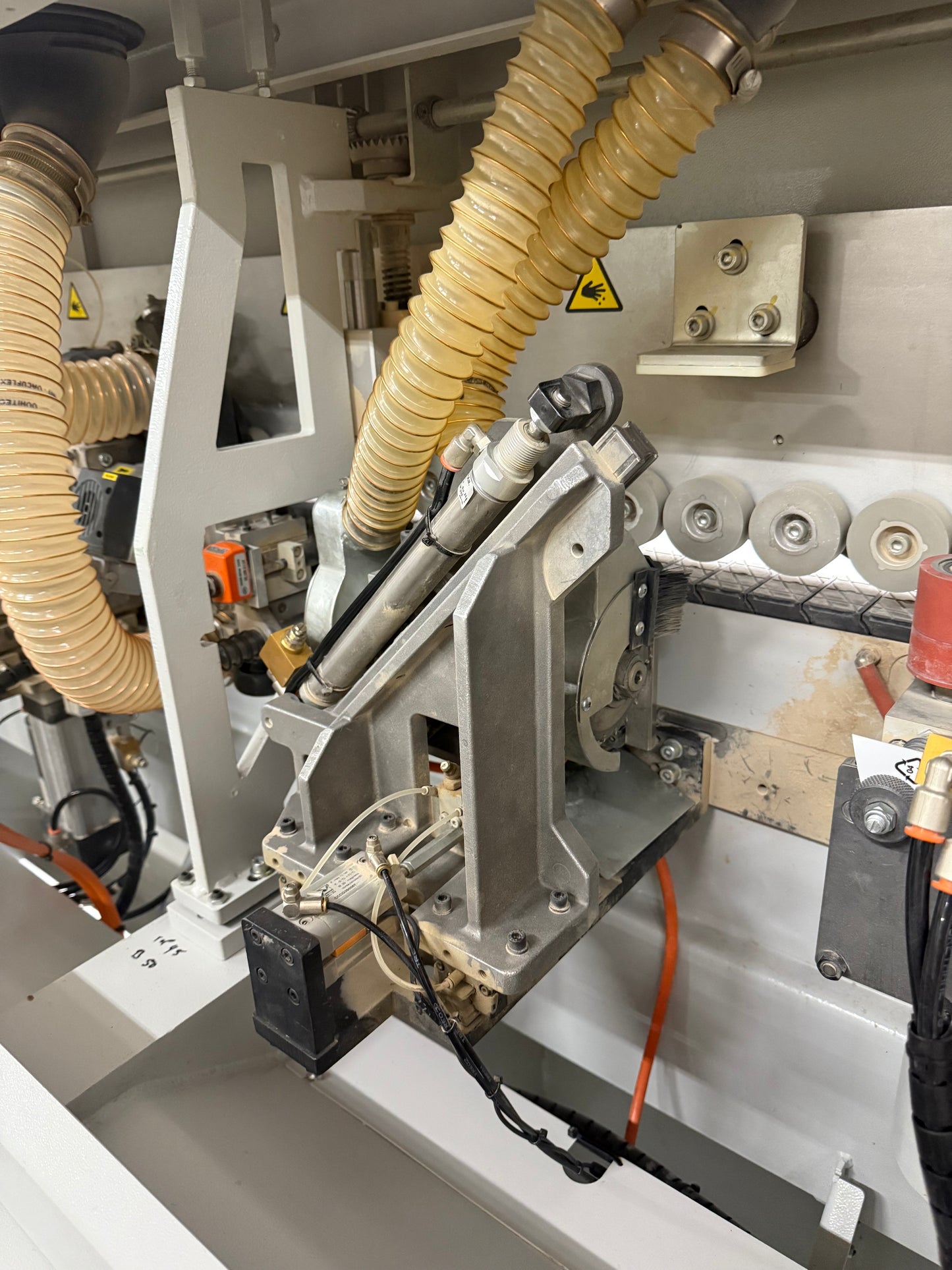

Tilting Fine Trimming Unit RF01: with multi-profile cutters for flush trimming, 25 degree chamfer and 3 mm radius trimming.
Corner Rounding Unit AR01: single motor corner rounding unit with 3mm radius tooling.
Profile Scraping Unit RB01 Top & bottom 3 mm thick PVC banding.
Flat Scraping Unit RC01: top & bottom glue scraping unit.

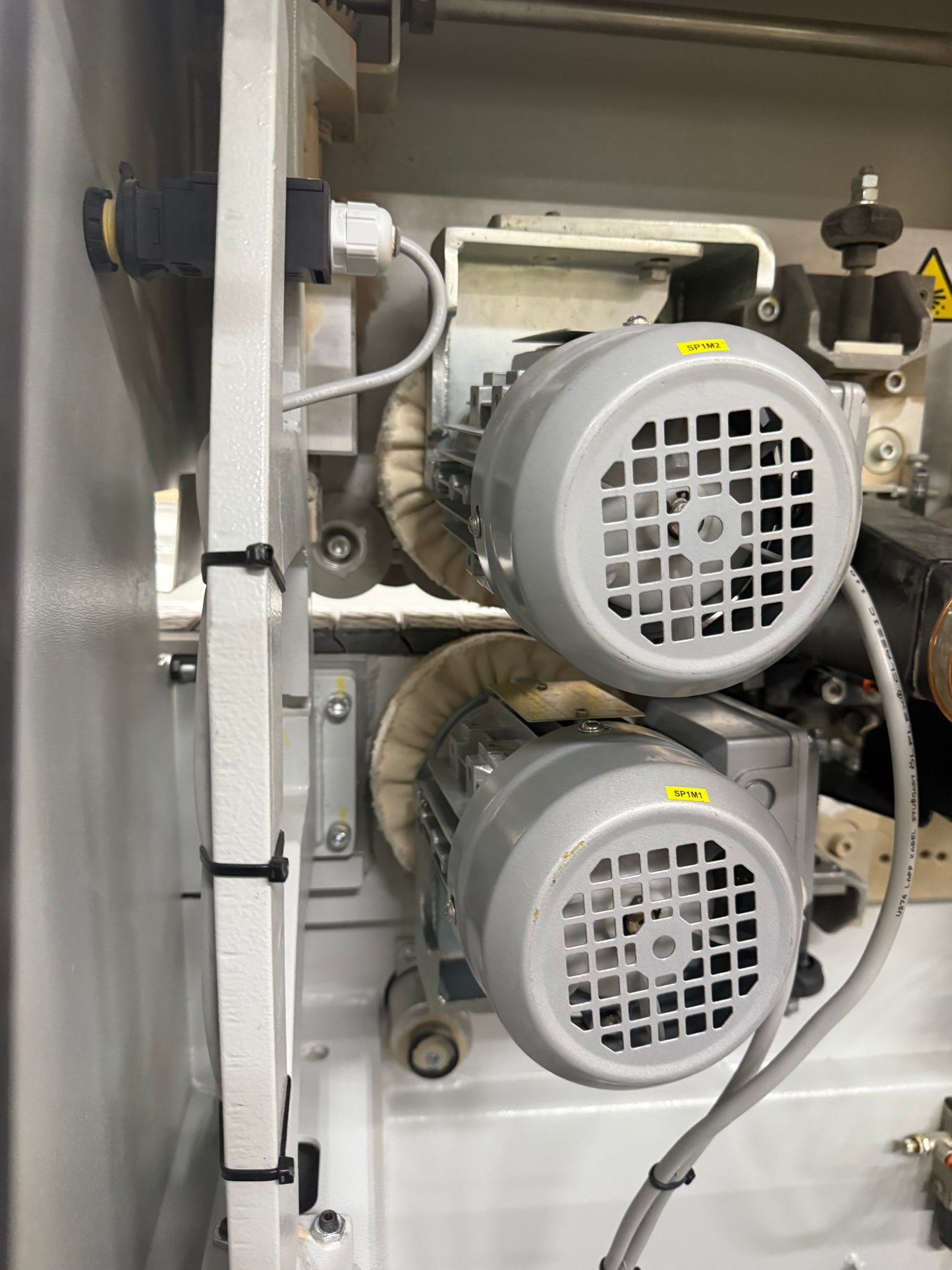

Buffing Unit SZ01: top & bottom buffing unit, 0.5 HP (0.37 kW) - 2,800 RPM motors), units tilt 0° - 30°

Controller:
Biesse SMART TOUCH 7", user friendly touchscreen control panel for workstations.

Complete With:
Insulated sound enclosure for all trim stations with split dust hood, viewing windows.

Machine Location State: UT

Machine Location City: Salt Lake

Year: 2022

Make: Biesse

Model: Akron 1130 J

Serial No:

Phase/Voltage: 3 phase 230V

Condition: Like New

Any Known Issues: NO

In Production: Used as a backup machine

Software transfers with machine: Edgebander

Access to Forklift for Loading: yes

Loading Fee: No

Shipping Dimensions: 14'X5'X5'

Shipping Weight: 4500 LBS

Shipping Brackets Available:
