Never USED!!! Get a great deal on this machine!

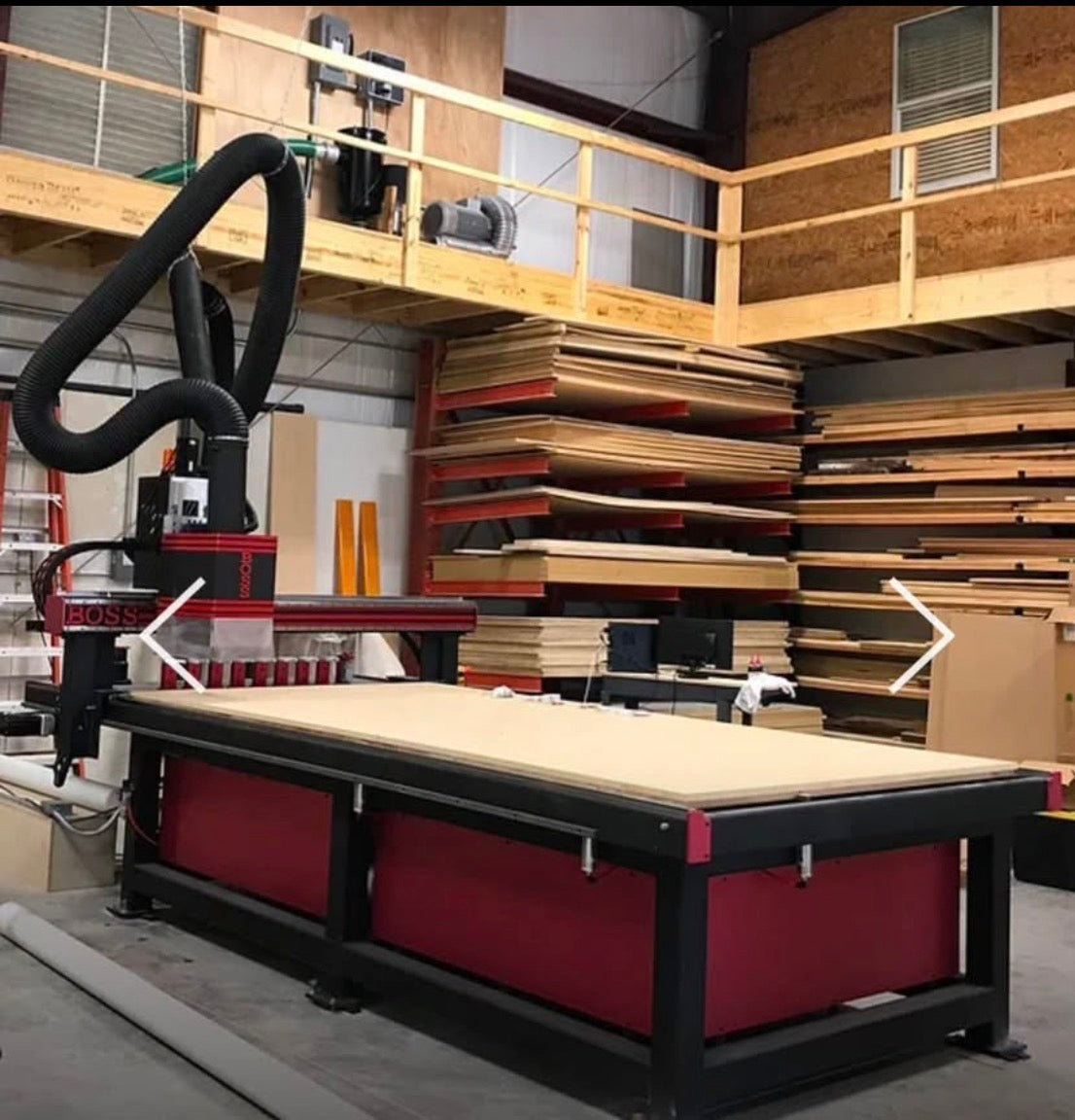

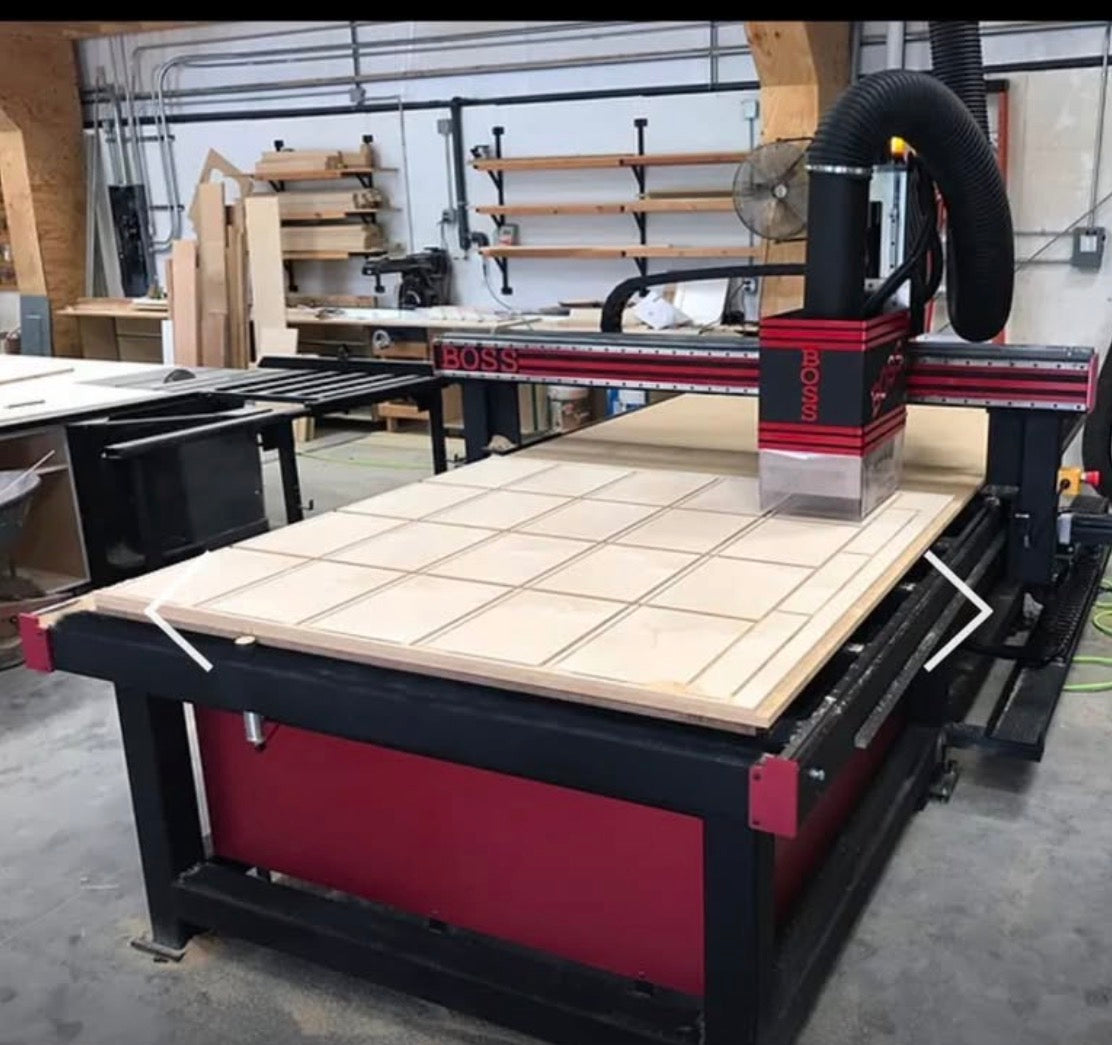

Boss 4x8 CNC Router - Like New! - Wyoming

[From the Manufacturer's Website:

Standard Sizes and Features:

Introducing our BOSS 4 x 8 Single Phase (220V) performance machine (also 5 x 10).

Our single phase ATC router is a heavy duty machine designed for tough jobs. The frame and components are the same as our 3 phase industrial machines.  This machine is ideal for cabinet shops where 3 phase power is an issue and will cut out cabinet parts with operations, MDF doors, dovetail drawers and solid surface materials.  No extra wiring/electrical needed.

• American Made

• 49 x 97 Work Area

• ASTM 500 Structure Grade Steel Frame

• Easy Servo Motors with Apex Gear Boxes

• High Precision Rack and Pinion (2 inch Spur Gear ) on X and Y

• 3/4  Nook Ball screw on Z

• 4hp ISO 30 Automatic Tool Change Spindle (ATC) Made in USA

• 6 position automatic tool stations

• Automatic Tool Touch off Sensor

• Phenolic High Flow Vacuum Top

• 10HP Vacuum Pump

• Pneumatic Popup Pins

• Industrial Windows 10 Computer with SSD Hard drive, keyboard and mouse

• 22 inch High Definition Monitor

• All tooling

BOSS 4×8 Performance Machine - 3 phase

• 10 HP HSD ATC Spindle

• 8 Tool Change Positions

• 1KW 3000 RPM Leadshine AC Servo Motors

• 10:1 Apex Planetary Gearboxes

• 3/4 Nook Ballscrew on Z Axis

• Rack & Pinion with 2 inch- Diameter Pinions on X and Y Axis

• *Gantry is driven on both sides with AC Servo Motors

• **CE Solid Phenolic Table High Flow Vacuum Design

• ASTM 8500  3 x 3,  3/16” gauge heavy duty steel

• Hybrid Steel Gantry – 4X6 & 4X4 Thick Wall Steel Welded Frame

• 10 Hp Vacuum

• RouterCAD Software Suite

• Carbide Tooling Package which includes: 2 – 3/8 Compression Spirals, 2 – 5MM Down Spirals, 2 – 1/2 Down Spirals, 2 – 1/4 Down Spirals, 1 – 2 1/2  Flycutter

*Driving the Gantry on both sides with AC Servo motors simply out performs a long unsupported ballscrew design. Racks are fastened to the machine frame every 10 inches with machine screws. Ballscrews cannot be supported except at each end. Using ballscrews in long horizontal type applications such as X or Y axis will result in Whipping and Sagging of the “Screw” as the gantry moves across the screw. This will cause excessive wear and poor machining results.

**CE Phenolic is much stronger than Linen Phenolic. We only use CE phenolic on our machine tops.]

ASK ABOUT OUR USED MACHINERY GUARANTEE! *

Information displayed has been gathered from machine owner, internet searches and other sources. Information is believed to be correct, but not guaranteed. All buyers should verify this information independently and/or have the machine inspected for accuracy prior to purchase

*Some restrictions apply.

Product Description: Boss 4x8 CNC Router - Like New! - Wyoming

Machine Location State: Wyoming

Machine Location City: Pavillion

Year:

Make: Boss

Model:

Serial No:

Phase/Voltage:

Condition:

Any Known Issues:

In Production:

Product Type: CNC

Access to Forklift for Loading:

Loading Fee:

Shipping Dimensions:

Shipping Weight:

Shipping Brackets Available:
