GANNOMAT CONCEPT 70 ECO PLUS CASE CLAMP (2023) - Ohio

Manufacturer: Gannomat Brand: Gannomat Model: CONCEPT 70 ECO PLUS
Out of stock
$30,000.00 USD

Freight is not included in the machine price. iBiD Machinery will quote freight separately through our machinery freight broker.

How can iBiD help with this machine?

Questions about condition, specifications, loading, or fit? Ask iBiD directly, find a similar machine, or research the model.

Prefer to talk?

Call us about this machine’s condition, specifications, or freight.

Call iBiD · (678) 925-3556
Find a similar machine Sell one like this
Research & buying resources
Research this make & model Read the buying guide Research sold history

Your contact details are sent privately to iBiD and are not shown on the product page.

Just listed - Call Us!  (678) 925-3556

Gorgeous Low Usage/ Late Model GANNOMAT CONCEPT 70 ECO PLUS CASE CLAMP (2023) for sale in Ohio. Ready to Ship!

From manufacturer website:

Gannomat Concept 70 ECO Case Clamp

The Concept Eco, our most popular model, provides flexible support in the assembly of dowel construction case goods as well as drawer assembly production.

  • With workpiece tolerance compensation (System Ganner)
  • 2 Potentiometer for stepless adjustable pressing force
  • Pressing force min. 300/500 kg
  • Pressing force max. 2200 kg
  • 4 Pressing velocities and adjustment rates, 5 /10 / 25 / 50 mm/sec. (with fine positioning / creep feed)
  • Adjustable clamping cycle time with automatic opening
  • Simple operation by 6 individual push buttons for 8 motion sequences
  • Standard Length (X): 150 - 2500 mm, Height (Z): 150 - 1300 mm, Depth (Y): 150 - 700 mm. Can also be provided in longer X-axis length as an option.

ASK ABOUT OUR USED MACHINERY GUARANTEE! *

Information displayed has been gathered from machine owner, internet searches and other sources. Information is believed to be correct, but not guaranteed. All buyers should verify this information independently and/or have the machine inspected for accuracy prior to purchase.

*Some restrictions apply.



Product Description: GANNOMAT CONCEPT 70 ECO PLUS CASE CLAMP (2023) - Ohio

Machine Location State: Ohio

Machine Location City: Garfield Heights

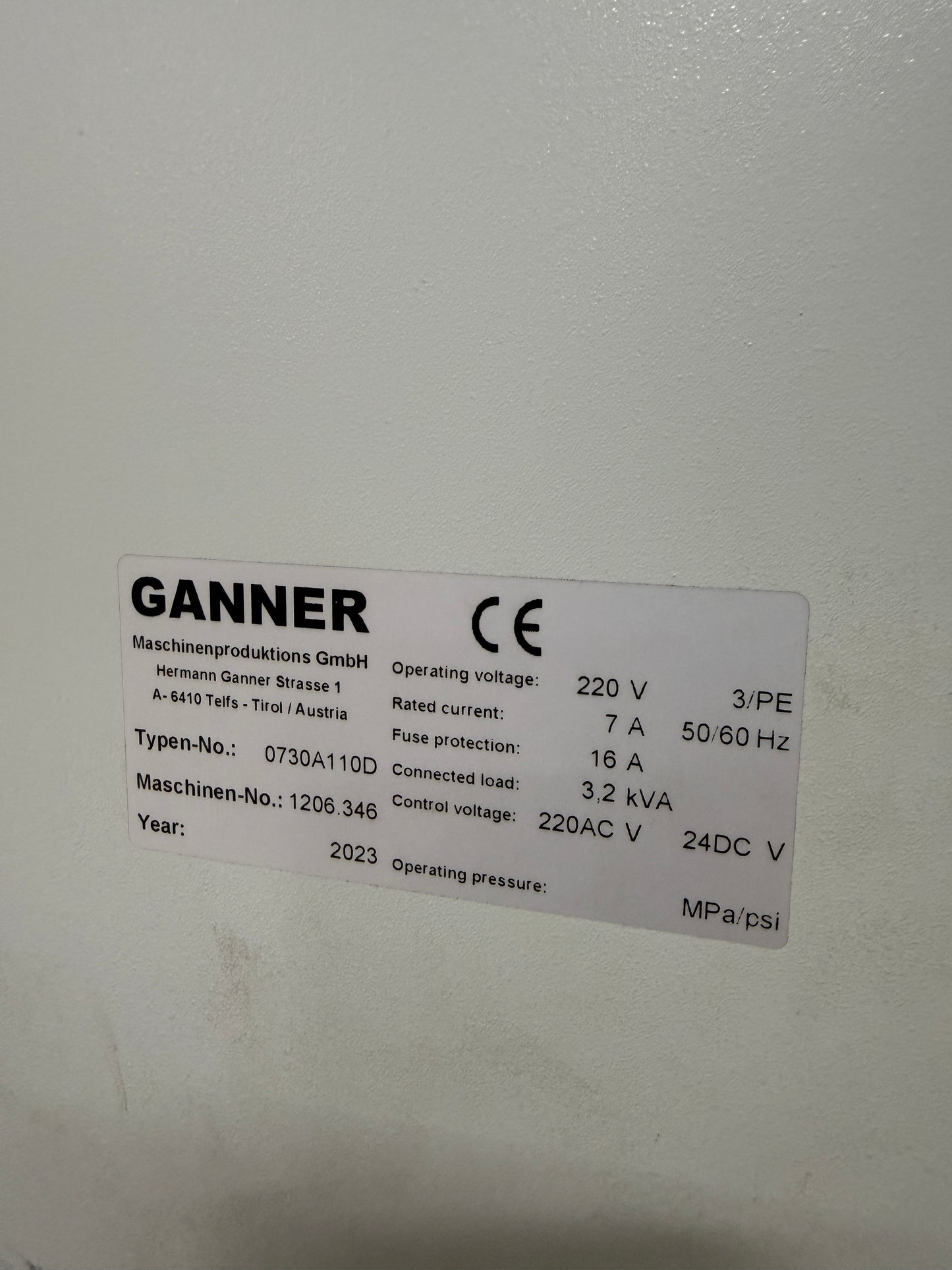

Year: 2023 see plate in photos

Make: Gannomat

Model: CONCEPT 70 ECO PLUS

Serial No: 1206.346

Phase/Voltage: 3 PH see plate in photos to confirm

Condition: Excellent Used condition

Any Known Issues: No

In Production: Yes - Ready to ship!

Software transfers with machine: Clamp

Access to Forklift for Loading: Yes

Loading Fee: No

Shipping Dimensions: Will provide

Shipping Weight: Will provide

Shipping Brackets Available: N/A
