Holzher Evolution 7405 4mat Vertical CNC (2013) vertical CNC - California
Couldn't load pickup availability
How can iBiD help with this machine?
Questions about condition, specifications, loading, or fit? Ask iBiD directly, find a similar machine, or research the model.
Call us about this machine’s condition, specifications, or freight.

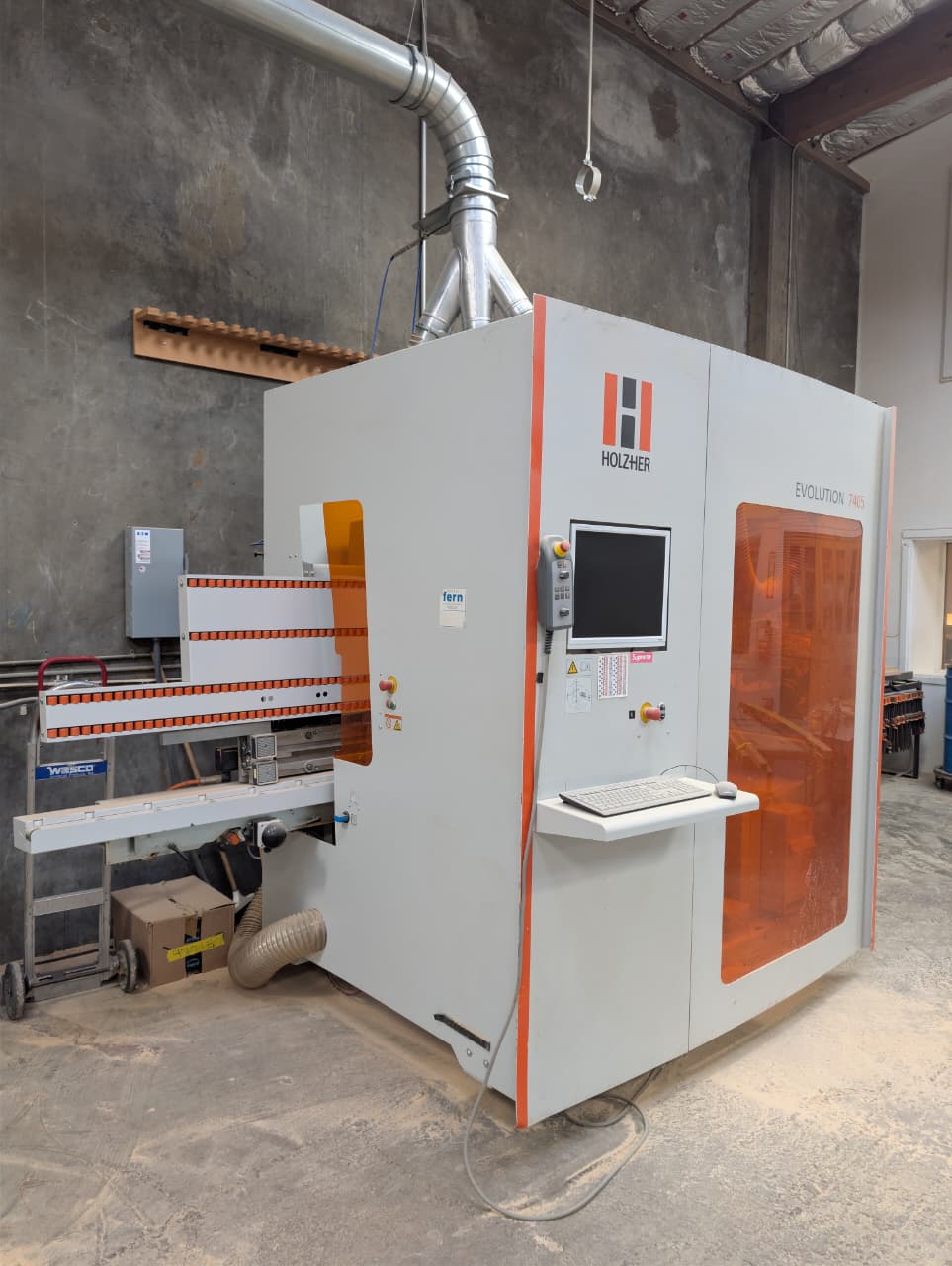

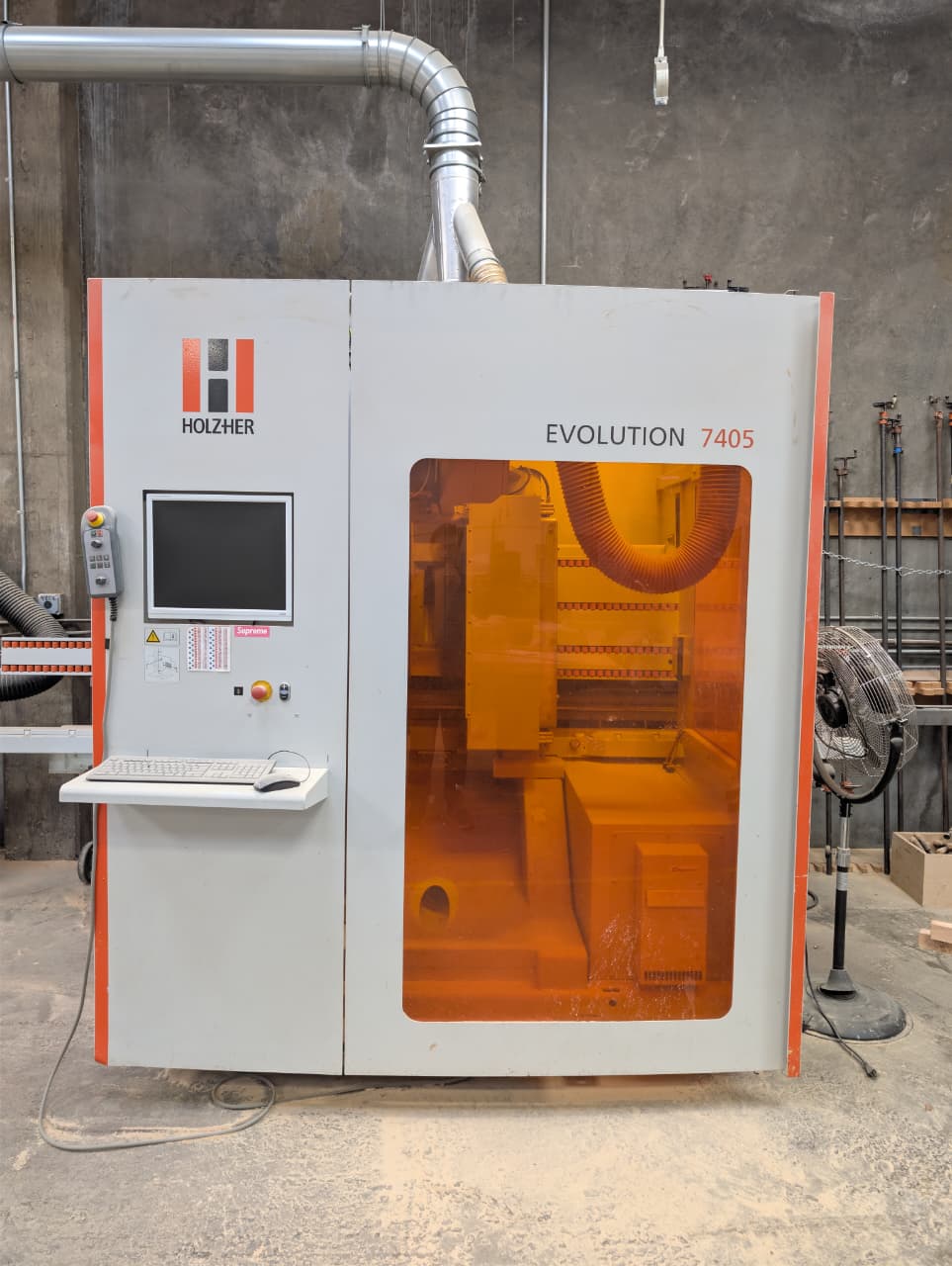

2013 HOLZ-HER Evolution 7405 4mat vertical CNC machining center located in California. The original owner reports purchasing it new and using it for fewer than 400 hours; it was acquired for a specific project and has seen only occasional use since the original operator left. Call iBiD Machinery at (678) 925-3556 for inspection and availability details.
Machine overview
The Evolution 7405 is a compact vertical CNC platform designed for drilling, routing and complete panel processing while using very little floor space. The 4mat concept adds edge-routing capability for complete formatting.
Manufacturer family-reference specifications
- Material-thickness range: approximately 8-70 mm
- Vertical pass-through reference: up to approximately 1,200 mm on current Evolution-family data
- Vector speed: up to approximately 68 m/min on current family data

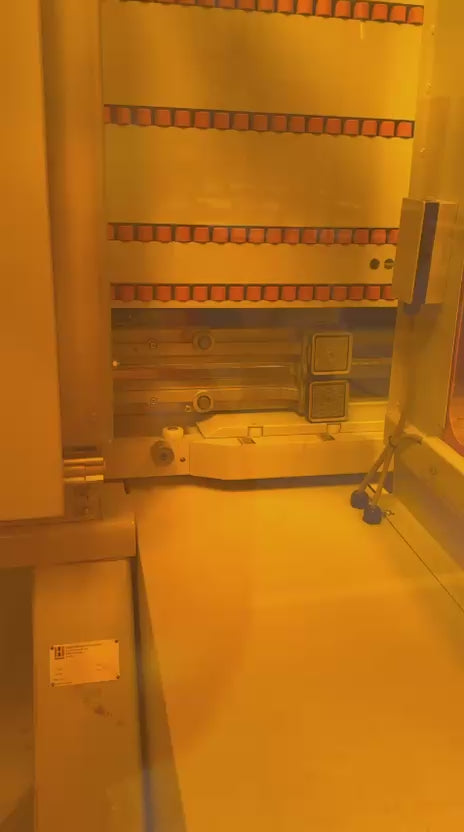

- Automatic vacuum clamping with software-controlled suction-cup positioning
- Standard drilling-head reference: 15 vertical drilling spindles plus 6 horizontal drills and integrated saw
- Current 7405 platform offers complete four-edge machining / formatting
- Period HOLZ-HER literature for the 7405 cites X processing up to approximately 3,200 mm and Y approximately 920 mm
- Period literature identifies 6-position tool-change and HSK spindle configurations on certain 7405 packages
What to confirm on this 2013 machine
HOLZ-HER has revised the Evolution platform over time. Confirm the 2013 spindle power, tool changer, drilling-head configuration, CAMPUS/HOPS software version, suction-cup layout, electrical requirements and installed options from this machine's serial number.
*Model-reference specifications are provided to the best of iBiD Machinery's knowledge from available manufacturer information and other credible technical references. Actual machine configuration, options, dimensions and capabilities may vary by year, serial number and installed equipment. Buyer should independently confirm all specifications and inspect the machine before purchase.
Product Description:
Machine Location State: California
Machine Location City:
Year: 2013
Make: HOLZ-HER
Model: EVOLUTION 7405 4mat

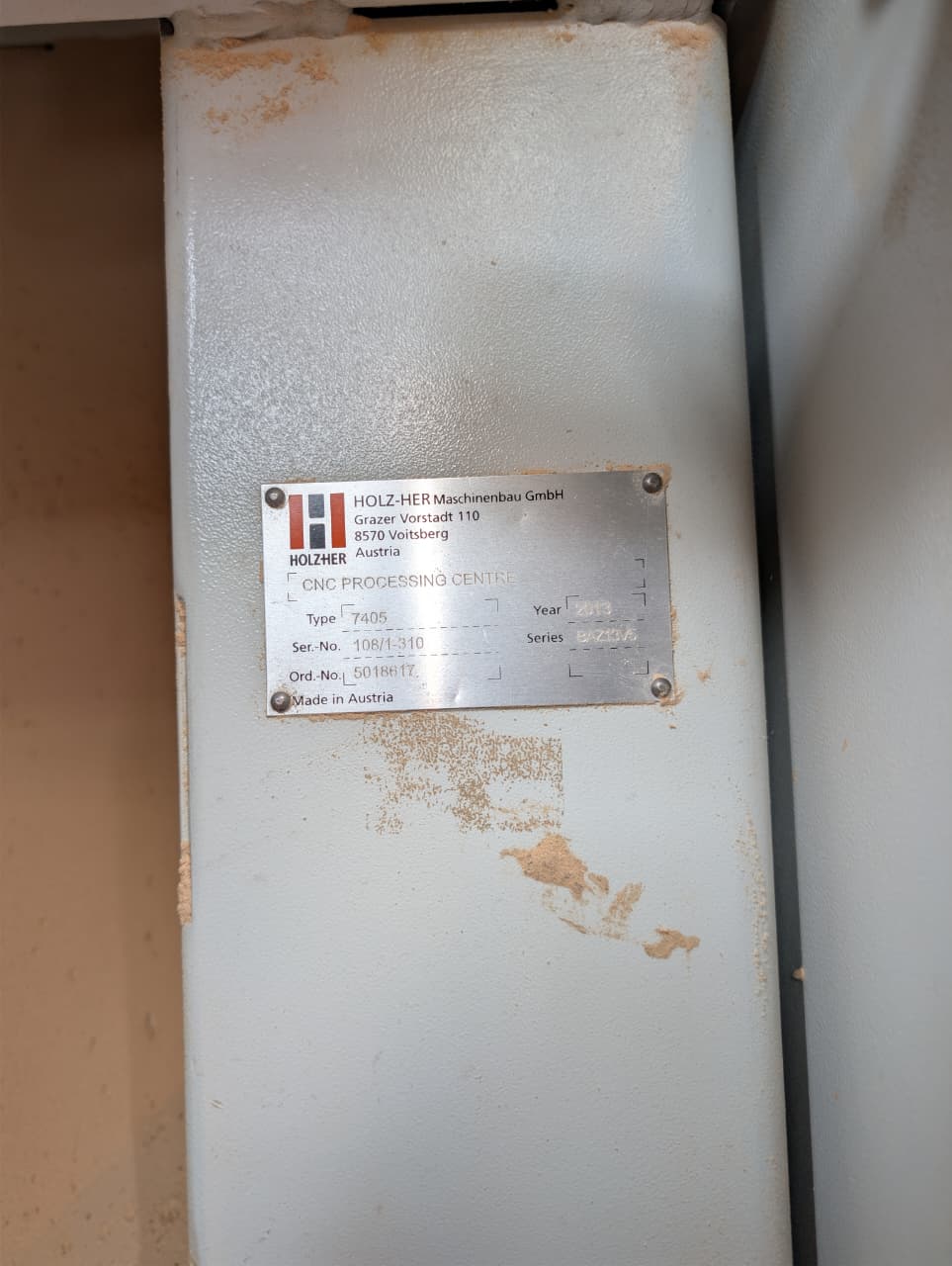

Serial No: 108/1-310
Phase/Voltage: 3PH
Condition: Excellent - Low Usage
Any Known Issues: No
In Production: Yes - Ready to ship

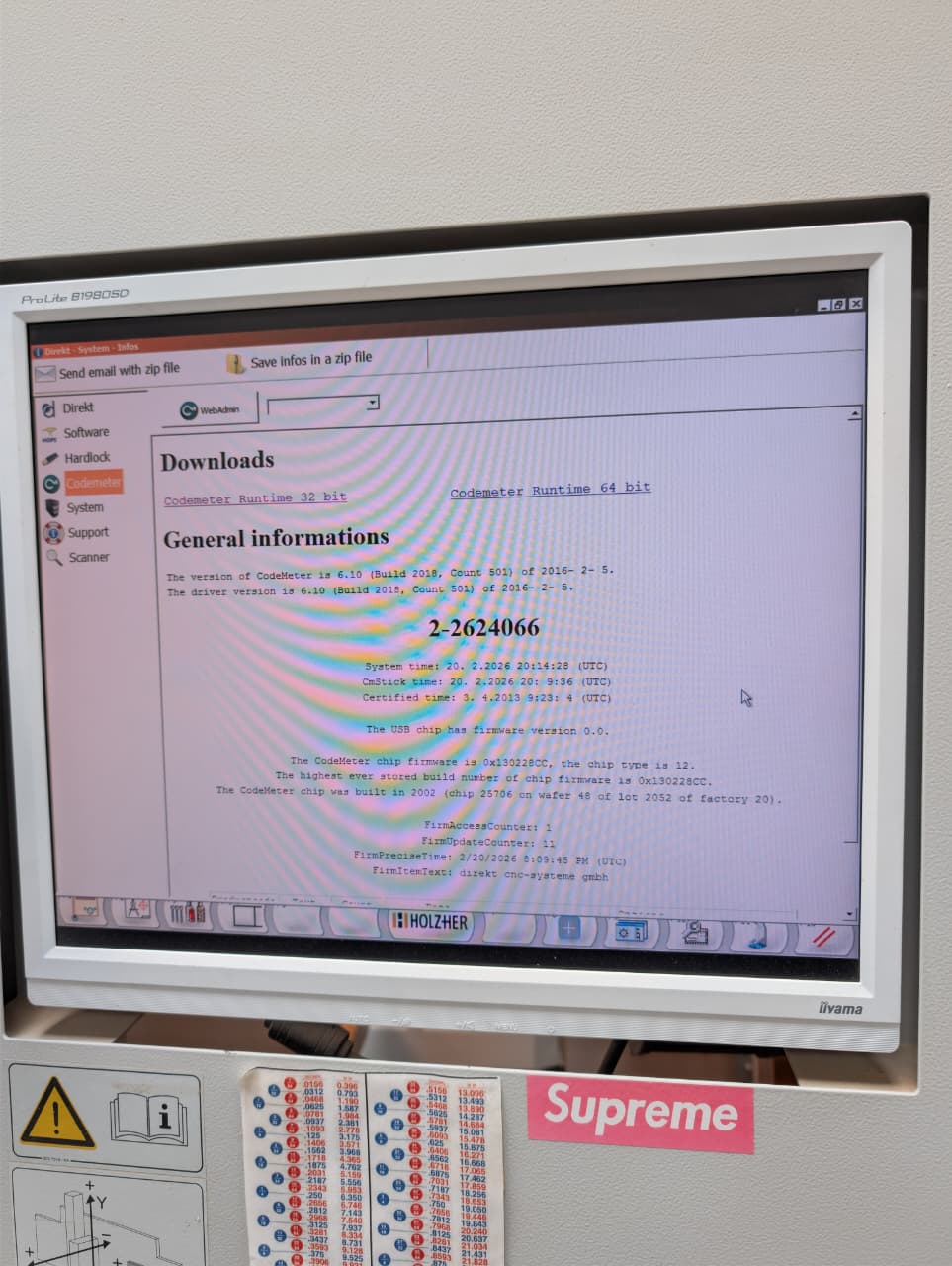

Software transfers with machine: CNC
Access to Forklift for Loading: Yes
Loading Fee:
Shipping Dimensions: approx 12.5 X 6 X 8.8 FT
Shipping Weight: 5600 lbs approx
Shipping Brackets Available:
