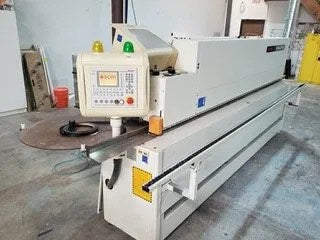

2004 SCM Olimpic K208 ER Edgebander

Manufacturer: SCM Brand: SCM Model: Olimpic K208 ER
Out of stock
$3,900.00 USD

Freight is not included in the machine price. iBiD Machinery will quote freight separately through our machinery freight broker.

How can iBiD help with this machine?

Questions about condition, specifications, loading, or fit? Ask iBiD directly, find a similar machine, or research the model.

Prefer to talk?

Call us about this machine’s condition, specifications, or freight.

Call iBiD · (678) 925-3556
Find a similar machine Sell one like this
Research & buying resources
Research this make & model Read the buying guide Research sold history

Your contact details are sent privately to iBiD and are not shown on the product page.

A medium to Heavy duty Edgebander from Italian manufacturer SCM, which allows the processing of edgbanding material from 0.4mm – 10mm Solid wood.  The machine does have a Corner rounding unit.

Product Features

  • Base structure made of high rigidity tubular steel to guarantee an excellent support for the operating groups and the guides of the feed. Mobile control panel.
  • Feed track sliding on 1 cylindrical guides 1 flat to guarantee straight cutting and resistance to heavy side pressure loads.
  • Automatic loader for rolled edges and shear device for cutting thickness up to 3 mm
  • Glue pot unit, including:
  • Teflon coated glue pot to facilitate glue substitution
  • Digital thermostat on glue spreader
  • Device for automatic recovery of unused glue
  • Automatic temperature kick down after temporary non use
  • Horizontal pressure unit with 3 rollers of which the first is cylindrical, power driven, with pneumatic pressure adjustment
  • The second and third have pneumatic pressure adjustment and opposed coincity to guarantee perfect adherence to the entire panel edge.
  • End cutting unit with 2 independent high frequency motors on prismatic guidways and linear sliding pads that tilt from 0 – 15 degrees, easy setting-up and fixed to the pressure beam to avoid interference of scraps when activated, each is equipped with copying device.
  • Trimming units tiltable from 0 – 15 degrees, with high frequency motors and large diameter horizontal and vertical copying device, complete with 70 x 12 cutters with 4 throwaway knives
  • Buffing unit with two independent tiltable motors
  • Roller conveyor with extension support on entire length
  • Speed of end cutters and trimmers 12,000 rpm with frequency converter
  • Centralised dust-extracting outlet.
  • Safety enclosure
  • Electrical cabinet with main switch and thermal cut-out for motor protection.

Product Description:

Machine Location State:

Machine Location City:

Year:

Make: SCM

Model: Olimpic K208 ER

Serial No:

Phase/Voltage:

Condition:

Any Known Issues:

In Production:

Software transfers with machine:

Access to Forklift for Loading:

Loading Fee:

Shipping Dimensions:

Shipping Weight:

Shipping Brackets Available:
