LEADERMAC SMARTMAC 7" 5-HEAD MOULDER (2024) - UTAH
Ask iBiD about price, availability, condition, specifications, inspection or shipping.
Request information about this machine Or contact iBiD directlyCouldn't load pickup availability
How can iBiD help with this machine?
Questions about condition, specifications, loading, or fit? Ask iBiD directly, find a similar machine, or research the model.
Call us about this machine’s condition, specifications, or freight.

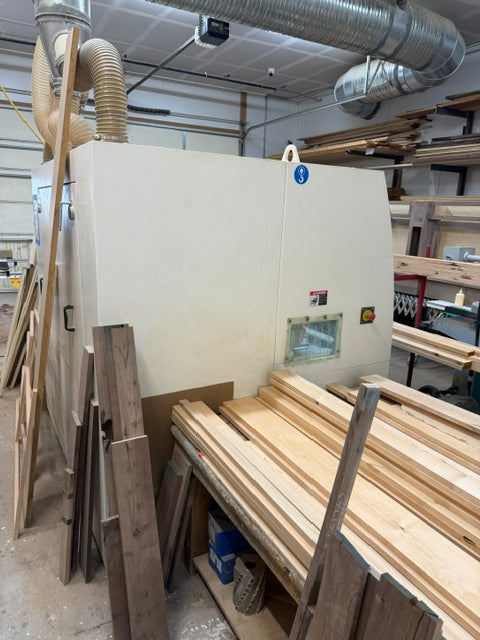

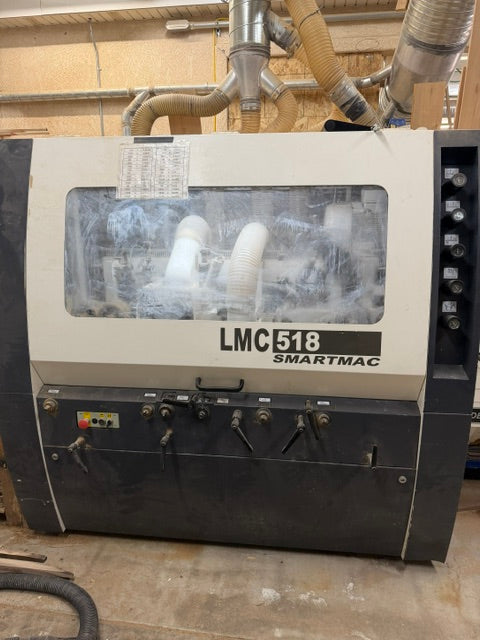

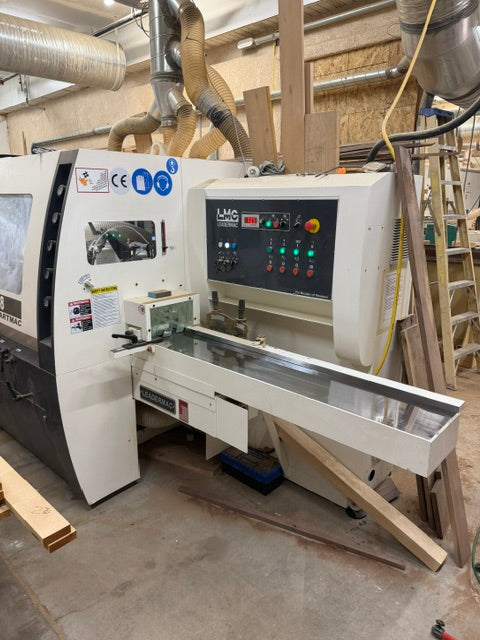

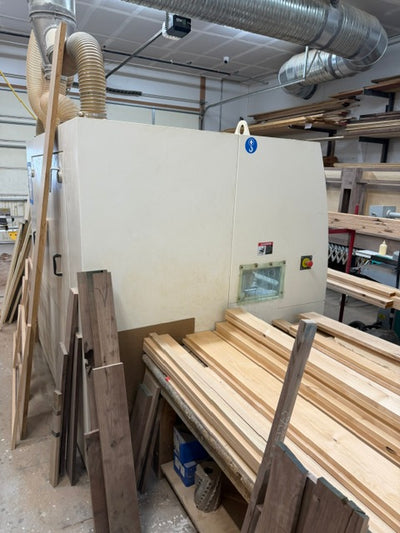

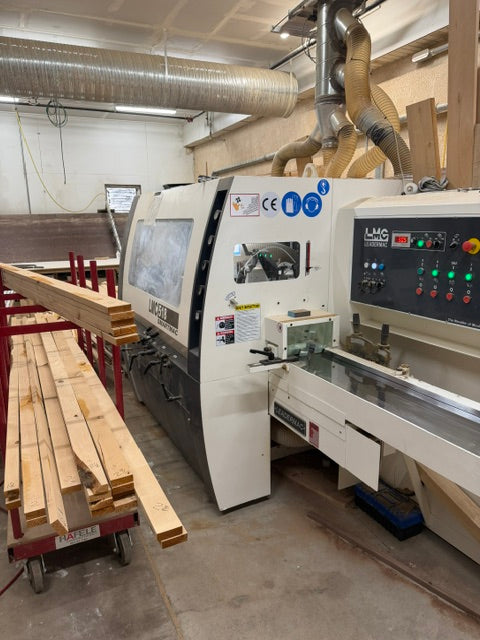

2024 Leadermac Smartmac 7-inch 5-head moulder located in Utah. The seller describes this machine as in great condition and ready to ship. Call iBiD Machinery at (678) 925-3556 for inspection and loading details.
Manufacturer family reference — exact model to be confirmed
The seller describes this machine as a 7-inch, five-head Smartmac. However, Leadermac's published LMC 523S reference states a different width class. The family figures below do not establish this machine's usable capacity. Therefore, check the full model and nameplate before relying on them.
- Five-spindle Smartmac configuration
- Listed nominal size: 7 inches; actual minimum and maximum working width require machine-specific confirmation
- Working thickness: about 10-125 mm (0.39-4.9 in.)
- Standard spindle speed: about 6,000 rpm; 7,200 rpm available as an option
- Variable feed speed: about 6-24 m/min (20-80 fpm)
- Standard spindle diameter: about 40 mm
- First bottom cutter circle: about 125-160 mm
- Vertical cutter circle: about 112-180 mm
- Horizontal cutter circle: about 112-200 mm
- Standard infeed table reference: about 2 m / 78.7 in.
- Sound and safety enclosure and motorized feed-beam height adjustment are standard family features
Source: Leadermac Smartmac manufacturer brochure covering LMC 423S / LMC 523S (PDF). However, optional equipment in the brochure is not confirmed as included.
Inspecting this Leadermac Smartmac 5-head moulder
First, confirm the five-head sequence and horsepower at each spindle. Then, inspect the setworks package, cutterheads/tooling and feed system. Also, check the voltage and any optional 7,200-rpm or lubrication equipment.
*To the best of our knowledge, these model-reference specs reflect maker data and other credible technical sources. However, the actual setup, options, size and capabilities may vary with the year, serial number and installed equipment. Therefore, buyers should confirm all specs and inspect the machine before purchase.
Product Description:
Machine Location State: Utah
Machine Location City: Parowan
Year: 2024
Make: Leadermac
Model: SMARTMAC 7
Serial No:
Phase/Voltage:
Condition: Excellent Used Condition
Any Known Issues: No
In Production: Yes
Software transfers with machine: MOULDER
Access to Forklift for Loading: Yes
Loading Fee: No
Shipping Dimensions: 12 (length) x 7 (width) x 7 (height)
Shipping Weight: 8200 lbs approx
Shipping Brackets Available: N/A
