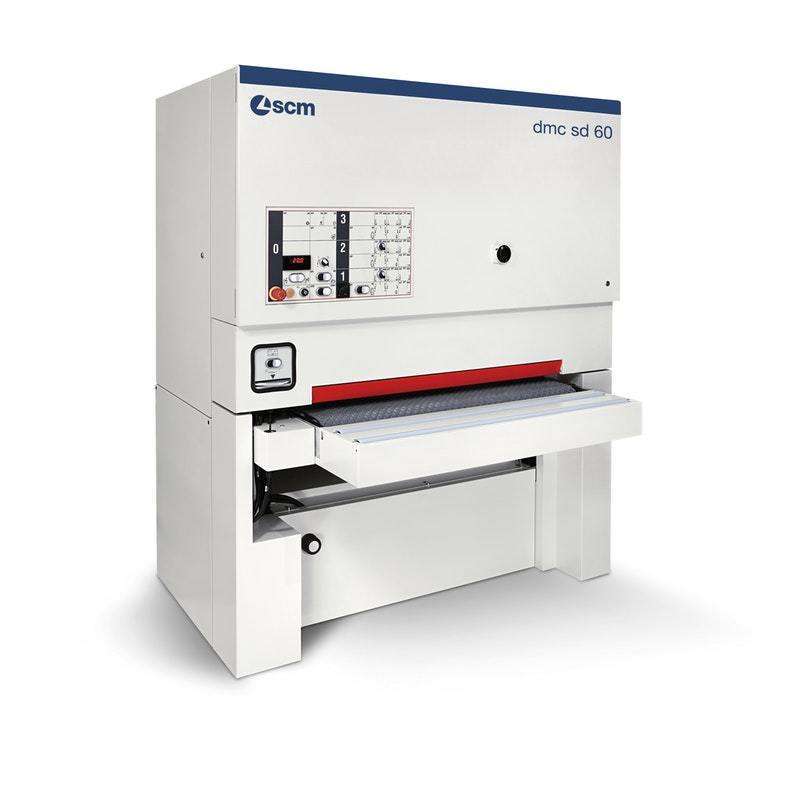

New! - SCM DMC SD60 135 RCS 53" VN Wide Belt Sander - Illinois
Couldn't load pickup availability
How can iBiD help with this machine?
Questions about condition, specifications, loading, or fit? Ask iBiD directly, find a similar machine, or research the model.
Call us about this machine’s condition, specifications, or freight.
Brand New!
SALE!
SCM, DMC SD60, 53" Veneer Wide Belt Sander
DMC SD 60 RCS 135 VN - TWO HEAD WIDE BELT SANDER
- Grooved rubber coated pressing rollers before and after working unit
- 2HP variable speed feed motor 3.5-18 m/min (12-60 FPM)
- Y-Delta two-stage reduced voltage starter on main motor
- Automatic Electronic Table Positioning Device
- In-feed / Out-feed extended tables for easier part feeding
- Pneumatic On/Off selector of both rollers and pad
- Adjustable sanding drum and pad position for micro precision adjustment
- Electronic digital thickness readout of work table position
- Powered table lifting by means of four heavy duty motor and lifting columns double fastened at both top and bottom of the lifting columns to provide exceptional table stability
- Electronic tracking of abrasive belt
- Pneumatic belt tensioning with center fulcrum to compensate for tapering of abrasive belt
- Front and rear emergency stop button
- Amperage meter for main motors allows maximum utilization of available horsepower
- Main disconnect switch with the ability to be locked out by padlock
- In feed flexible steel hold down, and anti-kickback plate
- 50 shore, negative profile (waffle style) rubber feed mat
- LOGIC 50 K Electronic Programmer for timing/anti-dubbing of the pad
With Warranty
FOB Wauconda, IL. $4000 installation
Product Description:
Machine Location State: Illinois
Machine Location City: Wacounda
Year: 2024
Make: SCM
Model: SD60 RCS VN
Serial No:
Phase/Voltage: 3PH
Condition: New
Any Known Issues: No
In Production: New
Software transfers with machine:
Access to Forklift for Loading: Yes
Loading Fee: No
Shipping Dimensions:
Shipping Weight:
Shipping Brackets Available:
