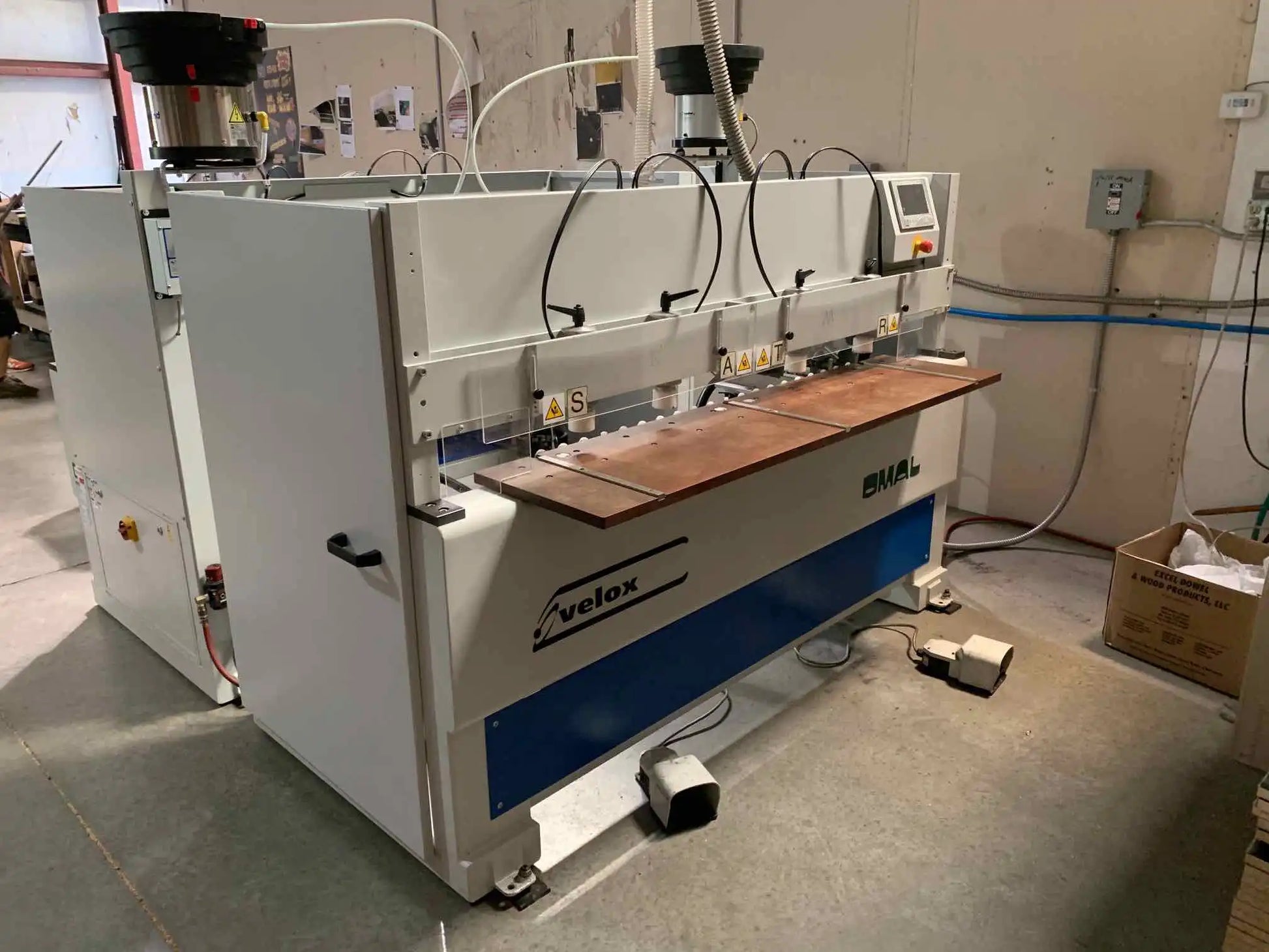

Product Description: CNC Bore, Glue & Dowel Inserter W/Laser - Omal Velox 1300
The Velox 1300 Is A Numerically Controlled Machine Designed To Drill, Glue And Insert Dowels On Horizontal Pieces With TWO Loading Zones With A Cycle Time Of One Second For Each Bore, Glue And Dowel Insertion When Holes Are On 32 Mm Intervals
Additionally, The Machine Is Equipped With A Touch Screen Control For Writing And Storing Programs. And It Is Programmable In The X Axis And Equipped With A Brush-Less Motor, Ball Nut And Ball Screw For Quick Positioning.
Major Features:
Omal “Sure Shot Dowel Revolver System”
Laser Measuring System
One Second Cycle Time For Bore, Glue And Dowel Insertion.

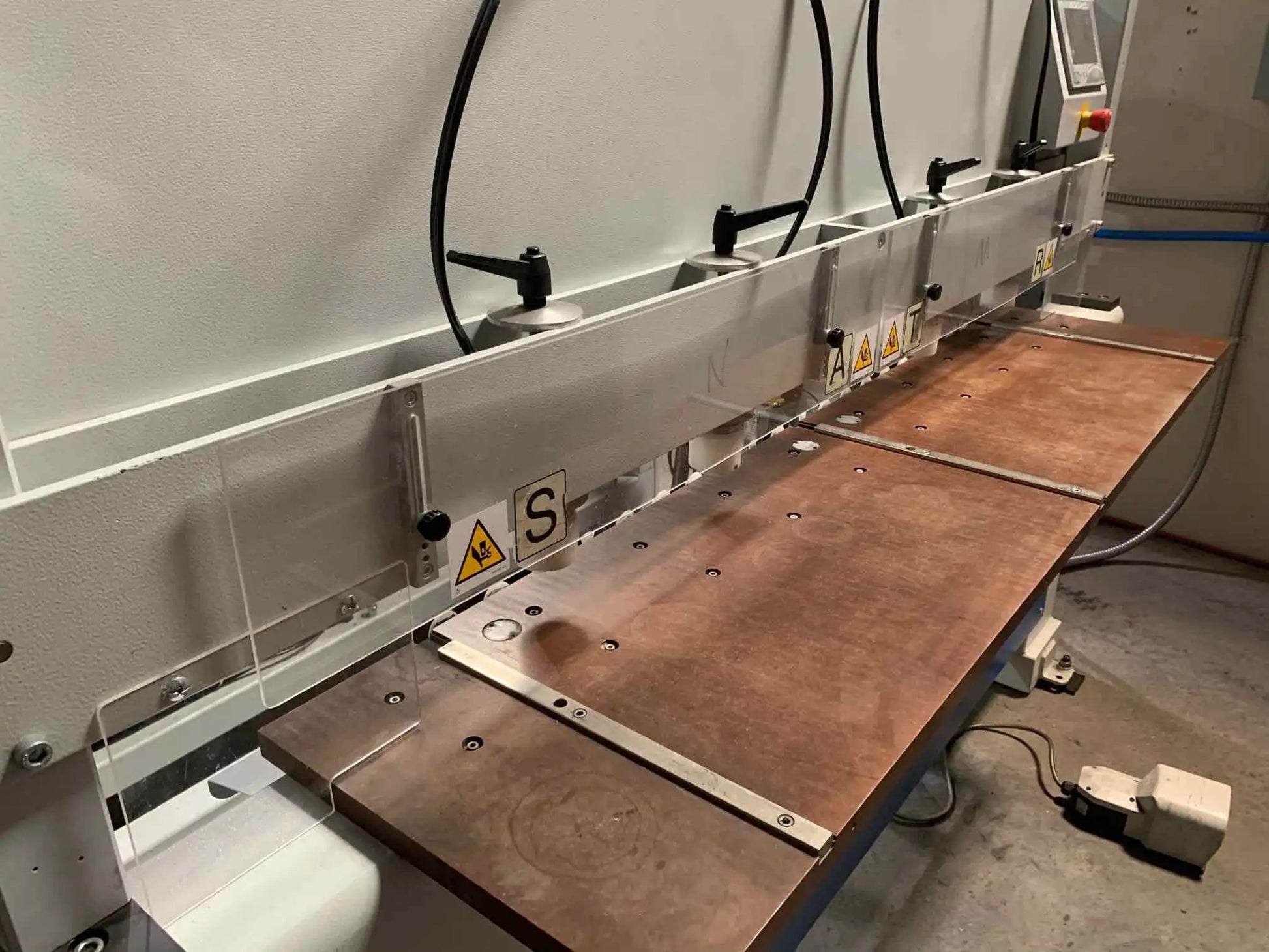

2 Working Areas
4 Cylinder Clamps
No Drip Glue Nozzle

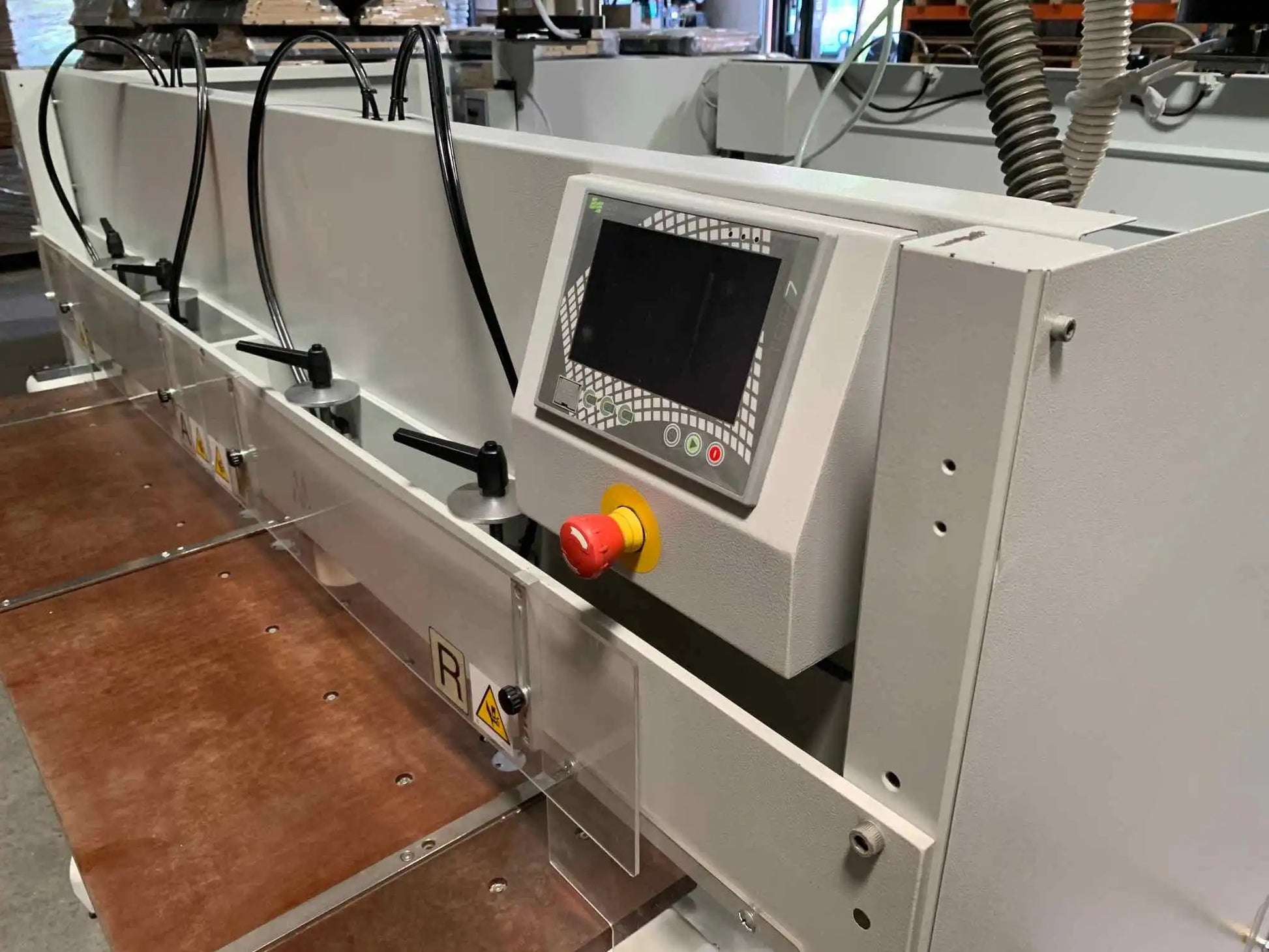

Touch Screen Control
Centralized Lubrication System
Technical Specifications:
X Axis Working Area: 51"
Y Axis (Manual Depth Setting) Working Stroke: 1.57"
Z Axis (Manual Vertical Setting) Stroke: 1.57"
Carriage Travel Speed Is 163.5 FPM

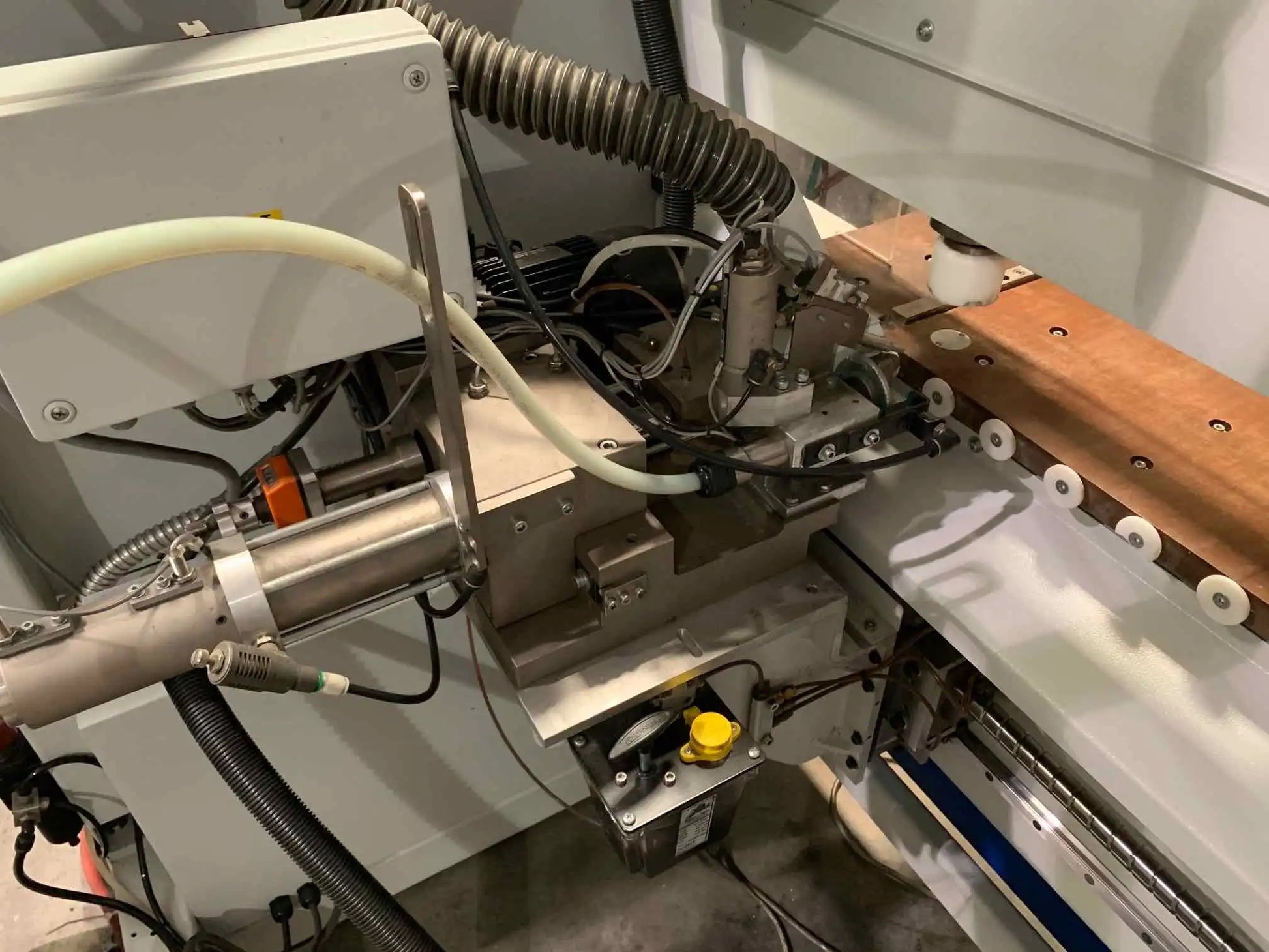

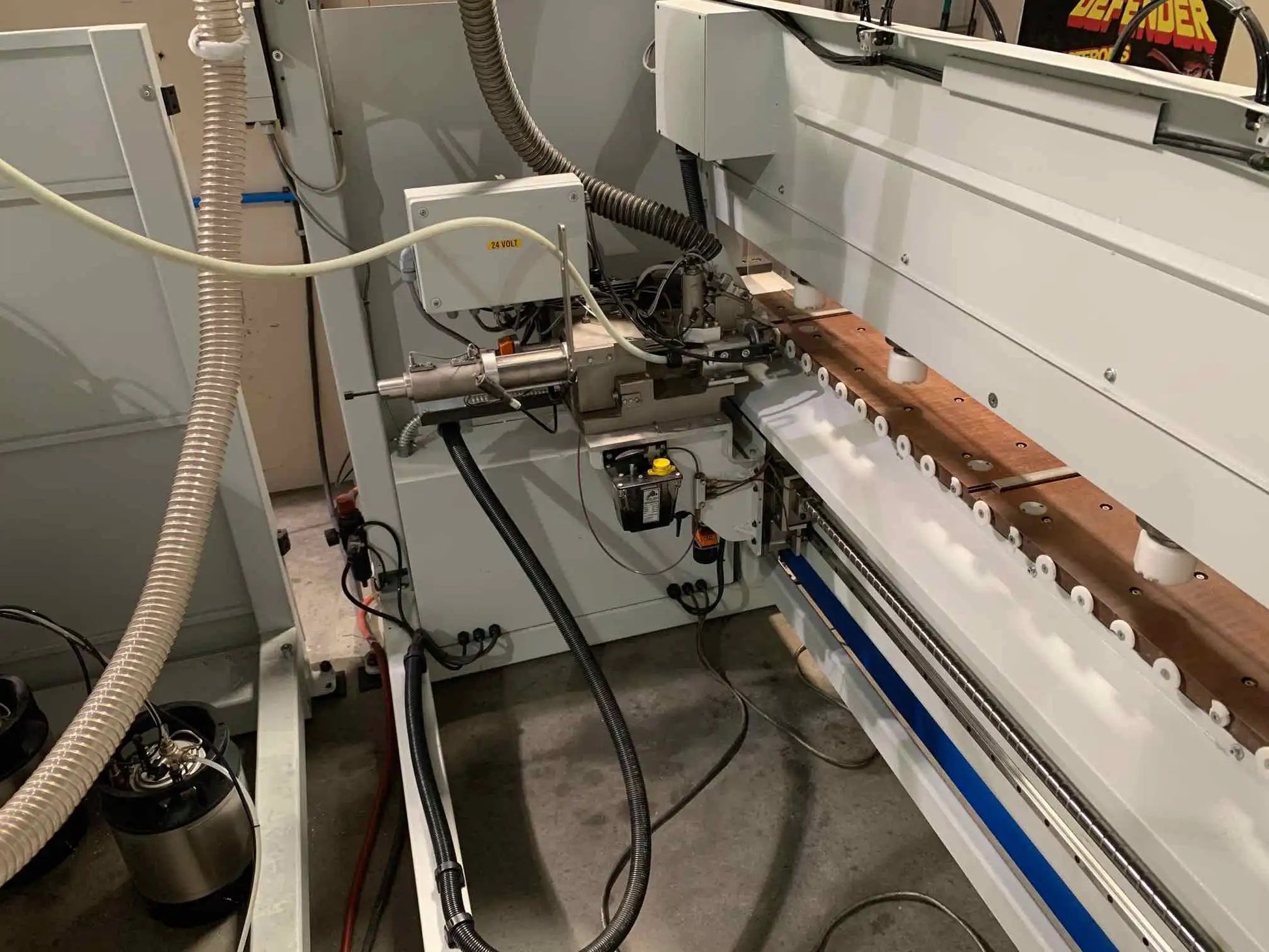

(1) 1 HP Horizontal Drilling Unit
Maximum Depth Of Holes Is 30 Mm (1.18")
Maximum Diameter Of The Drill Is 10 Mm (3/8")
OMAL "SURE SHOT" Revolver System Guarantees Dowel Insertion Every Time

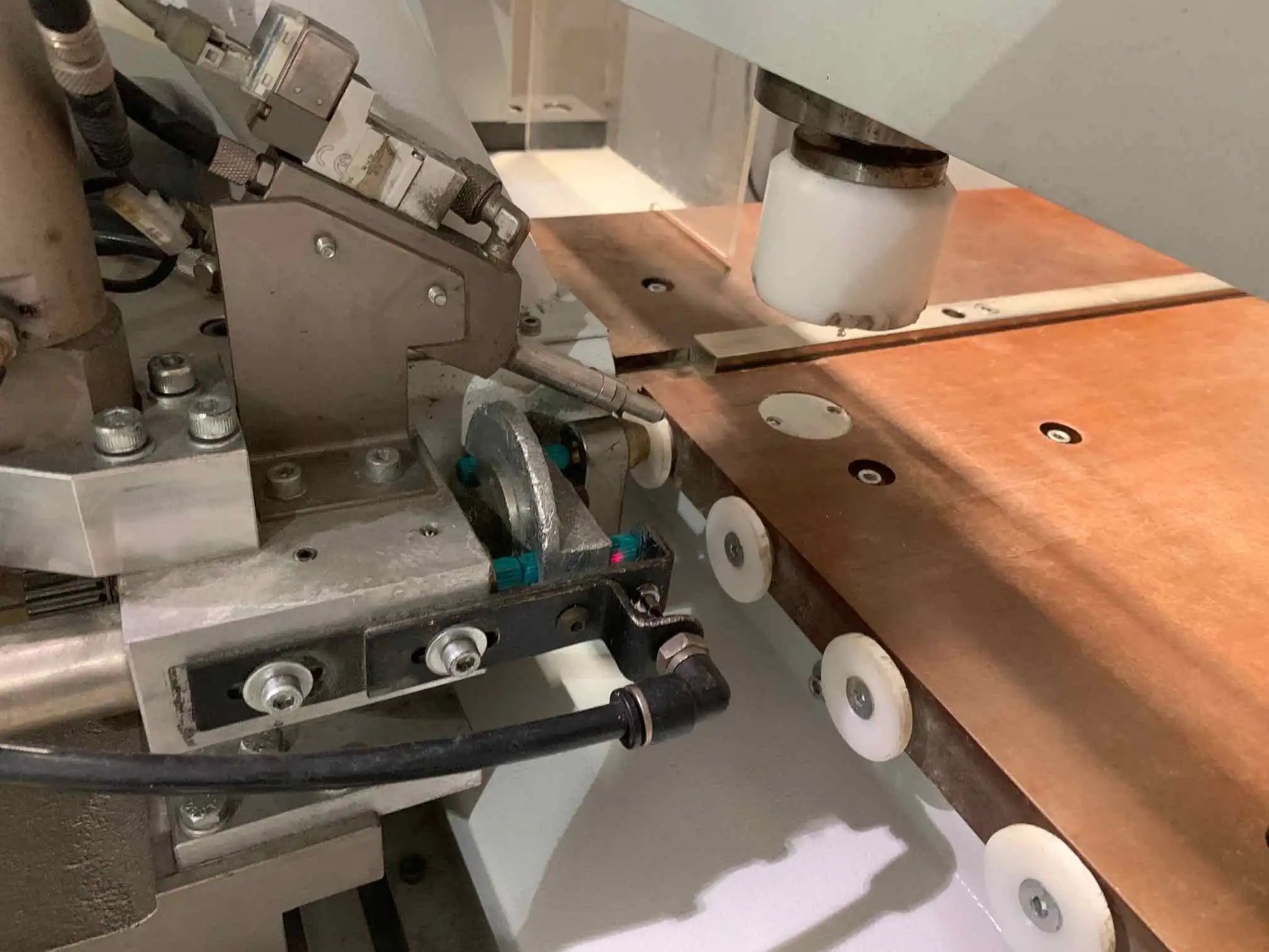

(1) Dowel Insertion Unit With 8 Mm Diameter Dowel Capacity
Standard Dowel Dimension Is 8 Mm X 35 Mm
Maximum Dowel Length Is 40 Mm
Maximum Dowel Projection Is 14 Mm

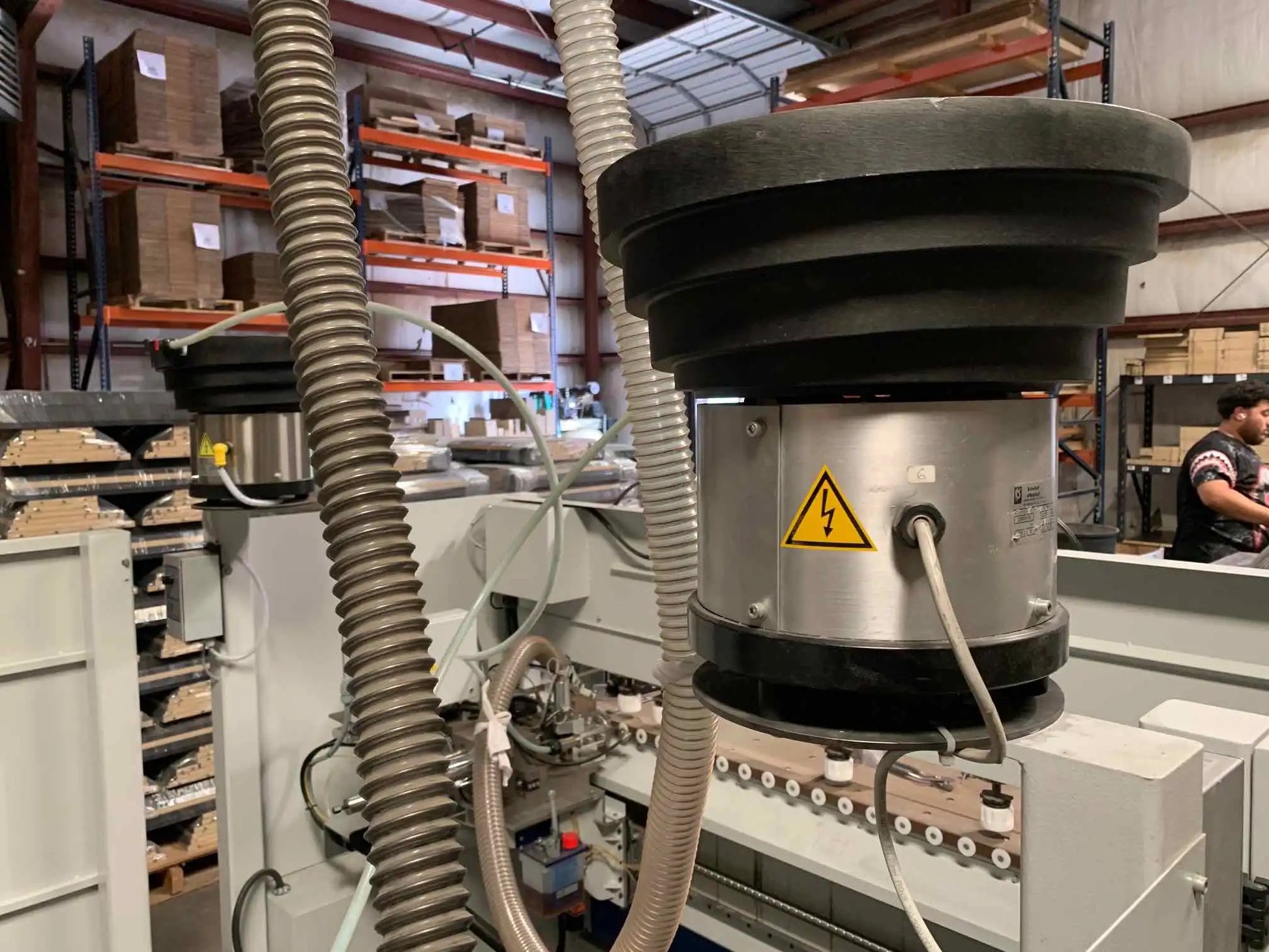

Vibratory Hopper
2 Position Revolver For Loading Dowels

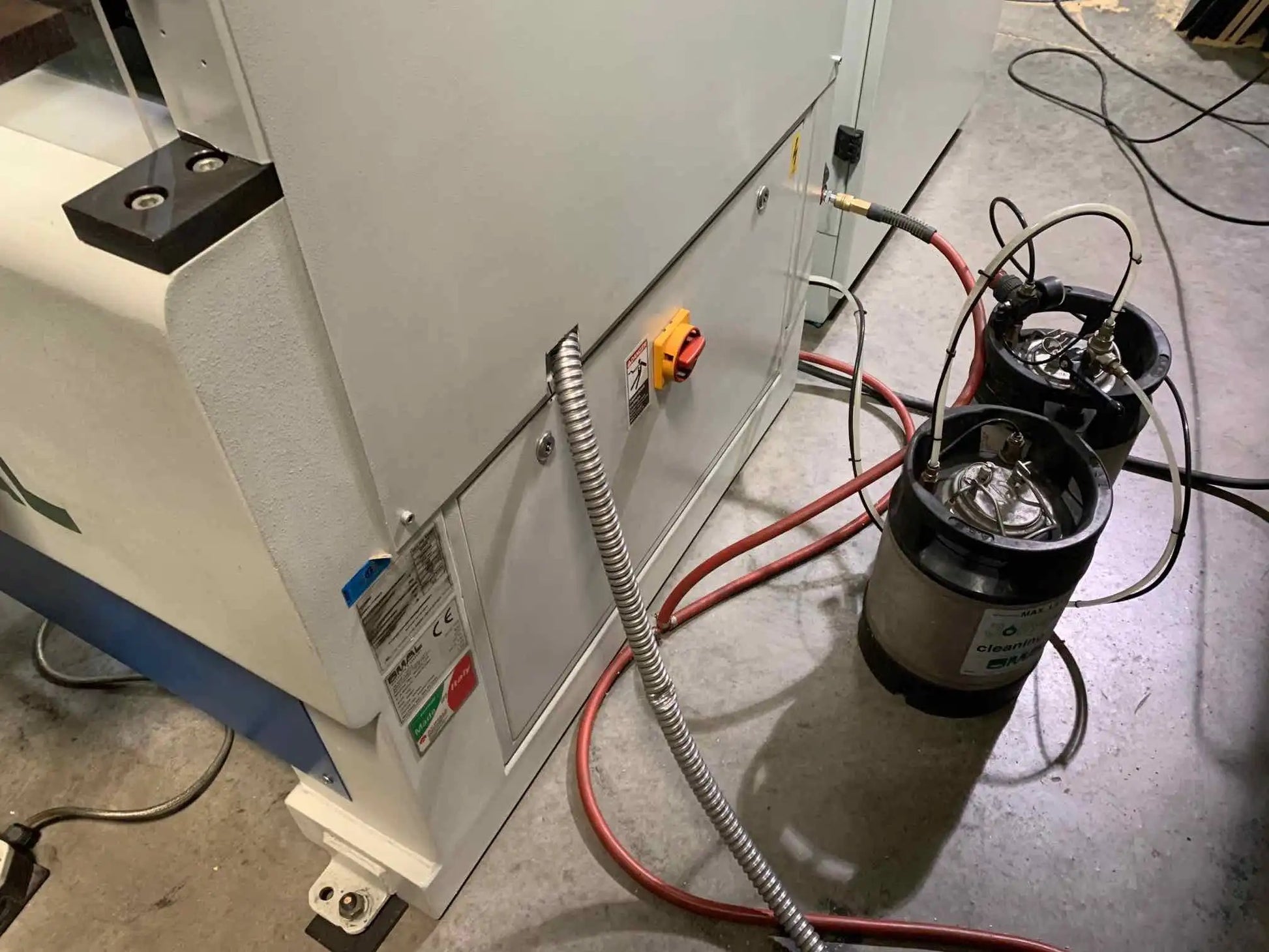

2.11 Gallon Glue Tank
2.11 Gallon Water Tank
Electronic Control Of Glue Amount Programmable
1300 Mm (51") Max. Width Of Pieces
Height Of Pieces 10 Mm (.39") To 40 Mm (1.57")

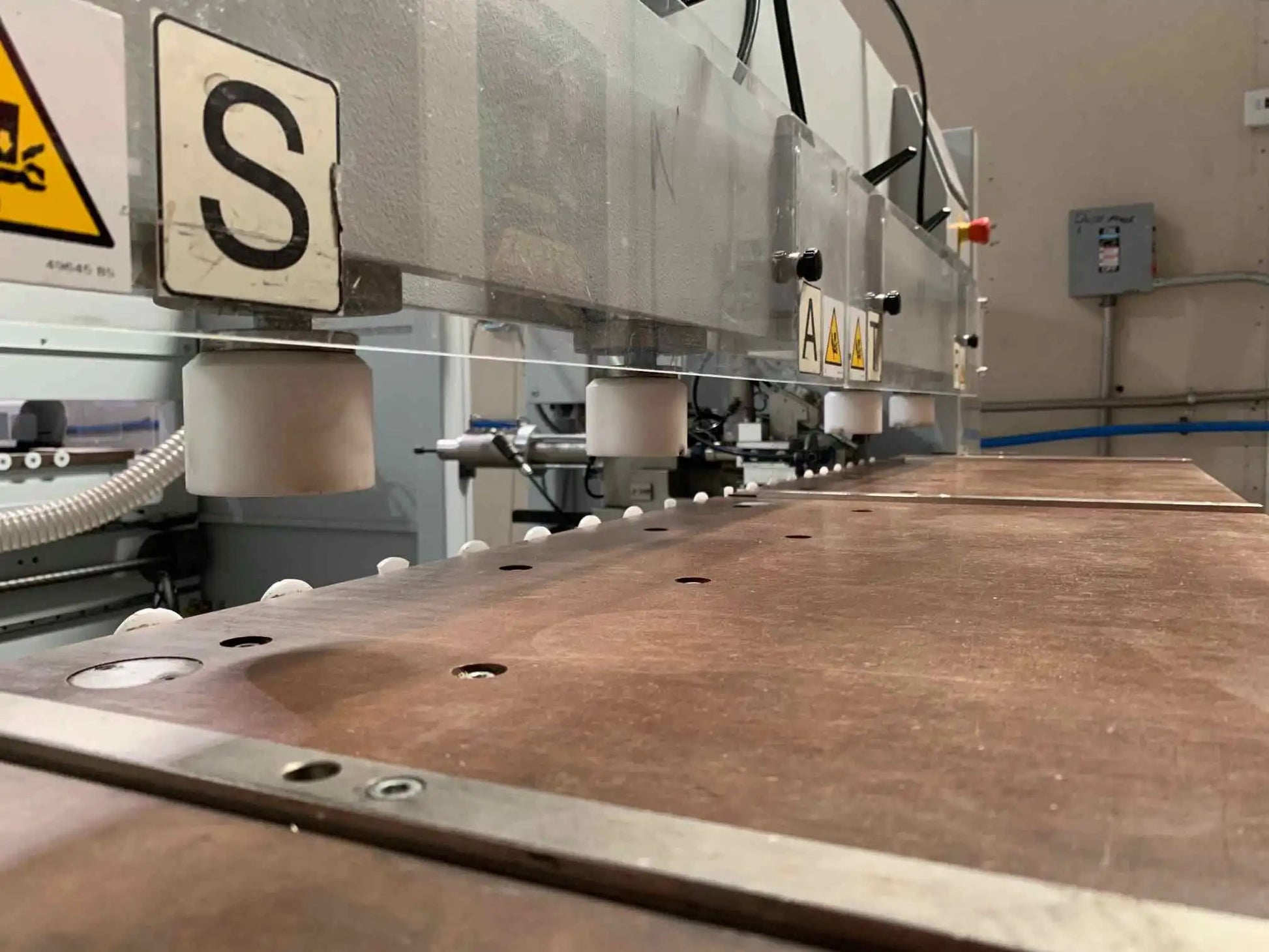

(4) Pneumatic Hold Down Clamps
Graphics Programming 2D 1/2 With Simultaneous Working Display
Automatic Left And Right Program
Parametric Programming
Graphical Aids
Internal Self-Diagnosis, Historical Report Of Alarms

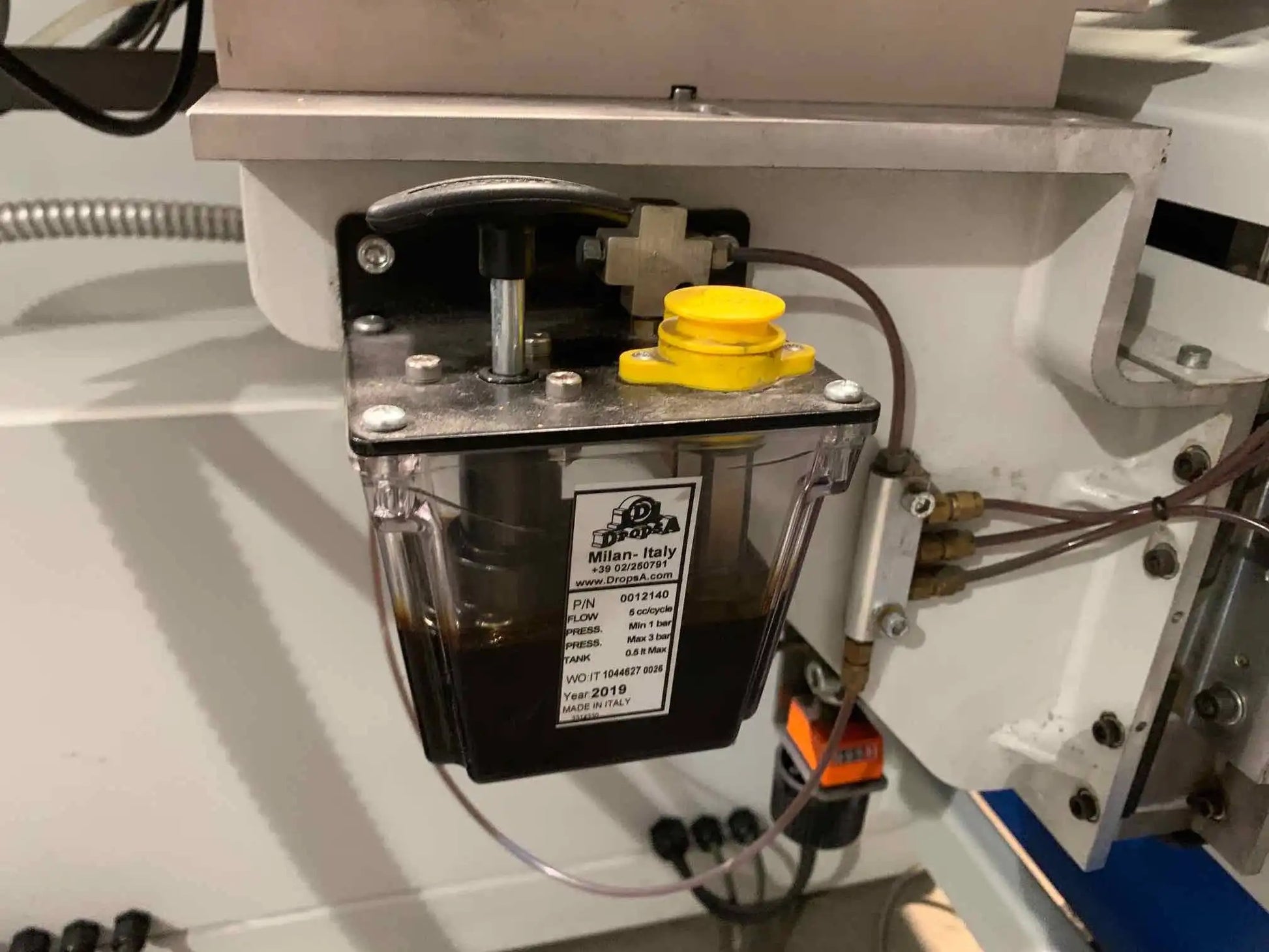

Centralized Manual Lubrication For All Linear Bearings
Air Requirements: 7 Bar (101 Psi)
Machine Weight: 2,204 Lbs.
Machine Location State:
Machine Location City:
Year: 2012
Make: Omal
Model: Velox 1300
Serial No: 9794
Phase/Voltage: 220-60
Condition: Excellent
Any Known Issues: NO
In Production: No
Software Transfer:
Access to Forklift for Loading: Yes
Loading Fee:
Shipping Dimensions:
Shipping Weight:
Shipping Brackets Available:
