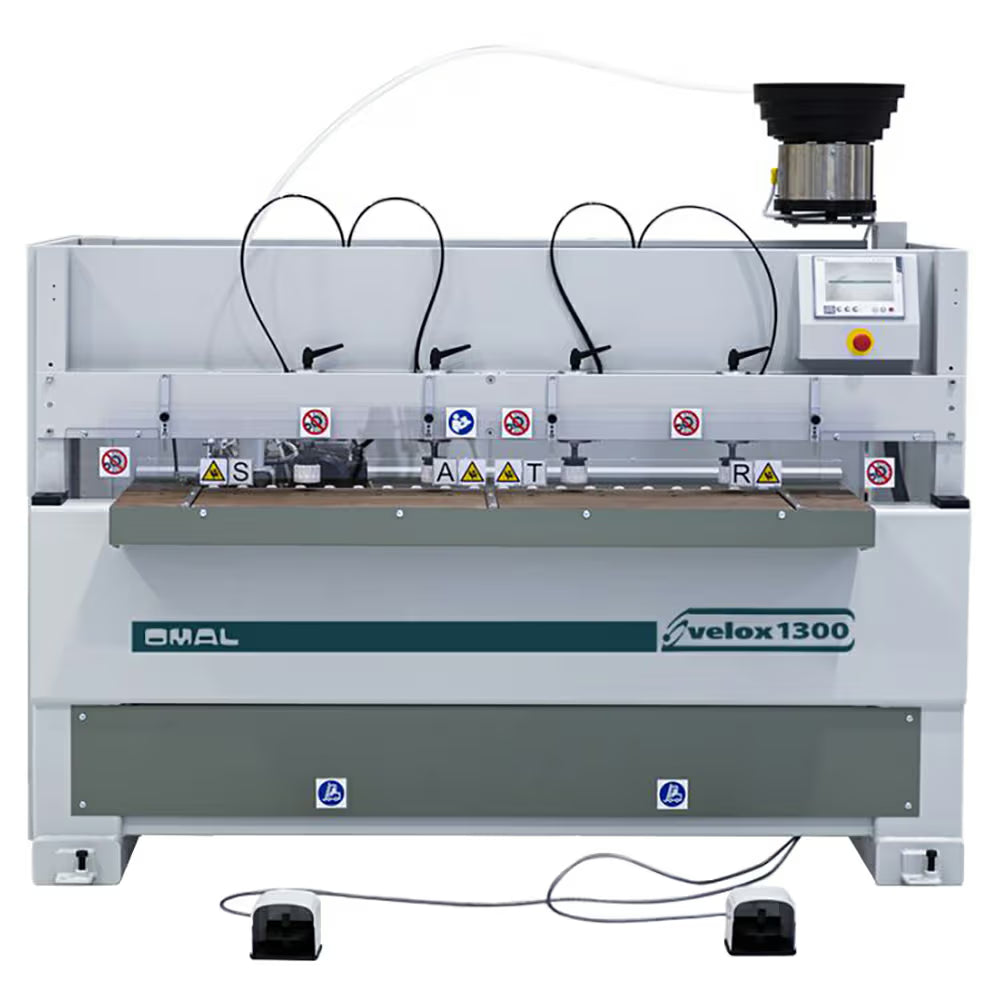

2025 Overstock NEW! Omal Velox 1300 Horizontal Bore/Dowel Machine - Arizona
Couldn't load pickup availability
How can iBiD help with this machine?
Questions about condition, specifications, loading, or fit? Ask iBiD directly, find a similar machine, or research the model.
Call us about this machine’s condition, specifications, or freight.
New 2025 overstock OMAL Velox 1300 horizontal bore, glue and dowel machine located in Arizona. Two machines are represented as available. These are new overstock units and offer an opportunity to acquire unused equipment below a typical new-machine channel. Call iBiD Machinery at (678) 925-3556 for current availability, warranty, shipping and installation details.
Machine overview
The Velox 1300 is a CNC-controlled horizontal drilling, glue-injection and dowel-insertion machine with four loading zones. OMAL manufactures the platform for SCM Group North America.
Machine-specific specifications
- CNC X-axis work area: approximately 1,300 mm / 50 in.
- X carriage speed: approximately 50 m/min / 163.5 ft/min
- Four loading zones
- One horizontal drilling unit
- Drill motor: approximately 0.55 kW / 0.75 hp
- Drill speed: approximately 6,000 rpm
- Maximum drilling depth: approximately 30 mm / 1.18 in.
- Maximum drill diameter: approximately 10 mm / 3/8 in.
- Single glue/dowel insertion unit with OMAL Sure Shot revolver
- Standard dowel reference: 8 x 35 mm; maximum length approximately 40 mm
- Dowel bowl capacity: approximately 2,000 dowels
- Glue tank: approximately 8 L
- Cleaning tank: approximately 8 L
- Maximum glue viscosity: approximately 900 cps
- Four vertical clamps
- Electrical: 220V / 60 Hz / 3-phase
- Air pressure: approximately 6 bar
- Net weight: approximately 950 kg / 2,090 lb.
- Parametric laser part-measurement system represented on this configuration
What to confirm
Confirm included laser/barcode options, exact dowel tooling, software/HMI version, warranty start date, commissioning/installation scope and any freight or startup requirements. Illustrative photos may show options not included; written machine configuration should control.
*Specifications are provided to the best of iBiD Machinery's knowledge using seller-provided information, available manufacturer information and other credible technical references. Actual machine configuration, options, dimensions and capabilities may vary by year, serial number and installed equipment. Buyer should independently confirm all specifications and inspect the machine before purchase.
Product Description:
Machine Location State: Arizona
Machine Location City: Phoenix
Year: 2025
Make: OMAL
Model: Velox 1300
Serial No:
Phase/Voltage: 3ph
Condition: New with Warranty
Any Known Issues:
In Production:
Software transfers with machine: Boring
Access to Forklift for Loading:
Loading Fee:
Shipping Dimensions:
Shipping Weight:
Shipping Brackets Available:
