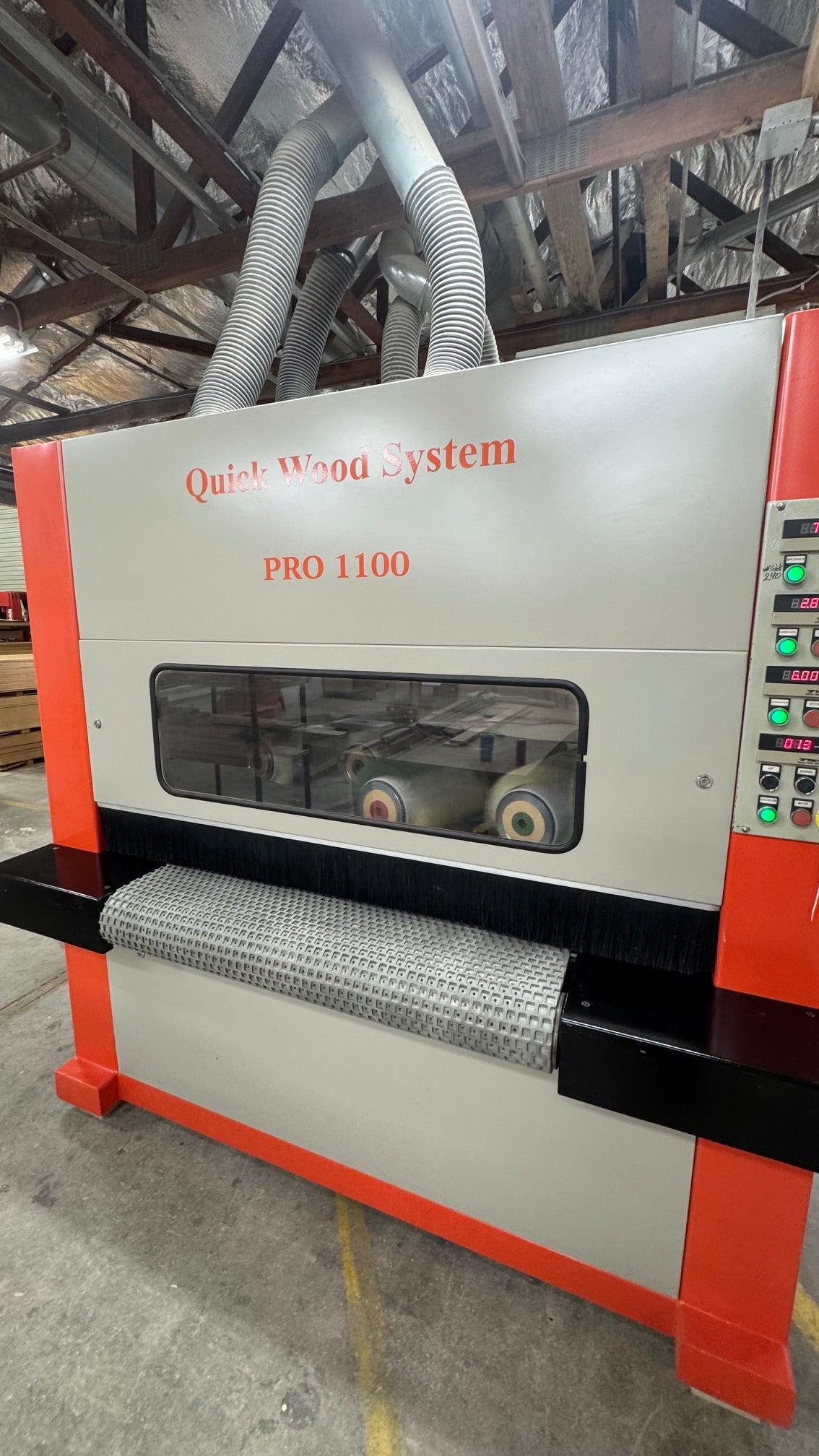

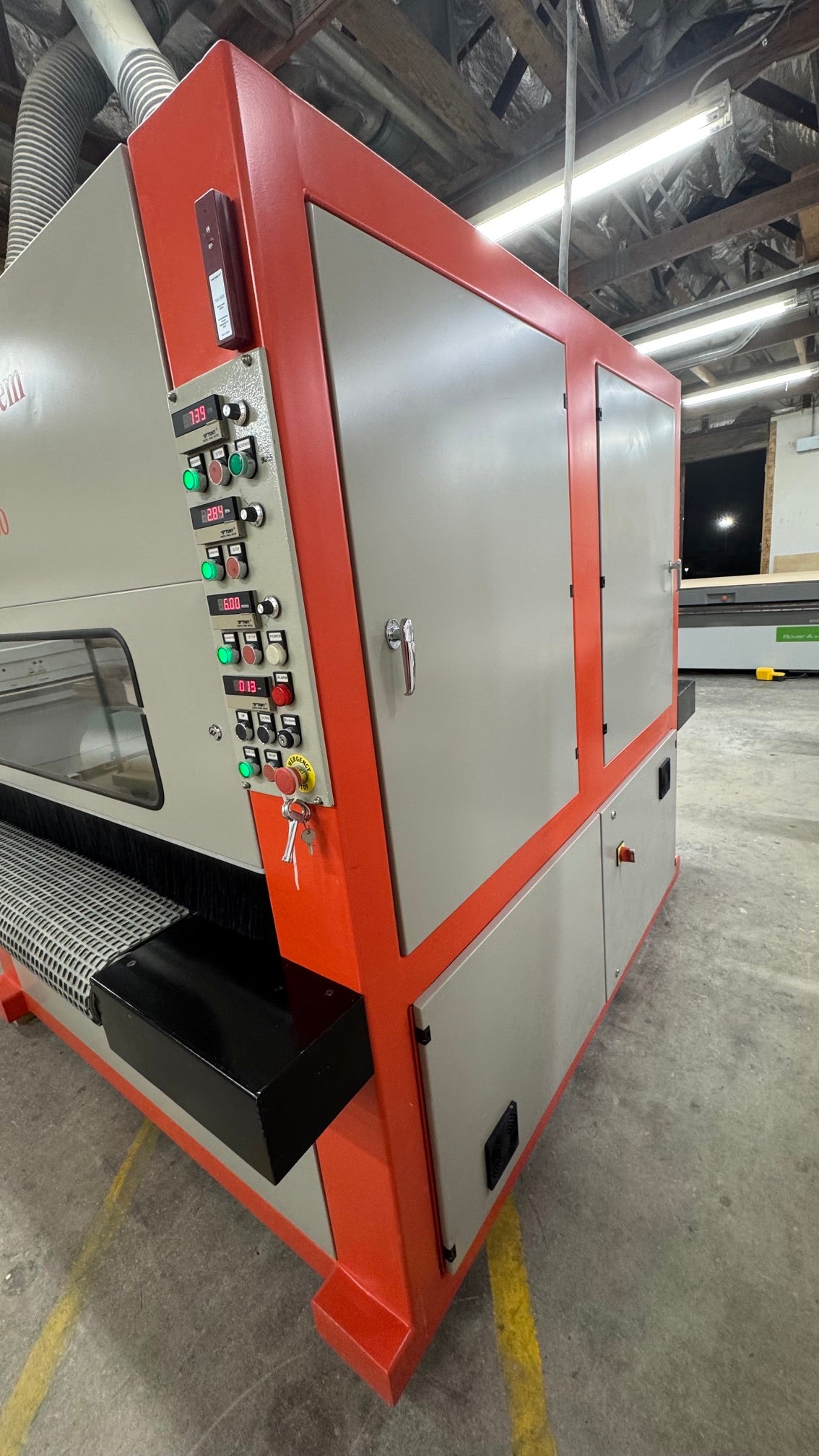

QuickWood System PRO 1100 rotary brush finishing / denibbing sander located in California. The seller describes this machine as very clean and in great working condition. Call iBiD Machinery at (678) 925-3556 for current availability, inspection and removal details.
QuickWood PRO 1100 finishing sander overview
The QuickWood PRO 1100 is a production brush-sanding platform for cabinet doors, panels and profiled components. Flexible rotary brush heads follow profiles that a standard sanding belt can bridge over. As a result, the machine suits finish preparation, sealer sanding and denibbing between coats.
QuickWood PRO 1100 finishing sander specifications
- Maximum working width: approximately 1,100 mm (43 in.)
- Eight counter-rotating sanding spindles
- Published spindle-speed range: approximately 300–1,150 rpm
- Published feed-speed range: approximately 2–12 m/min
- Four spindle motors rated approximately 1.5 kW each on current PRO-1100 reference data
- Accepts sanding tools up to approximately 350 mm diameter on published PRO-family data
- Quick-Strip replaceable abrasive/brush system; current factory changeover sets use 112 pieces for the 1100-width head
Typical applications
Common uses include sanding and denibbing cabinet doors, drawer fronts, furniture components, profiled parts and panels before or between finishing operations.
Process fit and abrasive selection
Brush sanding prepares surfaces and follows profiles. However, it does not flatten panels or set material thickness. Therefore, use a suitable thickness-sanding process when you need to correct dimensions.
Abrasive grit, flap stiffness, spindle speed and conveyor speed affect the cut and finish. First, select tooling for the wood species, profile and coating. Then, test typical parts before production. Also, ask about the installed abrasive grade and brush condition, and request a sample run on your door or panel profile.
Manufacturer application reference: QuickWood brush-sanding guidance.
Inspecting this QuickWood PRO 1100 finishing sander
First, confirm the head setup, motor ratings and abrasive tooling. Then, inspect the conveyor and check dust extraction and electrical needs. Also, confirm any vacuum or optional equipment on this PRO 1100.
*To the best of our knowledge, these model-reference specifications reflect available manufacturer information. However, the actual setup, options, size and capabilities may vary with the year, serial number and installed equipment. Therefore, buyers should independently confirm all specifications and inspect the machine before purchase.
Product Description:
Machine Location State: California
Machine Location City:

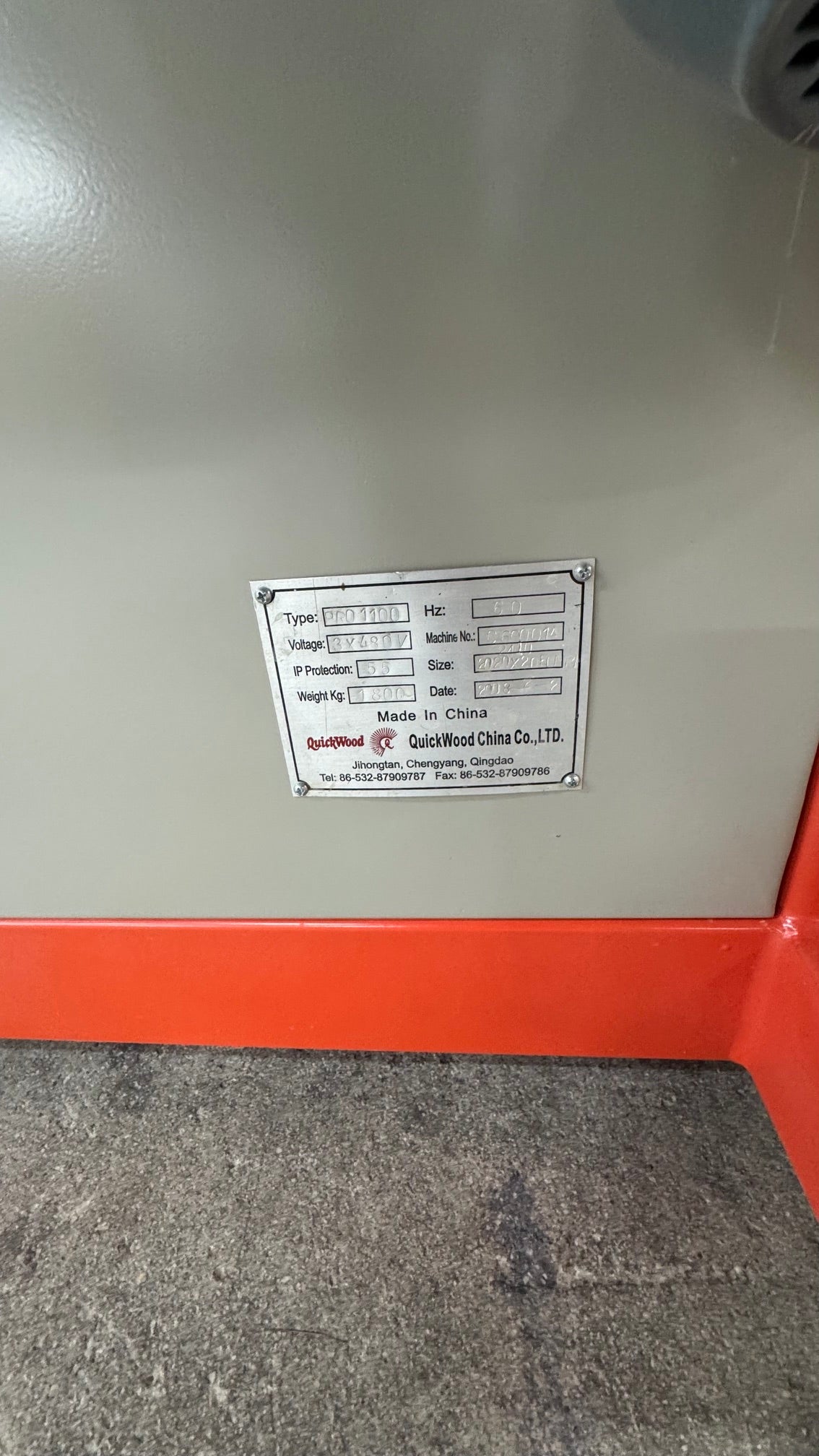

Year: 2008 See plate in photos to confirm
Make: QuickWood
Model: Pro 1100
Serial No: C6000142410 See plate in photos to verify
Phase/Voltage: 3 x 480 See Plate in Photos to Confirm
Condition: Very Good used condition. Very Clean Machine.
Any Known Issues: No
In Production: Yes
Software transfers with machine: Sander
Access to Forklift for Loading: Inquire
Loading Fee: Inquire
Shipping Dimensions: Approx: 96" Length x 81" Width x 83" Height (8' x 7' x 7')
Shipping Weight: Approx: 3,968 lbs or Approx: 5,500 lbs on skid
Shipping Brackets Available:
