SCM Olimpic K360 TE Single Sided Edgebander (R006301)

Out of stock
Regular price $25,000.00 USD

Interested in this Machine?

Call (888) 375-0384 or Click Here to Email Us at info@ibidmachinery.com

Contact us

Product Description: K360 TE

Capacities And Speed

• Edgebanding Thickness: .4mm - 6mm (.016-1/4")

• Guillotine Capacity: 3mm

• Feed Speed: 36 Ft/Min.

• Panel Height: 3/8" Min - 2 1/2" Max

• Minimumpanel Length: 5 1/2"

• Minimum Panel Width: 2 3/8"

• Minimum Distance Between Panels: 20"

Pressure Section

There Are A Total Of Three Pressure Rollers For Pressing The Banding To The Workpiece Edge. The First Roller Is Powered,, It Is Also Teflon Coated To Prevent The Banding Material From Slipping. The Two Idle Rollers Have Opposing One-Degree Tilt To Provide Extra Pressure Along The Top And Bottom Edge. The Machine Comes Standard With An Automatic Strip Magazine. Comes Standard With A Mechanical Digital Readout For The Positioning Of The Pressure Section.

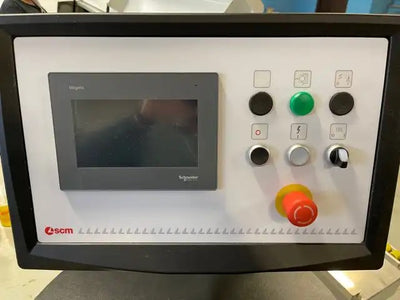

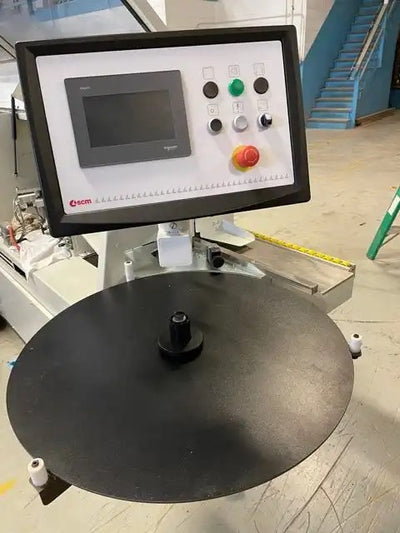

Touch 7 Controller

The K 360 Comes Equipped With The New ''Touch 7" Controller. This Controller Features A 7" Touch Screen Display. Capable Of Storing 60 Programs. Color Graphic Display Of All The Working Units. Tracks Production Information, Diagnostic Information And Monitors Maintenance Schedules. Choose Mm's Or Inches, As Well As 5 Different Languages. Swivels 270 Degrees And Tilts For Easy Access.

Adjustable Lnfeed Fence

The Infeed Fence Is Manually Adjustable With Pneumatic Positioning In/Out.

"Rt-Vp" Pre-Milling Station:

To Rectify/Clean Panels Already Sized And Squared Before The Edge Is Applied. The Unit Is Composed Of Two High Frequency Motors (2.0hp) With Jumping Action Controlled Through The PLC. The Cutting Heads Are Adjustable Vertically. The Unit Is Equipped With Copying Devices Which Guarantee That Material Removal Is Consistent On Long Or Slightly Out-Of­ Square Panels.

End Trimming Station

This Unit Is Composed Of Two Independent .25 Hp Motors Mounted On THK Guides. End Trim Utilizes A Draw Cut System For Reduced Blade Projection On Thick Panels. The Unit Comes Standard With Automatic Tilting Of The Unit From The Control Panel With Two Preset Positions.

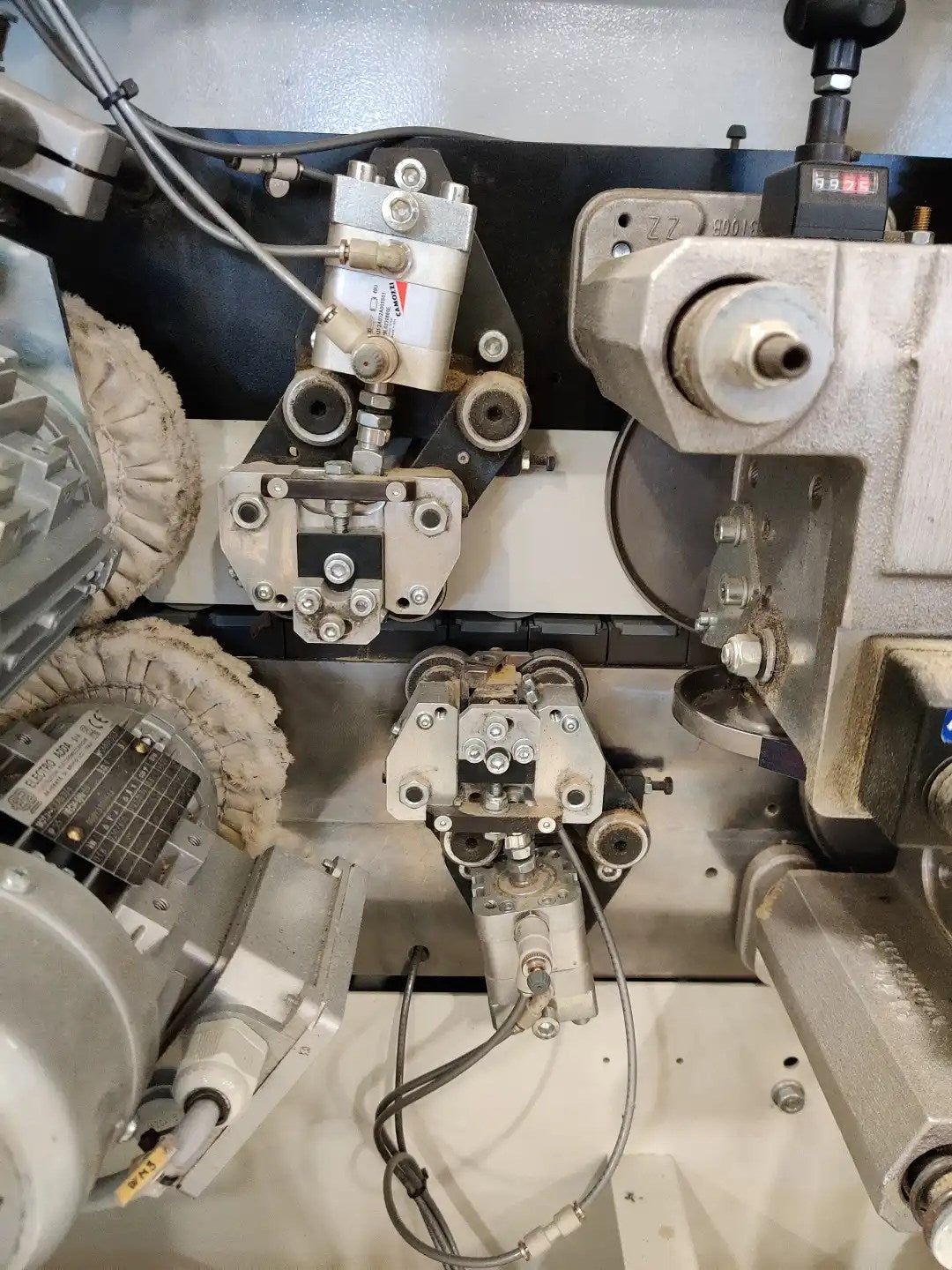

Edge Trimming Station

This Unit Is Composed Of Two Independent .7 Hp Motors Operating At 12,000 Rpm. It Comes Standard With THREE Position Pneumatics, This Allows The Operator To Go From Thin Tape, To 3mm Pvc, To Solid Wood, Through The Control Panel. The Unit Is Equipped With A Three Position Combination Cutter. All Adjustments Are Carried Out With Mechanical Digital Readouts. The Unit Has Top And Bottom Copy Wheels And Side Copy Shoes. The Motors Have Quick Release Plugs To Facilitate Tooling Changes.

Ras-V" Profile Scraping Station

Scraping Station Designed To Remove Knife Marks From Thick PVC. The Unit Is Equipped With Pneumatic In/Out Positioning From The Control Panel. It Has A Large Diameter Horizontal Copy Wheel And Side Copy Wheel Device With Digital Indicators. The Unit Is Also Equipped With Dust Extraction And A Separate Collection Bin.

Rc-V Glue Scraping Unit

The Unit Eliminates Any Excess Glue To Help Improve The Quality Of The Glue Joint. It Comes Standard With Double Copy Wheels On The Top And Bottom Of The Panel, Air Blowers Are Standard To Help Keep The Knives Clean, The Off Fall Is Collected In The Collection Bin And It Is Pneumatically Positioned Through The Controller.

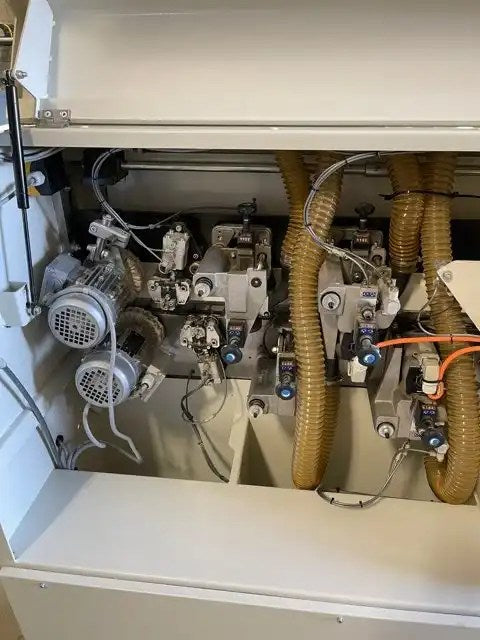

Buffing Unit

The Buffing Unit Has Two .25 Hp Motors. It Can Also Be Tilted Up To 12 Degrees To Provide A Softer, More Refined Edge Finish.

Acoustical Safety Enclosure

All Working Units Are Enclosed Under An Acoustical Safety Hood To Reduce Noise And Prevent Accidents. The Hood Has A Safety Microswitch Which Prevents The Machine From Operating When The Hood Is Open.

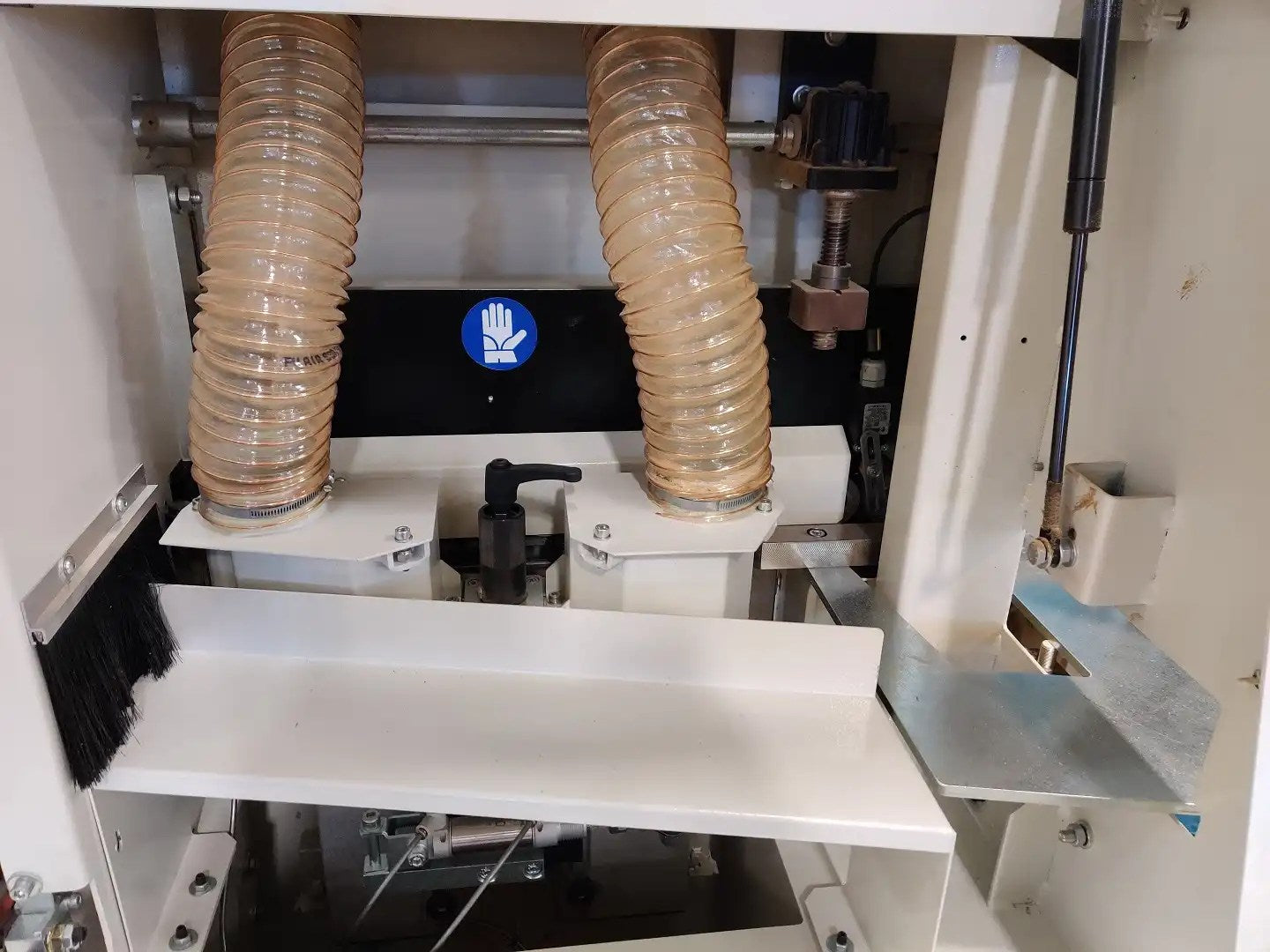

Centralized Dust Extraction

Machine Comes With Two 3" Ports For The Premilling Station, Two 2" Ports For The Top And Bottom Trim Station And One 3" Port For The 3mm Collection Bin For Extraction.

Machine Location State:

Machine Location City:

Year: 2016

Make: SCM

Model: Olimpic K360

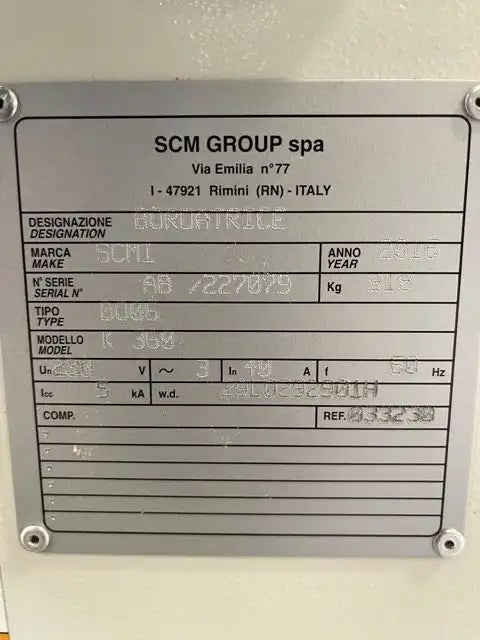

Serial No: AB/227079

Phase/Voltage: 230V Three Phase

Condition: Good

Any Known Issues:

In Production:

Software Transfer:

Access to Forklift for Loading:

Loading Fee:

Shipping Dimensions:

Shipping Weight:

Shipping Brackets Available:
