Product Description: Specifications
12mm Capacity
60mm Panel Thickness

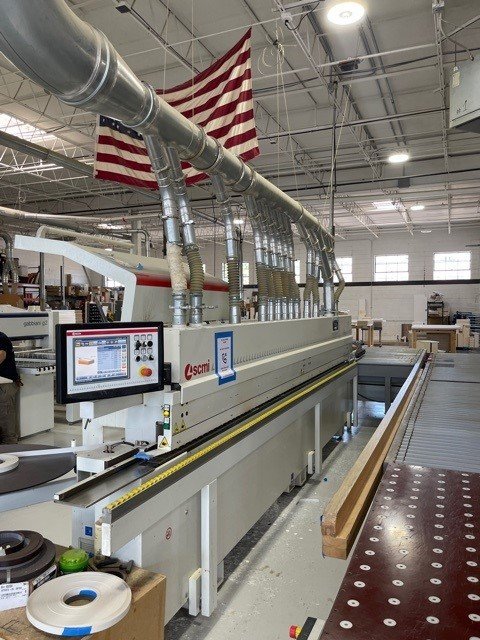

40/60 FPM Feed Track
Individual Dust Ports

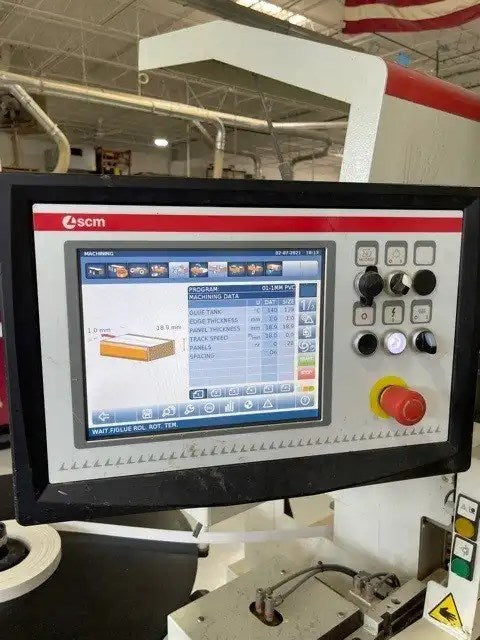

Startouch Controller
12” Touch Screen
Capable Of Storing 100 Programs
Provides Diagnostic, Maintenance And Production Information
6 Programs At The Touch Of A Single Key
Available In Mm’s Or Inches
Available In 5 Languages
Swivels And Tilts For Easy Viewing
Features
Pneumatic Panel Spacing
Electronic Positioning Of Top Pressure Beam
Automatic Track Lubrication

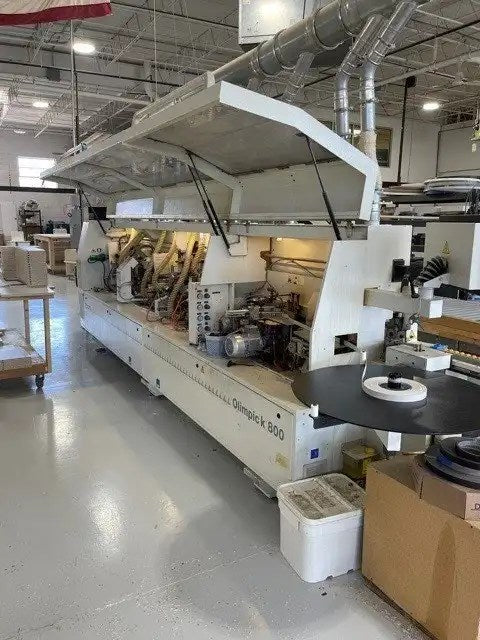

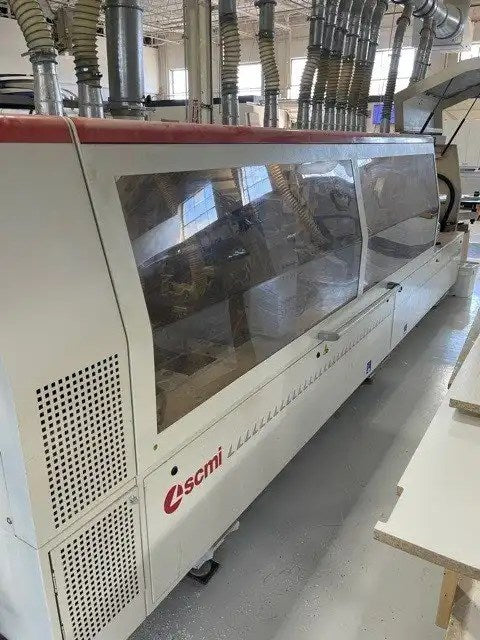

Lighted Sound Enclosure

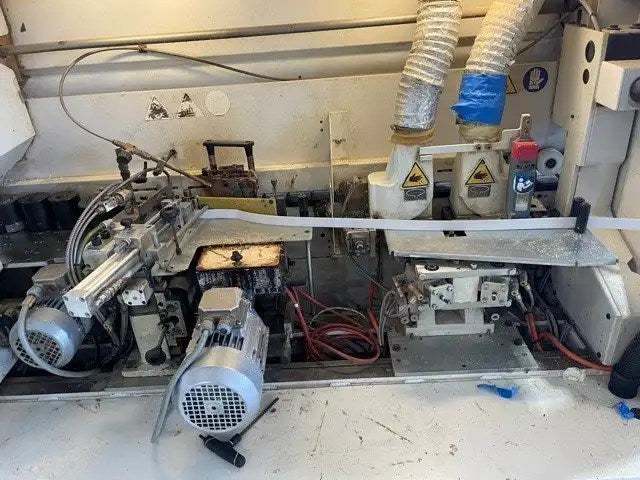

Pre-Mill
Two Motor Pre Mill Unit (3.0hp)
100mm Diamond Cutters
Mechanical Digital Readout For Cutter Height
Front And Rear Copy Device
Maximum Thickness Removal Of 3mm
Maximum Stock Removal Of 60mm2
Panel Blowers
Pressure Section
4-Roller Pneumatic Pressure Section
Servo Driven Pressure Section
Jump Pressure Section
Reversible Glue Roller
Monitor The Temperature In The Roller And In The Pot

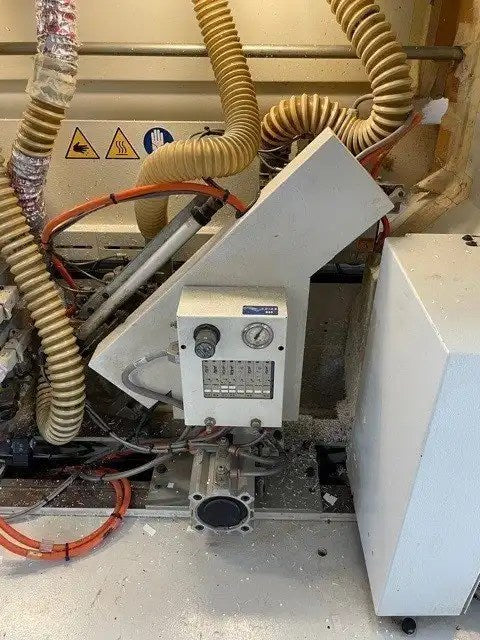

End Trim
Pneumatic Positioning Through The Controller
Dedicated THK Guides
Independent Tilt Of Front And Rear End Trim
Dust Extraction
2-Position In / Out On “R” Version

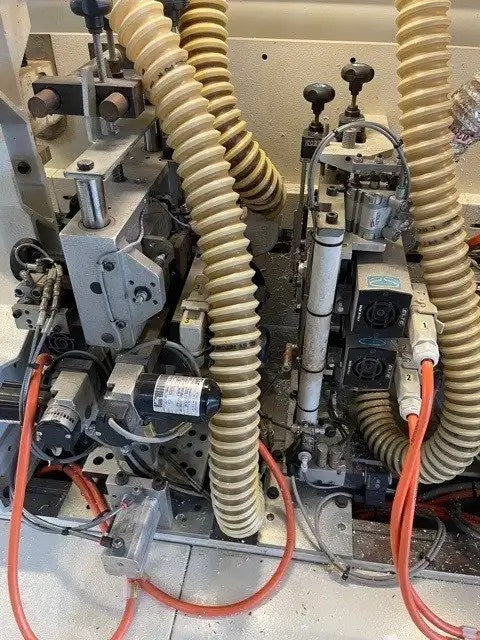

Top & Bottom Units
Servo Driven Side Copy On Fine Trim Unit
Independently Controlled Fine Trim Unit
Side Copy Wheel
Tiltable 0-20 Degrees / No Tools Required To Tilt
Quick Change / Disconnect Motors
Rough Trim Has 2 Position Pneumatics, Capable Of Trimming Flush Or Leaving A Slight Overhang
Insert Cutters / Additional Set Of Straight Insert Cutters

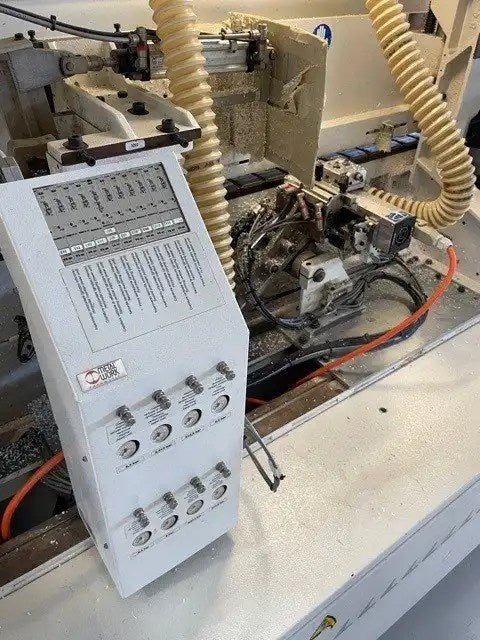

Two Motor Corner Rounding
Two Motor Corner Rounding Unit
2 Position Pneumatics To Go From Thin Tape To 3mm
Capable Of Trimming The Entire Panel
Dust Collection Mounted To Motors
Can Process Panel At 60fpm
Comes Standard With ED System Tooling

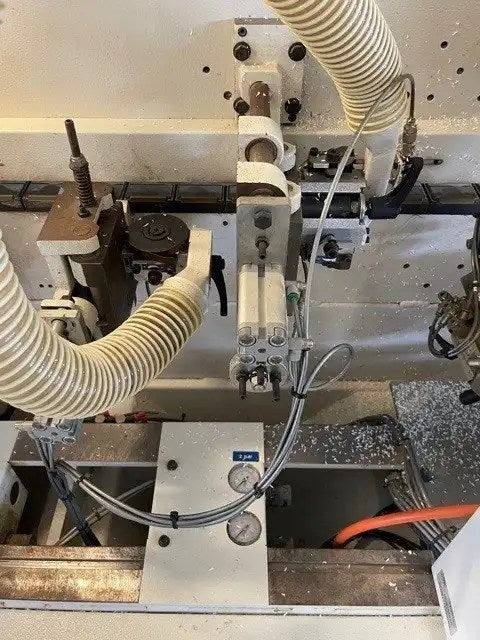

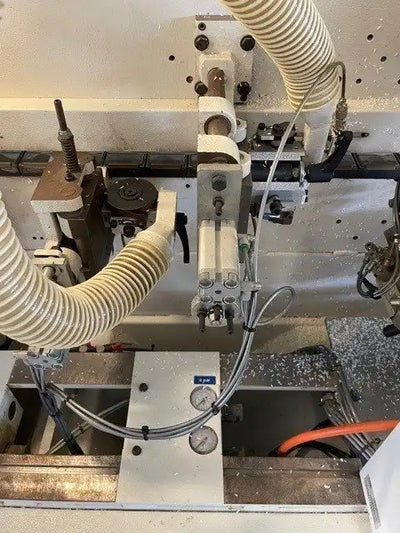

Profile Scrape Station
Quick Change Profile Scrape Station
Pneumatic Positioning
Top / Bottom / Side Copy Wheels
3mm Collection Bin
Air Blower To Aid Dust Extraction
Air Blower To Clean Top Of Panel
Glue Scraping Unit
Pneumatic Positioning Through The Controller
Double Roller Copy Device
Independent Positioning For Both Top And Bottom
Air Blower To Remove Off-Fall And Keep Tool Clean
Reversible Insert Tooling
Dust Collection Bin

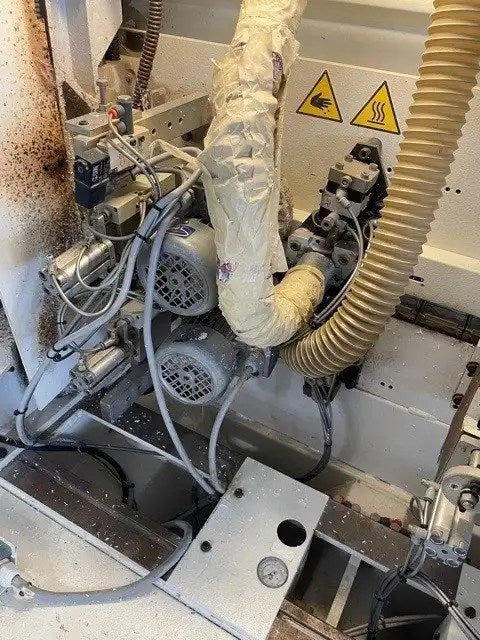

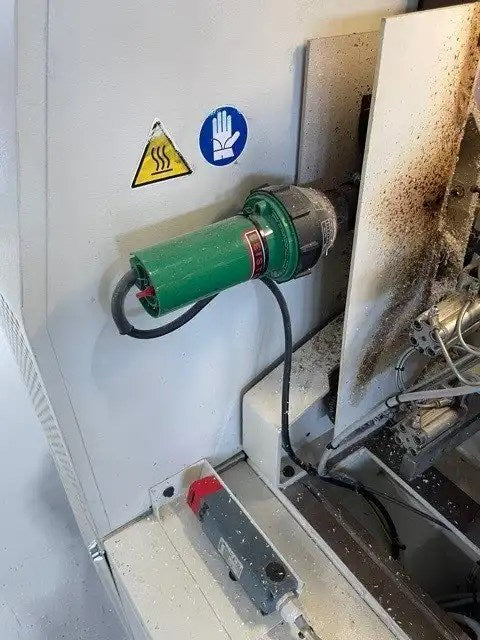

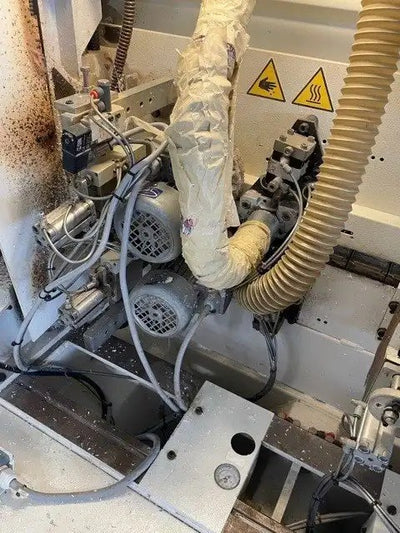

Buffing & Hot Air Blower
Tiltable 0-15 Degrees
Oscillating Action
Adjustable Up To 3,500 Watts
Machine Location State:
Machine Location City:

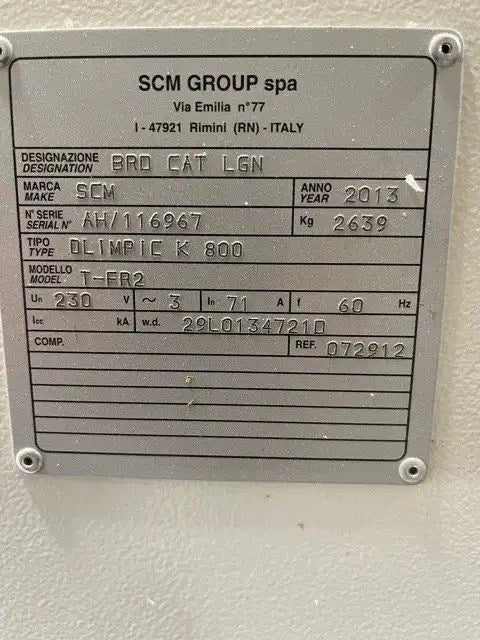

Year: 2013

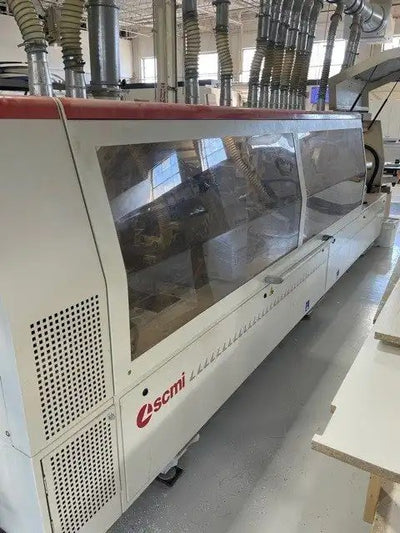

Make: SCMI
Model: K800 FRT
Serial No: AH/116967
Phase/Voltage: 230V Three Phase
Condition: Good
Any Known Issues:
In Production: Yes
Software Transfer:
Access to Forklift for Loading: Yes
Loading Fee:
Shipping Dimensions:
Shipping Weight: Approx 8000 Lbs
Shipping Brackets Available:
