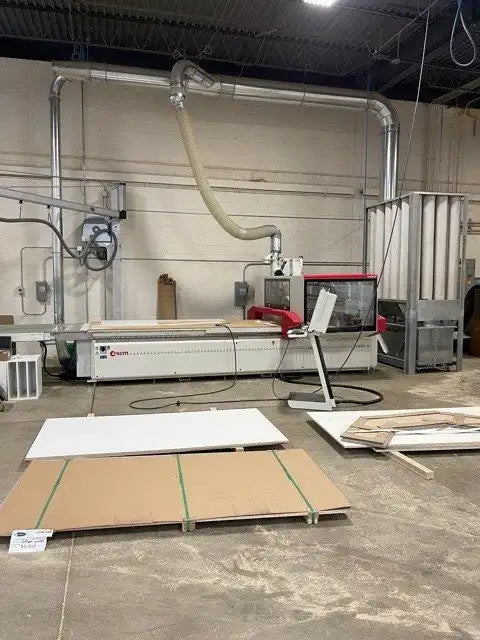

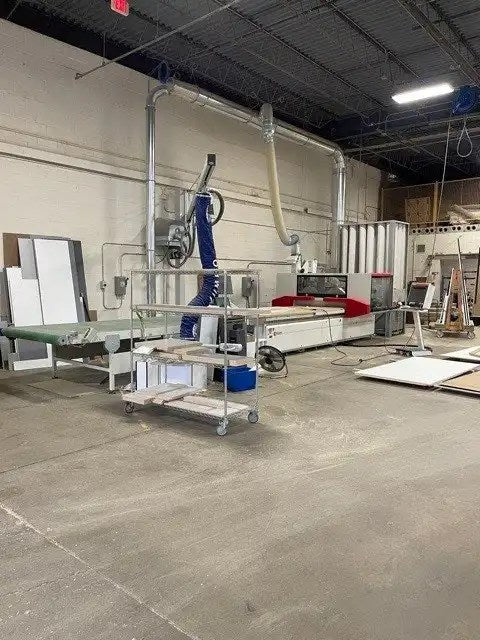

SCM Pratix S15 CR+ with Conveyor Belt

Manufacturer: SCM Brand: SCM Model: Pratix S15 CR+
Out of stock
$0.00 USD
Contact iBiD for pricing

Freight is not included in the machine price. iBiD Machinery will quote freight separately through our machinery freight broker.

How can iBiD help with this machine?

Questions about condition, specifications, loading, or fit? Ask iBiD directly, find a similar machine, or research the model.

Prefer to talk?

Call us about this machine’s condition, specifications, or freight.

Call iBiD · (678) 925-3556
Find a similar machine Sell one like this
Research & buying resources
Research this make & model Read the buying guide Research sold history

Your contact details are sent privately to iBiD and are not shown on the product page.

5 X 12 Aluminum Table

12 Vertical Drills

13 HP Router (HSK)

Rake Off Loading System

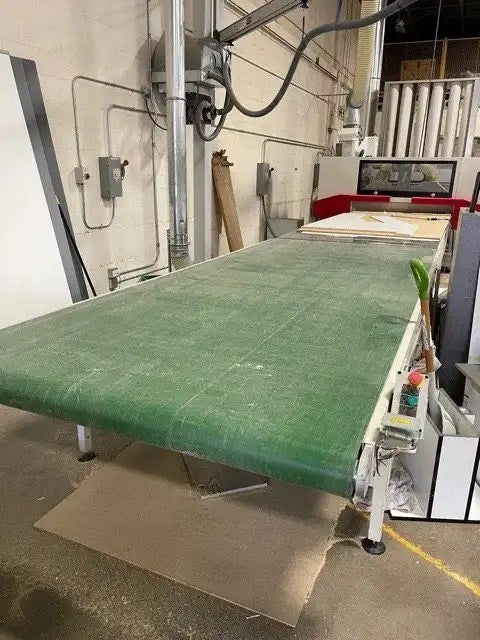

Conveyor Belt

Two Becker Vacuum Pumps





Product Description: Table Area 61" X 145"

Rake System For Off Loading With Conveyor Belt

Head Design

Router HP 13HP Electrospindle (S6)

Router RPM 1,500 To 24,000

Router Air Nozzles Air

Touch Probe Yes

Tool Changer / Type 14 Position Right Side (HSK)

Drill Head 12 Vertical ( 7X + 5Y)

Head Movement

Axis Controlled By AC Brushless

Vectorial Speeds X/YAxis 1378 / 1378 Inches/Min.

Automatic Lube

Guide System Linear Guides

Drive System ( X / Y& Z ) Rack X & Y / Ball Screw Z

Table

Vacuum Zones Two

Pendulum Manufacturing Yes

Type Of Table Aluminum Grid Table

Table Vacuum Openings 120 Machined Openings

Rows Of Back Stops 6 Rear/2 Side Stops A & D Field (Total 8)

Vacuum Pump M3/Hr 2 @ 600 M3/Hr (Becker Pumps)

Operating System

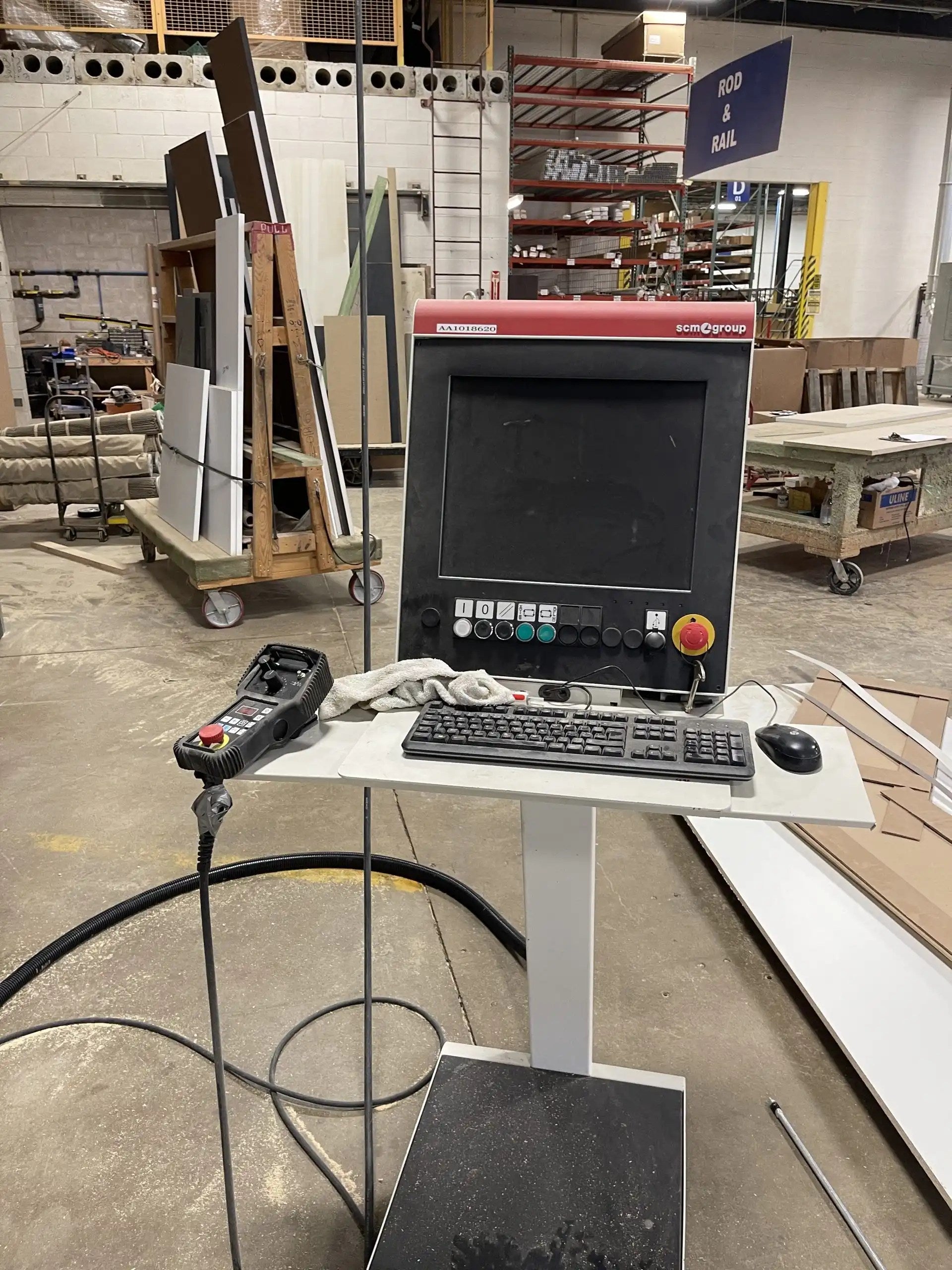

Controller Mobile Office PC Windows 7

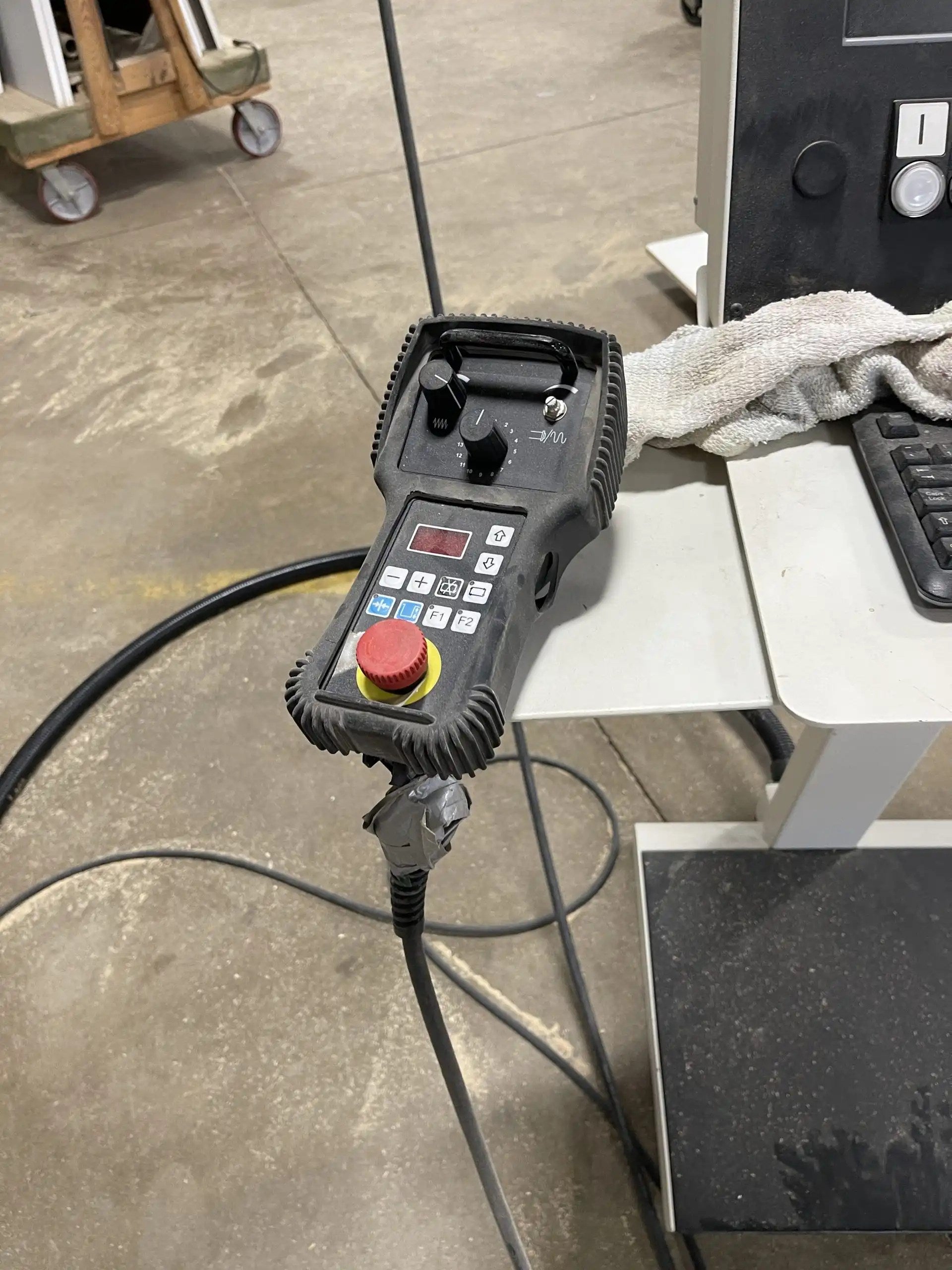

Remote Pendant

Machine Operating Software Xilog Plus

Safety System Bumpers

Safety Enclosure

Voltage 208, 230, 460

Machine Location State:

Machine Location City:

Year: 2016

Make: SCM

Model: Pratix S15 CR+

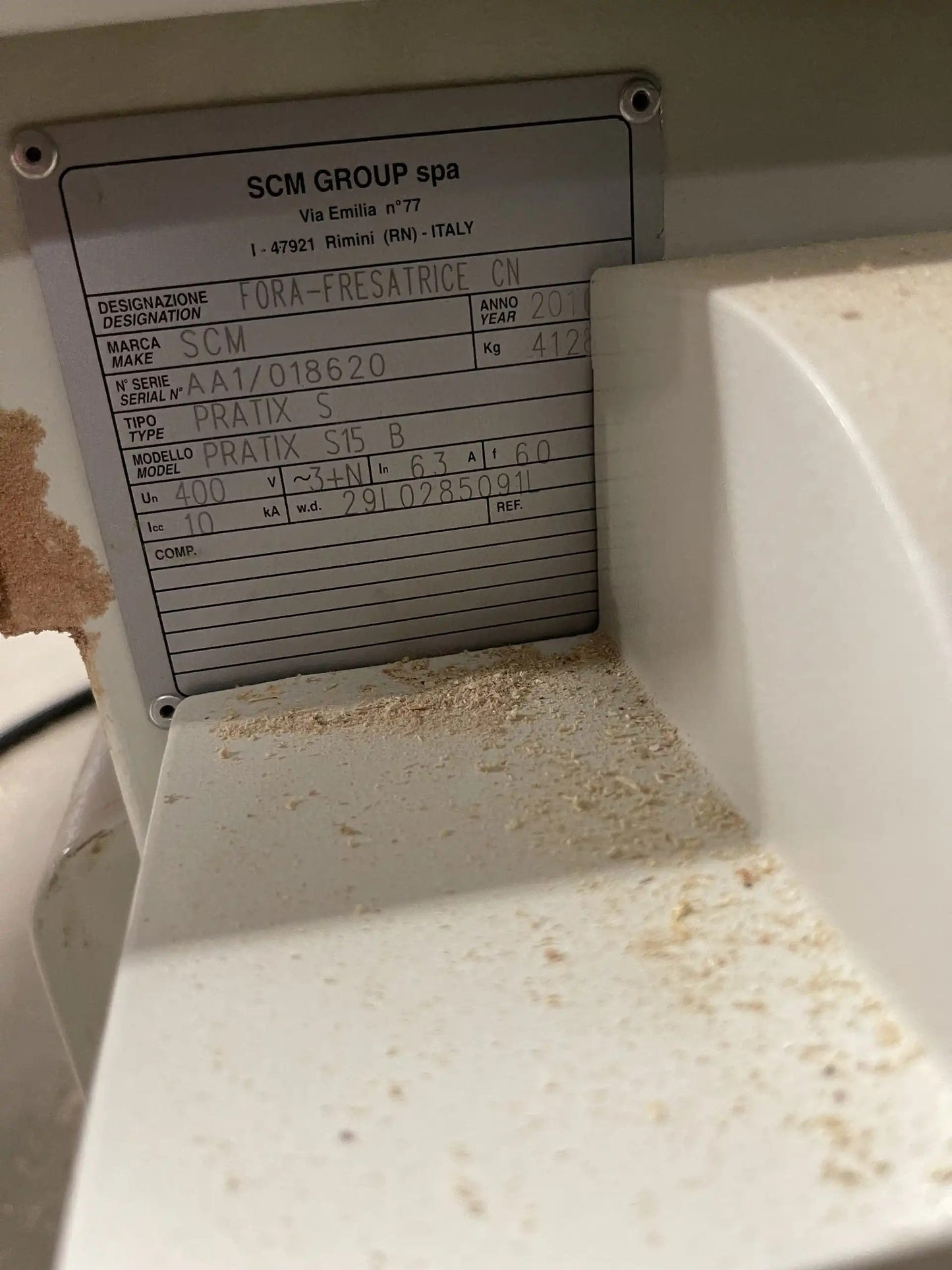

Serial No: AA1/018620

Phase/Voltage: Transformer 208/230/460, 3 Phase

Condition: Good

Any Known Issues: No

In Production: Yes

Software transfers with machine: No

Access to Forklift for Loading:

Loading Fee: Need Rigging Co.

Shipping Dimensions:

Shipping Weight: Appox 7500 Lbs + Belt

Shipping Brackets Available:
