Very clean, well maintained and in excellent condition,

43" SCMI Sandya 300

1st head- Steel Drum

2nd head- Combination

*Information displayed has been gathered from machine owner, internet searches and other sources. Information is believed to be correct, but not guaranteed. All buyers should verify this information independently and/or have the machine inspected for accuracy prior to purchase*

Product Description: Standard Features:
• Rubber coated pressing rollers before/after working unit
• 1 HP Inverter variable speed feed unit. Feed speeds set at
10 to 60 feet per minute
• Y-Delta two-stage reduced voltage starter on main motor
• 2 roller Infeed and outfeed table extensions
• Automatic Electronic Table Positioning Device
• Adjustable sanding drum and pad position for micro
precision adjustment
• Electronic digital thickness readout of work table position
• Powered table lifting by means of four heavy duty motor
and lifting columns double fastened at both top and bottom of the lifting columns to provide exceptional table stability
• Electronic tracking of abrasive belt
• Automatic feed mat tracking
• Pneumatic belt tensioning with center fulcrum to
compensate for tapering of abrasive belt
• Front and rear emergency stop buttons
• Automatic emergency stop of machine for:
- Sanding belt breaking, tensioning, overtracking
- Opening of the access door to the operating groups
- Absence of compressed air
- Overload on main motors
• Amperage meter for main motors allows maximum
utilization of available horsepower
• Main disconnect switch with the ability to be locked out by padlock
• In feed flexible steel hold down, and anti kick back plate
• 50 shore, negative profile (waffle style) rubber feed mat
• LOGIC 50 K Electronic Programmer for timing/anti-dubbing of the pad

Technical Specifications:
Working Width: 1100mm (43")
Number of Heads Available: 2
Feed Motor: 1 HP Inverter
Maximum Work piece Thickness: 170mm (6.69")
Minimum Work piece Length: 12.5"
Abrasive Belt Size: 43" x 75"
Compressed Air Requirements: 6 Bar (88 PSI)
Dust Outlets: 2 outlets @ 140mm (5.5")
Exhaust Requirements: 1,800 CFM
Power Requirements: 54 amps @ 230 Volts/3 phase

Machine Location State: MI

Machine Location City: Grand Rapids

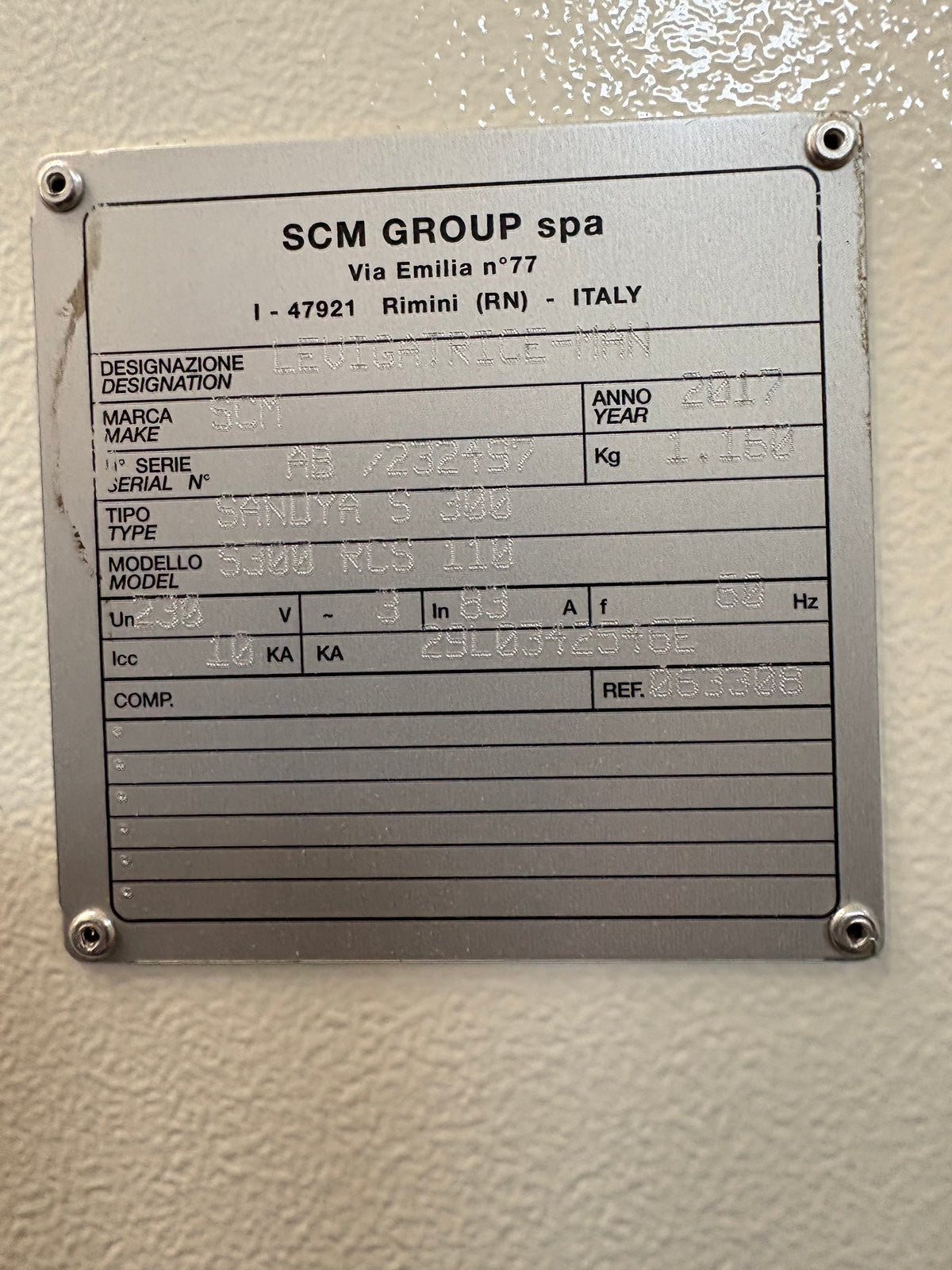

Year: 2017

Make: SCM

Model: Sandya 300 RCS 110

Serial No: AB/ 232457

Phase/Voltage: 3ph 230V

Condition: Excellent

Any Known Issues: NO

In Production: NO

Product Type: Sander

Access to Forklift for Loading: YES

Loading Fee: NO

Shipping Dimensions:

Shipping Weight: 6500

Shipping Brackets Available:
