SCM Sigma Impact 105 C Panel Saw 3200 mm

Manufacturer: SCM Brand: SCM Model: Sigma 105C 3200
Out of stock
$15,000.00 USD

Freight is not included in the machine price. iBiD Machinery will quote freight separately through our machinery freight broker.

How can iBiD help with this machine?

Questions about condition, specifications, loading, or fit? Ask iBiD directly, find a similar machine, or research the model.

Prefer to talk?

Call us about this machine’s condition, specifications, or freight.

Call iBiD · (678) 925-3556
Find a similar machine Sell one like this
Research & buying resources
Research this make & model Read the buying guide Research sold history

Your contact details are sent privately to iBiD and are not shown on the product page.

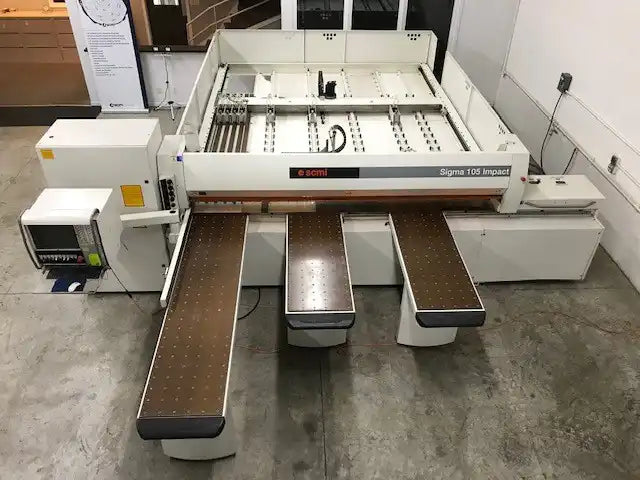

SCM Sigma 105C 10′ Front Loading Panel Saw

  • PLM Version for also cutting Plastics
  • 4.13″ Blade projection
  • Three Air Floatation Tables
  • 18Hp Main Motor

Product Description: *Buyer Responsible For Removal Of Machine And Disassembly.



TECHNICAL SPECIFICATIONS:

Maximum Cutting Length 3200 Mm (10.5’)

Maximum Cutting Width 3200 Mm (10.5’)

Blade Projection 105mm (4.13")

Main Saw Motor 18.0 HP

Scoring Saw Motor 2.0 HP

Main Saw Blade Diameter 350 Mm (13.78”) 80mm Spindle Diameter

Scoring Saw Blade Diameter 200 Mm (7.87") 80 Mm Spindle Diameter

Scoring Adjustment Manual Adjustment Utilizing Precise Digital Indicators

Main Saw Blade RPM Variable To 3800 RPM

Scorer RPM 4300 RPM

Saw Carriage Feed Speed Adjustable From 0 To 135 M/Min. (0 To 446 Ft/Min.)

Saw Carriage Return Speed 135 M/Min., Fixed (446 Ft/Min.)

Pusher Speed:

Infeed Speed 0-90 M/Min. (0-297 Ft/Min)

Return Speed 90 M/Min. (297 Ft. /Min.)

Operating Air Pressure 7 ATM (95 To105 P.S.I.)

Dust Extraction Velocity Required 2100 To 2800 CFM

Electronics 80 AMPS @ 230 Volts 3-Phase, 60 Hz

+/- 5% Voltage

Roller-Way Supports Industrial PVC Coated Rollers

Machine Location State:

Machine Location City:

Year: 2004

Make: SCM

Model: Sigma 105C 3200

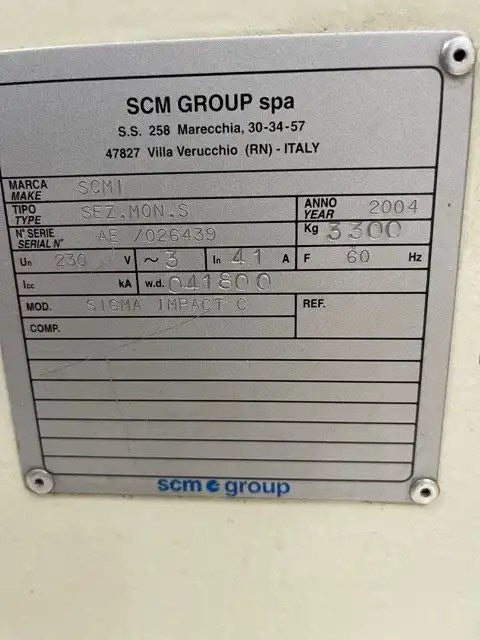

Serial No: AE/026439

Phase/Voltage: Transformer 230 Direct 460, 3 Phase

Condition: Good

Any Known Issues:

In Production: No

Software transfers with machine: No

Access to Forklift for Loading:

Loading Fee: $1,800.00

Shipping Dimensions: 235"L X53"D X 79"'T

Shipping Weight: 7000 + 3000

Shipping Brackets Available: No
