2018 SCM StarTech 27 Horizontal and Vertical Boring Machine - Texas

Manufacturer: SCM Brand: SCM Model: StarTech 27
In stock
SKU: ibid26-014
Interested in this machine?

Ask iBiD about price, availability, condition, specifications, inspection or shipping.

Request information about this machine Or contact iBiD directly
Regular price $7,500.00 USD
Regular price Sale $12,094.70 USD Sale price $7,500.00 USD

Freight is not included in the machine price. iBiD Machinery will quote freight separately through our machinery freight broker.

How can iBiD help with this machine?

Questions about condition, specifications, loading, or fit? Ask iBiD directly, find a similar machine, or research the model.

Prefer to talk?

Call us about this machine’s condition, specifications, or freight.

Call iBiD · (678) 925-3556
Research & buying resources

Your contact details are sent privately to iBiD and are not shown on the product page.

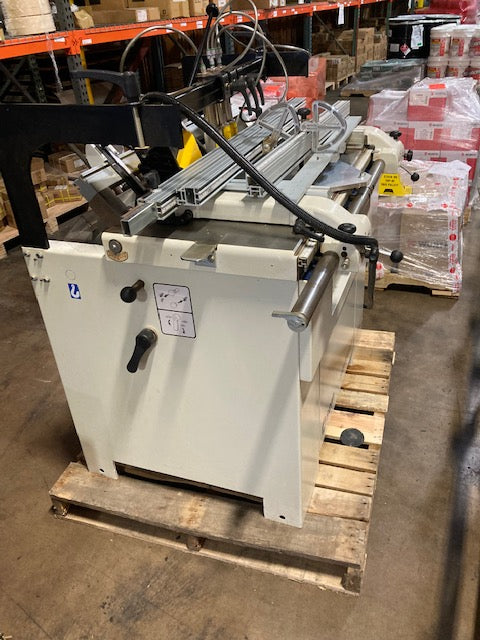

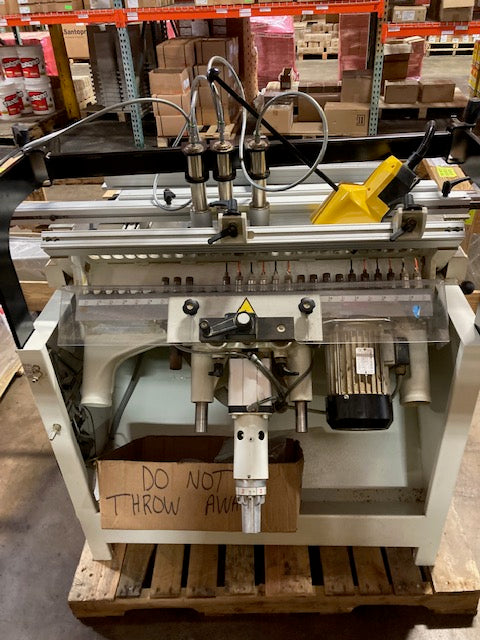

2018 SCM Startech 27 horizontal and vertical boring machine in Texas. This single-head multiboring machine drills horizontal, vertical and angled holes in wood and similar materials. For availability and inspection details, call iBiD Machinery at (678) 925-3556.

SCM Startech 27 boring machine specifications

  • Drilling spindles: 27; spindle spacing: 32 mm.
  • Spindle speed: about 2,800 rpm at 50 Hz.
  • Maximum drilling inter-axis: about 832 mm.
  • Maximum drilling-head stroke: about 70 mm.
  • Maximum horizontal drilling height: about 60 mm.
  • Published panel thickness range: about 10–85 mm.
  • Maximum panel width under beam: about 1,025 mm.
  • Maximum tool diameter: about 40 mm.
  • Worktable: about 1,096 x 407 mm; height: about 900 mm.
  • Motor reference: about 1.8 kW / 2.5 hp at 50 Hz or 2.2 kW / 3 hp at 60 Hz.
  • Air operating pressure: about 6 bar.

Inspecting this SCM Startech 27 boring machine

First, confirm the voltage and power frequency. Then inspect the drill bits, chucks, fence and stops. Also, check the air equipment and all accessories included with this 2018 Startech 27.

Next, ask for a test with your stock and hole pattern. Then check the hole depth and spacing. Finally, confirm which bits and setup tools come with the sale.

*To the best of our knowledge, these model-reference specs reflect maker information and other credible technical sources. However, the actual setup, options, size and capacity may vary by year, serial number and installed equipment. Therefore, confirm all specs and inspect the machine before purchase.

Air and extraction connections*

SCM's Startech brochure lists 3.5 normal liters of compressed air per cycle for the Startech 27. It also lists a 120 mm extraction connection at the base and two 80 mm connections at the drilling head. However, confirm the connections and air equipment on this 2018 machine.

*Source: SCM Startech range brochure. Model-reference data; verify against the machine and its manual.

Product Description: SCM Star Tech 27 Horizontal and Vertical Boring Machine - Texas

Machine Location State: Texas

Machine Location City: Houston

Year: 2018

Make: SCM

Model: StarTech 27

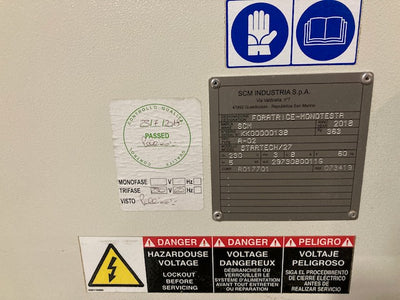

Serial No: SERIAL #KK00000133

Phase/Voltage: 3PH

Condition: Very Good Used condition

Any Known Issues:

In Production:

Software transfers with machine: Boring

Access to Forklift for Loading:

Loading Fee:

Shipping Dimensions:

Shipping Weight:

Shipping Brackets Available:
