The A15 Miter Lock Machine shapes the edge of solid wood and plywood parts in one go to produce a precision lock miter joint, thus eliminating the doweling process.

The machine has two shaping stations, one in the vertical position and the other in the horizontal position, to accomplish both profiles of the miter lock joint. Both spindles are equipped with vertical, horizontal, and tilt adjustments. Each adjusting axis uses a mechanical digital readout to display its position. The shaping stations are equipped with a precision-balanced drive motor and spindle. Further, this configuration allows the operator to create lock miter joints of 87° up to 160°.

The A15 Miter Lock Machine’s transport assembly incorporates an adjustable edge guide, a feed drive motor, and a bottom feed chain. The substrate is positioned against the edge guide. The bottom feed chain transports the substrate along the shaping stations. The belt assembly holds down the substrate against the bottom pads while the work is being transported along the shaping station. The feed speeds are up to 35 FPM. The machine has the following features:

Accommodates a minimum face frame width of 1.50″
Accommodates a minimum part size of 1.50″ x 3.5″
Shapes precision miters at any angle between 87° to 160°
Changes the mating profile in five seconds
High production
Single workstation (labor-saving)
No doweling needed

MACHINE SPECIFICS:
TRA
NSPORTER
:
Motor:.75hp
.56 k
W
Feed Speed:
8
-
35 fpm
2.4
–
10.7 mpm
Feed Height:
3
8
”
96.5 cm
SUBSTRATE SIZE
:
Minimum Size:
1.44
”**
x 3.5
”
37mm
**
x 89mm
plus pattern face width*
plus pattern face width*
Maximum Thickness:
1
.5”
38mm
Maximum Profile Face:
1
.25
”
31.75
mm
*Some exceptions may apply
**With maximum profile depth of
.437”
(11.10mm)
SHAPING STATION
S
:
Spindle Diameter:
1.25”
31.75mm
Spindle Length:
2.5”
63.5mm
Spindle Adjustment:
Horizonta
l:
6
”
152mm
Vertical:
6
”
152mm
Tilt:
0
-
30 degrees
Motor:
7.5 hp at 6100 rpm
5.55k
W

*MACHINE SOLD AS IS WHERE IS WITH NO IMPLIED WARRANTY* Information displayed has been gathered from machine owner, internet searches and other sources. Information is believed to be correct, but not guaranteed. All buyers should verify this information independently and/or have the machine inspected for accuracy prior to purchase*

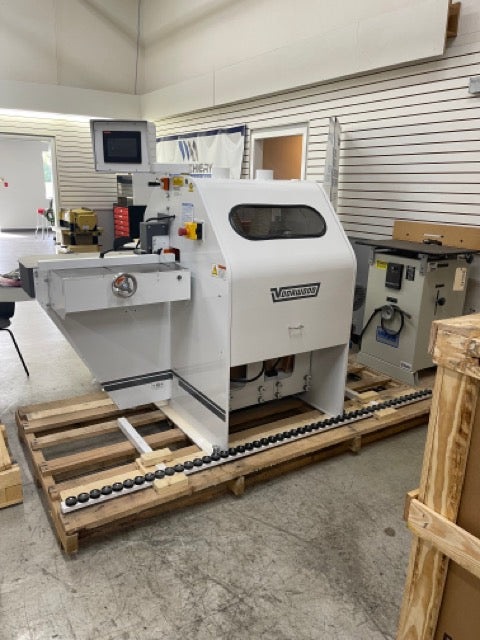

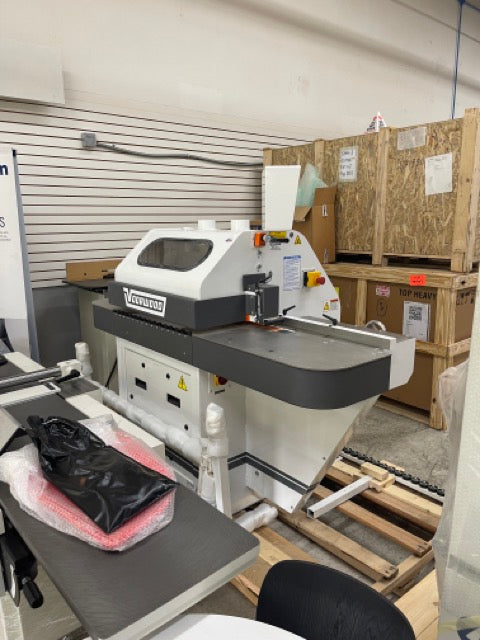

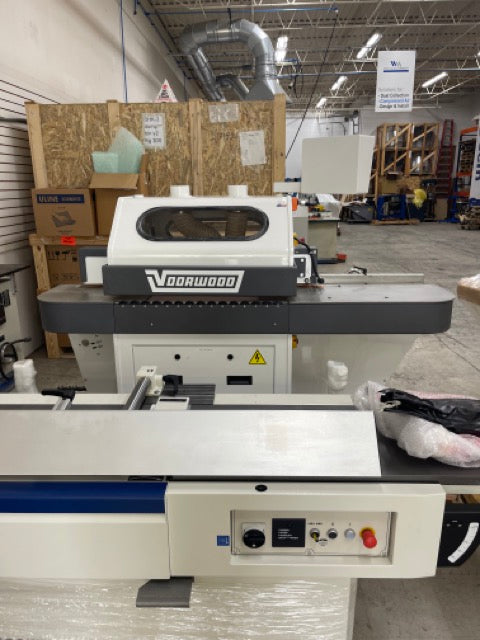

Product Description: 2023 Voorwood A15 Miter Lock Machine

Machine Location State: IL

Machine Location City: Wauconda

Year: 2023

Make: Voorwood

Model: A15

Serial No: 10436

Phase/Voltage: 240A 3 phase

Condition: Excellent

Any Known Issues: NONE

In Production: In Showroom

Software Transfer:

Access to Forklift for Loading: Yes

Loading Fee: No

Shipping Dimensions: 88 ” long x 48 ” w ide x 89 ” high

Shipping Weight: 1,800 lbs

Shipping Brackets Available: N/A
