2002 Weinig Quattromat 23P Moulder – 4-Head

Manufacturer: Weinig Brand: Weinig Model: Q23P
Out of stock
$18,500.00 USD

Freight is not included in the machine price. iBiD Machinery will quote freight separately through our machinery freight broker.

How can iBiD help with this machine?

Questions about condition, specifications, loading, or fit? Ask iBiD directly, find a similar machine, or research the model.

Prefer to talk?

Call us about this machine’s condition, specifications, or freight.

Call iBiD · (678) 925-3556
Find a similar machine Sell one like this
Research & buying resources
Research this make & model Read the buying guide Research sold history

Your contact details are sent privately to iBiD and are not shown on the product page.

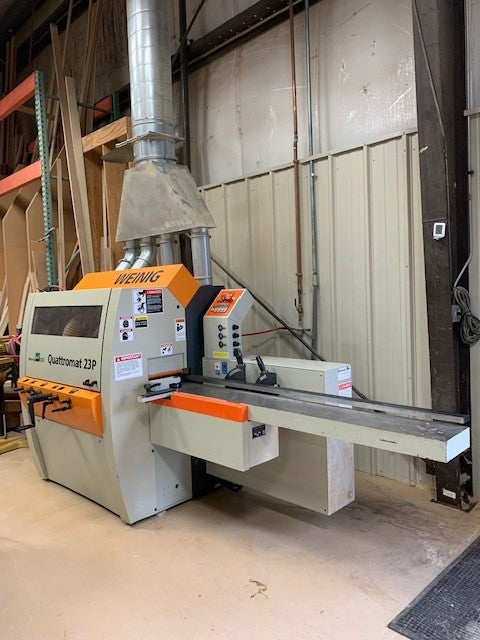

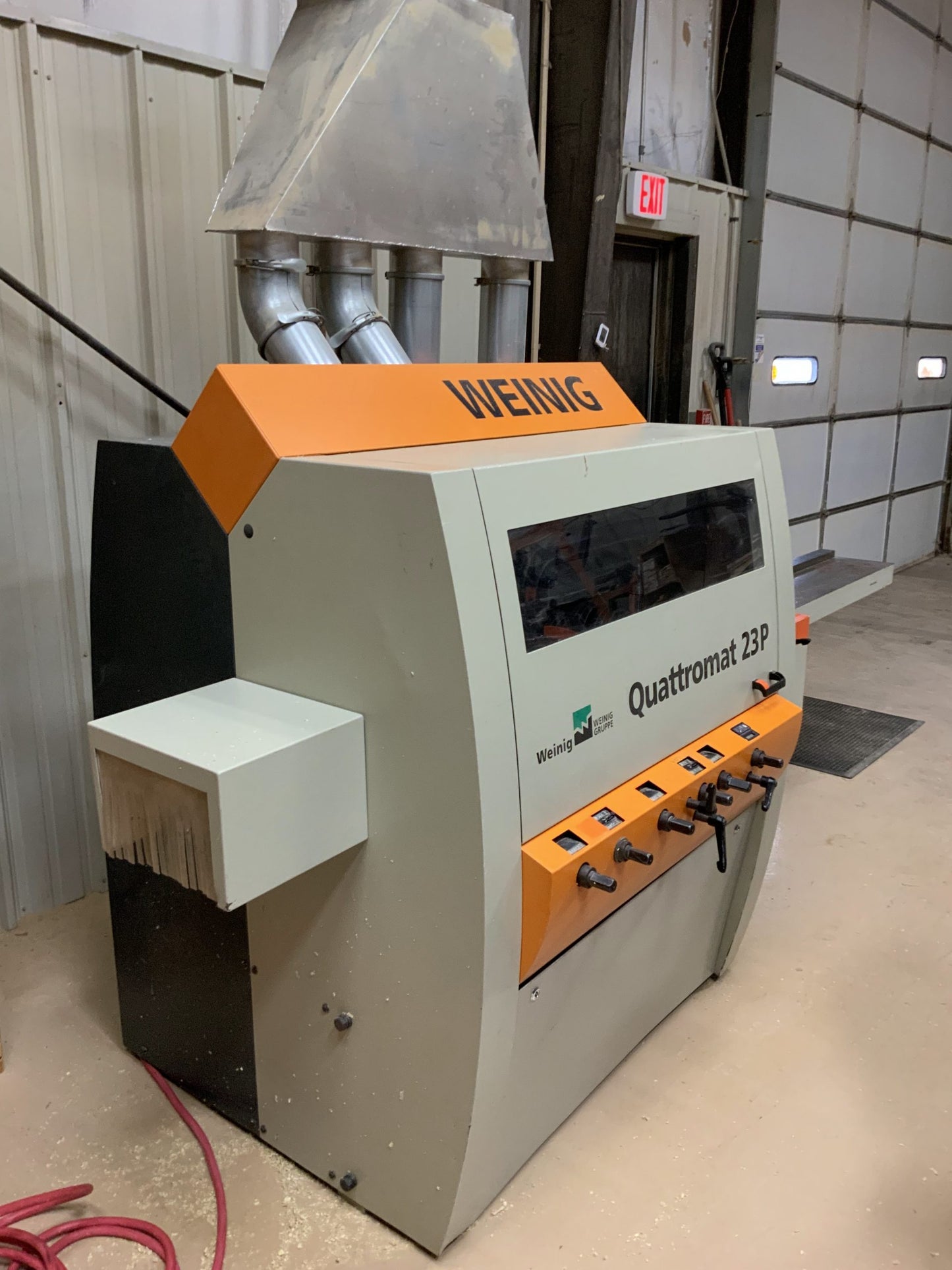

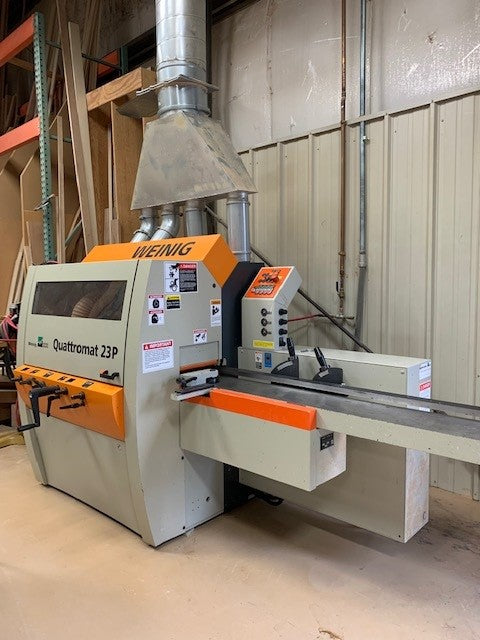

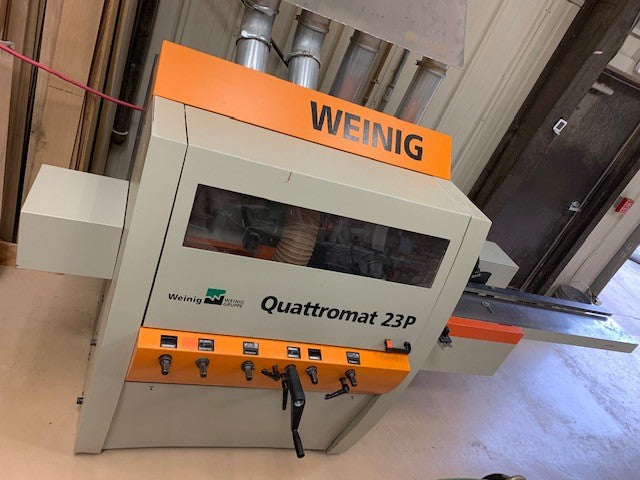

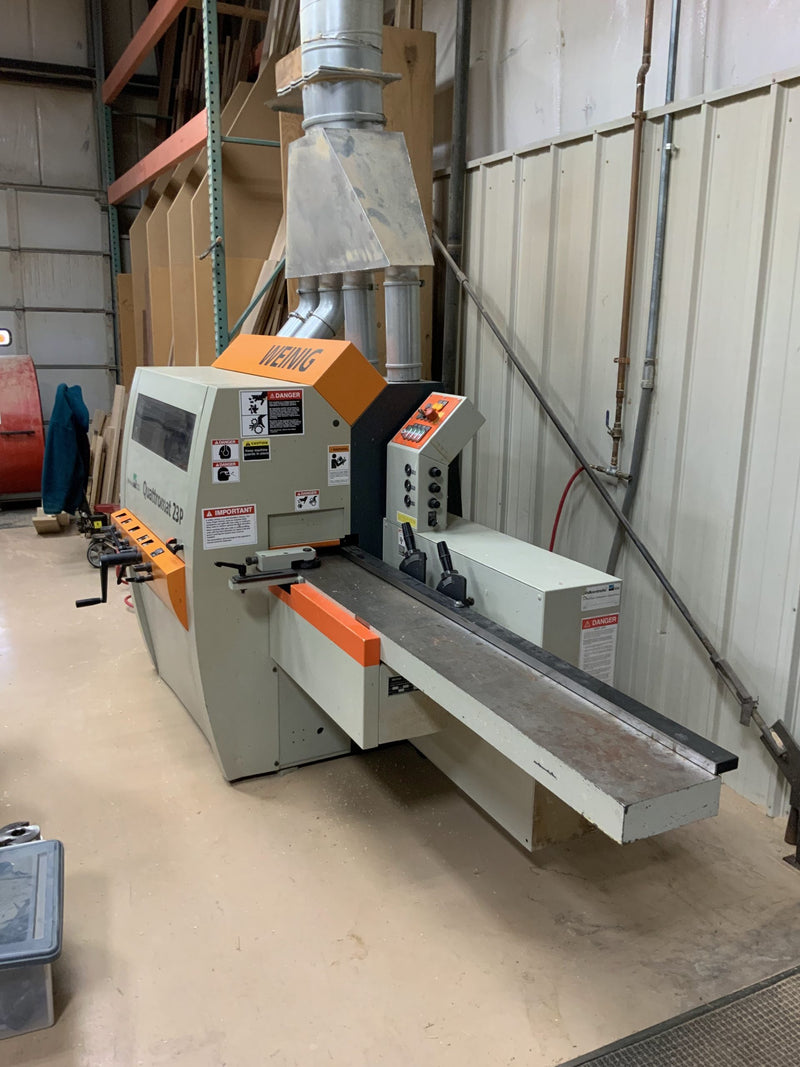

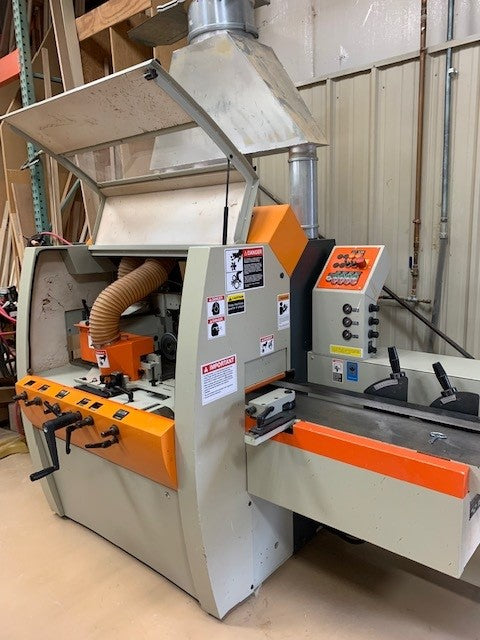

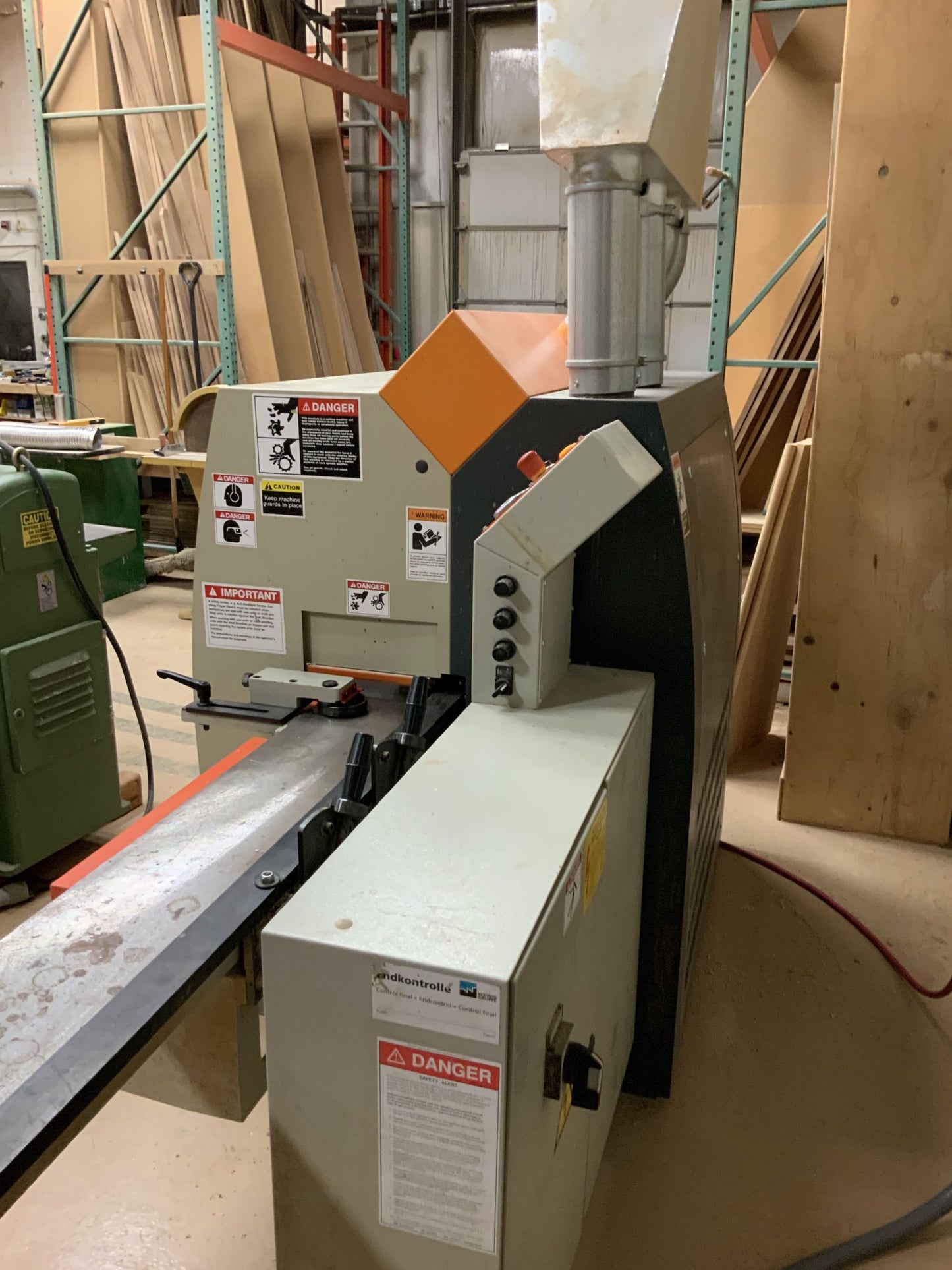

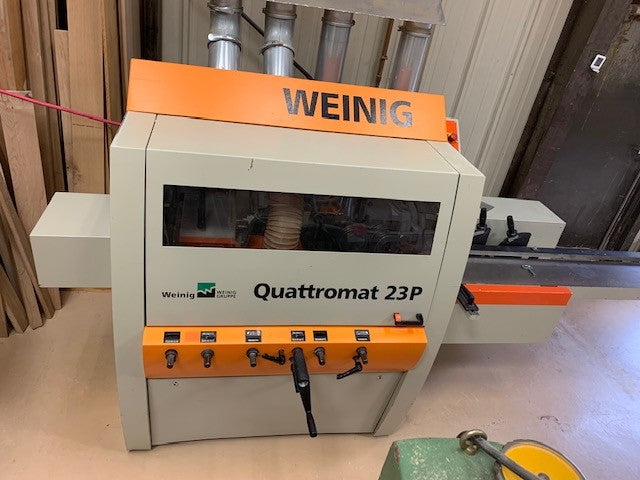

2002 Weinig Quattromat 23P four-head moulder. This is a historical/sold-machine reference page; contact iBiD Machinery at (678) 925-3556 for comparable moulders.

Machine overview

The Quattromat 23P is a compact four-sided planer/moulder platform used for straightening, sizing and profiling solid-wood components in a single throughfeed pass.

Weinig model-reference specifications

  • Four-head arrangement documented as bottom / right / left / top
  • Working width: approximately 13-230 mm
  • Working height: approximately 6-120 mm

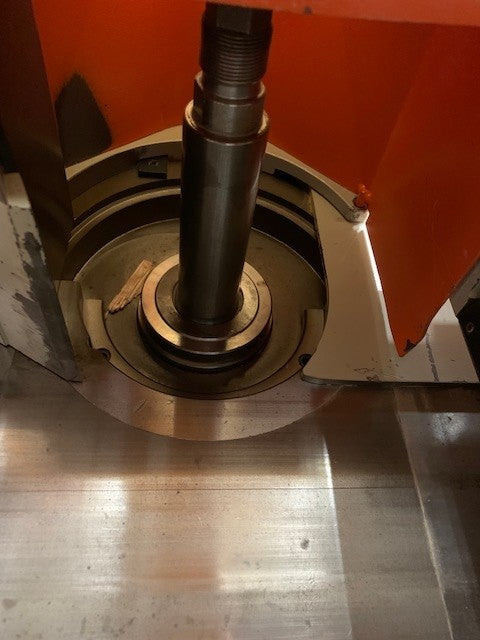

  • Spindle diameter reference: 40 mm
  • Spindle speed: approximately 6,000 rpm
  • Documented feed speeds: approximately 6 and 12 m/min
  • Infeed straightening table reference: approximately 2.5 m

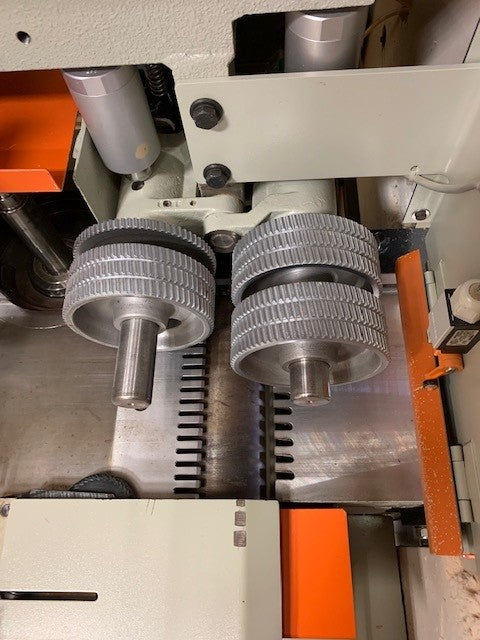

  • Pneumatic feed-roll pressure
  • Central lubrication and manual Waxilit system documented on comparable machines
  • Safety enclosure with interlock

What to confirm on an individual machine

Motor horsepower varied by spindle/configuration. Confirm head sequence, spindle motors, feed system, voltage, cutterheads/tooling and safety equipment from the machine plate and inspection.

*Model-reference specifications are provided to the best of iBiD Machinery's knowledge from available manufacturer information and other credible technical references. Actual machine configuration, options, dimensions and capabilities may vary by year, serial number and installed equipment. Buyer should independently confirm all specifications and inspect the machine before purchase.

Product Description: Very Good Condition - No Known Issues. Just Checked Out By Technician. Recent Video Of Working Machine In Video Gallery Section

Machine Location State:

Machine Location City:

Year: 2002

Make: Weinig

Model: Q23P

Serial No: 97318

Phase/Voltage: 230 (See Manufacturer Plate Below)

Condition: Good

Any Known Issues: No

In Production: No

Software transfers with machine:

Access to Forklift for Loading:

Loading Fee:

Shipping Dimensions:

Shipping Weight:

Shipping Brackets Available:
