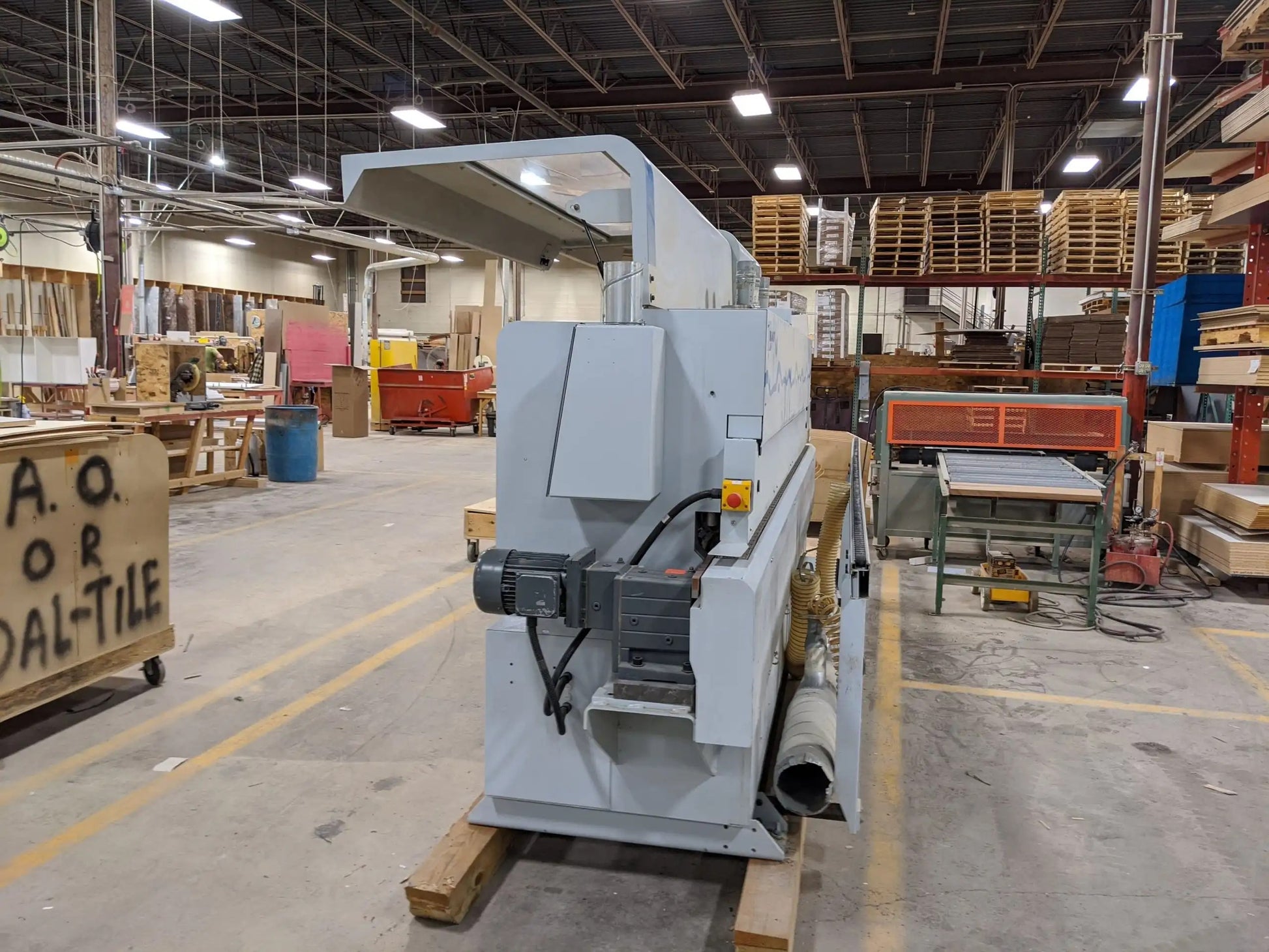

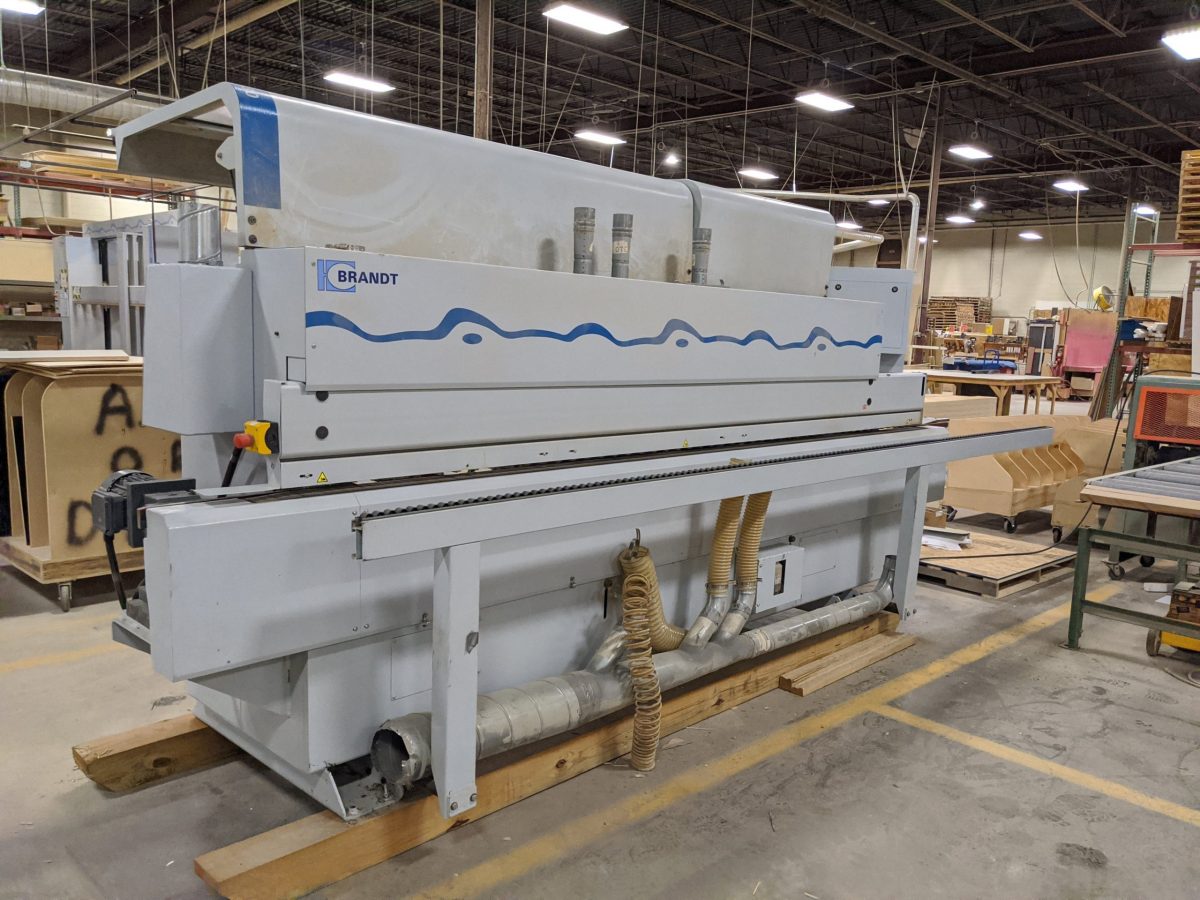

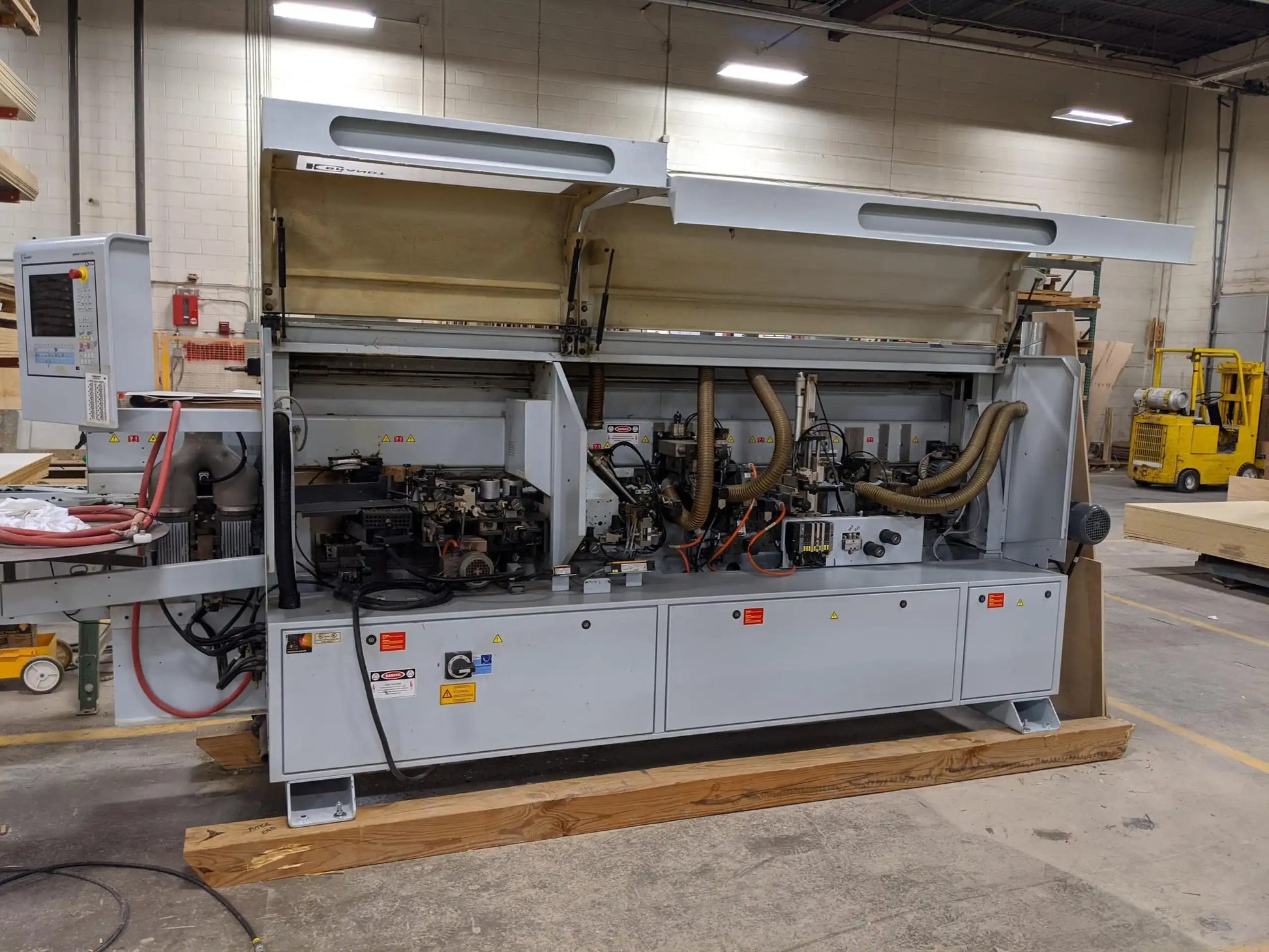

2007 Brandt Automatic Edgebander KDF 530 C Servo

Out of stock
Regular price $8,500.00 USD

Interested in this Machine?

Call (888) 375-0384 or Click Here to Email Us at info@ibidmachinery.com

Contact us

Product Description: PC-20 Program Control



Integrated Electronic Line Control System for Increased Reliability and Diagnostic Assistance





Joint Trimming Unit

ยท Pre-Trimming Of The Workpiece Edge Prior To Gluing

ยท Two Motors, 3 HP Each, 12,000 RPM

ยท One Motor Clockwise Rotation, One Counter-Clockwise

ยท Vertical Spindle Adjustment Via Digital Settings

ยท Horizontal Positioning Via Electro-Pneumatic Control

ยท Dust Extraction Hood Included With 120 Mm Diameter Outlet ( 4 ยพ โ€œ )

ยท Diamond Cutter Heads



Automatic Magazine for Strip and Coil Feeding

ยท Large Coil Table (800 Mm Diameter) With Built-In Rollers To Allow For 3 Mm PVC Coils

ยท Edge Strip Capacity From 0.4 Mm To 8 Mm (0.016โ€ โ€“ 5/16โ€)

ยท Direction Of Glue Roller Reversible

ยท Glue Roller Section Is Also Retractable From Fence Line

ยท One Large Driven Pressure Roller With Pneumatic Pressure Control

ยท Two Secondary Rollers, All With Controlled Side Pressure

ยท Setting Of Pressure Zone Equipped With Digital Counter Accurate To .1 Mm (.004")

ยท Strengthened Precutter For Cutting Thick PVC Edges From The Coil; Maximum 3 X 45 Mm



Standard Gluing System

ยท Heat-Up Time Is Twelve Minutes

ยท No Lubrication Is Needed For This Unit

ยท Quick-Change Glue Tank For Easy Maintenance And Glue Color Change, If Necessary

ยท Glue Temperature Indication Of Both Premelter And Glue Roller Via LED Thermostat Display Visible To Operator

ยท Automatic Temperature Reduction If Not Run Within 15 Minutes. This Feature Lowers The Temperature Automatically To 150 Degrees C.



Sound Cover
ยท Equipped With Two Independent Openings

ยท Safety Interlock System - When Sound Enclosure Door Is Opened, Corresponding Work Station Shuts Off

ยท End Trimming And Fine Trimming Motors Are Each Equipped With Electronic Motor Brakes To Stop Cutter Rotation When Hood Is Opened Or When Station Is Shut Off At Operator Control Panel



End Trimming Station

ยท Straight/Chamfer End Trim Unit Equipped With Two 0.18 Kw (1/4 HP) 12,000 RPM Motors; Electronic Motor Brakes

ยท End Trim Unit Utilizes Drawing Cut System For Reduced Blade Projection When Working On Thick Panels

ยท Tooling Also Included

ยท Program Controlled Indexing From Straight To Bevel End Trimming




Fine Trimming Unit
ยท Equipped With Two .55 Kw (3/4 HP) 12,000 RPM Trimming Motors

ยท Electronic Motor Brakes

ยท Horizontal And Vertical Copy Rollers With Lateral Location Indexing Via Servo Motor Positioning

ยท Two Position Program Controlled Vertical Indexing

ยท Each Trimming Motor Is Equipped With One Dust Hood And Dust Extraction Hose

ยท Equipped With Two DFC Combination Straight/Radius Cutter Heads, Including Four Knife Carbide Inserts; Flush Trimming Possible Up To 8 Mm Edge Thickness; Radius - 3 Mm



Contour Trimming Unit
ยท For Corner Rounding Of Thick PVC Edgings

ยท 3 Mm Radius Reversible Profile Knives Standard



Scraping Unit With Knives
ยท For Scraping Of Roughly Trimmed Thick PVC Edges In Order To Remove The Cutter Marks

ยท 3 Mm Radius Reversible Profile Knives Standard

ยท Program Controlled Pneumatic Indexing



Top And Bottom Buffing Unit

ยท Top And Bottom Buffing Motors For Finishing Of Longitudinal Edges

ยท Two 2800 RPM Polishing Motors

ยท Inclinable Vertically And Horizontally

</p>
<style>

ยท Two Buffing Wheels Included

Machine Location State:

Machine Location City:

Year: 2007

Make: Brandt

Model: KDF 530 C Servo

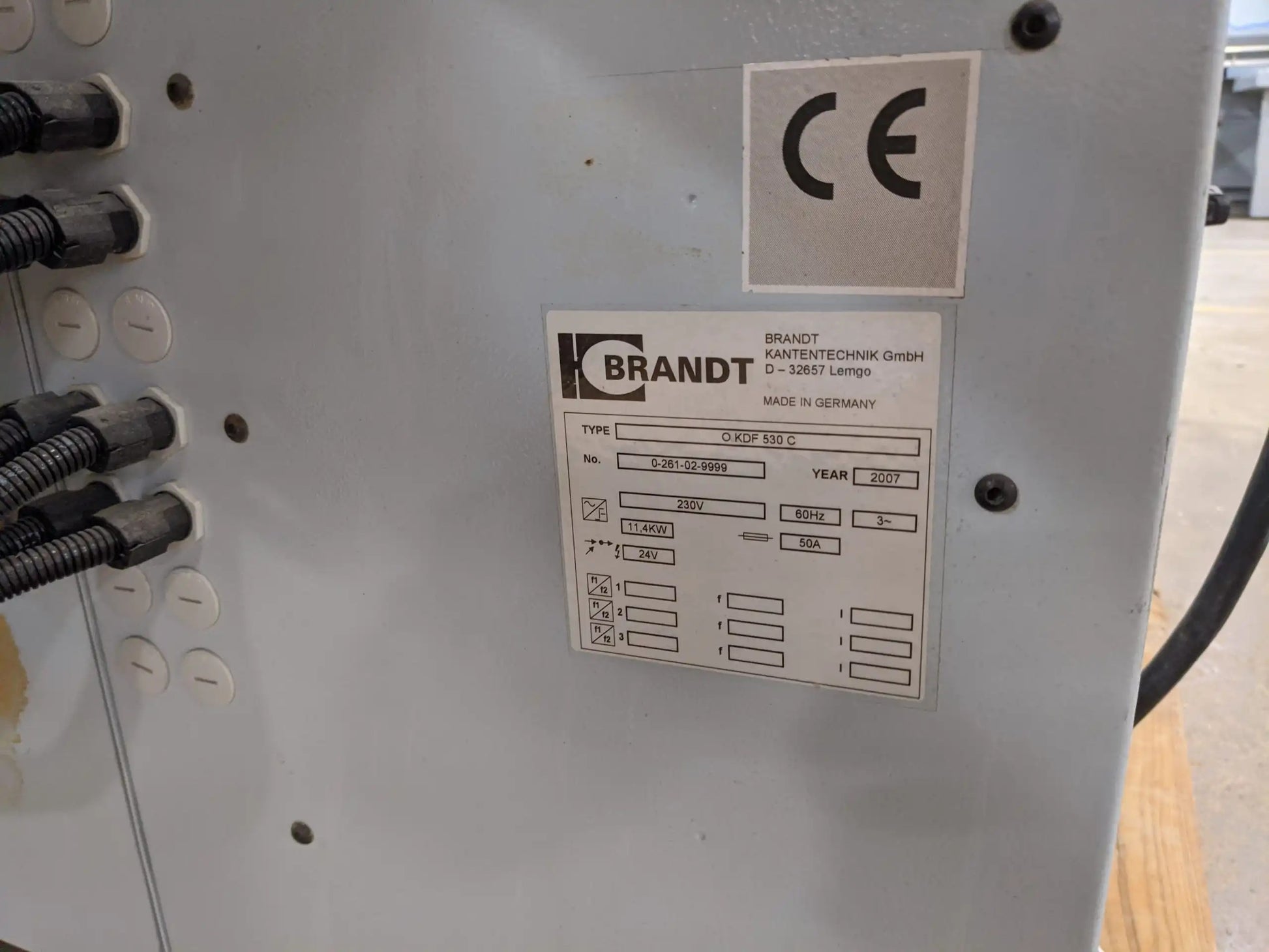

Serial No: 0-261-02-9999

Phase/Voltage: 3 Phase 230V

Condition: Good

Any Known Issues: NO

In Production: No

Software Transfer: No

Access to Forklift for Loading: Yes

Loading Fee: 250

Shipping Dimensions: 16' X 4' 5'

Shipping Weight: 4400 Lbs.)

Shipping Brackets Available: No
