2013 SCM Casadei Flexa 208 Edgebander - Ohio

In stock
Regular price $38,500.00 USD
Regular price Sale $42,000.00 USD Sale price $38,500.00 USD

Interested in this Machine?

Call (888) 375-0384 or Click Here to Email Us at info@ibidmachinery.com

Contact us

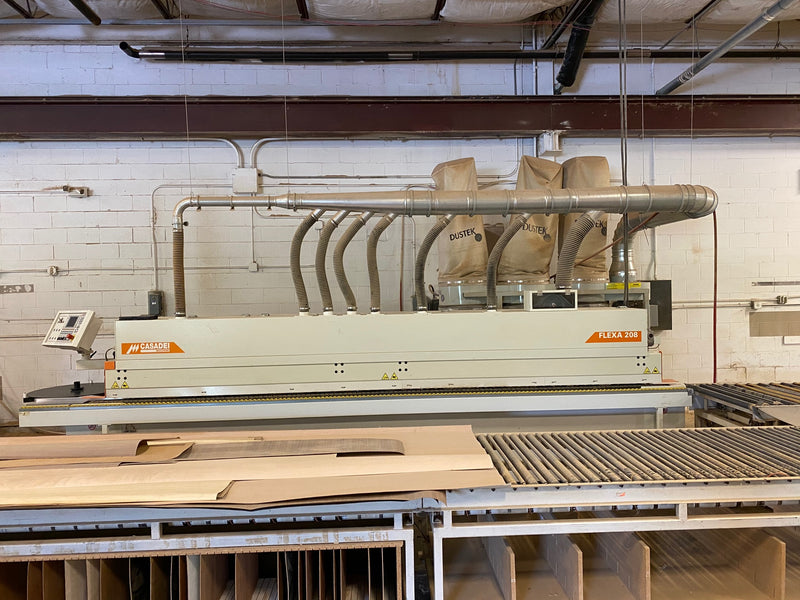

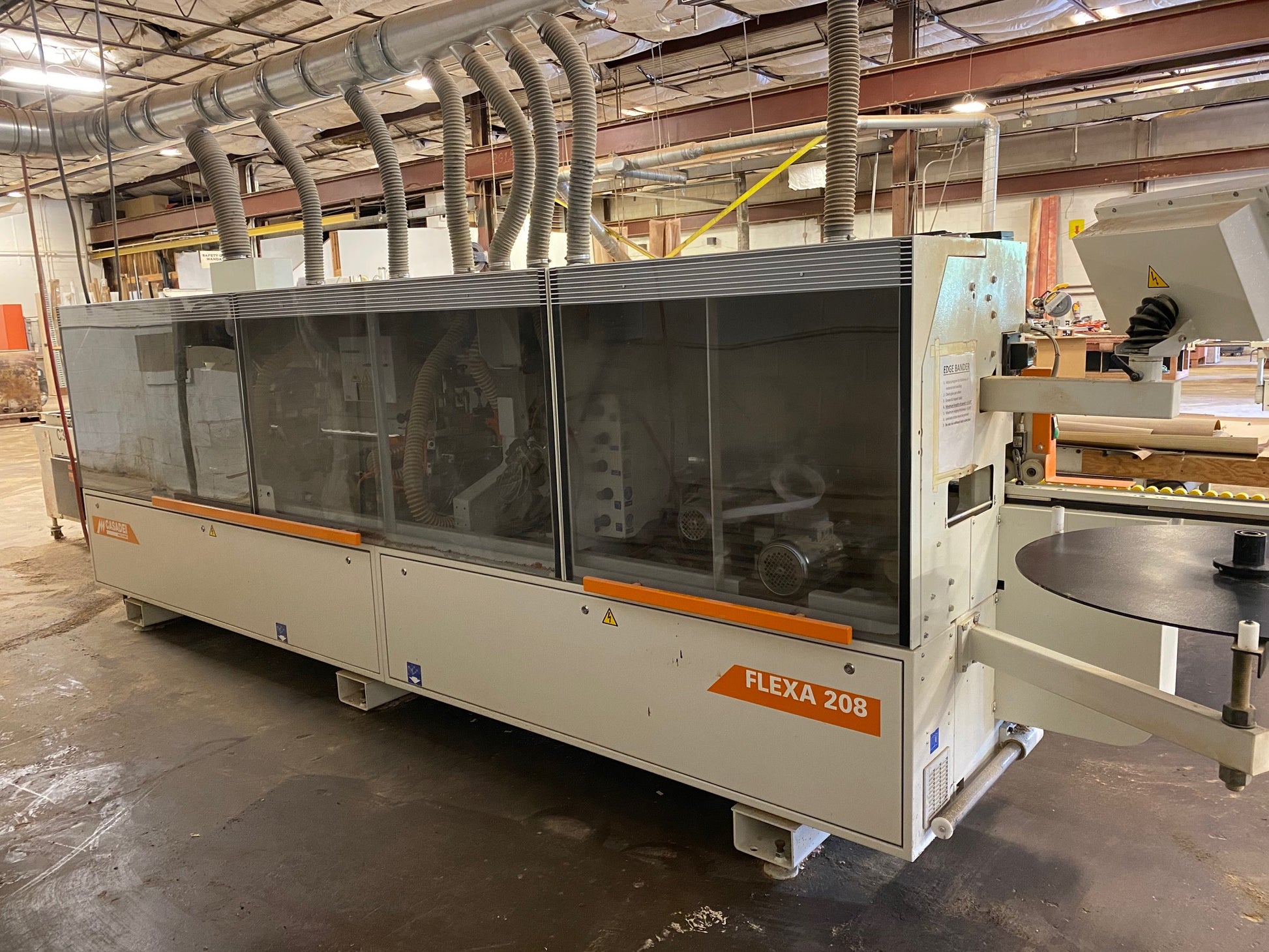

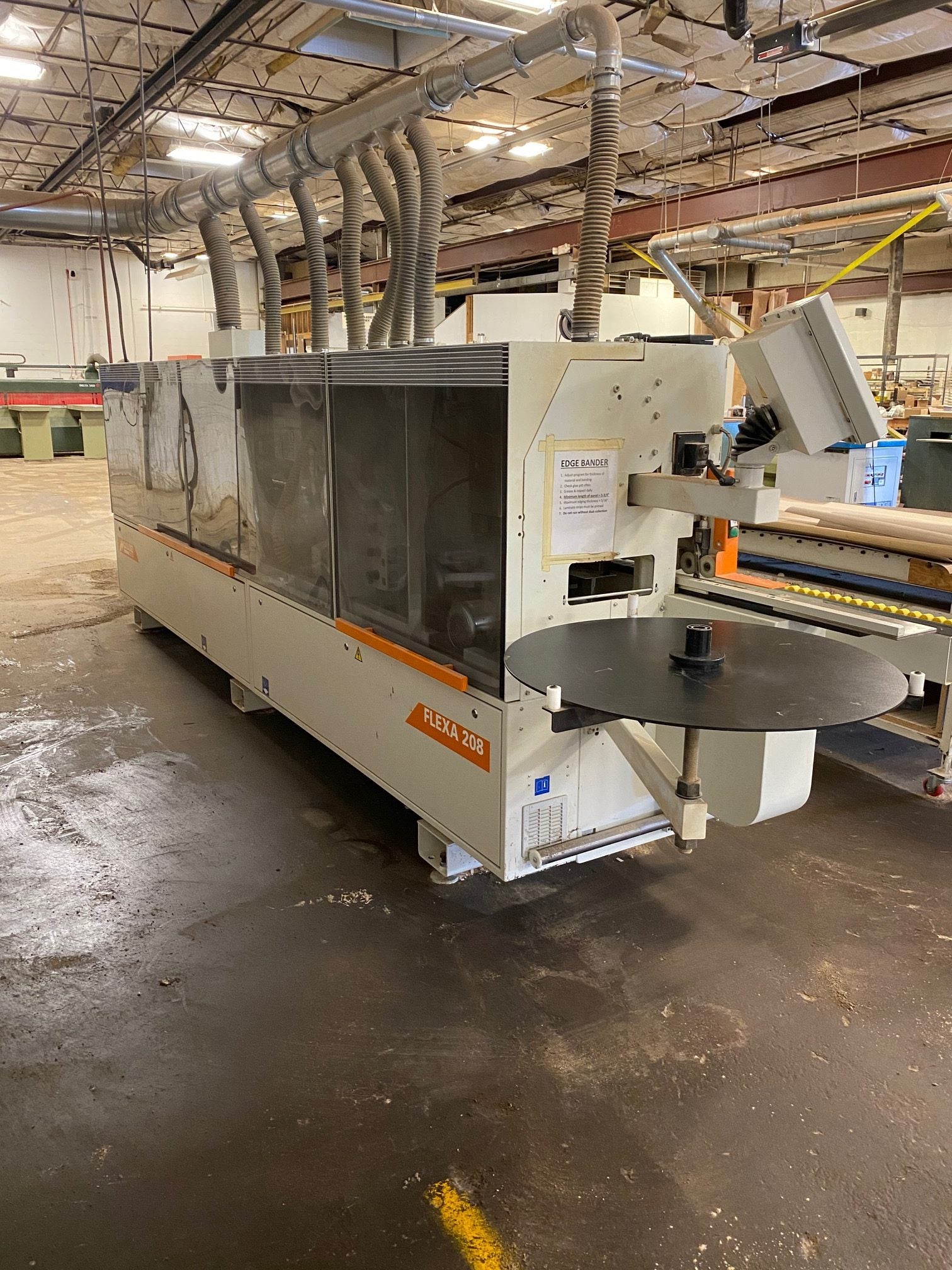

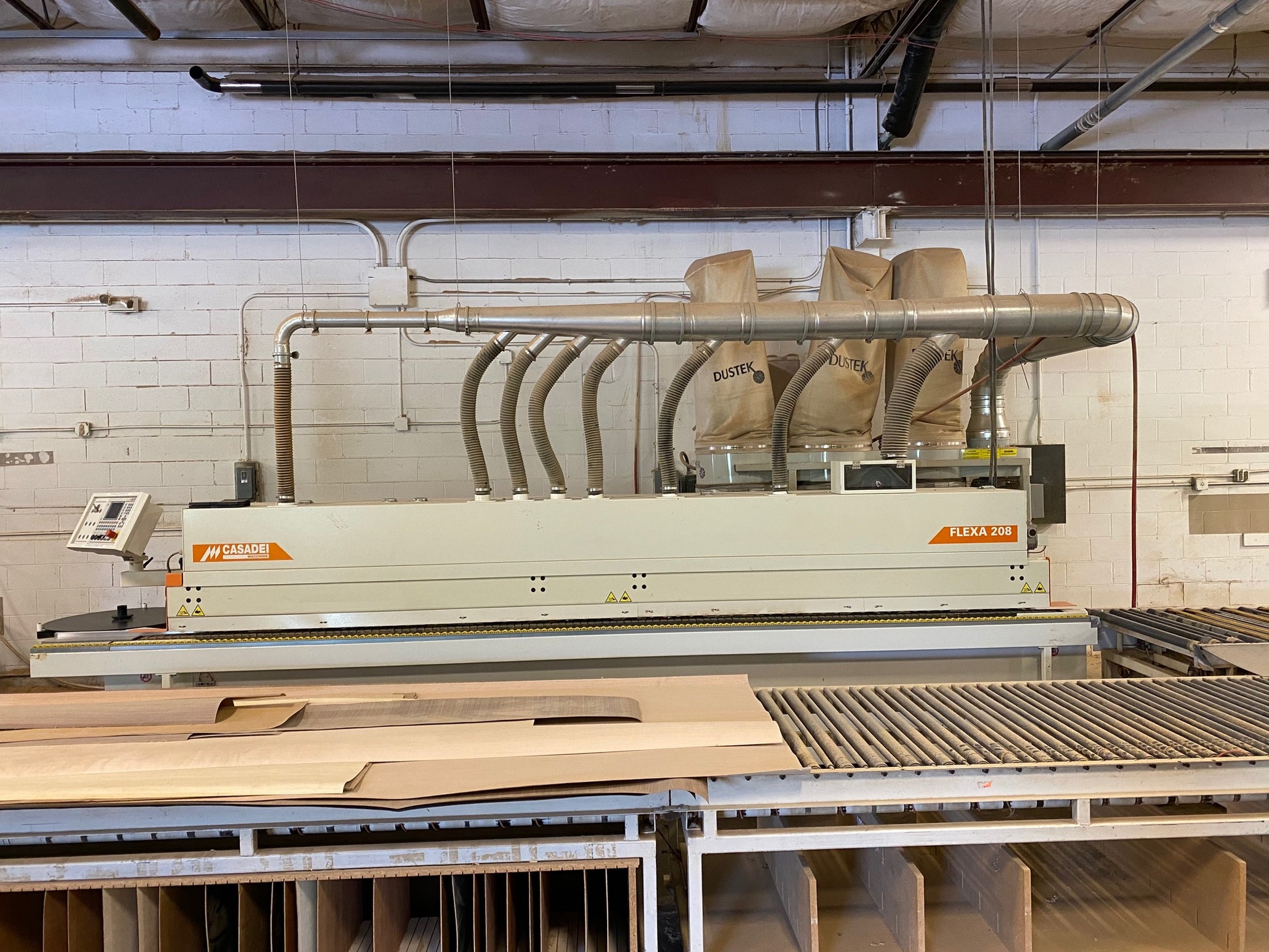

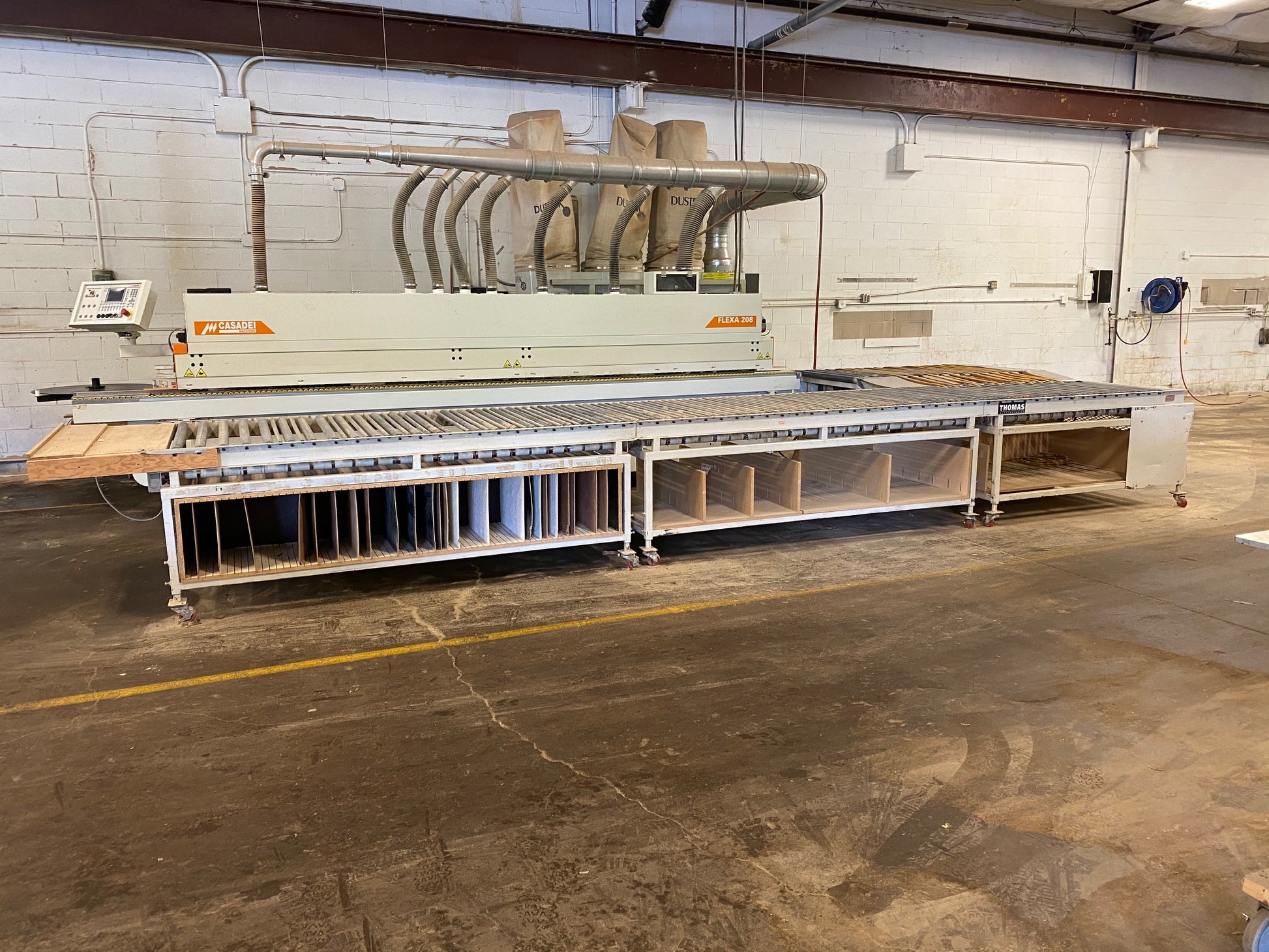

Used SCM Edgebander - Model SCM Casadei Flexa 208

2013 Edgebander in Good Working Condition



3 Phase

Located in Ohio

*Click on "Additional Information" for More Details on this Machine*



Pre-Owned SCM Edgebander



MACHINE SPECIFICATIONS (from Original Quote)

FLEXA 208-RMA-8 (CA1013)

GENERAL FEATURES:

  • Machine base is made of high rigidity ribbed steel to guarantee excellent support for the operating groups.

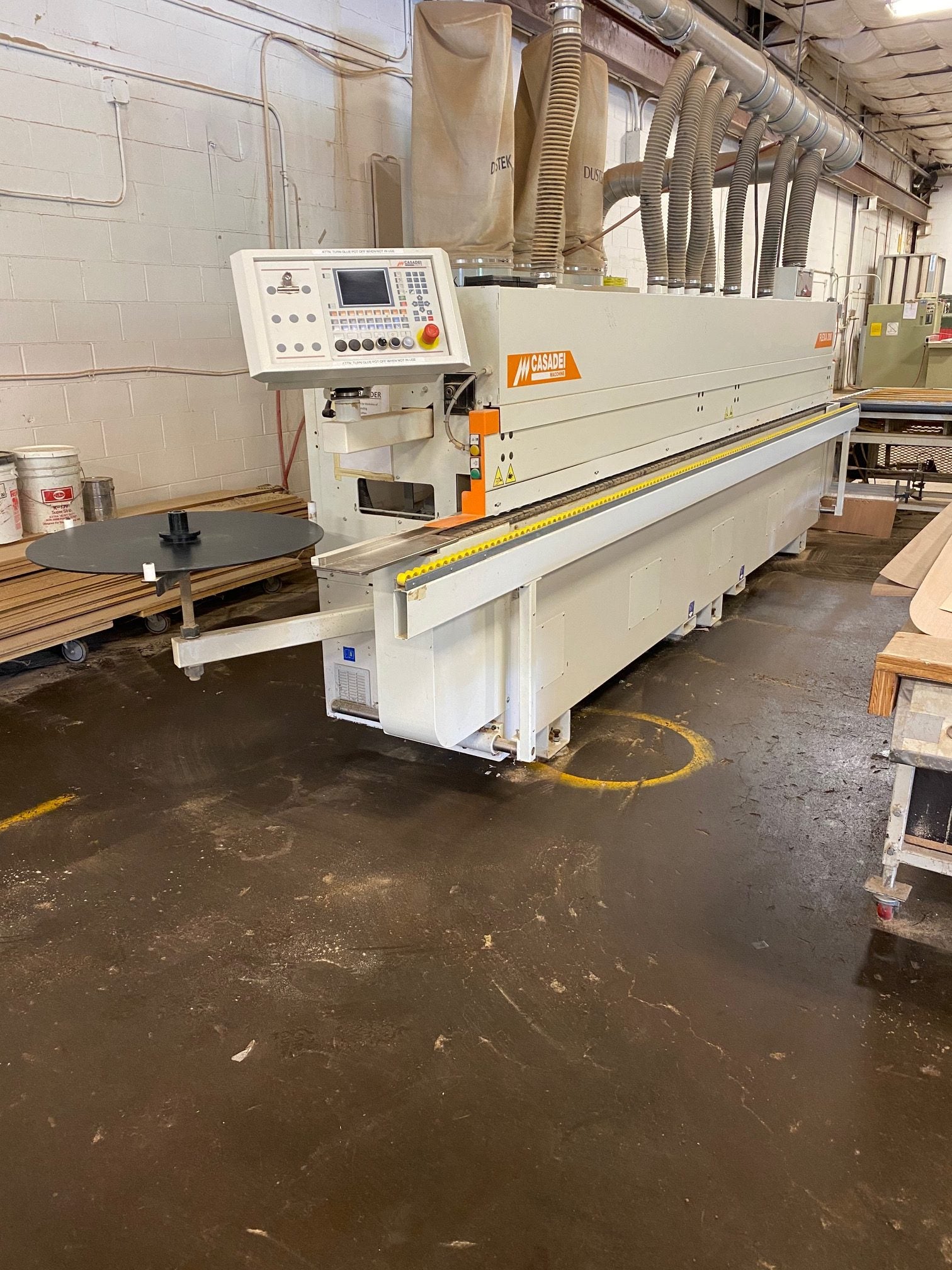

  • Mobile control panel.
  • Panels support roller which can be extended on the entire length of the machine. Positioning by means of round guides and Ball Bushing.
  • Safety enclosure lined with soundproofing material.
  • Exhaust outlets positioned on the safety enclosure.
  • Electrical cabinet with padlock ready main switch and overload motor protection.
  • Infeed and outfeed emergency pushbuttons.
  • Inverter

PANEL MOVEMENT SYSTEM:

  • The feed track consists of pads coated with high friction rubber fixed on an industrial chain.
  • The track slides on two guide-ways. One round in ground and hardened steel to provide resistance to side loads, and one flat to ensure straightness of movement.
  • Steel top pressure beam complete with two rows of rubber coated wheels.
  • Manual adjustment of top pressure beam with automatic positioning of the operating groups according to the panel thickness.
  • Mechanical digital indicator displays the selected panel thickness.
  • HELICAL WHEELS with bearings on top pressure beam (SPC0270)



TECHNICAL FEATURES:

Track feed speed                                         12               m/m

Panel overhang from track                             30                mm

Working height with trimming                        8-55             mm

Working height with rounding                        10-45           mm

Min. panel height with >2 mm edge              10                mm

Thickness for edges in strips                          0.4-8            mm

Max dimension of coiled edges                      3x45            mm

Max. material excess

 from top and bottom surface                        4 (2+2)       mm

Min. edge length with coiled edges                180              mm

Min. edge length with edge in strips              280              mm

Min. panel width with coiled edges                60                mm

  (Min length 210 mm)

Min. panel width with edges in strips             100              mm

  (Min length 210 mm)

Min. panel length with coiled edges               140              mm

  (Min width 100 mm)

Min. panel length with edges in strips           210              mm

  (Min width 100 mm)

Distance between two successive panels

Without corner-rounding unit                         800              mm

Distance between two successive panels

With corner-rounding unit                              800              mm

Machine Weight                                              5,200           lbs

FLEXA 208 RMA-8 RNC

CA1013

1

FLEXA 208 RMA-8



Inc

GP/500 Gluing unit



Inc

End Trimming Unit 0-15 deg.



Inc

Tilting top and bottom trimming Unit (TT/1000) 0-25 deg.



Inc

2 Motor Corner Rounding Unit



Inc

Edge scraping unit



Inc

Mega 200 Controller

CA2064

1

220/230v 50/60hz

CA4018

1

US Safety Standards







CA2073

1

Comfort kit for FLEXA 208



Inc

Timed Pressure Rollers



Inc

2 position pneumatic corner rounding system



Inc

Pneumatic blade inclination (0/15%) on end trim



Inc

Pneumatic exclusion of trimming unit and edge scraping unit



Inc

Electronic positioning of upper pressure beam













CA3015

1

Brushing/ Buffing Unit

CA2070

1

Tools w/ disposable knives instead of brazed knives

CA2095

1

Device w/ 2 pneumatic pos of top and bottom trimming unit

CA2686

1

Quick release glue pot (GP-500)

















COMFORT KIT FOR FLEXA 208 (CA2073)

This kit includes the options that will best minimize change-over time. Examples would be: when changing from first to second pass or changing banding type or thickness say from thin tape to 3 mm.

The kit includes:

  • ELECTRONIC POSITIONING OF THE TOP PRESSURE BEAM
  • TIMED EDGE PRESSING ROLLERS
  • AUTOMATIC BLADE INCLINATION FOR END TRIM
  • TWO POSITION KIT FOR CORNER ROUNDING UNIT "ROUND K"
  • PNEUMATIC EXCLUSION OF TRIMMING UNIT AND EDGE SCRAPING UNIT



MACHINE EQUIPPED WITH:

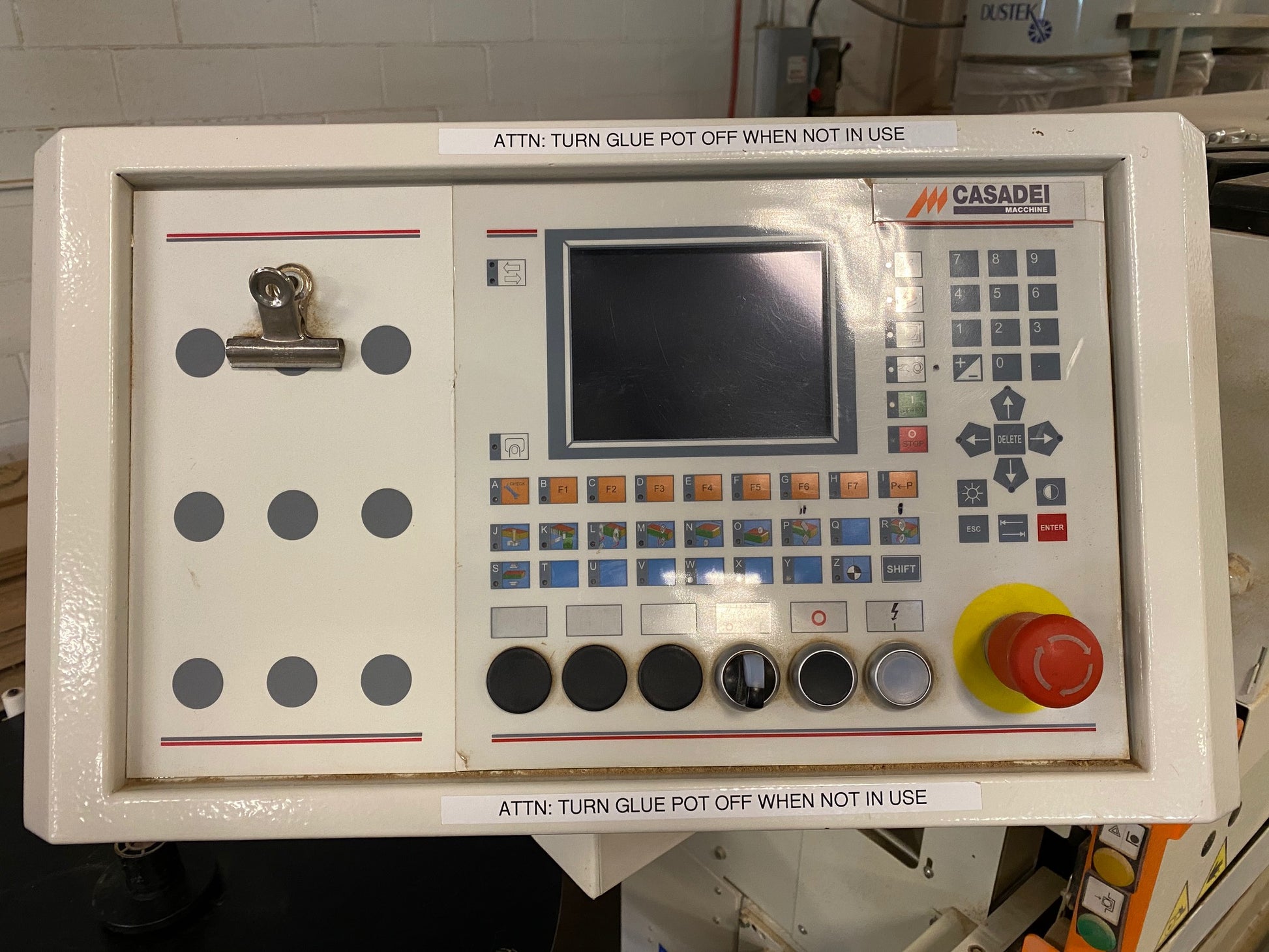

MEGA 200 Control System

  • Color LCD. 5.7‚ÄĚ
  • Alphanumeric keyboard
  • Function keyboard, rapid selection of working units
  • Operating temperature: from 0 to +45¬į Celsius.



FUNCTIONS CONTROLLED FROM OPERATOR PANEL

  • Start and stop the machine
  • Create and modify machining programs
  • Up to 100 different programs can be saved
  • Display machine status
  • Display and reset (cancel) alarms
  • Controls the units pneumatic positioning
  • Display messages intended for the operator
  • Set machine data
  • Display daily/absolute production data
  • Select the displayed language and unit of measure (in or mm)
  • Control operating units and automatic start of motors
  • Glue pot temperature control and adjustment
  • Selection of first or second pass without changing program
  • Simple diagnostics to obtain a quick solution to machine malfunctions
  • Partial and absolute process statistical data:

o   number of pieces and edges

o   machine start  times

o   track feeding speed, etc







ELECTRONIC POSITIONING OF TOP PRESSURE BEAM

NOTE: This option is included with the "Comfort" kit package.


GP/500 GLUING UNIT, EDGE LOADING AND PRESSING SYSTEM

Hot melt glue pot internally Teflon coated to facilitate quick easy cleaning or glue replacement

  • Glue application roller to apply glue to the edge or the panel.
  • Reversing glue application roller.
  • Digital thermostat to control the temperature of the glue application roller.
  • Automatic set-back of the glue pot temperature after temporary non-use of the machine.
  • Device for the automatic recovery of unused glue.
  • Automatic edge loading system for edges in strips.
  • Three edge pressure rollers; the first roller is powered with a clutch unit, the second and the third roller have opposing conical taper to guarantee perfect adhesion to the applied edge.
  • Pneumatic pressure adjustment.
  • Pressure roller adjustment by means of digital readout.



Technical specifications:

Power consumption                               2.4                kW

Glue granule capacity                            1.5                kg

Table for coils, diam.                             780               mm



TIMED PRESSURE ROLLERS (CA2083)

Provides accurate, independent, application and removal of pressure for each of the edge pressure rollers, thus eliminating breaking HPL or delaminating 3 mm PVC or wood strips.

NOTE: This option is included with the "Comfort" kit package.



VERTICAL END-TRIMMING UNIT (IK/S)

For the removal of the over hanging edging material from the front and back of the panel:

  • two motors sliding¬† on linear bearing guides tilted to 45¬į
  • vertical edge cutting
  • front and back edge followers
  • motors with adjustable angle up to 15¬į
  • PLC control



Technical specifications:

Speed                                                     12000           rpm

Motors power                                         0.35+0.35    kW

Tools installed: 2ea. blades √ė¬†¬†¬†¬†¬†¬†¬†¬†¬†¬†¬†¬†¬†¬† 110 ¬†¬†¬†¬†¬†¬†¬†¬†¬†¬†¬†¬†¬† mm



AUTOMATIC BLADE INCLINATION IK/S (CA2094)

Pneumatic device which allows inclination of the end trimming cutters from 0¬į to 15¬į and vice versa without manual adjustment.

  • PLC control

NOTE: This option is included with the "Comfort" kit package.

TOP & BOTTOM TRIMMING UNIT (TT/S 1000)

For trimming and finishing of thin edges or for radius trimming thick ABS/PVC edges

  • Two motors manually adjustable up to 30¬į.
  • Quick release system for the motor.
  • Top motor connected to the pressure beam for automatic adjustment according to the panel thickness.
  • Large vertical copy wheel with mechanical digital indicator for adjustment.
  • Side copy wheel with mechanical digital indicator for adjustment.
  • PLC control


Technical specifications:

Motors power                                         0.5+0.5        kW

Tools installed (IDi)                               2 Insert heads R=3

 AUTOMATIC 2 POSITION KIT FOR TT/1000 (CA2095)

Device for the automatic tool positioning from the control board for a rapid change-over of the working process according to the thickness of the edge applied e.g. from thin edge to 3 mm and vice versa.

It replaces the manual RI/S unit with the 2 automatic positions RI/S unit.

It includes:

  • Motors with pneumatic 2 position vertical and horizontal automatic positioning.
  • Side copy wheels with pneumatic 2 positions horizontal automatic positioning.
  • Numerical indicators for additional horizontal adjustment of the side copy wheels.

Technical specifications:

Min. panel thickness                              15                 mm


"ROUND A" CORNER ROUNDING UNIT

Automatic corner rounding of the applied edge.

Corner rounding of 3 mm PVC/ABS or thin edges applied on the straight sides of post/soft formed panels as well as for rounding or beveling the upper, lower, front and rear corners of thin or 3mm banding with a radius.

The rounding operation takes place in a single pass (top and bottom)



The unit is complete with:

  • Two high frequency motors.
  • Front and vertical copying devices have precision ground contact surfaces to ensure accuracy.
  • 2 PRE-SELECTABLE positions allow fine trimming or corner rounding.
  • Unit movements are precise thanks to the use of prismatic ways with recirculating ball bearings.
  • Pneumatic exclusion from control panel (standard).
  • Pair of brazed cutters (R= 3mm) included.



Technical specifications:

Motor power                                           0.35              kW

Speed of cutters                                    12000           rpm

Max. working edge thickness                3                   mm



TWO POSITION KIT FOR CORNER ROUNDING UNIT "ROUND A" (CA3004)

Device for pneumatic positioning of the corner rounding unit from the control panel. It provides rapid change-over from one banding thickness to another, e.g. from thin to 3 mm edge and vice versa.

NOTE: This option is included with the "Comfort" kit package.

EDGE SCRAPING UNIT

For finishing edges with radius in PVC/ABS:

  • Edge scraping unit with rounded edge quick change (e.g. from R3 to R2 mm) by changing the knives holders complete with copiers
  • Pneumatic exclusion from electronic controller

Technical specifications:

Knives with radius                            3                   mm


"BFN" BRUSHING UNIT     (CA3015)

For cleaning and polishing the top and bottom edge.

  • 2 independent motors, each 0.18 kW
  • 3000 rpm rotating speed¬†

MACHINE ALSO SUPPLIED WITH:

USA SAFETY REGULATIONS (CA4007)

Conforms to UL/CSA specs.

ELECTRICAL VOLTAGE 220/230 V  50/60 Hz (CA2064)

1 ea. USE AND MAINTENANCE MANUAL IN ENGLISH

1 ea. ELECTRICAL SCHEMATIC IN ENGLISH

Note: The pictures and/or illustrations included in this quotation are for descriptive purposes and intended to aid in understanding certain features of the machine.   Some depictions may not reflect the exact construction and may include options that are not part of this offer. In all cases, the written text supersedes any graphic representation. If you have any questions, please consult your Delmac sales manager.

OPTIONS:

SPARE GLUE POT UNIT FOR MACHINE

Interchangeable with the glue pot mounted on the machine. It allows a quick change of the glue color /type to be applied.  1.5 Kg glue pot capacity.

EDGEBRIGHTENING UNIT

For heating thick PVC/ABS edging to reactivate the original color.

*Information displayed has been gathered from machine owner, internet searches and other sources. Information is believed to be correct, but not guaranteed. All buyers should verify this information independently and/or have the machine inspected for accuracy prior to purchase*

Product Description: FLEXA 208 MA-8 (2)

Machine Location State: Ohio

Machine Location City: Columbiana

Year: 2013

Make: MC CASADEI

Model: FLEXA 208

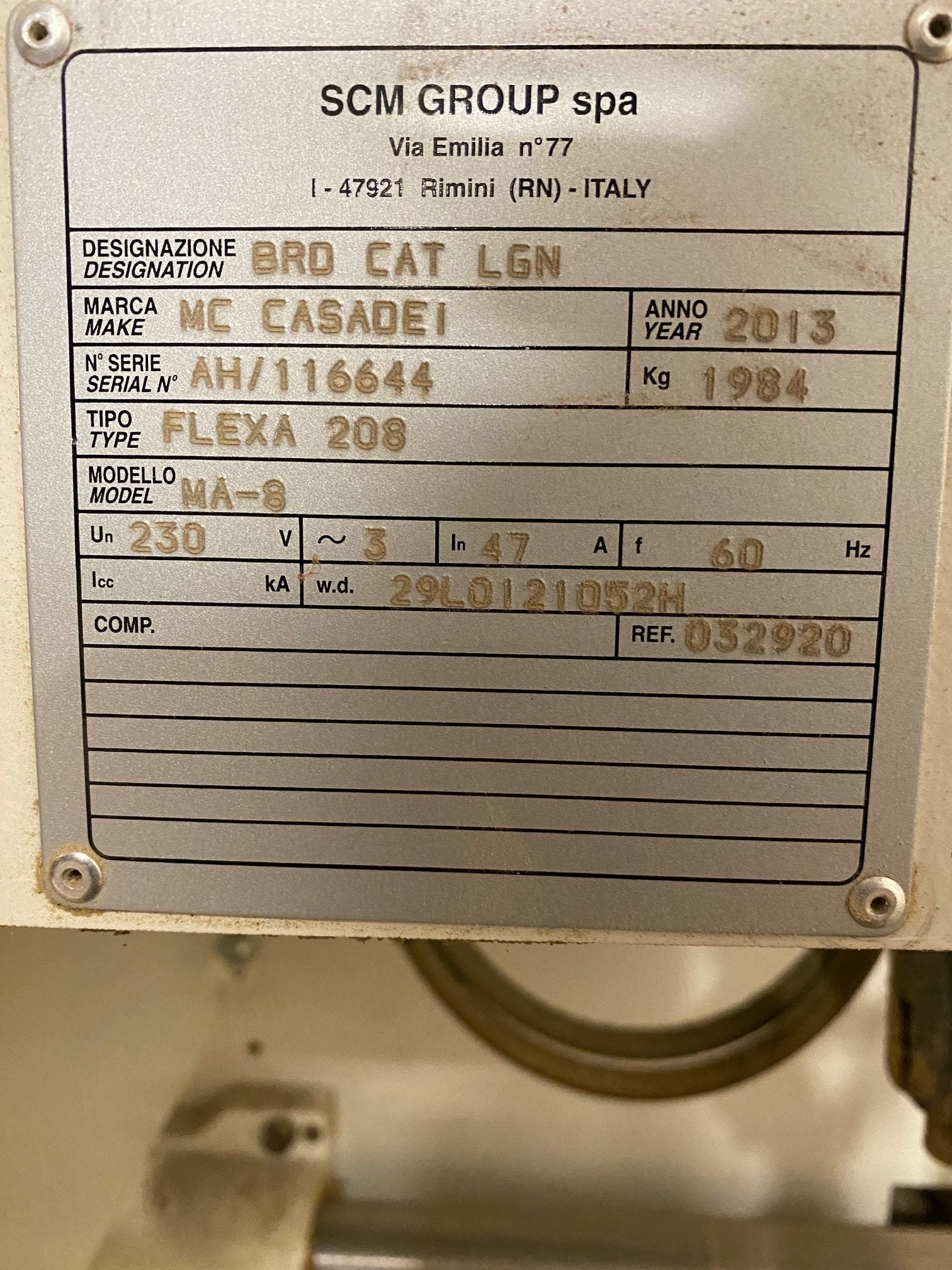

Serial No: 29L0121052H

Phase/Voltage: 3

Condition: Good

Any Known Issues: No

In Production:

Software Transfer:

Access to Forklift for Loading:

Loading Fee:

Shipping Dimensions:

Shipping Weight: 4374 LBS

Shipping Brackets Available:
