2019 SCM Superfici Mini Plus "P" Spray Machine - Utah
Couldn't load pickup availability
How can iBiD help with this machine?
Questions about condition, specifications, loading, or fit? Ask iBiD directly, find a similar machine, or research the model.
Call us about this machine’s condition, specifications, or freight.

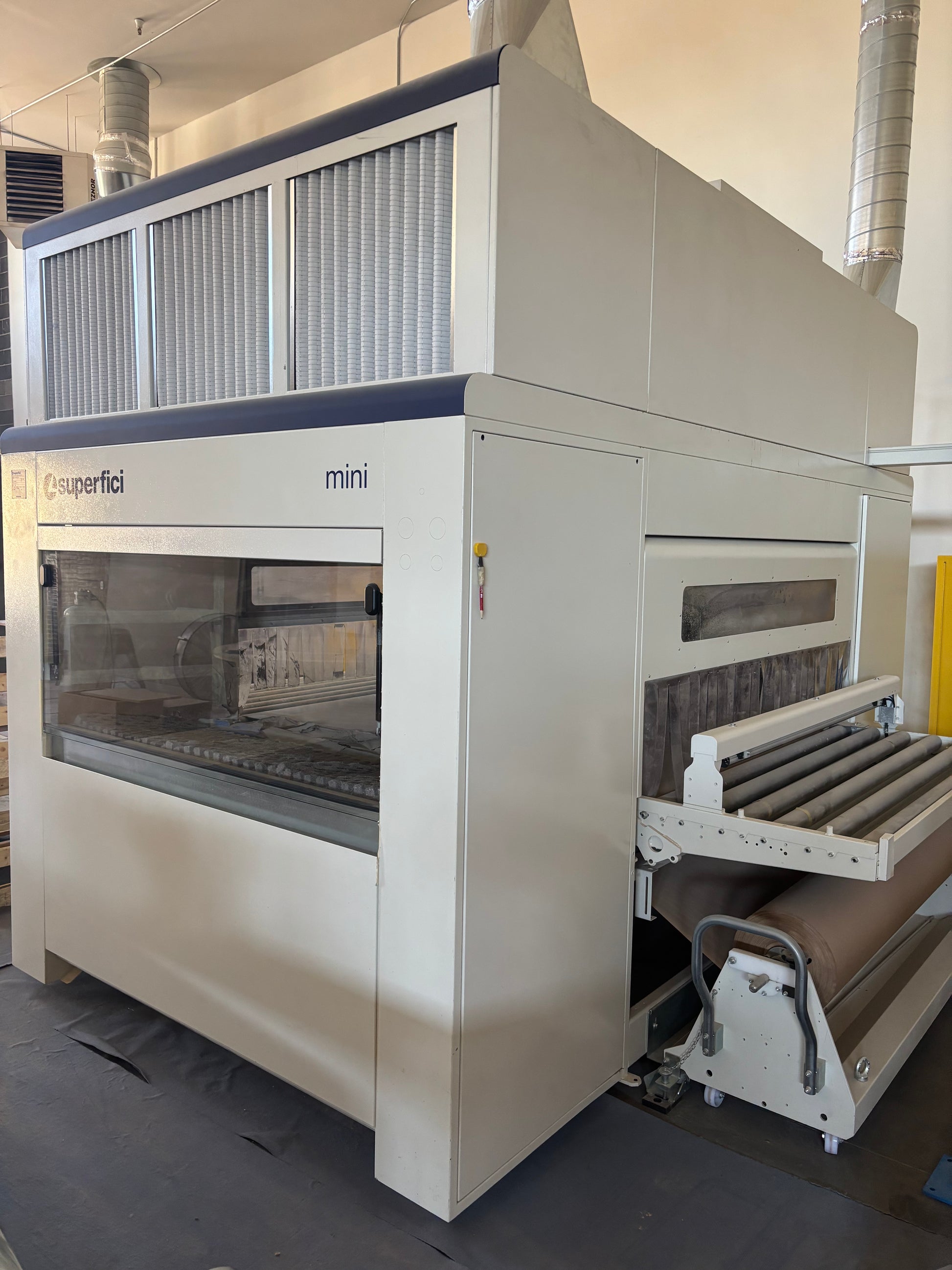

2019 SCM Superfici Mini Plus "P" automatic spray machine located in Utah. This is a compact production spraying platform intended to automate coating of flat and shaped components while reducing manual spray labor. Call iBiD Machinery at (678) 925-3556 for inspection, availability and removal details.
Machine overview
SCM Superfici's Mini-family spraying systems are designed for small-batch and production finishing, including frequent color changes and spraying of flat or shaped panels. The platform uses an automatic conveying system and controlled reciprocating spray-arm motion.
Mini-family model-reference specifications
- Published working width: approximately 1,300 mm (51.2 in.)
- Published maximum workpiece thickness: approximately 90 mm (3.5 in.)
- Published working height: approximately 900 mm (35.4 in.)
- Published feed-speed range: approximately 1–3 m/min
- Paper-protected conveying system; some Mini configurations include lacquer-reclaim capability
- PLC control, with PC control shown as an available configuration on manufacturer literature
What to confirm on this machine

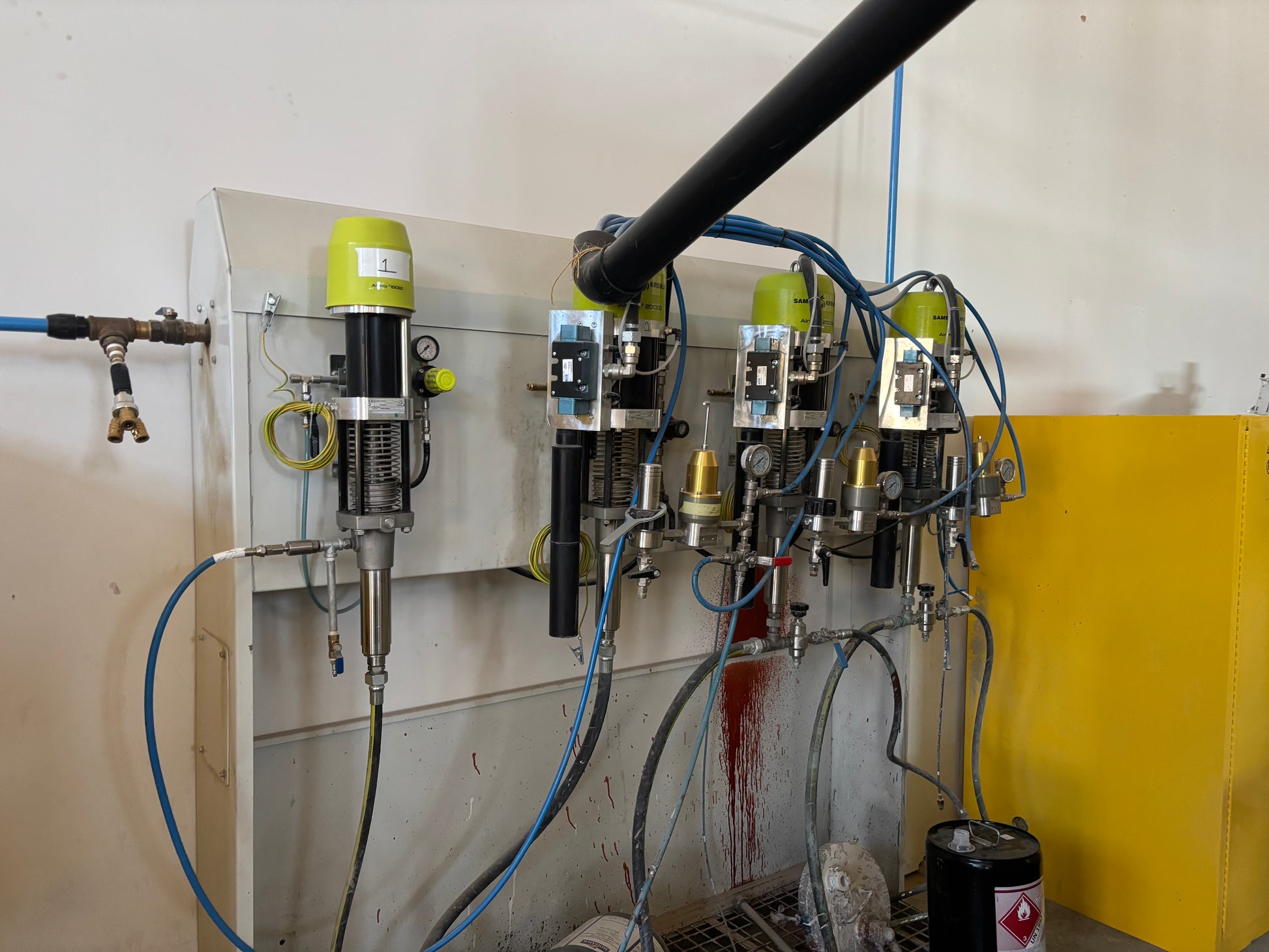

Because Superfici Mini configurations vary, confirm the exact conveyor/reclaim system, number and type of spray guns, pump package, color-change equipment, controls, exhaust/air requirements, electrical service and included infeed/outfeed equipment on this 2019 Mini Plus "P".
*Model-reference specifications are provided to the best of iBiD Machinery's knowledge from available manufacturer information. Actual machine configuration, options, dimensions and capabilities may vary by year, serial number and installed equipment. Buyer should independently confirm all specifications and inspect the machine before purchase.
Product Description:
Machine Location State: Utah
Machine Location City:
Year: 2019
Make: SCM
Model: Mini Plus "P"

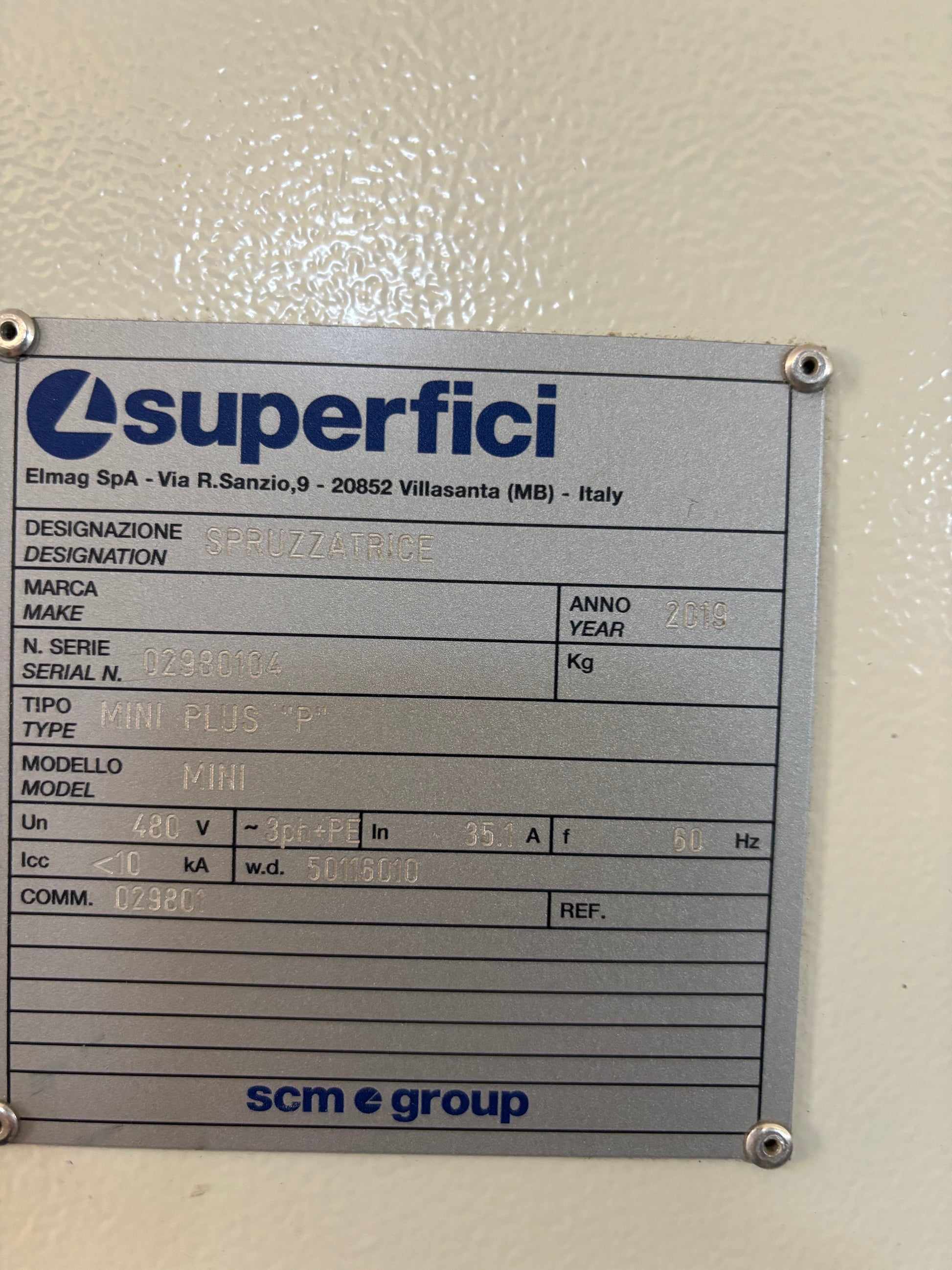

Serial No: 02980104
Phase/Voltage: 3PH
Condition: Excellent Used Condition
Any Known Issues: No
In Production:
Software transfers with machine: Spray Machine
Access to Forklift for Loading: Yes
Loading Fee: No
Shipping Dimensions: Shipping Dimensions: 139"L x 85"W x 85"H approx
Shipping Weight: Shipping Weight: 5200 lbs approx
Shipping Brackets Available:
