Cantek CD-305 Linear Spray Machine
Regular price
$55,300.00 USD
Couldn't load pickup availability
Interested in this Machine?
Call (888) 375-0384 or Click Here to Email Us at info@ibidmachinery.com

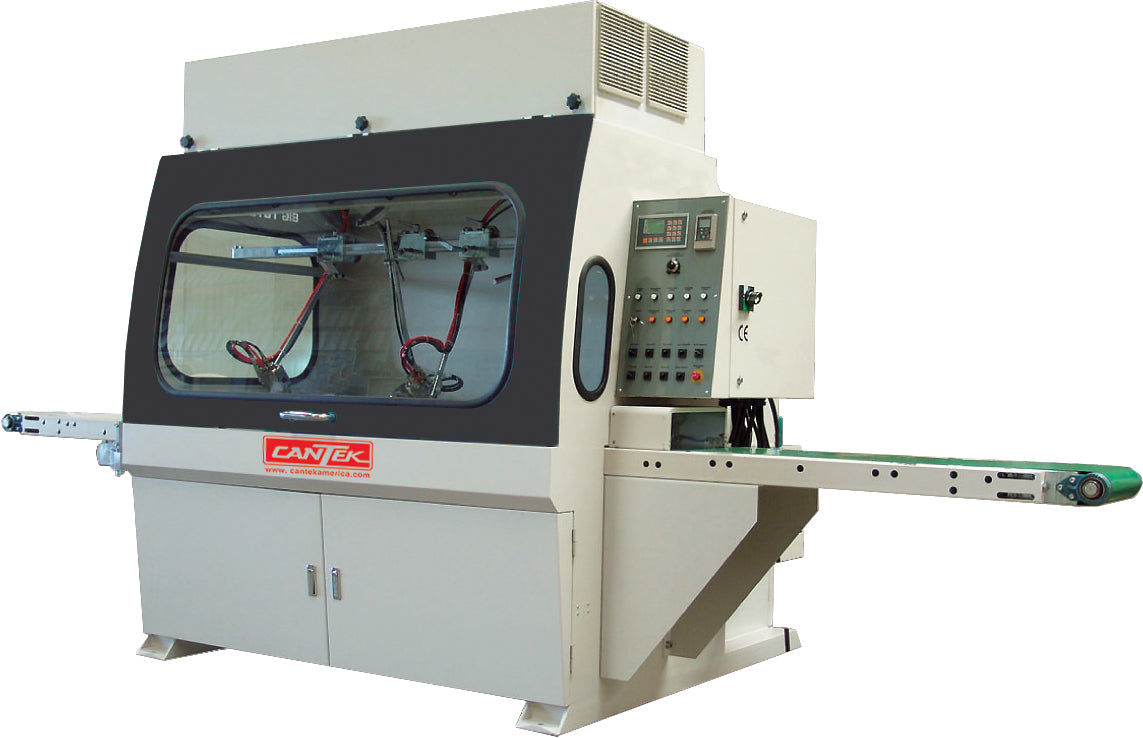

The Cantek CD305 auto linear spraying machine allows the automatic in line spraying of lacquers & stains on mouldings, picture frames, door, window & furniture components up to 305mm wide. The wide spraying booth contains 6 spray guns that are automatically timed by photocells to minimize material usage and waste. A PLC control system, equipped with LCD display, checks all the machine functions and setup.

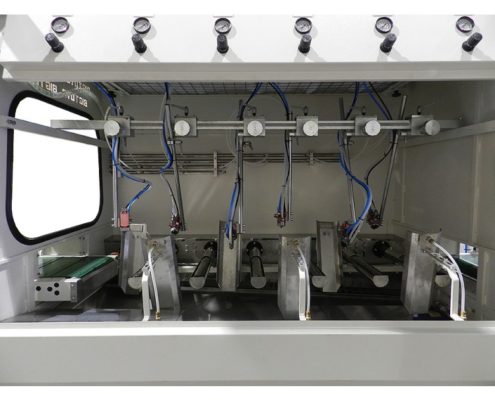

- 6 High Quality, Gold River Spray Guns which are controlled by individual air pressure regulators
- PLC control for easy operation and set up
- Fast spraying processing for profile strips & edges

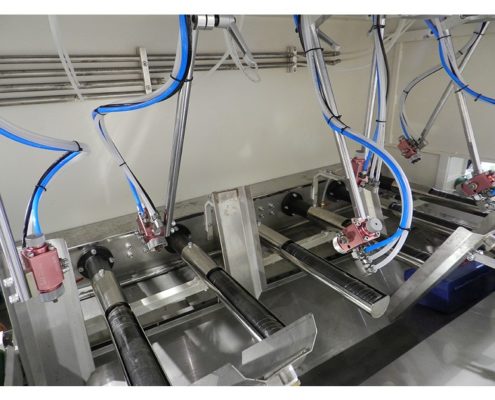

- The spray guns are controlled by photocell sensor for auto spray time and amount of spray – saves material
- Easy cleaning of guns with independent valve systems
- Internal components manufactured out of stainless steel

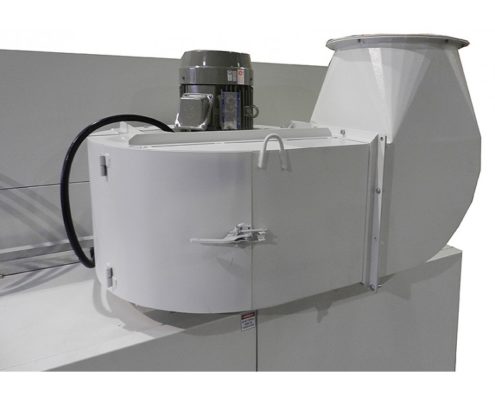

- Powerful collection fan for air purification through filter

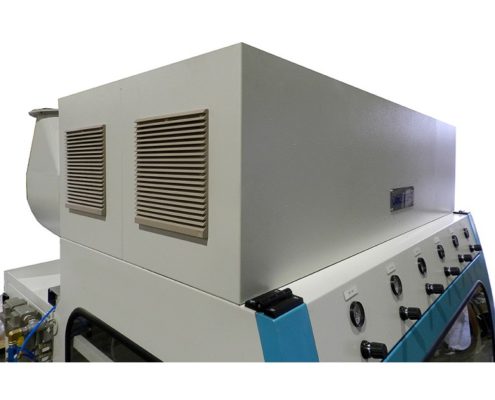

- Totally enclosed Cabinet to minimize pollution with forced air unit
- Paint recycling unit included for collecting and reusing overspray.

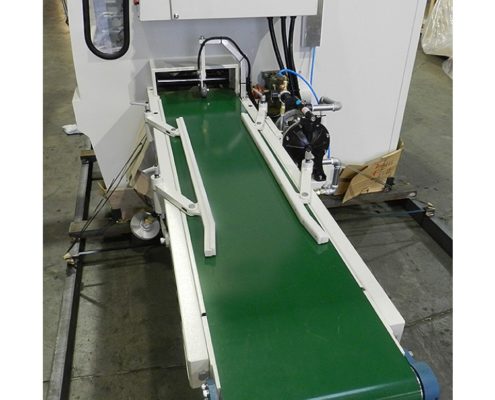

- Variable feed speed control from 33~100 FPM (higher feed speed available upon request)
- Convenient rack & pinion lateral adjustment of the spray guns
- Paper filters are used on both sides of roller conveyer which is in the spray chamber & a fiber glass filter is used on the back side of spray chamber to ensure a clean machine & clean air
- Machine can be used for water based or UV coating material (solvent based product)
Max. Width | 12″ (305mm) |
Max. Thickness | 3.54″ (90mm) |
Max. Length | Infinite |
Min. Length | 21.65″ (550mm) |
Feed Speed | 33~100+ FPM (10M~30M/min) |
Feed Motor | 1 HP |
Exhaust Fan Motor | 5 HP |
Electrics | 230/460 or 575/3/60 to CSA/UL Standards (specify) |
