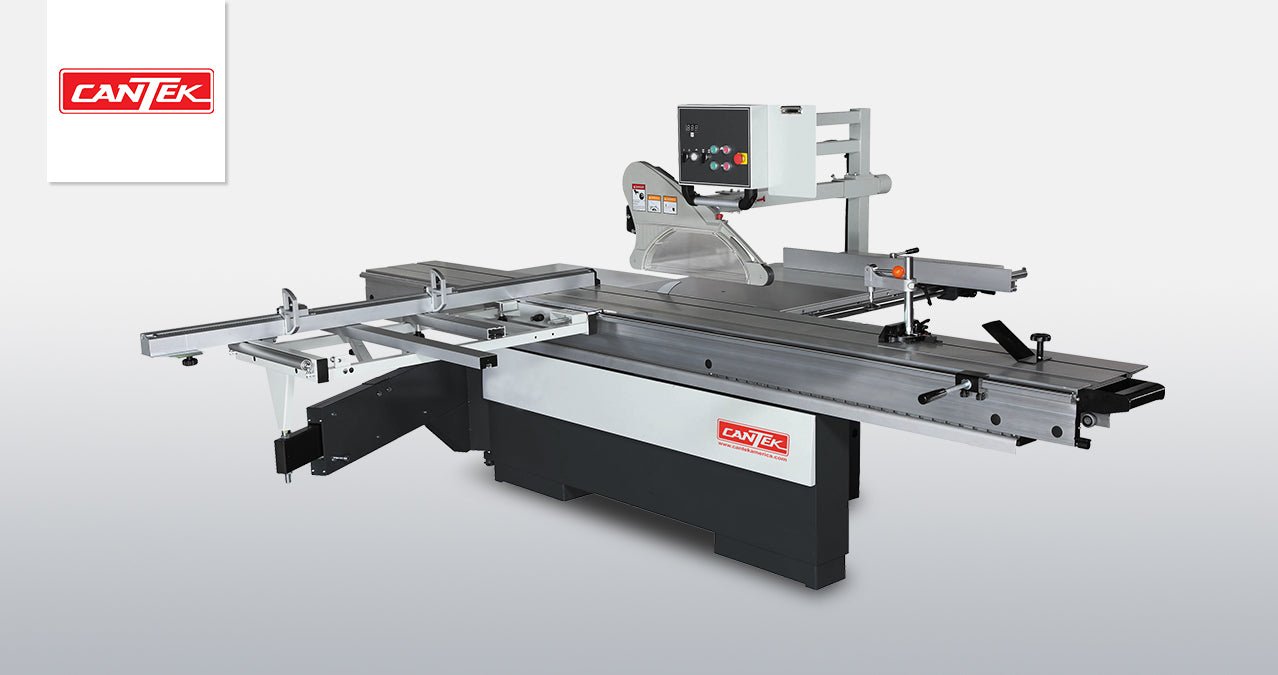

Cantek D405A Sliding Table Saw
Regular price
$15,252.00 USD
Couldn't load pickup availability
Interested in this Machine?
Call (888) 375-0384 or Click Here to Email Us at info@ibidmachinery.com
Powered up and down blade and tilt to make it easier.
The Cantek D405A Sliding Table Saw is the ideal sliding panel saw for high accuracy cutting of sheet materials to produce kitchen cabinetry, furniture, millwork operations, and more. This is our most industrial saw with manual setting rip fence. The 10’ sliding table is made from a precision aluminum extrusion and runs on precision linear guide rails. It has motorized rise/fall and tilt of the blades.
- Motorized blade height & tilt adjustment with a digital angle readout
- Precision sliding table runs on hardened linear guides for extremely smooth and effortless movement
- Powerful 7.5 HP main motor and separate 1HP scoring motor
- Ergonomic eye level control panel for adjusting the blade height, and blade angle along with on/off switches for the main and scoring motors

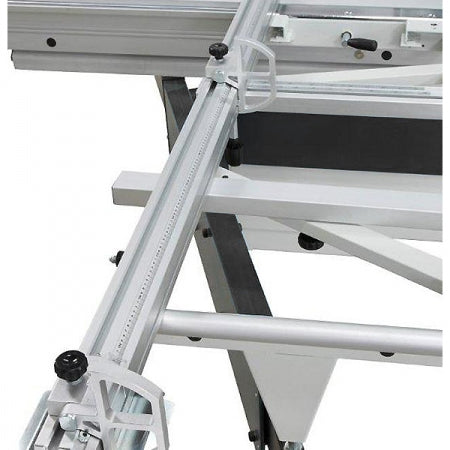

- Accurate crosscut miter fence for fast length and angle setting
- Motorized blade rise/fall
- Motorized blade tilting with electronic angle display on control panel
- Overhead control panel can be adjusted for operator convenience

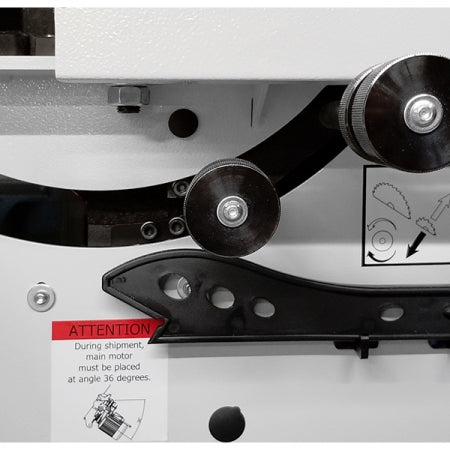

- Convenient external manual scoring adjustment
- Powerful 7.5 HP main motor with separate 1HP scoring motor
- (3) saw blade speeds for optimum cutting results in various materials

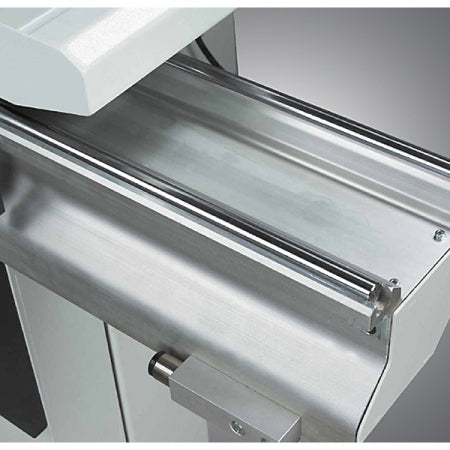

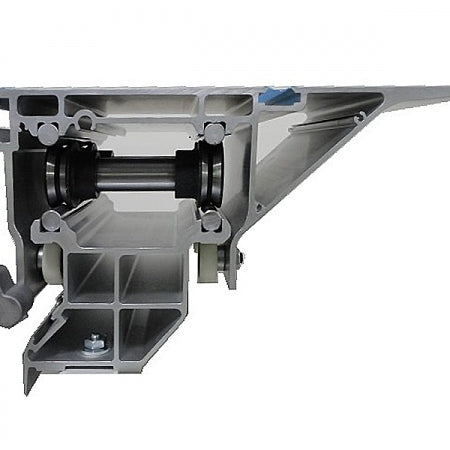

- Precision anodized aluminum sliding table with prismatic rollers running on precision ground steel guides

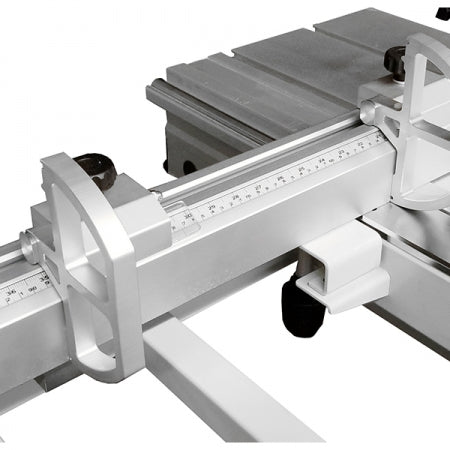

- Aluminum extruded crosscut fence with (2) flip stops with convenient angle adjustment for mitre cuts
- Solid cast iron main table which is ground and polished
- Heavy-duty outrigger for strong support of workpiece during cutting operations

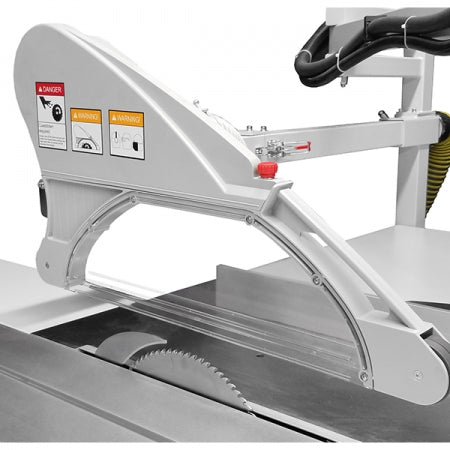

- Overhead CE blade guard with dust port

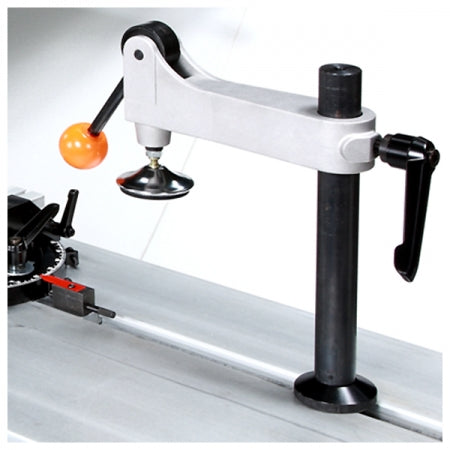

- Complete with eccentric clamp and wedge for solid wood cutting
Metric |
Inch |
|
Sliding table dimensions |
3200 x 395mm |
126 x 15.5″ |
Cast iron table dimensions |
548 x 896mm |
21.6″ x 35.3″ |
Extension table (rear) |
952 x 896mm |
38.7″ x 35.25″ |
Extension table (front) |
830 x 320mm |
32.7″ x 12.6″ |
Main saw blade (Max.) |
400mm |
16″ |
Main saw bore dia. |
30mm |
|
Max. cutting height @ 90o (355mm) |
105mm |
4.13″ |
Max. cutting height @ 90o (400mm) |
130mm |
5.12″ |
Max. cutting height @ 45o (355mm) |
70mm |
2.75″ |
Main motor power |
7.5 HP |
|
Main blade speed |
3000 / 4000 / 5000 RPM |
|
Scoring blade dia. |
120mm |
|
Scoring blade bore dia. |
20mm |
|
Scoring blade motor power |
1 HP |
|
Scoring blade speed |
8000 RPM |
|
Max. rip cutting width |
1300mm |
51″ |
Cutting width adjustment |
Manual |
|
Saw height adjustment |
Motorized |
|
Saw blade tilting adjustment |
0~45o (Motorized) |
|
Scoring saw adjustment |
Manual |
|
Dust collection outlets |
120 / 60mm |
4.72″ / 2.4” |
Machine shipping dimensions |
2110 x 1150 x 1120mm |
83″ x 45.25″ x 44″ |
Machine NW / GW |
575 / 666 kgs |
1265 / 1465 lbs |
Sliding table shipping dimensions |
3480 x 490 x 370mm |
137″ x 19.3″ x 14.6″ |
Sliding table NW / GW |
141 / 173 kgs |
310 / 381 lbs |
Machine total weight NW / GW |
740 / 874 kgs |
1628 / 1923 lbs |
Electrics |
230/3/60 =26.20 Full total Amps |
- Optional crosscut fence with digital readouts for precise length setting
- Optional digital display for angle of crosscut fence for accurate miter cuts
