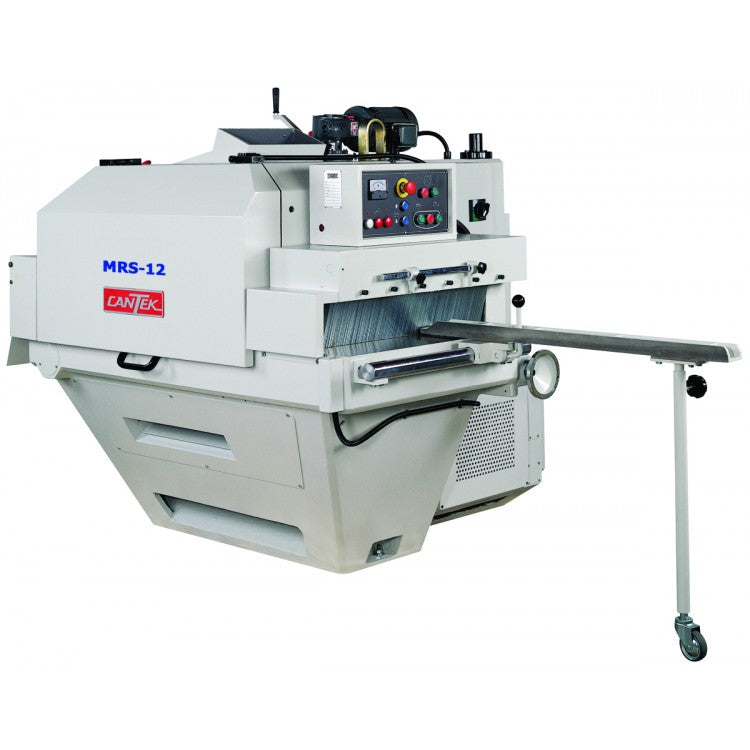

Cantek | MRS12 Multi Ripsaw
Regular price
$42,400.00 USD
Couldn't load pickup availability
Interested in this Machine?
Call (888) 375-0384 or Click Here to Email Us at info@ibidmachinery.com
- The Frame is Cast Iron, all the main parts are enclosed, ensuring protection and perfect stability
- Straight line caterpillar feeding with heavy guided chain with rubber inserts. Chain blocks are special cast iron with heat treated & precision ground pins
- Nickel chrome steel Saw Arbor with 70 mm OD – dble. keyed quick removal sleeve
- 3 sets of Anti-Kickback Fingers 2 top, 1 bottom
- Powered Rise & Fall to the pressure rollers
- New style round Fence Bar support with quick shift long fence
- Automatic Centralized lubrication system
- Automatic Star-Delta Starter (slow speed start) and low voltage controls
- C.E style European guard & safety features
- Long fence for control of long material
- Automatic star-delta starter (slow soft-low amperage start) and low voltage controls
- Electrics to 230/460 or575 volts 3 phase 60 cycles – as required to UL/CSA Standards
- With 3 rubber coated hold down rollers at outfeed end of machine
- Overload protection device – Feed speed will slow down automatically if saw motor becomes overloaded
| Maximum working thickness | 3 3/8” (85mm) with standard pressure shoe
*2 ¾” (70mm) with short stock attachment: |
| Minimum Length | 12” with short stock attachment |
| Saw Sleeve Usable Length | |
| (between outside saws) | 12″ (305 mm) |
| Sawblade Dia. | 200 to 305mm (8” to 12”) |
| Saw arbor Sleeve OD (Diameter) | 70 mm |
| Saw arbor diameter | 50 mm |
| Saw arbor vertical adjustment | 3.6” (90 mm) |
| Saw Motor HP | 60 HP 460 volt |
| Powered Pressure Rollers(Rise/Fall) | ½ HP motor |
| Saw Arbor Speed | 3800 RPM |
| Feed Speeds | 25 – 100 FPM |
| Feed Motor HP | 3 or 5 HP |
| Voltage | Machine can be ordered 230,460, or 575 v, stock machine is 460 v electrics |
| Table Size | 30” x 60″ |
| Table Height from floor | 33.5″ |
| Net Weight | 4510 lbs. |
| Shipping Weight | 5060 lbs. |
| Machine Dimensions | 82.68” 59” x 56 ½” |
| Shipping dimensions | 70.87” x 66.93” x 63” |
Machine includes HD Quick Removal Gang Saw Sleeve (70mm OD with 2 Keys) & a set of 38 Spacers
