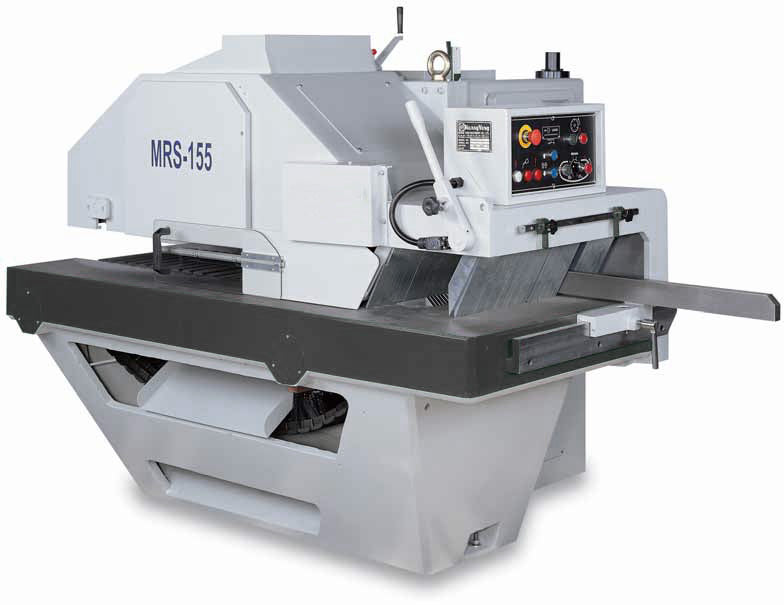

Cantek | MRS155 Heavy Duty Multi Ripsaw
Regular price
$0.00 USD
Couldn't load pickup availability
Interested in this Machine?
Call (888) 375-0384 or Click Here to Email Us at info@ibidmachinery.com
- Extra Robust 100 HP motor
- Great Cutting Thickness of 155mm (6.1″)
- Continuous duty 100 HP arbor motor allows deep cutting speeds of thick lumber
- MRS-155 has a massive cast iron base, composing the majority of total machine weight of 2700kg. This design provides incredible absorption characteristics under deep cutting, especially while performing thick lumber ripping with a multi-blade set up
- Precision chain and rails (dip chain) system facilitates accurate cutting operations
- Link Chain Feed made of special cast iron, high-grade steel connecting pins are heat-treated and precision ground
- 3 anti-kickback fingers. 2 top and 1 bottom row
- Digitally controlled lubricator for feed chain ensures a permanent oil film between the chain and the guide rails. If there is insufficient oil in the tank, the warning lamp lights up and the feed chain stops running automatically
- Electrical Amperage Display protects overload of the saw motor by slowing the link chain down automatically
Max. cutting thickness | 155mm |
Max. cutting width | 350mm |
Distance of fixed inside blade to column | 380mm |
Min. working length | 700mm |
Max. sawblade diameter | 450mm (18″) |
Min. sawblade diameter | 355mm (14″) |
Sawblade bore | 70mm |
Saw arbor diameter | 55mm |
Saw arbor speed (using 14″-16″ saw blade) |
2500 rpm |
Saw arbor speed (using 16″-18″ saw blade) |
3000 rpm |
Saw arbor motor | 75 HP |
Feed motor | 3 HP |
Variable feed speed | 2.5-24 m/min |
Powered raise and lower of roller group | 1 HP |
Dust hood diameter | 200mm |
Table height (pass line) | 745mm |
Table area (L x W) | 1840 x 790mm |
Overal dimensions (L x W x H) |
23040x1720x1600mm |
Packing dimensions (L x W x H) |
2090x1720x1600mm |
Net weight | 2700 kgs |
Gross weight | 3000 kgs |
CE Safety Guard (not shown)
Long infeed fence with round bar (not shown)
