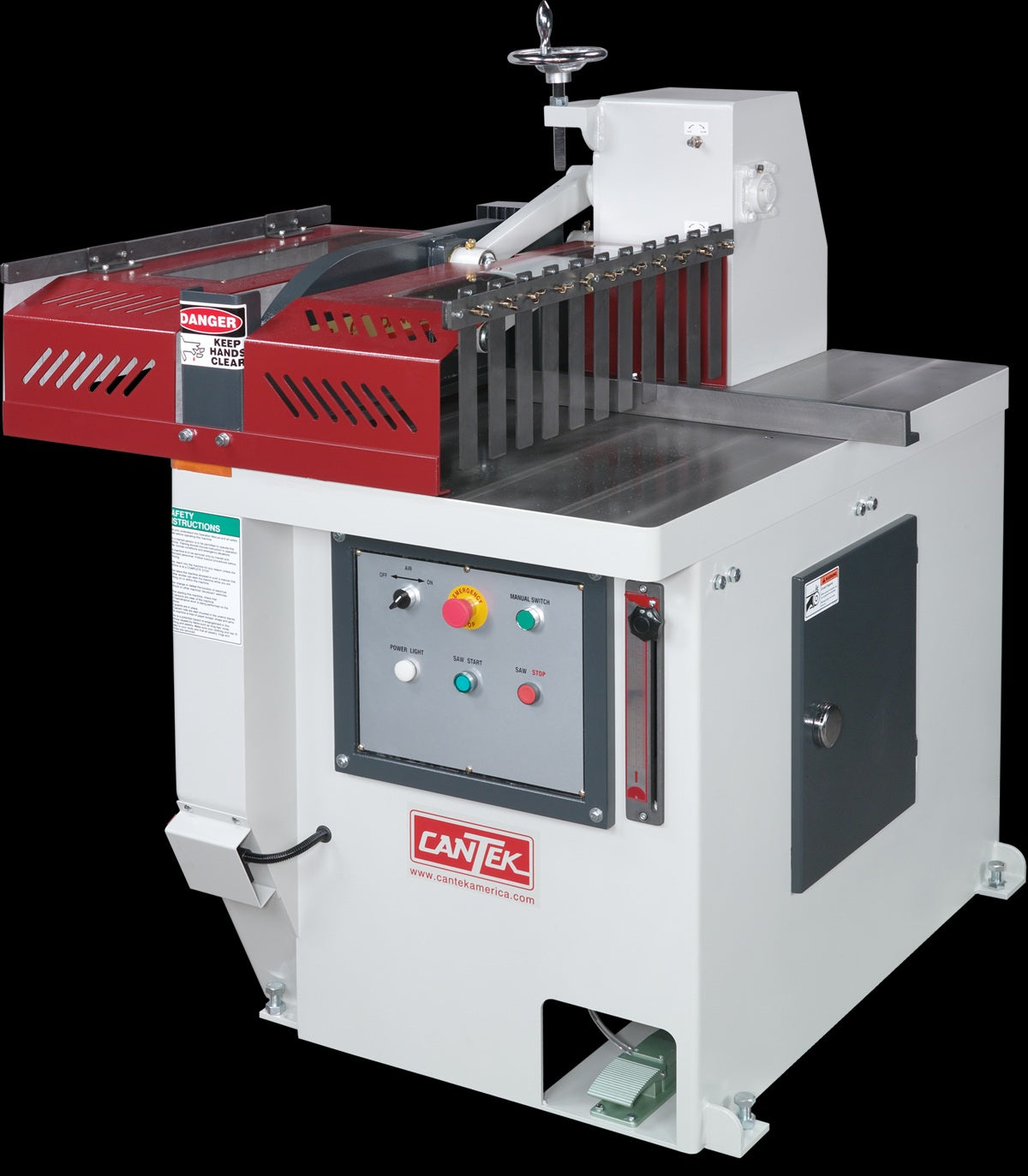

CANTEK PCS-36 Cut Off Saw 230V, 3PH. 460V available at additional cost.
Regular price
$25,000.00 USD
Couldn't load pickup availability
Interested in this Machine?
Call (888) 375-0384 or Click Here to Email Us at info@ibidmachinery.com
- The machine accommodates Ø36″ sawblade for great cutting capacity.
- Cutting speed 10~15 cuts/min.
- 25HP powerful sawblade motor.
- Equipped with a delay timer for safety protection.
- Easy to adjust or replace transmission belt.
- Available to equip with powered roller conveyor table.
- Rugged machine construction for maximum stability.
- FOUR DUST HOOD OUTLETS
- The machine is equipped with 4 dust hood outlets with Ø5” diameter, providing a dramatical increase in dust suction efficiency
- The lubricator is used for lubricating the clamp mechanism, which effectively upgrades smoothness of clamping motions.
- Telemecanique Electrics
- CSA Electric Control Box
- CE Safety Switch
Note: A Saw Blade is included with the machine
| Cycle speed | 10 ~ 15 strokes/min |
| Cycle operation | Pneumatic |
| Saw blade size (included) | 36” |
| Saw arbor diameter | 2” |
| Saw bade speed | 1500 rpm |
| Dust exhaust diameter | Ø5” x (4) |
| Motor | 25 HP |
| Table size | 57.48” x 34.64” (1460 x 880 mm) |
| Net weight | 2469 lbs (1120 kgs) |
| Gross weight | 2491 lbs (1130 kgs) |
| Packing dimensions (LxWxH) | 63” x 42.52” x 76.77” (1600 x 1080 x 1950 mm) |
