2017 Giben Anderson G4 512 Full Line CNC Router-Full Warranty- Installation Included

Out of stock
Regular price $115,000.00 USD

Interested in this Machine?

Call (888) 375-0384 or Click Here to Email Us at info@ibidmachinery.com

Contact us

Brand New Factory Demo

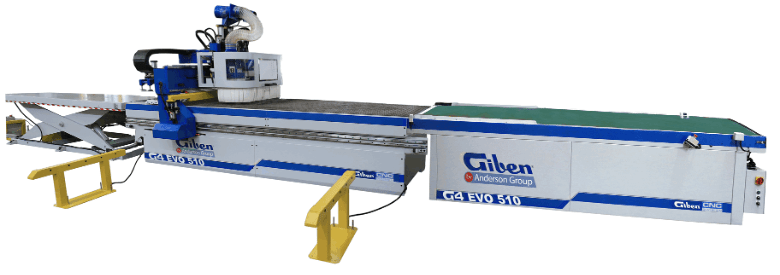

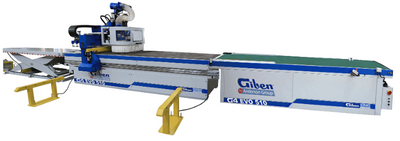

2017 Giben Anderson G4 512. (5x12 table) Full Line CNC Router

Warranty Included

Installation Included

Located in Georgia

TECHNICAL SPECIFICATIONS:

Table Size 3700 Mm X 1600 Mm (144” X 63”)

Pop-Up Positioning Pins 2 (Plus 2 Pop-Up Material Guide Rails)

Vacuum Zones Per Table 2 (Two)

Axis Stroke X Axis: 3900 Mm (153”)

Y Axis: 1950 Mm (76.8”)

Z Axis: 200 Mm (7.9”)

Single Axis Rapid Rate X-Axis: 80 Meters/Min (3,150”/Min)

Y-Axis: 80 Meters/Min (3,150”/Min)

Z-Axis: 30 Meters/Min (1,181”/Min)

Maximum Rapid Traverse All-Axis: 141 Meters/Min (5,551”/Min)





Product Description: TECHNICAL SPECIFICATIONS:



Table Size 3700 Mm X 1600 Mm (144” X 63”)

Pop-Up Positioning Pins 2 (Plus 2 Pop-Up Material Guide Rails)

Vacuum Zones Per Table 2 (Two)



Axis Stroke X Axis: 3900 Mm (153”)

Y Axis: 1950 Mm (76.8”)

Z Axis: 200 Mm (7.9”)



Single Axis Rapid Rate X-Axis: 80 Meters/Min (3,150”/Min)

Y-Axis: 80 Meters/Min (3,150”/Min)

Z-Axis: 30 Meters/Min (1,181”/Min)



Maximum Rapid Traverse All-Axis: 141 Meters/Min (5,551”/Min)

Machine Location State: Georgia

Machine Location City: Gainesville

Year: New Factory Demo

Make: Giben Anderson

Model: G4 5x12 Full Line CNC Router

Serial No:

Phase/Voltage: 208-240-480

Condition: Excellent

Any Known Issues:

In Production:

Software Transfer:

Access to Forklift for Loading:

Loading Fee:

Shipping Dimensions:

Shipping Weight: 16500 Lbs (Not Including Pumps)

Shipping Brackets Available:
