Product Description: Concept
CNC Thru Feed Machining Center With The Ability Of Drilling, Grooving And Routing Of Panels From Top And Bottom, Allowing To Produce Two Parts At The Same Time.
Structure
The Structure Consists Of An Engineered Frame Strongly Ribbed And Very Rigid; The Closed Ring Structure Has A Large Base To Achieve And Maintain, Year After Year, Stability And Precision Under All Work Conditions.The Newly Designed Frame Enables Automatic Input Of The Panel And It Has Been Designed To Obtain The Lowest Overall Dimension.
Movement
The Panels Movement Along The Longitudinal Machine Axis (X) Is Realized By A Couple Of Clamps Independent From Each Other. The Patented Design Allows The Working Inside Of The Clamp Optimizing The Production Cycle. These Clamps, Managed By The Numerical Control, Acting As Rear Reference Stop For The Panels Alignment. The Movement Of The Operating Units Along X And Z Axes Is Driven By Brushless Motors And Recirculating Ball Screws, Independent Between Upper And Lower Units; It Is Possible In This Way To Process Simultaneously 2 Panels With Same Dimensions But Specular Or With Different Working.
Office PC
·
Windows 7 Operating
System
·
17" LCD Color
Display
·
Xylog Plus 2 Interface
Machine Software
General
Features Of The Xylog Plus 2 Software
Programming
·
Parametric, Graphic
And ISO Programming
·
Import Of The DXF And
ASCII Files (2D)
·
Guided Editor With
Graphic And Syntactic Help Screens
·
Automatic Optimization
Of Boring Cycles
·
Panel Origin Change To
Carry Out Processing Of Workpieces With Special Shapes Or Profiles
Included Accessories
·
Use Of Bar Codes With
Already Integrated Software
·
Self-Diagnosis And
Signaling Of Possible Errors Or Damages In The User's Language
·
Single Step Operation
For Manual Control Of Individual Program Steps
·
On-Line Calculator Of
Computed Data
·
Simulated Program
Execution
Configuration
·
Operator Interface In
User's Language (I - GB - F - D – E)
·
Machining Head Graphic
Configuration
·
Double Override Which
Allows To Adjust The Operating Unit Positioning Speed
Safety Devices
The UNIFLEX Machine Is Protected On The All Sides By Effective CE Safety Systems (Protection Nets + Sensible Mats+ Photoelectric Cell + Sensors) That Prevent Any Contact Between The Operator And The Machine Moving Parts During Normal Operation.
The Movement Of The Panel Along The X Axis Is Accomplished By A Set Of Independent Clamps (Patent Pending Morbidelli). The Clamps Also Act As Rear Reference Stop To Align The Panels And Are Equipped With An Automatic Thickness Measuring Device.

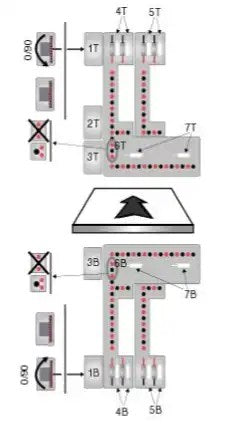

Boring Heads
The Operating Unit Is Composed By Two Boring Units Totally Independent Between Them; One Upper And The Other One Lower, At Independent Spindles Each Equipped With:
• 12 Vertical Spindles Along X
• 16 Vertical Spindles Along Y
• 3 Vertical Hinge Unit Position 6
• 3 Vertical Spindles In Y
• 2 + 2 Horizontal Spindles In X
• 1 Horizontal Spindles In Y
• 1 Horizontal Spindles In Y
Y Prime
• 11 Vertical Spindles Along X
• 3 Vertical Spindles In Y
• 2 + 2 Horizontal Spindles In X
Drilling Head With Patented RO.AX. Technology (RO.AX.)
• Increased Shaft Diameter - Ø 20mm
• No Backlash On Sliding Guides
• No Vibrations
• Exclusive “Dust-Protection” System
Advantages:
• Better Precision
• Increased Finishing
• Faster Drilling Operations
• Higher Productivity
• Increased Effectiveness
• 1000 Hrs Re-Lubrication Period
52.08.71 Table With Cross Belts Manual Pre-Loading Station 610+610
This Station Allows The Pre-Loading Of 2 Overlapped Panels With A Width Up To 610 Mm, While The Machine Is Working. As The Panel In Working Phase Crosses The Loading Area, Some Side Pushers Pick The Panels Up From The Pre-Loading Area. During The Automatic Positioning, The Panels Are Measured; These Dimensions Are Transferred To The Control Which Adjusts The Programmed Working Scheme To The Real Workpiece Dimensions. This Allows To Load Of The Working Program In Masked Time. The Station Is Equipped With Front Safety Photocell

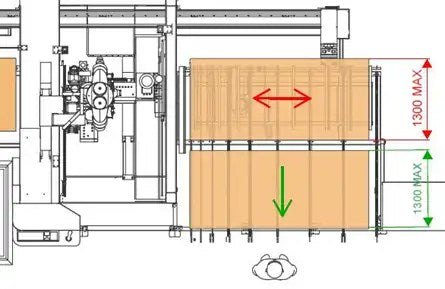

Unloading Station With Cross Belts.
The Unloading Table Is Made By Supports Spaced By Cross Belts.
• The Supports Act As Support To The Panel During The Whole Working Phases
• The Cross Belts Move The Finished Panels On The Side Of The Machine Allowing To The Operator An Easy And Safety Removal Operation.
With This Station It Can Be Positioned A Panel With A Width Up To 1300 Mm Allowing The Machine To Start The Working Of The Next Panel. It Is Possible Also To Manage 2 Overlapped Panels.
52.37.07 Electric Cabinet With Air Conditioning Device
It Maintains Temperature Of Approx. 65°F Inside The Electric Cabinet.
Automatic Lubrication System
The Lubrication Of The X, Y, And Z Axis Is Managed At Fixed Intervals By The Numerical Control, Without Any Manual Interventions And Any Stop Of The Machine To Increase The Machine Reliability And To Reduce At The Minimum Any Maintenance Time.
52.36.90 Partialized Dust Extraction
The Dust Extraction Air Flow Is Directed To The Specific Operating Unit Which Is Working At Each Time Through Dedicated Valves.
63.03.43 Autotransformer 35kVA 208-230-460 V
F58L Upper Drilling Unit (48+8X+2Y+Blade)
1T.UN.FX Option For Position 1T - (52.39.12) Saw Blade Unit With Automatic Rotation 0/90°
Positioned On The Head In Pos.1, With Independent Drive And Automatic Positioning That Allows To Execute Cuts In X And Y Direction.
• Maximum Saw Blade Diameter: 160 Mm (6.29”)
• Maximum Thickness 6 Mm (.23”)
2T.UN.FX Position 2T - (59.29.26) Additional Horizontal Boring Spindles In Y (1+1)
It Includes:
• 2 Horizontal Single Drilling Heads, Clamp Side, In Position 2
• Center To Center Distance 32 Mm, With 75mm Selection
• 6000 Rpm Bits Rotation Speed By Inverter
• Bits Attachment Ø 10
• 72 Mm Max Tools Length
• Z Max. 35 Mm From Pieces Surface
3T.UN.FX Option For Position 3T - (52.39.09) Electrospindle (10 HP) HSK 63F
This Electrospindle Is Fixed On The Head In Pos.3, With Independent Drive.
Features:
• Max Power (S6) 7.5 KW (10 HP)
• HSK F 63 Quick Release Tool-Holder
• 1500 - 24000 Rpm Spindle Speed
• (S1/S6) 6,6/7,5 KW (9/10 Hp) Constant Motor Power From 12000 To 18000 Rpm
• Right And Left Rotation
• Static Inverter For Continuous Speed And Rapid Shutdown Of Rotation
• Exhaust Hood Around Whole Perimeter
• Cooling By Airflow
• 150 Mm Max. Tool Length (Including Toolholder)
• 20 Mm Max. Tool Diameter
• No. 2 HDK63F Tool Holders, ER32 Connection Complete With Nut
• No. 2 Expansible Collets, 15-16mm Diameter, ER32 Connection
4T.UN.FX Option For Position 4T - (52.39.10) Additional Horizontal Spindles In X (2+2)
Additional Horizontal Drilling Blocks In The X Direction On The Fixed Side
5T.UN.FX Option For Position 5T - (52.39.10) Additional Horizontal Spindles In X (2+2)
Additional Horizontal Drilling Blocks In The X Direction On The Adjustable Unit
6T.UN.FX Option For Position 6T - (52.38.33) Drilling Unit For Hinges 45/9,5
It Is Positioned On The Head In Position 6, In Place Of The 3 Vertical Spindles. It Allows The Execution Of 3 Holes To Introduce Hinges In A Single Step. 57,5 Mm Max. Tool Length.
Drilling Head Configuration (Lower Unit)
F58L Bottom Drilling Unit (48+8X+2Y+Blade)
1B.UN.FX Option For Position 1B - (52.39.12) Saw Blade Unit With Automatic Rotation 0/90°
Positioned On The Head In Pos.1, With Independent Drive And Automatic Positioning That Allows To Execute Cuts In X And Y Direction.
• Maximum Saw Blade Diameter: 160 Mm (6.29”)
• Maximum Thickness 6 Mm (.23”)
3B.UN.FX Option For Position 3B - (52.39.09) Electrospindle (10 HP) HSK 63F
This Electrospindle Is Fixed On The Head In Pos.3, With Independent Drive.
Features:
• Max Power (S6) 7.5 KW (10 HP)
• HSK F 63 Quick Release Tool-Holder
• 1500 - 24000 Rpm Spindle Speed
• (S1/S6) 6,6/7,5 KW (9/10 Hp) Constant Motor Power From 12000 To 18000 Rpm
• Right And Left Rotation
• Static Inverter For Continuous Speed And Rapid Shutdown Of Rotation
• Exhaust Hood Around Whole Perimeter
• Cooling By Airflow
• 150 Mm Max. Tool Length (Including Toolholder)
• 20 Mm Max. Tool Diameter
• No. 2 HDK63F Tool Holders, ER32 Connection Complete With Nut
• No. 2 Expansible Collets, 15-16mm Diameter, ER32 Connection
4B.UN.FX Option For Position 4B - (52.39.10) Additional Horizontal Spindles In X (2+2)
Additional Horizontal Drilling Blocks In The X Direction On The Fixed Side
5B.UN.FX Option For Position 5B - (52.39.10) Additional Horizontal Spindles In X (2+2)
Additional Horizontal Drilling Blocks In The X Direction On The Adjustable Unit
6B.UN.FX Option For Position 6B - (52.38.33) Drilling Unit For Hinges 45/9,5
It Is Positioned On The Head In Position 6, In Place Of The 3 Vertical Spindles. It Allows The
Execution Of 3 Holes To Introduce Hinges In A Single Step. 57,5 Mm Max. Tool Length.
Machine Location State:
Machine Location City:
Year: 2017
Make: Morbidelli
Model: Uniflex HP
Serial No: AA2/004529
Phase/Voltage: 63.03.43 Autotransformer 35kVA 208-230-460 V
Condition: Excellent
Any Known Issues: No
In Production: No
Software Transfer: No
Access to Forklift for Loading: Yes
Loading Fee:
Shipping Dimensions:
Shipping Weight:
Shipping Brackets Available: Yes
