Meticulously maintained edgebander with pre-mill and corner rounding.

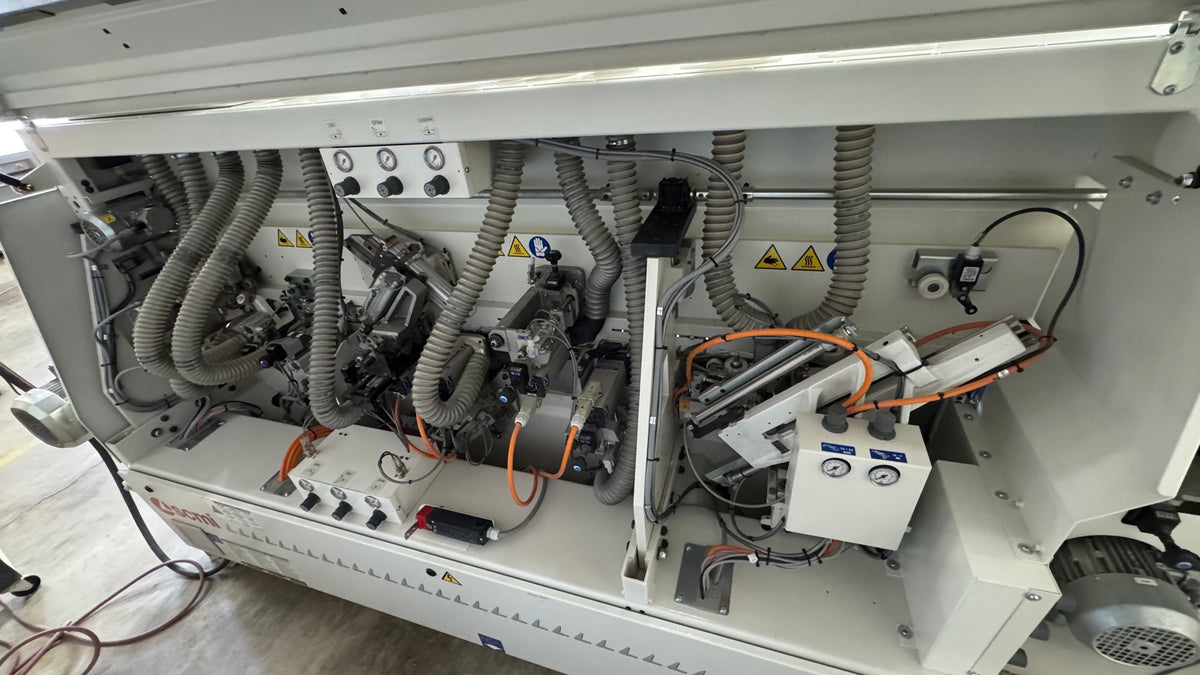

1. Pre-Milling Unit (T): Features twin counter-rotating diamond cutter heads to trim and square up the edge of your panels, eliminating chipping from the main panel saw prior to applying glue.
2. Anti-Adhesive Unit (Pre-spray): Applies a release agent fluid to prevent squeeze-out glue from sticking to the panel surfaces.
3. Gluing & Edge Feeding Station: Hot-melt glue pot system (EVA) paired with a heavy-duty roller pressure zone to press coil or solid wood strips onto the panel edge.
4. End Trimming Saw Station: Front and rear independent high-speed saw motors running on linear guides to cleanly cut off the overhanging front and back edges.
5. Top & Bottom Flush/Radius Trimming Unit: High-frequency motors with profile cutters to clean off the top and bottom edge overhanging thickness (can be adjusted for flush, bevel, or radius milling).
6. Corner Rounding Unit (ER2): Dual-motor finishing unit that automatically rounds out the top, bottom, front, and rear corners of panels up to 3mm thick, ensuring a smooth, completed edge on profiles like PVC or ABS.
7. Profile / Edge Scraping Station: Uses radius-profile scraping knives to clean and smooth out any tool marks left by the rotary milling stations on thick PVC/ABS banding.
8. Glue Scraping Unit: Flat knives that glide along the panel surface to strip away any residual glue squeeze-out.
9. Buffing Unit: Rotating cloth wheels designed to polish and restore color consistency to the edgeband

ASK ABOUT OUR USED MACHINERY GUARANTEE! *

Information displayed has been gathered from machine owner, internet searches and other sources. Information is believed to be correct, but not guaranteed. All buyers should verify this information independently and/or have the machine inspected for accuracy prior to purchase

*Some restrictions apply.

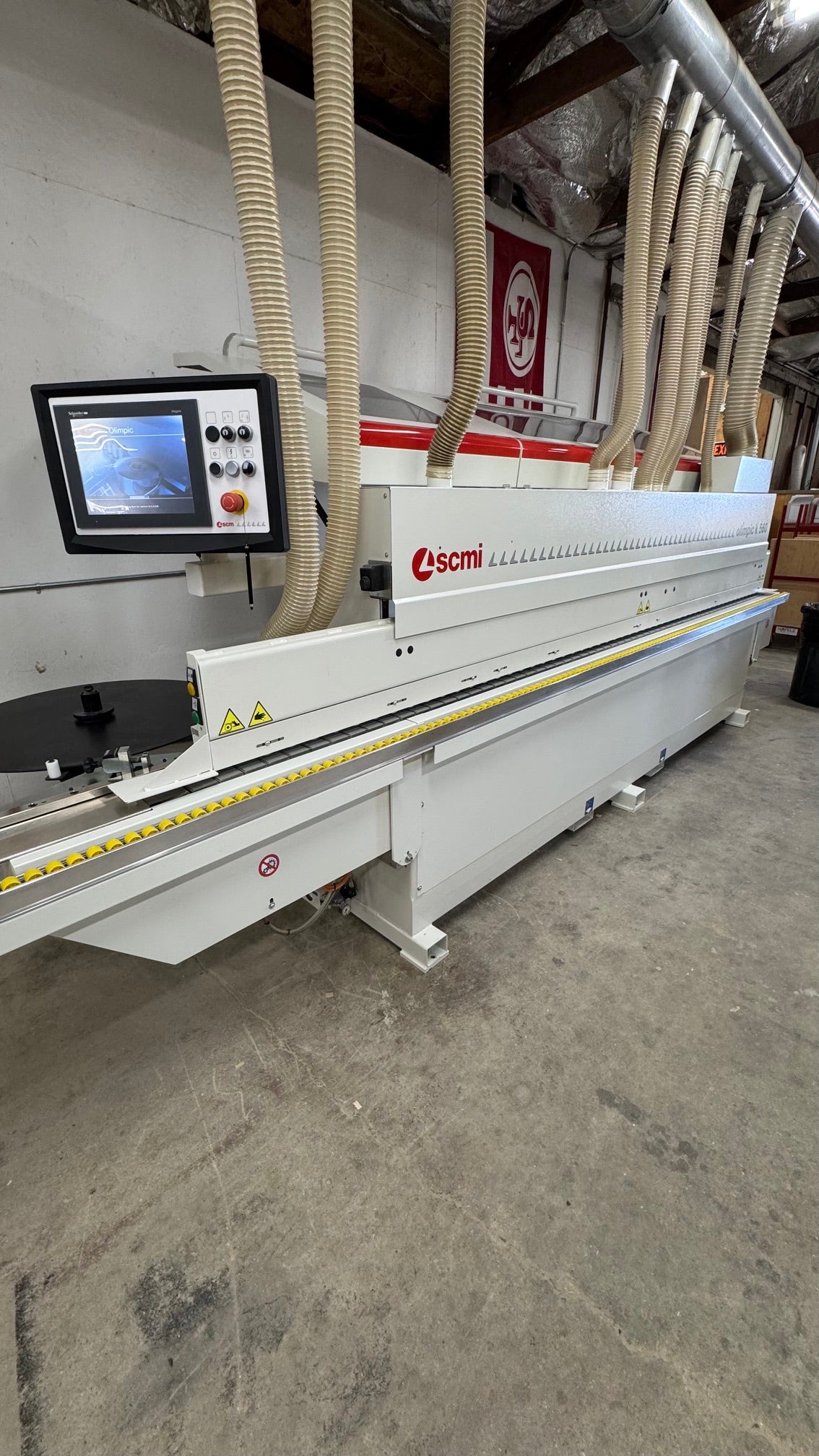

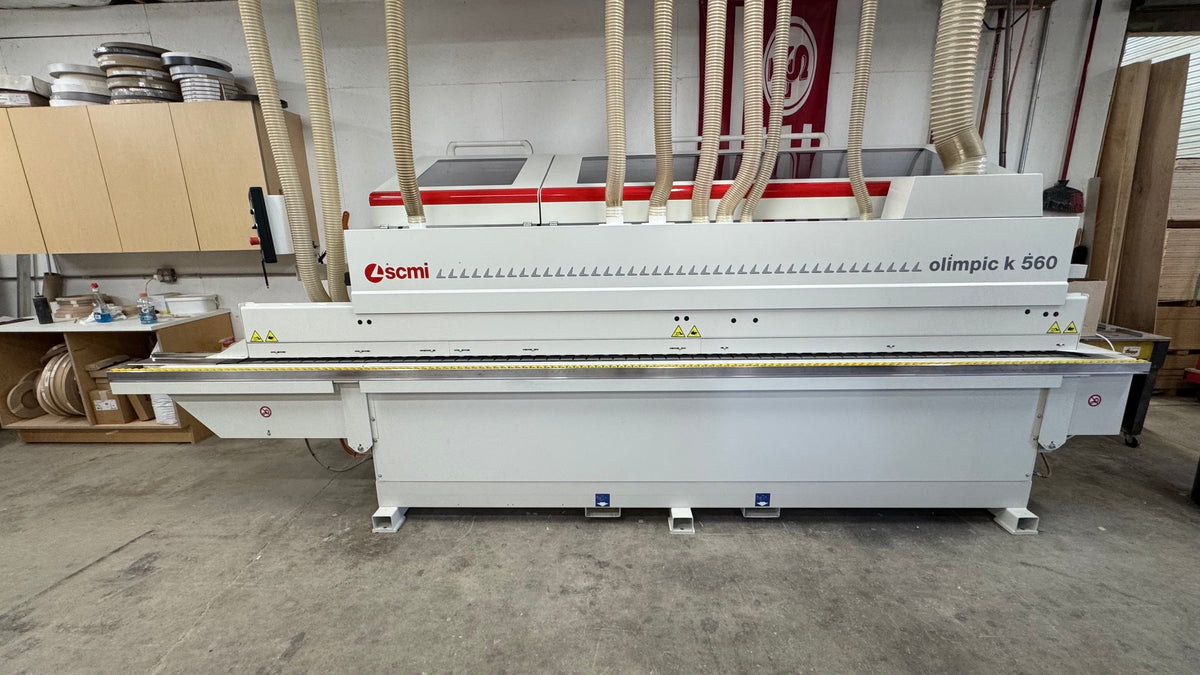

Product Description: SCM Olimpic K560 T-ER2 Edgebander with Pre-Mill and Corner Rounding (2017) - California

Machine Location State: California

Machine Location City: Angels Camp

Year: 2017

Make: SCM

Model: Olimpic K560 T-ER2

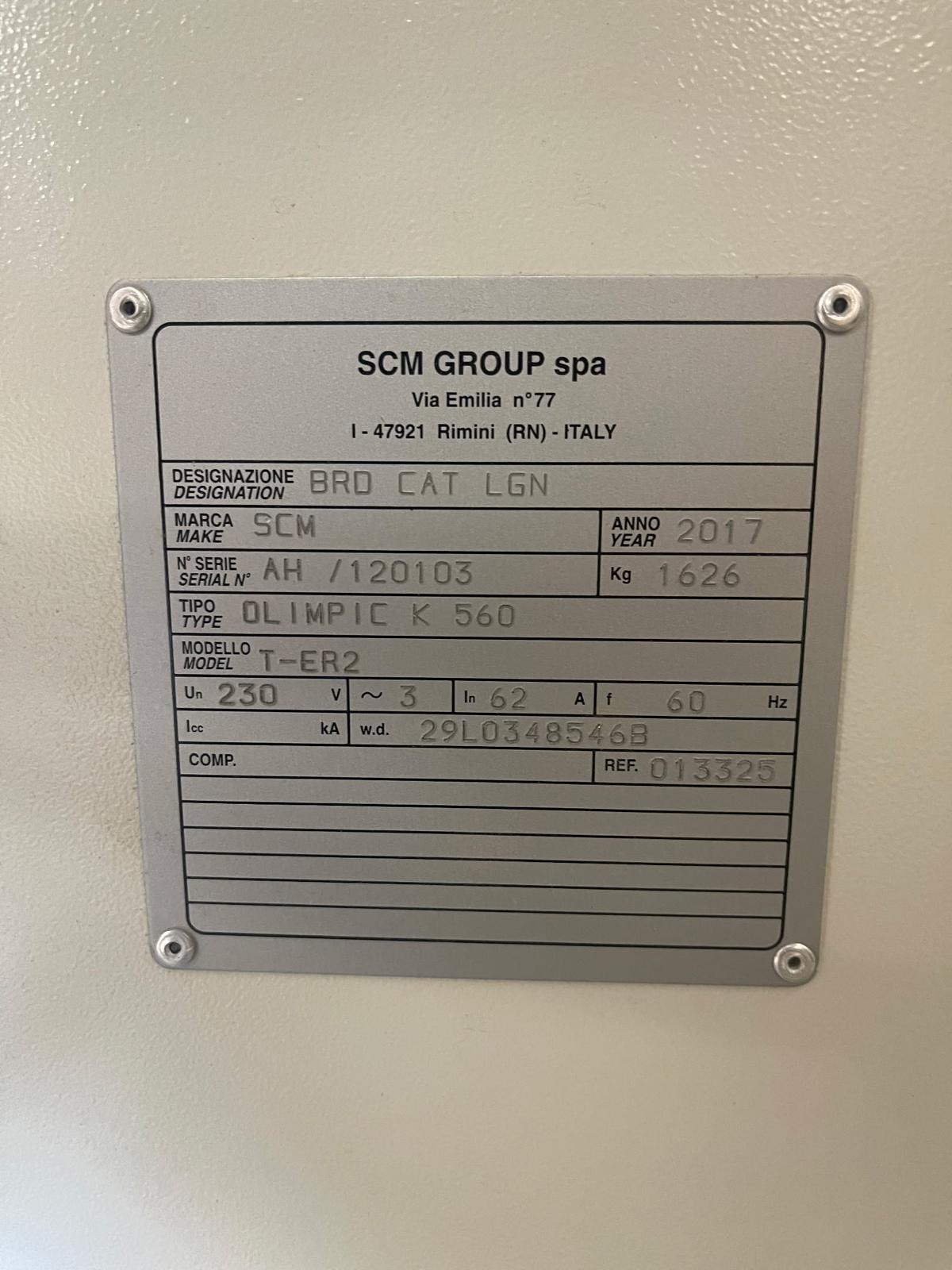

Serial No: AH/120103 See plate in photos for confirmation

Phase/Voltage: 3PH See plate in photos

Condition: Excellent Used Condition

Any Known Issues: No

In Production: Yes

Product Type: Edgebander

Access to Forklift for Loading: Yes

Loading Fee: N/A

Shipping Dimensions: 190" x 67" x 59" Approx

Shipping Weight: 4500 lbs approx

Shipping Brackets Available:
